Intercalation Engineering of MXene via Nickel Hydrothermal Treatment for Anti-Restacking and High-Stability Hybrid Supercapacitors
DOI:
https://doi.org/10.48048/tis.2026.11796Keywords:
MXene, Intercalation nickel (Ni), Self-restacking, Supercapacitor, Activated carbonAbstract
Intercalation engineering of MXene via nickel hydrothermal treatment was investigated to improve interlayer spacing, prevent restacking, and enhance the electrochemical performance of hybrid supercapacitors. MXene was synthesized by etching the aluminum layer from the MAX phase, and nickel was successfully intercalated between the layers using a hydrothermal process. X-ray diffraction (XRD) analysis revealed an increase in d-spacing from 9.94 Å for pristine MXene to 13.01 Å for MXN2, confirming effective suppression of restacking. The specific surface area of MXN2 reached 35.27 m2 g−1, significantly higher than pristine MXene (3.96 m2 g−1). Electrochemical testing showed MXN2 achieved a specific capacitance of 118.9 F g−1 in a 3-electrode system, and 60.03 F g−1 in a 2-electrode coin cell, with an energy density of 6.48 Wh kg−1 and excellent cycling stability (97.47% retention after 1,000 cycles). These findings demonstrate that nickel intercalation significantly enhances MXene’s structural and electrochemical properties, making MXN2 a promising material for high-stability hybrid supercapacitors.
HIGHLIGHTS
- Revolutionary Surface Area Increase: Nickel intercalation via hydrothermal method dramatically expands the MXene interlayer spacing, boosting the specific surface area by ~890% (from 3.96 to 35.27 m2 g−1).
- Superior Hybrid Performance: The AC/MXene-Ni symmetric electrode delivers an outstanding specific capacitance of 96.37 F g−1, nearly 3 times higher than the AC/MXene counterpart (35.66 F g−1).
- Unmatched Long-Term Stability: The device demonstrates exceptional cycling durability, retaining 97.5% of its initial capacitance after 1,000 cycles, a critical advantage for practical applications.
- Successful Symmetric Device Fabrication: The research successfully translates the material innovation into a working symmetric coin cell supercapacitor, validating its practical feasibility.

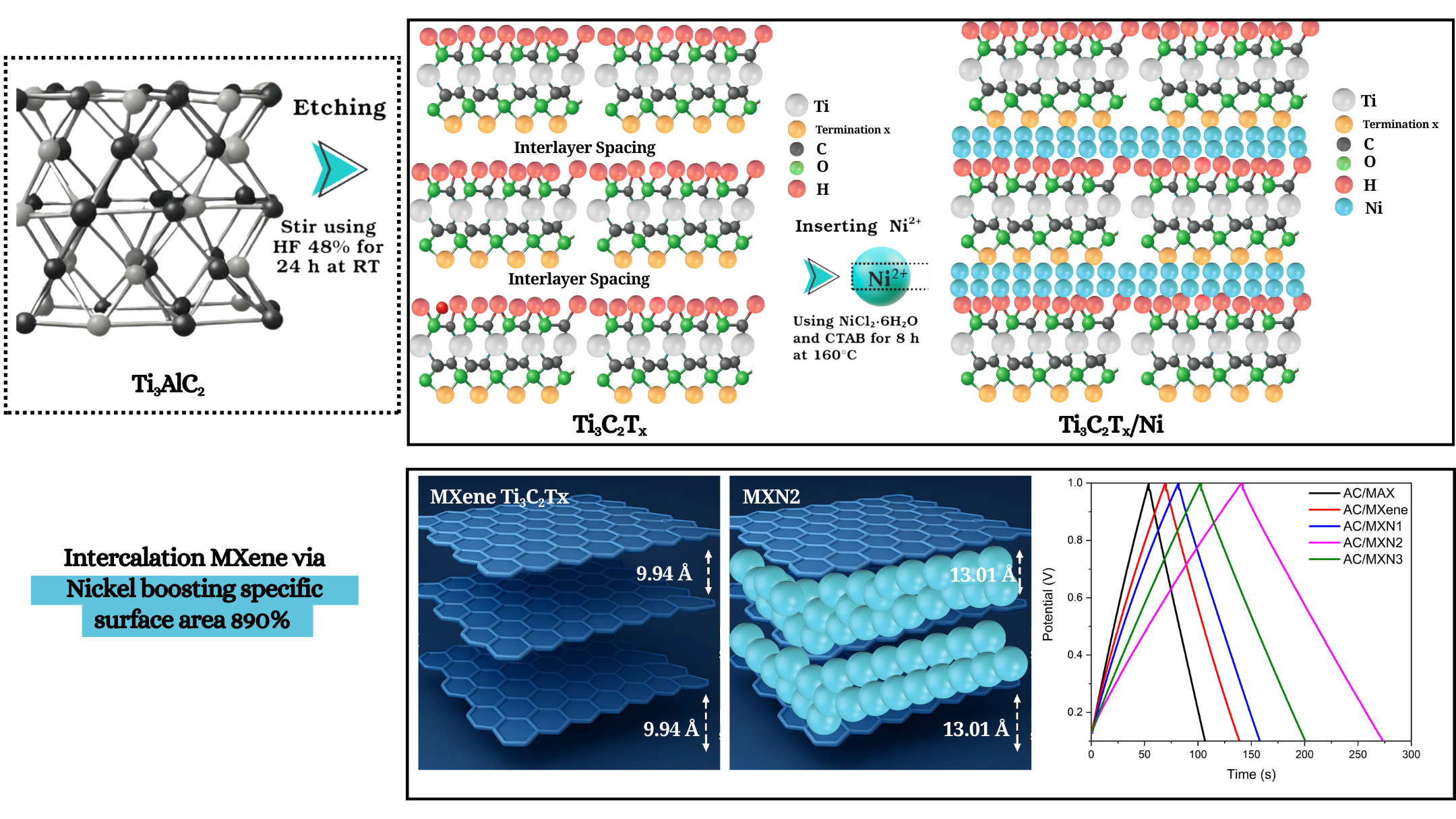

GRAPHICAL ABSTRACT
Downloads
References
IEA. Renewables 2023: Analysis and forecast to 2028, Available at: www.iea.org, accessed July 2025.
L Yu and GZ Chen. Supercapatteries as high-performance electrochemical energy storage devices. Electrochemical Energy Reviews 2020; 3(2), 271-285.
WK Wardani, NLW Septiani, SW Himmah, I Hamidah, M Diantoro, A Rusydi, H Abdullah and B Yuliarto. Layered nickel cobalt hydrogen phosphate for high performance of supercapattery electrode. Journal of Materials Science: Materials in Electronics 2024; 35(16), 1108.
M Diantoro, I Istiqomah, OPD Lestari, Y Al Fath, Y Yudyanto, CI Yogihati, M Munasir, DH Kusumawati and ZB Aspanut. A comprehensive study of binder polymer for supercapattery electrode based on activated carbon and nickel-silicon composite. Materials Science for Energy Technologies 2023; 6, 368-381.
PS Dhapola, M Karakoti, S Kumar, VD Punetha, M Matiyani, NA Masmali, M Diantoro, SV Savilov and PK Singh. Environment-friendly approach for synthesis of promising porous carbon: Empowering supercapacitors for a sustainable future. Materials Advances 2024; 5(6), 2430-2440.
MM Diantoro, I Istiqomah, YA Fath, N Nasikhudin, Y Alias and W Meevasana. Potential of MnO2-based composite and numerous morphological for enhancing supercapacitors performance. International Journal of Applied Ceramic Technology 2023; 20(4), 2077-2098.
P Forouzandeh and SC Pillai. MXenes-based nanocomposites for supercapacitor applications. Current Opinion in Chemical Engineering 2021; 33, 100710.
D Zhang, L Li, J Deng, S Guo, H Pang, J Lu, D Xia and X Ji. A new type of zinc ion hybrid supercapacitor based on 2D materials. Nanoscale 2021; 13(25), 11004-11016.
SS Kumar, D Kang, H Hong, MA Rehman, Y Lee, N Lee and Y Seo. Effect of Ti3C2T: XMXenes etched at elevated temperatures using concentrated acid on binder-free supercapacitors. RSC Advances 2020; 10(68), 41837-41845.
S Zhang, H Ying, P Huang, T Yang and WQ Han. Hierarchical utilization of raw Ti3C2Tx MXene for fast preparation of various Ti3C2Tx MXene derivatives. Nano Research 2022; 15(3), 2746-2755.
N Xue, X Li, M Zhang, L Han, Y Liu and X Tao. Chemical-combined ball-milling synthesis of fluorine-free porous MXene for high-performance lithium ion batteries. ACS Applied Energy Materials 2020; 3(10), 10234-10241.
BD Sankar, S Sekar, S Sathish, S Dhanasekaran, R Nirmala, DY Kim, Y Lee, S Lee and R Navamathavan. Recent advancements in MXene with 2-dimensional transition metal chalcogenides/oxides nanocomposites for supercapacitor application - A topical review. Journal of Alloys and Compounds 2024; 978, 173481.
K Zhang, G Ying, L Liu, F Ma, L Su, C Zhang, D Wu, X Wang and Y Zhou. Three-dimensional porous Ti3C2Tx-NiO composite electrodes with enhanced electrochemical performance for supercapacitors. Materials 2019; 12(1), 188.
Z Li, M Jiang, F Wu, L Wu, X Zhang and L Li. Synergistic in-situ intercalation and surface modification strategy for Ti3C2Tx MXene-based supercapacitors with enhanced electrochemical energy storage. Journal of Energy Storage 2023; 84, 110772.
P Das, TK Mondal, S Bera, S Das, HL Hsu, YK Su and SK Saha. Facile in-situ growth of spore-like silica on layered MXene sheets for potential application in Supercapacitor. Electrochim Acta 2023; 465, 142983.
G Lu, X Xing, J Zhang, X Xu, X Zhang, H Liu, J Fan and B Zhang. Rational design of cobalt ion chelated quasi-monolayer Ti3C2Tx MXene with abundant surface loading for high-performance asymmetric supercapacitor. Colloids and Surfaces A: Physicochemical and Engineering Aspects 2023; 671, 131694.
М Pogorielov, K Smyrnova, S Kyrylenko, O Gogotsi, V Zahorodna and А Pogrebnjak. Mxenes - a new class of 2-dimensional materials: Structure, properties and potential applications. Nanomaterials 2021; 11(12), 3412.
J Yu, N Fu, J Zhao, R Liu, F Li, Y Dua and Z Yang. High specific capacitance electrode material for supercapacitors based on resin-derived nitrogen-doped porous carbons. ACS Omega 2019; 4(14), 15904-15911.
M Imran, R Khan, AM Afzal, MW Iqbal, S Mumtaz, MZ Iqbal, X Zhang, A Ali, MD Albaqami and S Mohammad. Designing high-performance hybrid supercapacitors and electrochemical sensors with carbon nanotube-embedded silver manganese sulfide@AC@NF composites. Journal of Energy Storage 2024; 96, 112642.
Y Li, W Zhang, X Li, H Kang, B Yang nad Z Li. Facile solvothermal synthesis of Co1−xS@CNTs/AC nanocomposite as integrated electrode for high-performance hybrid supercapacitors. Journal of Alloys and Compounds 2003; 932, 404-406.
X Chen, H Ge, W Yang, J Liu and P Yang. Construction of high-performance solid-state asymmetric supercapacitor based on Ti3C2Tx MXene/CuS positive electrode and Fe2O3@rGO negative electrode. Journal of Energy Storage 2003; 68, 107700.
P Nikhil, S Vasanth, N Ponpandian and C Viswanathan. Synthesis effect on surface functionalized Ti3C2Tx MXene supported nickel oxide nanocomposites with enhanced specific capacity for supercapacitor application. Journal of Energy Storage 2023; 72, 108414.
P Kathiravan, K Thillaivelavan, G Viruthagiri and N Shanmugam. Investigations of thermal, structural, optical, morphological and magnetic properties of chemical precipitation synthesized NiO nanoparticles for optoelectronic applications. Journal of the Indian Chemical Society 2024; 101(7), 101171.
R Miao, W Zeng and QI Gao. Hydrothermal synthesis of novel NiO nanoflowers assisted with CTAB and SDS respectively and their gas-sensing properties. Materials Letters 2016; 115, 60-66.
I Luthfiyah, A Al Ittikhad, T Suprayogi, Nasikhudin, M Diantoro, S Maensiri and EH Sujiono. The effect of concentration PVP on microstructure activated carbon mesoporous and it’s potential of activated carbon mesoporous-CB symmetric supercapacitors. AIP Conference Proceedings 2023; 2687, 050025
M Diantoro, I Luthfiyah, H Wisodo, J Utomo and W Meevasana. Electrochemical performance of symmetric supercapacitor based on activated carbon biomass TiO2 nanocomposites. Journal of Physics: Conference Series 2022; 2243(1), 012077.
IM Sutjahja, J Aarts, AA Nugroho, M Diantoro, MO Tjia, AA Menovsky and JJM Franse. Doping and field effects on the lowest Kramers doublet splitting in La1.6−xNd0.4SrxCuO4−δ single crystal. Physica C: Superconductivity 2020; 392-396, 207-212.
I Luthfiyah, J Utomo, M Diantoro, N Mufti, T Suprayogi, Y Yudyanto and A Aripriharta. The effect of spincoating speed on ZnONR microstructure and it’s potential of ZnONR/Aluminum foil electrodes symmetric supercapacitors. Journal of Physics: Conference Series 2020; 1595(1), 012001.
I Luthfiyah, J Utomo, M Diantoro, N Mufti, T Suprayogi, Y Yudyanto and A Aripriharta. Investigating the CoS2 Mass fraction enhancing performance supercapacitor for medium low consumption. E3S Web of Conferences 2024; 473, 03003.
M Diantoro, NIM Aturroifah, I Luthfiyah, J Utomo, I Hamidah, B Yuliarto, A Rusydi, S Maensiri and Meevasana. 3D-porous activated carbon morphological modification of Manihot esculenta tuber and Bambusa blumeana stem for high-power density supercapacitor: Biomass waste to sustainable energy. Carbon Resources Conversion 2025; 8(4), 100313.
M Diantoro, NIM Aturroifah, J Utomo, I Luthfiyah, I Hamidah, B Yuliarto, A Rusydi, W Meevesana, S Maensiri and PK Singh. Optimizing sponge-like activated carbon from Manihot esculenta tubers for high-performance supercapacitors. Arabian Journal of Chemistry 2025; 18(1), 106068.
M Diantoro, RR Maisyarah and I Luthfiyah. The effect of activation temperature of coal carbon on its electrochemical performance as symmetric supercapacitors. AIP Conference Proceedings 2025; 3197(1), 020008.
Y Niu, P Luo, X Chen, J Song, X He, H Sun, Z Li, C Wang and J Jiang. MXene/VS4 self-supporting thin film electrode for zinc-ion flexible supercapacitors. Chemical Engineering Journal 2024; 493, 152372.
K Prajapat, U Mahajan, M Dhonde, K Sahu nad PM Shirage. Synthesis and characterization of TiO2 nanoparticles: Unraveling the influence of copper doping on structural, surface morphology, and optical properties. Chemical Physics Impact 2024; 8, 100607.
N Dogra, S Gasso, A Sharma, KK Sharma and S Sharma. TiO2 decorated MXene nanosheets for high-performance ammonia gas sensing at room-temperature. Surfaces and Interfaces 2024; 48, 104290.
A Sarycheva and Y Gogotsi. Raman spectroscopy analysis of the structure and surface chemistry of Ti3C2Tx Mxene. Chemistry of Materials 2020; 32, 104290.
T Hu, J Wang, H Zhang, Z Li, M Hu and X Wang. Vibrational properties of Ti3C2 and Ti3C2T2 (T = O, F, OH) monosheets by first-principles calculations: A comparative study. Physical Chemistry Chemical Physics 2015; 17(15), 9997-10003.
AY Komariyah, I Luthfiyah, IV Albadi’ah, N Nasikhudin, W Meevasana and M Diantoro. Harnessing the role of carbon black: A new frontier for energy-density supercapacitor electrodes. Journal of Mechanical Engineering Science and Technology 2025; 9(1), 268.
M Diantoro, RR Maisyarah and I Luthfiyah. The effect of activation temperature of coal carbon on its electrochemical performance as symmetric supercapacitors. AIP Conference Proceedings 2025; 3197(1), 020008.
PC Ogugua, H Su and E Wang. Synergistic blending of biomass, sewage sludge, and coal for enhanced bioenergy production: Exploring residue combinations and optimizing thermal conversion parameters. Journal of Environmental Management 2024; 352, 120035.
M Hu, L Chen, Y Jing, Y Zhu, J Dai, A Meng, C Sun, J Jia and Z Li. Intensifying electrochemical activity of Ti3C2Tx MXene via customized interlayer structure and surface chemistry. Molecules 2023; 28(15), 5776.
HH Hegazy, AM Afzal, ER Shaaban, MW Iqbal, S Muhammad and AA Alahmari. Synthesis of MXene and design the high-performance energy harvesting devices with multifunctional applications. Ceramics Internasional 2023; 49(2), 1710-1719.
Z Lin, D Barbara, PL Taberna, KL Van Aken, B Anasori, Y Gogotsi and P Simon. Capacitance of Ti3C2Tx MXene in ionic liquid electrolyte. Journal of Power Sources 2017; 326, 575-579.
S Kumar, MA Rehman, S Lee, M Kim, H Hong, JY Park and Y Seo. Supercapacitors based on Ti3C2Tx MXene extracted from supernatant and current collectors passivated by CVD-graphene. Scientific Reports 2021; 11(1), 649.
BK Deka, A Hazarika, GH Kang, YJ Hwang, AP Jaiswal, D Chan Kim, YB Park and HW Park. 3D printed structural supercapacitor with MXene-N @ Zn-Co selenide nanowire-based woven carbon fiber electrodes. ACS Energy Letters 2023; 3(2), 963-971.
VSH Priyaa, R Saravanathamizhan and N Balasubramanian. Preparation of biomass based carbon for elctrochemical energy storage application. Journal of Electrochemical Science and Technology 2019; 10(2), 159-169.
A Shah, S Senapati, HCA Murthy, LR Singh and M Mahato. Supercapacitor performance of NiO, NiO-MWCNT, and NiO-Fe-MWCNT composites. ACS Omega 2023; 37(8), 33380-33391.
Y Wang, N Chen, Y Liu, X Zhou, B Pu, Y Qing, M Zhang, X Jiang, J Huang, Q Tang, B Zhou and W Yang. MXene/graphdiyne nanotube composite films for Free-Standing and flexible Solid-State supercapacitor. 2022; 450(4), 138398.
A El-Ghazaly, J Halim, B Ahmed, AS Etman and J Rosen. Exploring the electrochemical behavior of Mo1.33CTz MXene in aqueous sulfates electrolytes: Effect of intercalating cations on the stored charge. Journal of Power Sources 2022; 531, 231302.
JJ Zhu, A Hemesh, JJ Biendicho, L Martinez-Soria, D Rueda-Garcia, JR Morante, B Ballesteros and P Gomez-Romero. Rational design of MXene/activated carbon/polyoxometalate triple hybrid electrodes with enhanced capacitance for organic-electrolyte supercapacitors. Journal of Colloid and Interface Science 2022; 623, 947-961.
Y Wei, M Zheng, W Luo, B Dai, J Ren, M Ma, T Li and Y Ma. All pseudocapacitive MXene-MnO2 flexible asymmetric supercapacitor. Journal of Energy Storage 2021; 45, 103725.
T Arun, A Mohanty, A Rosenkranz, B Wang, J Yu, MJ Morel, R Udayabhaskar, SA Hevia, A Akbari-Fakhrabadi, RV Mangalaraja and A Ramadoss. Role of electrolytes on the electrochemical characteristics of Fe3O4/MXene/RGO composites for supercapacitor applications. Electrochimica Acta 2021; 367, 137473.
L Yang, W Zheng, P Zhang, J Chen, WB Tian, YM Zhang and ZM Sun. MXene/CNTs films prepared by electrophoretic deposition for supercapacitor electrodes. Journal of Electroanalytical Chemistry 2018; 830-831, 1-6.
X Li, Z Lin, Y Wei, W Luo, J Ding, T Li and Y Ma. MXene-MnO2-CoNi layered double hydroxides// activated carbon flexible asymmetric supercapacitor. 2022; 55, 46-48.
M Pathak, SR Polaki and CS Rout. High performance asymmetric supercapacitors based on Ti3C2Tx MXene and electrodeposited spinel NiCo2S4 nanostructures. RSC Advances 2022; 22, 10788-10799.
