Optimization of Sequential Microwave-Ultrasonic-Assisted Extraction of Flavonoid Compounds from Moringa oleifera
DOI:
https://doi.org/10.48048/tis.2023.6401Keywords:
Moringa oleifera, Microwave, Ultrasound, Extraction, Response surface methodologyAbstract
Flavonoid are bioactive compounds that can be found in moringa leaves. Extraction of bioactive compounds using conventional method requires a long time and low extract yields. This study was aimed to determine the optimum process conditions of sequential microwave-ultrasonic-assisted extraction (MUAE) of total flavonoids (TF) from moringa. The response surface methodology (RSM) with Box-Behnken design (BBD) was employed to determine the optimum operating conditions of MUAE among the set of variables: Time (10 - 30 min), temperature (40 - 60 °C), and solvent concentration (60 - 80%). Furthermore, the flavonoids content was determined using high-performance liquid chromatography (HPLC) and the antioxidant activity was analyzed using the DPPH scavenging method. The RSM optimization showed that the predicted optimum total flavonoids content was 3.25 quercetin equivalent (QE) mg/g, achieved under operating conditions at a temperature of 49.76 °C, extraction time 20.68 min and solvent concentration of 71.16 %. These optimum operating conditions were validated, resulting in an average error of 0.546 %. The MS/HPLC results showed that the content of quercetin and myricetin were 0.167 and 2.89 g/ 100 mL, respectively. Moringa extraction product has a strong antioxidant activity with IC50 of 74.58 - 74.62 µg/mL.
HIGHLIGHTS
- For the first time, sequential microwave ultrasonic extraction of flavonoid components from moringa was conducted
- Data from the RSM method’s operating conditions optimization can be used to support the design of industrial-scale machines for extracting flavonoids
- In comparison to other extraction techniques, the flavonoid content obtained with sequential microwave-ultrasonic was the highest at 3.25 mg QE/g
- It was discovered that the antioxidant generated using sequential microwave-ultrasonic technology had a greater inhibitory power than the maceration approach, with an IC50 of 74.58

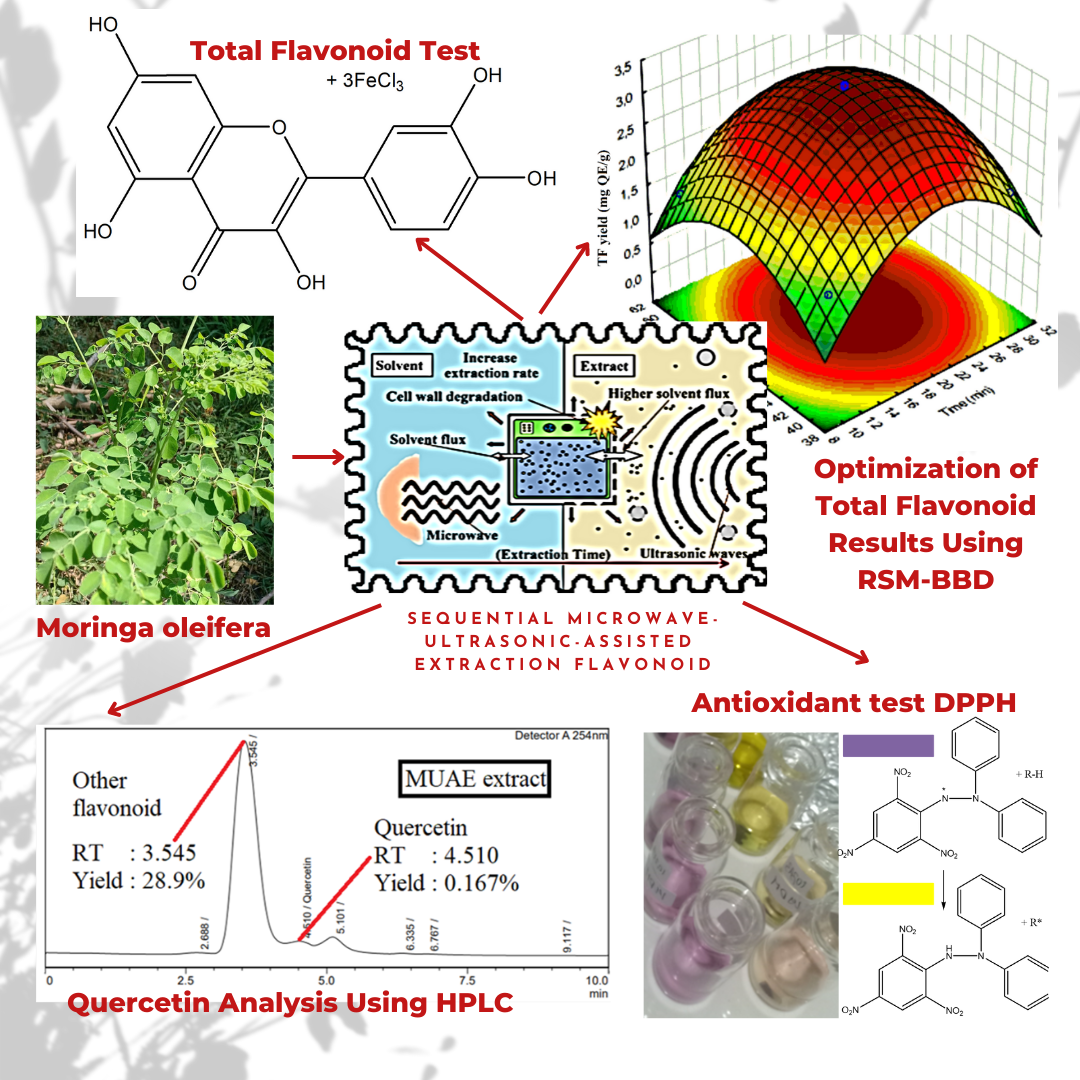

GRAPHICAL ABSTRACT
Downloads
References
M Fajri. The potential of Moringa oleifera as immune booster against Covid 19. IOP Conf. Ser. Earth Environ. Sci. 2021; 807, 022008.
FD Pierro, S Iqtadar, A Khan, SU Mumtaz, MM Chaudhry, A Bertuccioli, G Derosa, P Maffioli, S Togni, A Riva, P Allegrini and S Khan. Potential clinical benefits of quercetin in the early stage of Covid-19: results of a second, pilot, randomized, controlled and open-label clinical trial. Int. J. Gen. Med. 2021; 14, 2807-16.
N Kaur, DS Arora, N Kalia and M Kaur. Antibiofilm, antiproliferative, antioxidant and antimutagenic activities of an endophytic fungus Aspergillus fumigatus from Moringa oleifera. Mol. Biol. Rep. 2020; 47, 2901-11.
B Vongsak, P Sithisarn, S Mangmool, S Thongpraditchote, Y Wongkrajang and W Gritsanapan. Maximizing total phenolics, total flavonoids contents and antioxidant activity of Moringa oleifera leaf extract by the appropriate extraction method. Ind. Crops Prod. 2013; 44, 566-71.
PTH Komala and A Husni. Pengaruh suhu ekstraksi terhadap aktivitas antioksidan ekstrak metanolik Eucheuma spinosum (in Bahasa Indonesia). Jurnal Pengolahan Hasil Perikanan Indonesia 2021; 24, 1-10.
GS Agustien and SF Sucitra. Effect of different extraction method on total flavonoid contents of Sansevieria trifasciata P. leaves extract. Galenika J. Pharm. 2021; 7, 143-51.
V Urías-Orona, G Gutiérrez-Soto, J Ruiz-Bautista, R Flores-Alonso, I Montiel-Ramos, GCG Martínez-Ávila, J Aranda-Ruiz and G Niño-Medina. Influence of extraction solvent on phenolic content and antioxidant capacity level of a commercial food supplement from Moringa oleifera leaves. Archivos Latinoamericanos de Nutrición 2017; 67, 211-7.
SLRD Luna, RE Ram´ırez-Garza and SOS Saldı´var. Environmentally friendly methods for flavonoid extraction from plant material: impact of their operating conditions on yield and antioxidant properties. Sci. World J. 2020; 2020, 6792069.
B Kunarto, Sutardi, Supriyanto and C Anwar. Optimization of ultrasonic-assisted extraction of “melinjo kerikil” (Gnetum gnemon L. ‘Kerikil’) seeds using response surface methodology. Jurnal Aplikasi Teknologi Pangan 2019; 8, 104-12.
MS Rahmatullah, S Suryono and JE Suseno. Instrumentation system of flavonoid compounds of moringa leaf using ultrasound assisted extraction (UAE). Int. J. Progress. Sci. Tech. 2021; 25, 447-452.
X Lin, L Wu, X Wang, L Yao and L Wang. Ultrasonic-assisted extraction for flavonoid compounds content and antioxidant activities of India Moringa oleifera L. leaves: Simultaneous optimization, HPLC characterization and comparison with other methods. J. Appl. Res. Med. Aromat. Plants 2020; 20, 100284.
M Sholihah, U Ahmad and IW Budiastra. Application of ultrasonic wave to increase extraction yield and effectiveness of antioxidant from mangosteen rind. Jurnal Keteknikan Pertanian 2017; 5, 161-8.
R Ratnawati, A Prasetyaningrum and DH Wardhani. Kinetics and thermodynamics of ultrasound-assisted depolymerization of κ-carrageenan. Bull. Chem. React. Eng. Catal. 2016; 11, 48-58.
P Torabi, N Hamdami and J Keramat. Microwave-assisted extraction of sodium alginate from brown macroalgae Nizimuddinia zanardini, optimization and physicochemical properties. Separ. Sci. Tech. 2021; 57, 872-85.
T Wang, W Li and T Li. Microwave-ultrasonic synergistic extraction of crude se-polysaccharides from se-enriched tea. Key Eng. Mater. 2017; 737, 360-6.
A Prasetyaningrum, N Rokhati, Y Dharmawan and GR Prinanda. Comparison study for extraction of bioactive flavonoids from Moringa oleifera, apple, onion, and ascorbic acid (orange) by using microwave-assisted, ultrasound-assisted and maceration methods. IOP Conf. Ser. Mater. Sci. Eng. 2021; 1053, 012123.
I Ahmad, WC Prabowo, Y Nur, M Ardana, BP Rahayu and Herman. Optimasi metode ekstraksi berbantu mikrowave dengan pelarut hijau (asam sitrat-glukosa) terhadap kadar polifenol total dari daun kadamba (Mitragyna Speciosa Korth. Havil) menggunakan response surface methodology (in Bahasa Indonesia). Majalah Farmasi dan Farmakologi 2020; 24, 11-6.
E Sap, ÜA Usca, MK Gupta, M Kuntoglu, M Sarıkaya, DY Pimenov and M Mia. Parametric optimization for improving the machining process of Cu/Mo-SiCP composites produced by powder metallurgy. Materials 2021; 14, 1921.
A Prasetyaningrum, R Ratnawati and B Jos. Optimasi proses ozonasi pada depolimerisasi κ-karagenan dengan metode respon permukaan. Reaktor 2017; 17, 1-8.
CN Wang, NAT Nguyen and TT Dang. Memecahkan masalah perencanaan pesanan menggunakan heuristik pendekatan: Kasus di distributor bahan bangunan (in Bahasa Indonesia). Appl. Sci. 2020; 10, 8959.
R Ridwan, H Hamim, N Hidayati and S Suharsono. Molecular and morphological analysis of indonesian drumstick tree (Moringa oleifera Lam.). Asian J. Plant Sci. 2021; 20, 131-42.
J Yu, Q Lou, X Zheng, Z Cui and J Fu. Sequential combination of microwave- and ultrasound-assisted extraction of total flavonoids from Osmanthus fragrans Lour. flowers. Molecules 2017; 22, 2216-32.
T Mukhriani, R Sugiarna, N Farhan, M Rusdi and MI Arsul. Total phenolic and flavonoid content of grapevine (Vitis vinifera L.) leaves ethanol extract. ad-Dawaa’ J. Pharm. Sci. 2019; 2, 95-102.
IG Munteanu and C Apetrei. Analytical methods used in determining antioxidant activity: A review. Int. J. Mol. Sci. 2021; 22, 3380.
EW Gibson. The role of p-values in judging the strength of evidence and realistic replication expectations. Stat. Biopharm. Res. 2020; 13, 6-18.
A Prasetyaningrum, M Djaeni, B Jos and Y Dharmawan. Optimasi proses ozonasi untuk penurunan kadar krom (Cr) dalam limbah cair elektroplating dengan metode respon permukaan. In: Proceedings of the Seminar Nasional Teknik Kimia Kejuangan, Yogyakarta, Indonesia. 2017, p. 1-7.
N Zhao and M Wang. Research on parameter optimization of the express warehousing and distribution system based on the Box-Behnken response surface methodology. Adv. Civ. Eng. 2021; 2021, 8723017.
DW Dadi, SA Emire, AD Hagos and JB Eun. Effect of ultrasound-assisted extraction of Moringa stenopetala leaves on bioactive compounds and their antioxidant activity. Food Tech. Biotechnol. 2019; 57, 77-86.
K Sin, WA Baraoidan and PD Gaspillo. Microwave-assisted extraction of phenolic compounds from moringa oleifera lam. leaves using response surface methodology as optimization tool. Philippine Agr. Sci. 2014; 97, 36-42.
S Al-Hamimi, AA Mayoral, LP Cunico and C Turner. Carbon dioxide expanded ethanol extraction: Solubility and extraction kinetics of α-pinene and cis-verbenol. Anal. Chem. 2016; 88, 4336-45.
B Zhao, J Deng, H Li, Y He, T Lan, D Wu, H Gong, Y Zhang and Z Chen. Optimization of phenolic compound extraction from chinese Moringa oleifera leaves and antioxidant activities. J. Food Qual. 2019; 2019, 5346279.
EN Fombang, P Nobosse, CMF Mbofung and D Singh. Optimizing extraction of antioxidants from roasted Moringa oleifera Lam. leaves using response surface methodology. J. Food Process Preserv. 2020; 00, e14482.
Sukmawati, H Widiastuti and Miftahuljanna. Analisis kadar kuersetin pada ekstrak etanol daun miana (Plectranthus scutellarioides (L.) R.Br.) secara HPLC (high performance liquid chromatography) (in Bahasa Indonesia). As-Syifaa Jurnal Farmasi 2019; 11, 38-44.
JP Coppin, Y Xua, H Chen, MH Pan, CT Ho, R Juliani, JE Simon and Q Wu. Determination of flavonoids by LC/MS and anti-inflammatory activity in Moringa oleifera. J. Funct. Foods 2013; 5, 1892-9.
G Heidari, GD Najafpour, M Mohammadi and AA Moghadamnia. Microwave ultrasound assisted extraction: determination of quercetin for antibacterial and antioxidant activities of Iranian propolis. Int. J. Eng. 2019; 32, 1057-64.
E González-Burgos, I Ureña-Vacas, M Sánchez and MP Gómez-Serranillos. Nutritional value of Moringa oleifera lam. leaf powder extracts and their neuroprotective effects via antioxidative and mitochondrial regulation. Nutrients 2021; 13, 2203.
LA Shervington, BS Li, AA Shervington, N Alpan, R Patei, U Muttakin and E Mulla. A comparative HPLC analysis of myricetin, quercetin and kaempferol flavonoids isolated from gambian and indian Moringa oleifera leaves. Int. J. Chem. 2018; 10, 28-35.
AA Kamarudin, N Saad, NH Sayuti, NAA Razak and NM Esa. Enhancement of phenolics and antioxidant activity via heat assisted extraction from Moringa oleifera using response surface methodology and its potential bioactive constituents. Mal. J. Med. Health Sci. 2020; 16, 83-90.
Y Zhou, J Zheng, RY Gan, T Zhou, DP Xu and HB Li. Optimization of ultrasound-assisted extraction of antioxidants from the mung bean coat. Molecules 2017; 22, 638.
LP Cunico, AM Cobo, S Al-Hamimi and C Turner. Solubility and thermal degradation of quercetin in CO2-expanded liquids. Molecules. 2020; 25, 5582-92.
M Hanula, J Wyrwisz, M Moczkowska, OK Horba´nczuk, E Pogorzelska-Nowicka and A Wierzbicka. Optimization of microwave and ultrasound extraction methods of açai berries in terms of highest content of phenolic compounds and antioxidant activity. Appl. Sci. 2020; 10, 8325.
NA Nugrahani, Z Auliyanti, and RP Rahayu. Perbandingan uji aktivitas antioksidan antara ekstrak buah kiwi dan apel secara in vitro. Scientia Jurnal Farmasi dan Kesehatan 2020; 10, 90-6.
