High Saturated-Magnetization-Realization Induced by Zinc Substitution in Cobalt Ferrite Nanoparticles Synthesized via Sol-Gel Method
DOI:
https://doi.org/10.48048/tis.2026.12474Keywords:
Cobalt ferrite, Zinc, Sol-gel, Spinel structure, Single-domain, Multi-domain, Saturation magnetization, Spin reverse-orientationAbstract
Cobalt ferrite (CoFe2O4) is a promising spinel ferrite material due to its high chemical stability, moderate saturation magnetization, and significant coercivity, making it attractive for various technological applications such as magnetic data storage, sensors, and photocatalysis. Tailoring its properties via cationic substitution enables precise tuning of both structural and magnetic characteristics. In this study, zinc-substituted cobalt ferrite nanoparticles with Zn2+ concentrations of x = 0, 0.2 and 0.4 were synthesized via the sol-gel method and thermally annealed at 450 °C for 6 h. X-ray diffraction (XRD) patterns confirmed a single-phase face-centered cubic spinel structure (space group Fd-3m), corroborated by Rietveld refinement. FTIR spectra revealed characteristic vibrational bands at tetrahedral (v1) and octahedral (v2) sites, confirming spinel formation. Magnetic measurements showed a significant reduction in coercivity from 1,130 Oe (x = 0) to 247 Oe (x = 0.4), attributed to a domain transition from single- to multi-domain structure. Meanwhile, saturation magnetization increased from 75.77 to 104.74 emu/g, linked to the redistribution of non-magnetic Zn2+ ions to tetrahedral sites, replacing magnetic Co2+, and the migration of Fe3+ to octahedral positions. Additionally, the emergence of spin reverse-orientation of Fe3+ at tetrahedral sublattice contributed to the enhancement in magnetization. These interpretations were further supported by magnetic structure simulations using the BasIreps program, confirming the presence of spin-down ordering in trivalent cation of tetrahedral site. This study provides insights into Zn’s role in modulating the magneto-structural behavior of cobalt ferrite for advanced magnetic materials.
HIGHLIGHTS
- Zn substitution effectively tailors structural and magnetic properties.
- Magnetization (Ms) increases while coercivity (Hc) decreases with higher Zn content.
- BasIreps confirms spin reverse-orientation correlated with rising saturation magnetization.

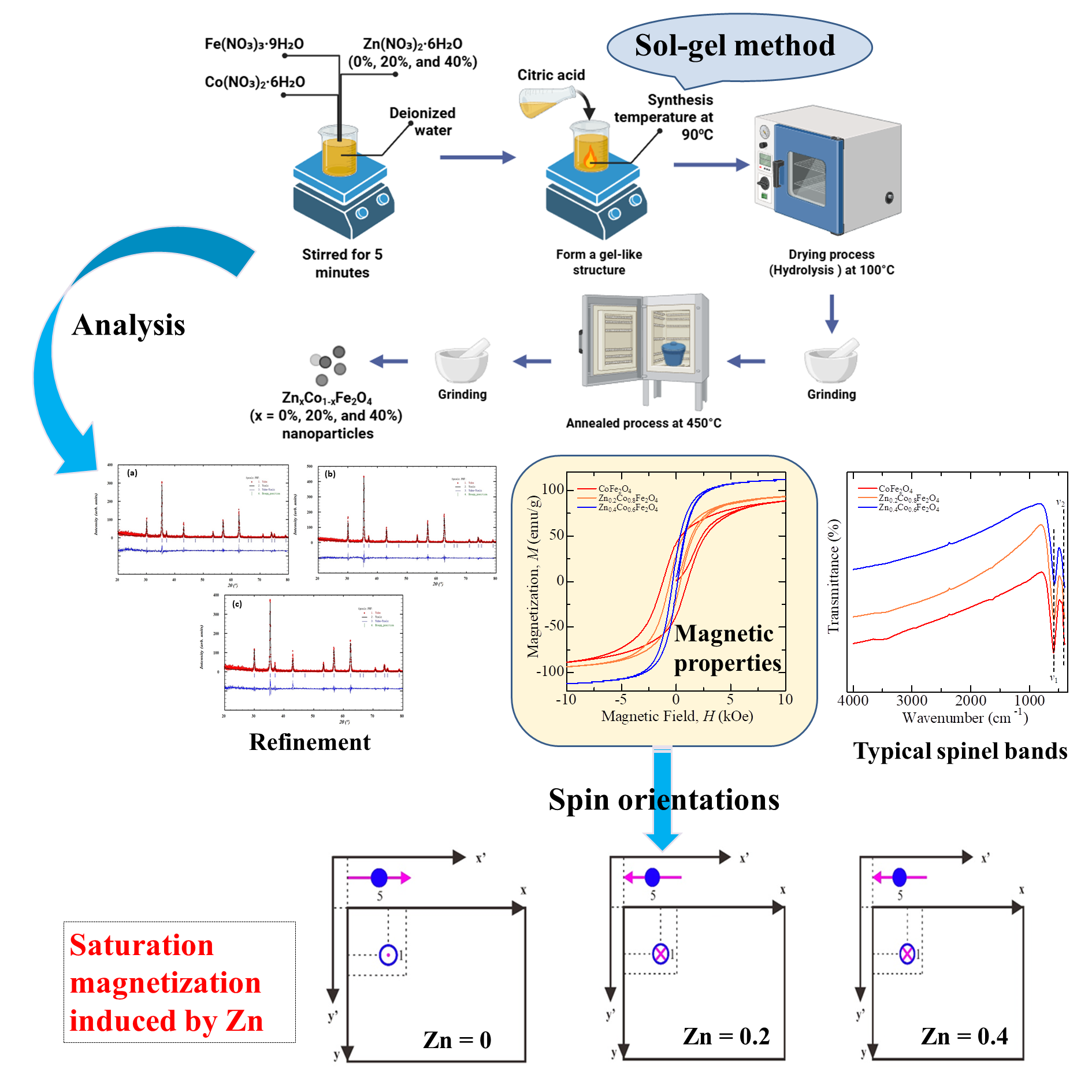

GRAPHICAL ABSTRACT
Downloads
References
A Akbar, M Bhavani Lakshmi, TK Das and M Ghosh. Spinel ferrites in the photocatalytic and adsorptive remediation of dyes and heavy metals: A review. Journal of Water Process Engineering 2025; 71, 107259.
FM Zulhaina, NP Prasetya, Riyatun, Utari and B Purnama. Silver content modification of structural, magnetic and antibacterial properties in magnetite nanoparticles. Trends in Sciences 2025; 22(3), 9182.
A Ahmed, M Khalid, MGB Ashiq, I Boukhris, M Younas, W Ullah, MS Al-Buriahi, K Naz, MA Siddique and M ul Haq. Praseodymium doped Ni-Co based spinel ferrite nanoparticles prepared for energy storage applications. Physica B: Condensed Matter 2025; 700, 416947.
M Dinarvand, M Abolhasani, F Hormozi and Z Bahrami. Experimental investigation and performance comparison of Fe3O4/water and CoFe2O4/ water ferrofluids in presence of a magnetic field in a cooling system Journal of the Taiwan Institute of Chemical Engineers 2023; 148, 104927.
K Naz, JK Khan, M Khalid, MS Akhtar, ZA Gilani, HM Noor ul Huda Khan Asghar, GAM Mersal, MM Ibrahim, A Muhammad and MGB Ashiq. Structural, dielectric, impedance and electric modulus analysis of Ni substituted copper spinel ferrites nanoparticles for microwave device applications. Materials Chemistry and Physics 2022; 285, 126091.
H Qin, Y He, P Xu, D Huang, Z Wang, H Wang, Z Wang, Y Zhao, Q Tian and C Wang. Spinel ferrites (MFe2O4): Synthesis, improvement and catalytic application in environment and energy field. Advances in Colloid and Interface Science 2021; 294, 102486.
EF Esmer, E Bilgi, SÇ Dincay, T Sakallı and CÖ Karakuş. Design, synthesis, characterization and biological evaluation of cobalt-ferrite nanoparticles for biomedical applications. Journal of Magnetism and Magnetic Materials 2025; 629, 173336.
QY Tamboli, SM Patange, YK Mohanta, R Sharma and KR Zakde. Green synthesis of cobalt ferrite nanoparticles: an emerging material for environmental and biomedical applications. Journal of Nanomaterials 2023; 2023(1), 9770212.
YS Bopche, AM Shahare, DS Choudhary and AV Bagde. A brief review on structural, morphological, magnetic and dielectric behavior of divalent cation-substituted nanocrystalline cobalt ferrite. Jordan Journal of Physics 2022; 15(1), 61-66.
NP Prasetya, RI Setiyani, Utari, K Kusumandari, Y Iriani, J Safani, A Taufiq, NA Wibowo, S Suharno and B Purnama. Cation trivalent tune of crystalline structure and magnetic properties in coprecipitated cobalt ferrite nanoparticles. Materials Research Express 2023; 10(3), 036102.
G Muscas, S Jovanović, M Vukomanović, M Spreitzer and D Peddis. Zn-doped cobalt ferrite: Tuning the interactions by chemical composition. Journal of Alloys and Compounds 2019; 796, 203-209.
PA Vinosha, A Manikandan, ASJ Ceicilia, A Dinesh, GF Nirmala, AC Preetha, Y Slimani, MA Almessiere, A Baykal and B Xavier. Review on recent advances of zinc substituted cobalt ferrite nanoparticles: Synthesis characterization and diverse applications. Ceramics International 2021; 47(8), 10512-10535.
CJ Prabagar, S Anand, MA Janifer, S Pauline and PAS Theoder. Effect of metal substitution (Zn, Cu and Ag) in cobalt ferrite nanocrystallites for antibacterial activities. Materials Today: Proceedings 2021; 47, 1999-2006.
S Mandal and S Mukherjee. Magnetocaloric effect and critical behaviour in zinc doped cobalt ferrite nanoparticles. Journal of Solid State Chemistry 2023; 323, 124008.
HM Shashanka, S Saha, AJ Chelvane, B Sahoo and PN Anantharamaiah. Tuning magnetostrictive strain sensitivity through controlled spin-orbit and superexchange interactions: Nonmagnetic Zn and Mg cation substitution in CoFe2O4. Journal of Materials Chemistry C 2025; 13(22), 11060-11076.
GV Duong, R Sato Turtelli, N Hanh, DV Linh, M Reissner, H Michor, J Fidler, G Wiesinger and R Grössinger. Magnetic properties of nanocrystalline Co1−xZnxFe2O4 prepared by forced hydrolysis method. Journal of Magnetism and Magnetic Materials 2006; 307(2), 313-317.
S Singhal, T Namgyal, S Bansal and K Chandra. Effect of Zn substitution on the magnetic properties of cobalt ferrite nano particles prepared via sol-gel route. Journal of Electromagnetic Analysis and Applications 2010; 2(6), 376-381.
TR Tatarchuk, ND Paliychuk, M Bououdina, B Al-Najar, M Pacia, W Macyk and A Shyichuk. Effect of cobalt substitution on structural, elastic, magnetic and optical properties of zinc ferrite nanoparticles. Journal of Alloys and Compounds 2018; 731, 1256-1266.
FM Zulhaina, S Nurjanah, U Utari, R Riyatun, S Suharno and B Purnama. Synthesis of zinc substituted cobalt ferrite nanoparticles by using sol-gel method as antibacterial material. Key Engineering Materials 2023; 941, 207-214.
N Tohluebaji, R Siri, N Muensit, C Putson, P Channuie, P Porrawatkul and J Yuennan. Hydrophobic and optical properties of P (VDF-HFP) nanofiber filled with nickel (II) chloride hexahydrate for dye-sensitized solar cells application. Trends in Sciences 2024; 21(9), 8762.
M Hussain, A Mehmood, F Ali, ZA Sandhu, MA Raza, S Sajid, M Sohaib, MT Khan, AH Bhalli, A Hussain, MS Arshid, N Mehboob and AG Al-Sehemi. Tuning the magnetic behavior of zinc ferrite via cobalt substitution: A structural analysis. ACS Omega 2024; 9(2), 2536-2546.
T Kusumaningsih, A Supriyanto, HB Akmal, FM Zulhaina, NP Prasetya and B Purnama. Nanoparticle- preparation- procedure tune of physical, antibacterial, and photocatalyst properties on silver substituted cobalt ferrite. Results in Engineering 2023; 18, 101085.
G Rajivgandhi, G Ramachandran, G Chackaravarthi, CK Chelliah, M Maruthupandy, F Quero, FA AL-mekhlafi, MA Wadaan and WJ Li. Preparation of antibacterial Zn and Ni substituted cobalt ferrite nanoparticles for efficient biofilm eradication. Analytical Biochemistry 2022; 653, 114787.
G Channagoudra, JPJ Nunez, RL Hadimani and V Dayal. Study of cation distribution in La3+ and Eu3+ substituted cobalt ferrite and its effect on magnetic properties. Journal of Magnetism and Magnetic Materials 2022; 559, 169550.
DR Lide. CRC handbook of chemistry and physics. CRC Press, Boca Raton, United States, 2005.
VS Sharon, VK Haripriya, SS Nair, E Veena Gopalan, A George and KA Malini. Zinc-doped cobalt ferrite nanoparticles: Modified sol-gel synthesis, multifunctional properties, and cytotoxicity evaluation. Journal of Sol-Gel Science and Technology 2025; 114(1), 169-184.
P Kumar, S Pathak, A Singh, K Jain, H Khanduri, L Wang, SK Kim and RP Pant. Observation of intrinsic fluorescence in cobalt ferrite magnetic nanoparticles by Mn2+ substitution and tuning the spin dynamics by cation distribution. Journal of Materials Chemistry C 2022; 10(35), 12652-12679.
Suharyana, RR Febriani, NP Prasetya, Utari, NA Wibowo, Suharno, A Supriyanto, AH Ramelan and B Purnama. Sodium-hydroxide molarities influence the structural and magnetic properties of strontium-substituted cobalt ferrite nanoparticles produced via co-precipitation. Kuwait Journal of Science 2023; 50(4), 575-579.
RD Waldron. Infrared spectra of ferrites. Physical Review 1955; 99(6), 1727.
EH El-Ghazzawy and MA Amer. Structural, elastic and magnetic studies of the as-synthesized Co1−xSrxFe2O4 nanoparticles. Journal of Alloys and Compounds 2017; 690, 293-303.
H Ghorbani, M Eshraghi, AA Sabouri Dodaran, P Kameli, S Protasowicki, C Johnson and D Vashaee. Effect of Yb doping on the structural and magnetic properties of cobalt ferrite nanoparticles. Materials Research Bulletin 2022; 147, 111642.
H Ghorbani, M Eshraghi and AA Sabouri Dodaran. Structural and magnetic properties of cobalt ferrite nanoparticles doped with cadmium. Physica B: Condensed Matter 2022; 634, 413816.
N Dhanda, P Thakur and A Thakur. Green synthesis of cobalt ferrite: a study of structural and optical properties. Materials Today: Proceedings 2023; 73, 237-240.
NP Prasetya, R Arilasita, H Aldila, NA Wibowo, Riyatun, Utari, Nuryani, T Tanaka and B Purnama. Single-domain configuration tune high coercive field in co-precipitated monazite-decorated cobalt ferrite nanoparticles. Nano-Structures & Nano-Objects 2024; 39, 101301.
D Djuhana, C Kurniawan, A Musadewi, NP Prasetya, Utari, Suharno, DH Kim and B Purnama. Impact of single domain configuration on photocatalytic dye removal in cerium-substituted cobalt ferrite nanoparticles. Results in Physics 2025; 76, 108405.
G Hussain, I Naz, F Ahmad, A Gyasi-Agyei and H Anwar. Insights into dysprosium-doped bismuth ferrite: A combined experimental and DFT study on structural, optical, and magnetic properties. Physica B: Condensed Matter 2025; 713, 417361.
S Ergin, K İçin, H Güngüneş and B Özçelik. Detailed studies on structural, morphological, optical, magnetic and mossbauer properties of Cu-substituted cobalt ferrite nanoparticles. Physica Scripta 2023; 98(3), 035807.
W Tahir, T Zeeshan, S Waseem, MD Ali, Z Kayani, ZeH Aftab, SMT Mehtab and S Ezzine. Impact of silver substitution on the structural, magnetic, optical, and antibacterial properties of cobalt ferrite. Scientific Reports 2023; 13(1), 15730.
M Liu, J Li, J Wang, H Yi, X Bao and X Gao. Effect of Mn and Zn binary co-substitution on structure and magnetic properties of cobalt ferrites. Materials Science and Engineering: B 2023; 289, 116229.
Sapna, N Budhiraja, V Kumar and SK Singh. Shape-controlled synthesis of superparamagnetic ZnFe2O4 hierarchical structures and their comparative structural, optical and magnetic properties. Ceramics International 2019; 45(1), 1067-1076.
AM Bartashevich, SV Streltsov, EG Gerasimov, MA Semkin, AF Gubkin, AN Pirogov, NV Mushnikov, PB Terentev and MI Bartashevich. Commensurate magnetic structures in ThCr2Si2-type materials: A new symmetry-based classification scheme and prediction of emergent phenomena. Materials Today Physics 2025; 59, 101905.
