Temperature-Dependent Microstructure and Lattice Distortion in Pure Magnesium Investigated by Neutron and X-ray Diffraction
DOI:
https://doi.org/10.48048/tis.2026.11876Keywords:
Pure magnesium, Accumulative roll bonding, Microstructural evolution, Lattice distortion, Neutron diffraction, Residual stressAbstract
This study investigates the microstructural evolution and residual stress behavior of pure magnesium processed by Accumulative Roll Bonding (ARB) at 250 and 350 °C for up to 4 cycles. Characterization using Optical Microscopy, SEM, XRD, and Neutron Diffraction revealed significant grain refinement, with the smallest grain size of 6.591 μm in the Mg 3A sample (250 °C, 3 cycles). XRD indicated texture evolution with enhanced (002) orientation and increased lattice strain (0.21816%), while neutron diffraction confirmed compressive residual stress, reaching 138.275 MPa in Mg 3A. Lower processing temperature promoted finer grains and higher residual stress, whereas higher temperature facilitated recovery and stress relaxation. The combined use of XRD and neutron diffraction provided complementary insights into surface and bulk changes. Unlike conventional approaches that rely solely on XRD, this study uniquely integrates neutron diffraction to probe bulk stresses, marking a novel contribution in the characterization of ARB-processed pure magnesium. This approach represents a novel contribution in characterizing ARB-processed pure magnesium. ARB at 250 °C for 3 cycles was identified as the optimal condition to enhance microstructure and manage residual stress in pure magnesium.
HIGHLIGHTS
- Significant grain refinement achieved through Accumulative Roll Bonding processing at lower temperature, demonstrating effective microstructural refinement through severe plastic deformation
- Novel integration of neutron diffraction with X-ray diffraction provides complementary insights into both bulk and surface residual stress behavior, marking a significant advancement over conventional approaches
- Lower processing temperature promoted higher compressive residual stress and finer grain structure, while higher temperature facilitated recovery mechanisms and stress relaxation
- Enhanced texture evolution with basal plane orientation and increased lattice strain indicating substantial crystallographic changes that influence mechanical behavior
- Optimal processing conditions identified for simultaneously enhancing microstructure refinement and managing residual stress in pure magnesium for lightweight structural applications

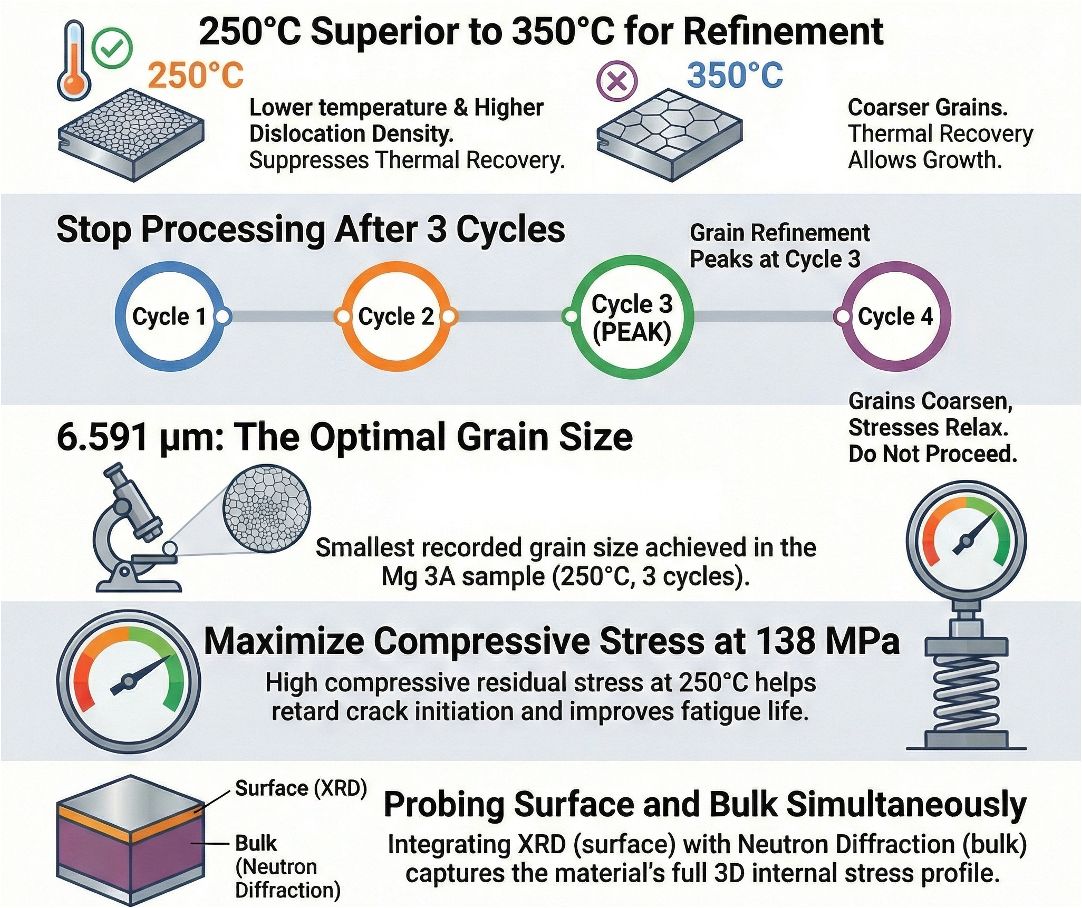

GRAPHICAL ABSTRACT
Downloads
References
I Antoniac, M Miculescu, V Mănescu, A Stere, PH Quan, G Păltânea, A Robu and K Earar. Magnesium-based alloys used in orthopedic surgery. Materials 2022; 15(3), 1148.
A Bordbar-Khiabani, B Yarmand and M Mozafari. Emerging magnesium-based biomaterials for orthopedic implantation. Emerging Materials Research 2019; 8(3), 305-319.
S Amukarimi and M Mozafari. Biodegradable magnesium-based biomaterials: An overview of challenges and opportunities. MedComm 2021; 2(2), 123-144.
G Vincze, FJP Simões and MC Butuc. Asymmetrical rolling of aluminum alloys and steels. Metals 2020; 10(9), 1126.
S Seetharaman, D Sankaranarayanan and M Gupta. Magnesium-based temporary implants: Potential, current status, applications, and challenges. Journal of Functional Biomaterials 2023; 14(6), 324.
J Wu, X Cheng, J Wu, Junyu Chen and X Pei. The development of magnesium-based biomaterials in bone tissue engineering: A review. Journal of Biomedical Materials Research Part B: Applied Biomaterials 2024; 112(1), e35326.
FZ Akbarzadeh, M Sarraf, ER Ghomi, VV Kumar, M Salehi, S Ramakrishna and S Bae. A state-of-the-art review on recent advances in the fabrication and characteristics of magnesium-based alloys in biomedical applications. Journal of Magnesium and Alloys 2024; 12(7), 2569-2594.
Z Wu, R Ahmad, B Yin, S Sandlöbes and WA Curtin. Mechanistic origin and prediction of enhanced ductility in magnesium alloys. Science 2018; 359(6374), 447-452.
C Chen, D Han, M Wang, S Xu, T Cai, S Yang, F Shi, B Beausir and LS Toth. High strength and high ductility of Mg-10Gd-3Y alloy achieved by a novel extrusion-shearing process. Journal of Alloys and Compounds 2022; 931, 167498.
G Wu, X Tong, R Jiang and W Ding. Grain refinement of as-cast Mg-RE alloys: Research progress and future prospect. Acta Metallurgica Sinica 2022; 58(4), 385-399.
Z Fan and F Gao. Grain initiation and grain refinement: An overview. Metals 2022; 12(10), 1728.
P Peng, H Xue, J She, J Zhang, A Tang, S Long, C Zhang, Q Yang and F Pan. Ultrafine-grained Mg alloy: Preparation, properties, design strategy. Journal of Materials Research and Technology 2024; 29, 4480-4504.
S Harjo, W Gong and T Kawasaki. Stress evaluation method by neutron diffraction for HCP-structured magnesium alloy. Quantum Beam Science 2023; 7(4), 32.
E Rabkin, V Skripnyuk and Y Estrin. Ultrafine-grained magnesium alloys for hydrogen storage obtained by severe plastic deformation. Frontiers in Materials 2019; 6, 240.
P Mansoor and SM Dasharath. Microstructural and mechanical properties of magnesium alloy processed by severe plastic deformation (SPD) - A review. Materials Today: Proceedings 2020; 20(2), 145-154.
A Abbas and SJ Huang. Investigation of severe plastic deformation effects on microstructure and mechanical properties of WS2/AZ91 magnesium metal matrix composites. Materials Science and Engineering: A 2020; 780, 139211.
Z Zhang, J Wang, Q Zhang, S Zhang, Q Shi and H Qi. Research on grain refinement mechanism of 6061 aluminum alloy processed by combined SPD methods of ECAP and MAC. Materials 2018; 11(7), 1246.
CLP Silva, RB Soares, PHR Pereira, RB Figueiredo, VFC Lins and TG Langdon. The effect of high-pressure torsion on microstructure, hardness and corrosion behavior for pure magnesium and different magnesium alloys. Advanced Engineering Materials 2019; 21(3), 1801081.
SM Ghalehbandi, M Malaki and M Gupta. Accumulative roll bonding - a review. Applied Sciences 2019; 9(17), 3627.
J Guo, W Sun, N Xiang and F Chen. Interfacial bonding and fracture behaviors of AZ63 magnesium alloy sheet processed by accumulative roll bonding. Materials 2023; 16(14), 4981.
J Guo, J Wang, T Zhang and S Zhang. Microstructure and properties of LZ91 magnesium alloy processed by asynchronous accumulative roll bonding. Materials Research Express 2020; 7(12), 126513.
Y Pei, Y Gui, T Huang, F Chen, J Guo, S Zhong and Z Song. Microstructure and corrosion behaviors of AZ63 magnesium alloy fabricated by accumulative roll bonding process. Materials Research Express 2020; 7, 066525.
JF Nie, KS Shin and ZR Zeng. Microstructure, deformation, and property of wrought magnesium alloys. Metallurgical and Materials Transactions A 2020; 51, 6045-6109.
Q Sun, D Zhang, X Tong, J Lin, Y Li and C Wen. Mechanical properties, corrosion behavior, and cytotoxicity of biodegradable Zn/Mg multilayered composites prepared by accumulative roll bonding process. Acta Biomaterialia 2024; 173, 509-525.
LDCG Púa, JCR Montenegro, AMF Reyes, HZ Rodríguez and VNP Méndez. Biomaterials for orthopedic applications and techniques to improve corrosion resistance and mechanical properties for magnesium alloy: A review. Journal of Materials Science 2023; 58, 3879-3908.
L Sun, F Li, YQ Li, C Li and AX Zhang. Refining grain structure and improving elongation properties in AZ31 magnesium alloy sheets using hard plate accumulative roll bonding. Materials Science and Engineering: A 2023; 887, 145774.
G Han, HK Park, HK Kim and TS Jun. Local and global deformation behaviour in rolled pure magnesium sheets at room temperature under different strain rates. Materials Science and Engineering: A 2019; 762, 138110.
Z Zeng, M Zhou, P Lynch, F Mompiou, Q Gu, M Esmaily, Y Yan, Y Qiu, S Xu, H Fujii, C Davies, JF Nie and N Birbilis. Deformation modes during room temperature tension of fine-grained pure magnesium. Acta Materialia 2021; 206, 116648.
Z Zhang, L Yuan, D Shan and B Guo. The quantitative effects of temperature and cumulative strain on the mechanical properties of hot-extruded AZ80 Mg alloy during multi-directional forging. Materials Science and Engineering: A 2021; 827, 142036.
D Panda, RK Sabat, S Suwas, VD Hiwarkar and SK Sahoo. Texture weakening in pure magnesium during grain growth. Philosophical Magazine 2019; 99(11), 1362-1385.
D Vinotha, K Raghukandan, UTS Pillai and BC Pai. Grain refining mechanisms in magnesium alloys - an overview. Transactions of the Indian Institute of Metals 2010; 62, 521-532.
H Mirzadeh. Grain refinement of magnesium alloys by dynamic recrystallization (DRX): A review. Journal of Materials Research and Technology 2023; 25, 7050-7077.
H Shao, L He, H Lin and HW Li. Progress and trends in magnesium-based materials for energy-storage research: A review. Energy Technology 2018; 6(3), 445-458.
H Zhou, B Liang, H Jiang, Z Deng and K Yu. Magnesium-based biomaterials as emerging agents for bone repair and regeneration: From mechanism to application. Journal of Magnesium and Alloys 2021; 9(3), 779-804.
Z Shu-yan, G Jian-bo, W Shu-wen and P Sanjooram. Application of neutron diffraction in residual stress analysis. Failure Analysis and Prevention 2021; 16(1), 60-69.
A Baczmański, P Kot, S Wroński, M Wróbel, M Wroński, J Pilch, M Muzyka, K Wierzbanowski, Y Zhao, LL Joncour, M François and B Panicaud. Direct diffraction measurement of critical resolved shear stresses and stress localisation in magnesium alloy. Materials Science and Engineering: A 2021; 801, 140400.
Y Nie, J Dai, X Li and X Zhang. Recent developments on corrosion behaviors of Mg alloys with stacking fault or long period stacking ordered structures. Journal of Magnesium and Alloys 2021; 9(4), 1123-1146.
K Wei, R Hu, D Yin, L Xiao, S Pang, Y Cao, H Zhou, Y Zhao and Y Zhu. Grain size effect on tensile properties and slip systems of pure magnesium. Acta Materialia 2021; 206, 116604.
E Karakulak. A review: Past, present and future of grain refining of magnesium castings. Journal of Magnesium and Alloys 2019; 7(3), 355-369.
DR Liu, H Zhao and L Wang. Numerical investigation of grain refinement of magnesium alloys: Effects of cooling rate. Journal of Physics and Chemistry of Solids 2020; 144, 109486.
