Vibrations of Phase-Lags on Electro-Magneto Nonlocal Elastic Solid with Voids in Generalized Thermoelastic Cylinder/Disk
DOI:
https://doi.org/10.48048/tis.2022.6229Keywords:
Transversely isotropic elastic material, Three-phase-lag model, Nonlocal elasticmaterial, Electro-magneto thermoelasticity, VoidsAbstract
The stress-strain-temperature relations, strain-displacement relations and governing equations have been addressed for electro-magneto transversely isotropic nonlocal elastic hollow cylinder with voids in the reference of 3-phase-lag effect of heat conduction. The strength of the magnetic field proceeds in the direction of the z-axis of the hollow cylinder/disk. The simultaneous differential equations have been eliminated by applying elimination technique to obtain unknown field functions such as dilatation, equilibrated voids volume fraction, temperature, displacement and stresses. Free vibration analysis has been explored by applying stress free and thermally insulated/isothermal boundaries. Analytical results are verified by employing numerically analyzed results for unknown field functions and presented graphically for the vibrations of stress free field functions such as thermoelastric damping, frequencies and frequency-shift. The results have been authenticated by analyzing analytical and numerical results with existing literature with earlier published work. The study of present paper based on 3-phase-lag model of generalized thermoelasticity may receive better approach to allow voids and relaxation time parameters, which have many applications in the field of science, technology and engineering. The study may also be useful in the area of seismology for mining and drilling in the earth’s crust.
HIGHLIGHTS
- The analysis for electro-magneto transversely isotropic nonlocal thermoelastic hollow cylinder with voids in the reference of 3-phase-lag effect of heat conduction
- The strength of the magnetic field proceeds in the direction of the z-axis of the nonlocal thermoelastic hollow cylinder/disk
- Free vibration analysis has been explored by applying stress free and thermally insulated/isothermal boundaries
- Analytical results are verified by employing numerically analyzed results for unknown field functions and presented graphically for the vibrations of stress free field functions such as damping, frequencies and frequency-shift

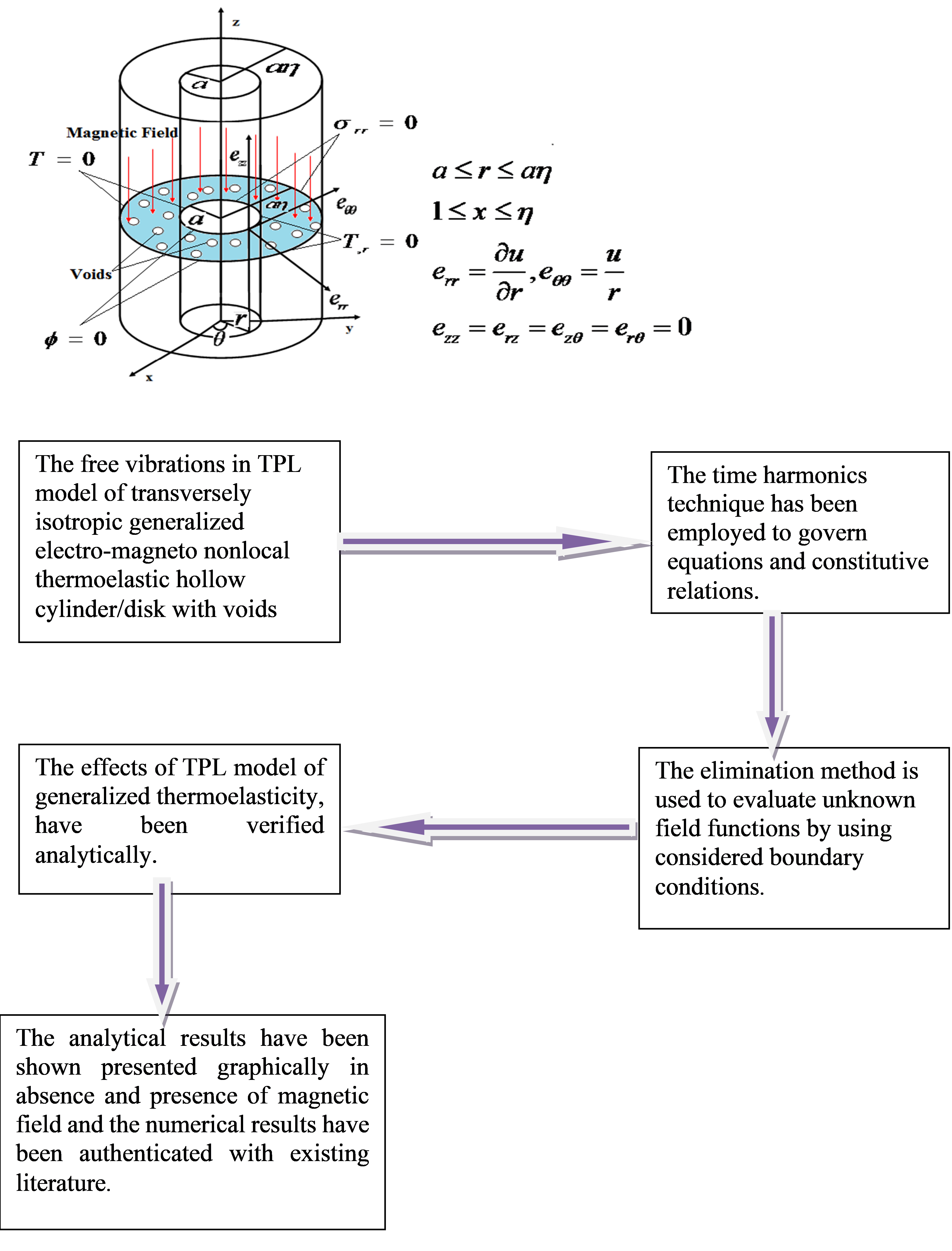

GRAPHICAL ABSTRACT
Downloads
Metrics
References
MA Boit. Thermoelasticity and irreversible thermodynamics. J. Appl. Phys. 1956; 27, 240-53.
H Lord and Y Shulman. A generalized dynamical theory of thermo-elasticity. J. Mech. Phys. Solid. 1967; 15, 299-309.
AE Green and KA Lindsay. Thermo-elasticity. J. Elasticity. 1972; 77, 1-7.
DS Chandrashekhariah. Thermoelasticity with second sound: A review. Appl. Mech. Rev. 1986; 39, 355-76.
DS Chandrashekhariah. Hyperbolic thermoelasticity: A review of recent literature. Appl. Mech. Rev. 1998; 51, 705-29.
DY Tzou. A unified field approach for heat conduction from macro to micro-scales. J. Heat Tran. 1995; 117, 8-16.
SK Roychoudhuri. On a thermoelastic three-phase-lag model. J. Therm. Stresses 2007; 30, 231-8.
R Quintanilla. A well-posed problem for the three-dual-phase-lag heat conduction. J. Therm. Stresses 2009; 32, 270-8.
A Kar and M Kanoria. Generalized thermo-visco-elastic problem of a spherical shell with three-phase-lag effect. Appl. Math. Model. 2009; 33, 3287-98.
A Magana, A Miranville and R Quintanilla. On the stability in phase-lag heat conduction with two temperatures. J. Evol. Equat. 2018; 18, 1697-712.
SM Abo-Dahab and S Biswas. P, T, and SV wave propagation at the interface between solid–liquid media with magnetic field and initial stress in the context of three-phase-lag model. Mech. Adv. Mater. Struct. 2020; 27, 165-75.
MA Ezzat, AS El-Karamany and MA Fayik. Fractional order theory in thermoelastic solid with three-phase lag heat transfer. Arch. Appl. Mech. 2012; 82, 557-72.
DK Sharma, M Bachher and N Sarkar. Effect of phase-lags on the transient waves in an axisymmetric functionally graded viscothermoelastic spherical cavity in radial direction. Int. J. Dynam. Contr. 2020; 9, 424-37.
DK Sharma, M Bachher, S Manna and N Sarkar. Vibration analysis of functionally graded thermoelastic nonlocal sphere with dual-phase-lag effect. Acta Mech. 2020; 231, 1765-81.
SY Atwa. Generalized magneto-thermoelasticity with two temperature and initial stress under Green-Naghdi theory. Appl. Math. Model. 2014; 38, 5217-30.
DK Sharma, MK Sharma and N Sarkar. Effect of three-phase-lag model on the analysis of three-dimensional free vibrations of viscothermoelastic solid cylinder. Appl. Math. Model. 2021; 90, 281-301.
S Deswal and KK Kalkal. Three-dimensional half-space problem within the framework of two-temperature thermo-viscoelasticity with three-phase-lag effects. Appl. Math. Model. 2015; 39, 7093-112.
AC Eringen. Nonlocal polar elastic continua. Int. J. Eng. Sci. 1972; 10, 1-16.
AC Eringen. Theory of nonlocal thermoelasticity. Int. J. Eng. Sci. 1974; 12, 1063-77.
AC Eringen. Memory-dependent nonlocal electromagnetic elastic solids and super-conductivity. J. Math. Phys. 1991; 32, 787-96.
AC Eringen. Non-local Polar Field Models. Academic Press, New York, 1996.
W Wang and RS Dhaliwal. Uniqueness in generalized nonlocal thermoelasticity. J. Therm. Stresses 1993; 16, 71-7.
AM Zenkour and AE Abouelregal. Nonlocal thermoelastic vibrations for variable thermal conducting nanobeams due to harmonically varying heat. J. Vib. Eng. 2014; 16, 3665-78.
YJ Yu, XG Tian and XR Liu. Size-dependent generalized thermoelasticity using eringen’s nonlocal model. Eur. J. Mech. Solid. 2015; 51, 96-106.
I Roy, DP Acharya and S Acharya. Rayleigh wave in a rotating nonlocal magneto-elastic half-plane. J. Theor. Appl. Mech. 2015; 45, 61-78.
AC Eringen. Nonlocal continuum field theories. Springer Verlag, New York, 2002.
M Bachher and N Sarkar. Nonlocal theory of thermoelastic materials with voids and fractional derivative heat transfer. Waves Random Complex Media 2019; 29, 595-613.
DK Sharma, D Thakur, V Walia and N Sarkar. Free vibration analysis of a nonlocal thermoelastic hollow cylinder with diffusion. J. Therm. Stresses 2020; 43, 981-97.
DK Sharma, D Thakur and N Sarkar. Effect of dual phase lag model on the vibration analysis of non local generalized thermoelastic diffusive hollow sphere. Waves Random Complex Media 2020; 32, 1626-43.
JW Nunziato and SC Cowin. A non-linear theory of elastic materials with voids. Arch. Ration. Mech. Anal. 1979; 72, 175-201.
SC Cowin and JW Nunziato. Linear elastic materials with voids. J. Elasticity 1983; 13, 125-47.
P Puri and SC Cowin. Plane harmonic waves in elastic materials with voids. J. Elasticity 1985; 15, 167-83.
D Iesan. Some theorems in the theory of elastic materials with voids. J. Elasticity 1985; 15, 215-24.
D Iesan. A theory of thermoelastic materials with voids. Acta Mech. 1986; 60, 67-89.
DS Chandrasekharaiah. Surface waves in an elastic half space with voids. Acta Mech. 1986; 62, 77-85.
PK Sharma, D Kaur and JN Sharma.Three-dimensional vibration analysis of a thermoelastic cylindrical panel with voids. Int. J. Solid. Struct. 2008; 45, 5049-58.
MA Ezzat and HM Youssef. Generalized magneto-thermoelasticity in a perfectly conducting medium. Int. J. Solid. Struct. 2005; 42, 6319-34.
SM Abo-Dahab and IA Abbas. LS model on thermal shock problem of generalized magneto-thermoelasticity for an infinitely long annular cylinder with variable thermal conductivity. Appl. Math. Model. 2011; 35, 3759-68.
P Das, A Kar and M Kanoria. Analysis pf magneto-thermoelastic response in a transversely isotropic hollow cylinder under thermal shock with three-phase-lag effect. J. Therm. Stresses 2013; 36, 239-58.
SM Abo-Dahab and S Biswas. Effect of rotation on rayleigh waves in magneto-thermoelastic transversely isotropic medium with thermal relaxation times. J. Electromagn. Waves Appl. 2017; 31, 1485-507.
MIA Othman and MIM Hilal. Effect of initial stress and rotation on magneto-thermoelastic material with voids and energy dissipation. Multidiscipline Model. Mater. Struct. 2017; 13, 331-46.
S Mondal and M Kanoria. Thermoelastic solutions for thermal distributions moving over thin slim rod under memory-dependent three-phase lag magneto-thermoelasticity. Mech. Base. Des. Struct. Mach. 2020; 48, 277-98.
DK Sharma, PC Thakur, N Sarkar and M Bachher. Vibrations of a nonlocal thermoelastic cylinder with void. Acta Mech. 2020; 231, 2931-45.
DK Sharma, PC Thakur and N Sarkar. Effect of dual-phase-lag model on free vibrations of isotropic homogenous nonlocal thermoelastic hollow sphere with voids. Mech. Base. Des. Struct. Mach. 2020, https://doi.org/10.1080/15397734.2020.1824792.
I Keles and N Tutuncu. Exact analysis of axisymmetric dynamic response of functionally graded Cylinders (or disks) and Spheres. J. Appl. Mech. 2011; 78, 061014.
DK Sharma, MK Sharma and N Sarkar. Analysis of three-dimensional free vibrations of isotropic visco-thermoelastic solid cylinder with two relaxation time parameters. J. Therm. Stresses 2021; 44, 107-32.
HM Youssef. Two-temperature generalized thermoelastic infinite medium with cylindrical cavity subjected to moving heat source. Arch. Appl. Mech. 2010; 80, 1213-24.
JN Sharma, PK Sharma and KC Mishra. Analysis of free vibrations in axisymmetric functionally graded thermoelastic cylinders. Acta Mech. 2014; 225, 1581-94.
DK Sharma, H Mittal and SR Sharma. Forced vibration analysis in axisymmetric functionally graded viscothermoelastic hollow cylinder under dynamic pressure. Proc. Natl. Acad. Sci. 2020; 90, 809-18.
M Moosapour, MA Hajabasi and H Ehteshami. Thermoelastic damping effect analysis in micro flexural resonator of atomic force microscopy. Appl. Math. Model. 2014; 38, 2716-33.
AD Pierce. Acoustics: An introduction to its physical principles and applications. McGraw-Hill Book, New York, 1981.
P Chadwick and LTC Seet. Wave propagation in a transversely isotropic heat conducting materials material. Mathematica 1970; 17, 255-74.
RS Dhaliwal and A Singh. Dynamic coupled thermoelasticity. Hindustan Publishing Corporation, New York, 1980.
