Synthesis and Characterization of Nano AlN Powder from Al(OH)₃/C Precursors Using a Hybrid Method Carbothermal Reduction Nitridation—Hydrothermal Autoclave Assisted
DOI:
https://doi.org/10.48048/tis.2026.11548Keywords:
Aluminium nitride (AlN), Al(OH)₃, Carbon black, Hydrothermal autoclave, CRNAbstract
A novel synthesized method using a hydrothermal autoclave assists in the carbothermal reduction nitridation (CRN) was developed to synthesize aluminum nitride (AlN) from Al(OH)₃ and carbon black as a starting material. The mass ratio of Al(OH)₃:C varies from 3:1, 4:1 and 5:1. N₂ gas with the flow rate of 0.1 L/min is flowed into an autoclave in the nitridation process with temperatures of 250, 300 and 350 °C. The characterization of synthesized AlN was observed using FTIR, XRD, SEM, PSA and UV-Vis. The FTIR results indicate that with a mass ratio of 3:1, the absorption peak was about ~488 cm⁻¹, which was the highest compared to mass ratio 4:1 (~485 cm⁻¹) and mass ratio 5:1 (~480 cm⁻¹). The success rate of synthesis is influenced by the increase in nitridation temperature. At a nitridation temperature of 350 °C, XRD results showed the formation of a homogeneous and crystalline AlN phase with an average crystallite size of about ~10.5 nm and a total crystallization percentage of 67.04%. Further SEM and PSA results verified the growth of nanostructures and reduced aggregation particles with an average size about ~125 nm. In addition, the UV-Vis spectroscopy revealed an optical bandgap of approximately 5.6 eV, aligning well with the typical semiconductor behavior of AlN.
HIGHLIGHTS
- A novel hybrid method in synthesizing AlN with low temperature using carbothermal reduction nitridation and hydrothermal autoclave-assisted was successfully developed at low temperature (250 - 350 °C).
- A homogenous AlN phase with ~10.65 crystallites and a particle size of about ~125 nm was obtained at a nitridation temperature of 350 °C.
- UV-Vis analysis resulted in a bandgap energy of 5.56 eV, typical of AlN semiconductors and suitable for electrical, thermal management, and deep-UV optoelectronic applications.
- The method enables green and efficient synthesis of nano-AlN with low-cost material (Al(OH)₃ and carbon black.

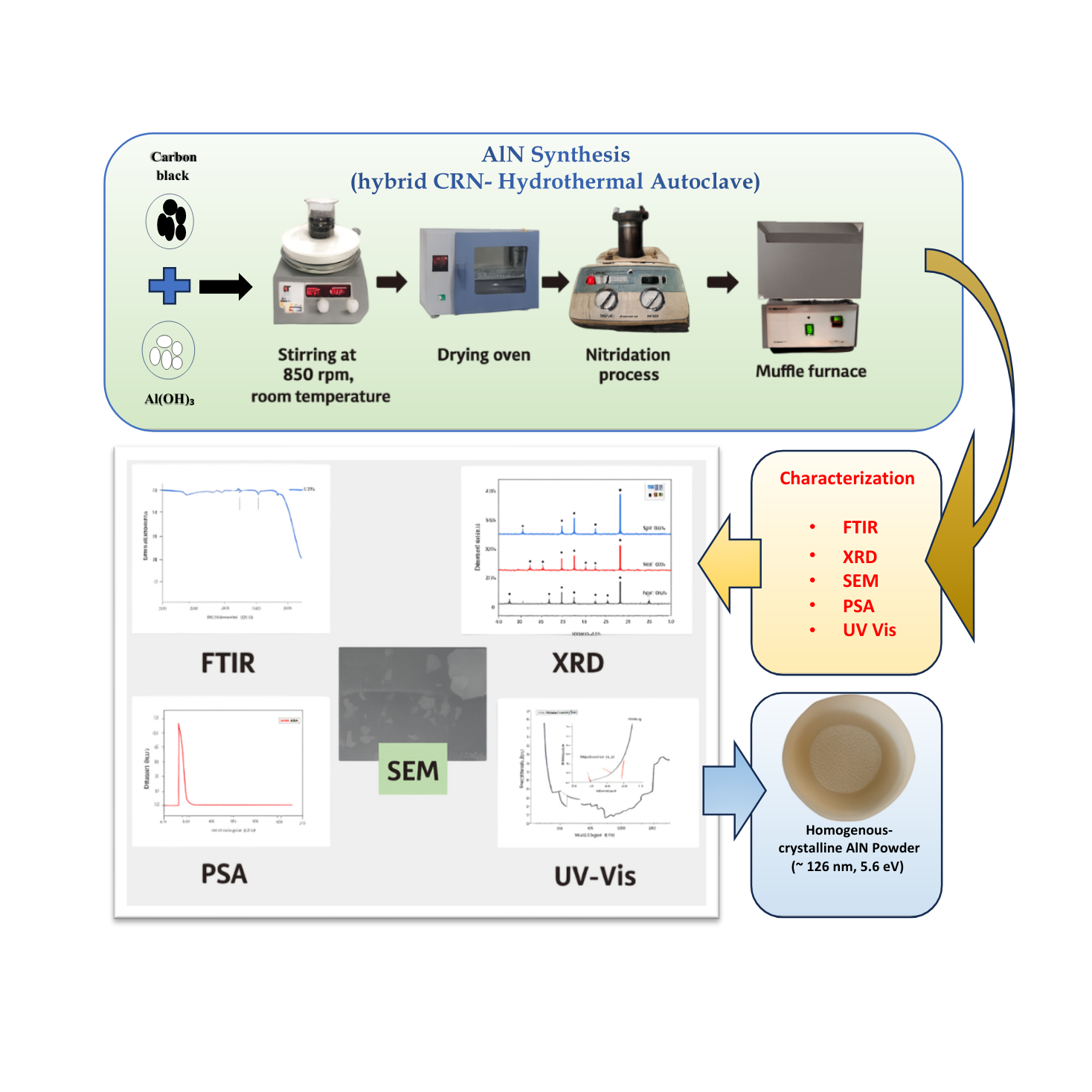

GRAPHICAL ABSTRACT
Downloads
References
G Li, B Li, B Ren, H Chen, B Zhu and J Chen. Synthesis of aluminum nitride using sodium aluminate as aluminum source. Processes 2023; 11(4), 1034.
Q Huang, J Deng, X Li, G Zhang and F Xu. Experimental investigation on thermally induced aluminum nitride based flexible composite phase change material for battery thermal management. Journal of Energy Storage 2020; 32, 101755.
E Wondu, W Lee, M Kim, D Park and J Kim. Phase change materials for energy storage applications from PEG and PBAT with AlN and CNT as Fillers. ACS Omega 2024; 9(50), 49557-49565.
A Tang, W Chen, X Shao, Y Jin, J Li and D Xia. Experimental investigation of aluminum nitride/carbon fiber-modified composite phase change materials for battery thermal management. International Journal of Energy Research 2022; 46(9), 12737-12757.
X Wu, C Deng, J Di, J Ding, H Zhu and C Yu. Fabrication of novel AlN-SiC-C refractories by nitrogen gas-pressure sintering of Al₄SiC₄. Journal of the European Ceramic Society 2022; 42(8), 3634-3643.
X Zeng, Y Wu, G He, W Zhu, S Ding and Z Zeng. High-pure AlN crystalline thin films deposited on GaN at low temperature by plasma-enhanced ALD. Vacuum 2023; 213, 112114.
Q He, M Qin, M Huang, H Wu, H Lu, H Wang, X Mu,Y Wang and X Qu. Synthesis of highly sinterable AlN nanopowders through sol-gel route by reduction-nitridation in ammonia. Ceramic International 2019; 45(12), 14568-14575.
MI Lerner, EA Glazkova, AS Lozhkomoev, NV Svarovskaya, OV Bakina, AV Pervikov and SG Psakhie. Synthesis of Al nanoparticles and Al/AlN composite nanoparticles by electrical explosion of aluminum wires in argon and nitrogen. Powder Technology 2016; 295, 307-314.
S Rogers, M Dargusch and D Kent. Impacts of temperature and time on direct nitridation of aluminium powders for preparation of AlN reinforcement. Materials 2023; 16(4), 1583.
X Hao, S Wan, W Kang, J Zhao, S Han, D Peng, P Yang and Q Wang. Carbothermal synthesis of high-aspect-ratio AlN whiskers using graphite felt as carbon source. Ceramic International 2022; 48(7), 9842-9847.
KB Lee, J Kim, CH Shim, Y Kim, H Choi and JP Ahn. Low-temperature synthesis of high-purity AlN from Al powder. Journal of Materials Research and Technology 2022; 21, 4526-4536.
J Li, H Chen, G Zhou, D Huang, L Ling and X Qin. Synthesis of fine AlN powders by carbothermal reduction and nitridation from nano-alumina/carbon foam. Ceramic International. 2025; 51(7), 8291-8298.
Y Xu, Z Zhou, X Chen, C Han, B Yang, B Xu and D Liu. Ultrafine AlN synthesis by alumina carbothermal reduction under vacuum: Mechanism and experimental study. Powder Technology 2021; 377, 843-846.
J Xu, H Wang and Z Zhao. Preparation of spherical AlN powders by combined microemulsion method and carbothermal method. Ceramic International 2019; 45(10), 12708-12715.
SM Lee, MT Ayman, SM Jang, S Park and DH Yoon. Synthesis of pure fine AlN powder via CRN using nitridation promoter. Materials Today Communications 2024; 41, 110935.
C Ma, Y Li, X Wu and Y Gao. Synthesis mechanism of AlN–SiC solid solution reinforced Al₂O₃ composite by two-step nitriding of Al–Si₃N₄–Al₂O₃ compact at 1,500 °C. Ceramic International 2022; 49(9), 22022-22029.
Q Wen, P Wang, J Zheng, Y Ying, J Yu, W Li, S Che and L Qiao. Carbothermal reduction synthesis of aluminum nitride from Al(OH)₃/C/PVB slurries prepared by three‐roll mixing. Materials 2021; 14(6), 1386.
A Chu, L Zhang, R Ud-din and Y Zhao. Reaction model and mechanism of preparing (Al₂O₃ + C) precursor for carbothermal synthesis of AlN by a modified low temperature combustion synthesis method. Materials 2022; 15(18), 6216.
Y Shan, G Hou, X Sun, X Han, C Hong, J Xu and J Li. One-step carbothermal reduction and nitridation (CRN) for fast fabrication of fine and single phase AlON powder by using hydrothermal synthesized α-Al₂O₃/C mixture. Ceramic International 2021; 47(13), 18012-18019.
TQ Tazim, M Kawsar, MS Hossain, NM Bahadur and S Ahmed. Hydrothermal synthesis of nano-metal oxides for structural modification: A review. Next Nanotechnology 2025; 7, 100167.
EV Rusu, V Morari, T Guțul, V Ursaki and P Vlazan. Hydrothermal preparation of oxide (Ga₂O₃, ZnO, TiO₂) and derivative nanoparticles. The Moldavian Journal of the Physical Sciences. 2022; 21(1), 61-70.
G Feng, J Yang, D Zhou, Q Chen, W Xu and Y Zhou. Mechanism for hydrothermal-carbothermal synthesis of AlN nanopowders. Journal of Inorganic Materials 2025; 40, 104-110.
T Yamakawa, J Tatami, K Komeya and T Meguro. Synthesis of AlN powder from Al(OH)₃ by reduction-nitridation in a mixture of NH₃-C₃H₈ gas. Journal of the European Ceramic Society 2006; 26(12), 2413-2418.
A Hermawan, HW Son, Y Asakura, T Mori and S Yin. Synthesis of morphology controllable aluminum nitride by direct nitridation of γ-AlOOH in the presence of N₂H₄ and their sintering behavior. Journal of Asian Ceramic Societies 2018; 6(1), 63-69.
AF Alkaim, TA Kandiel, FH Hussein, R Dillert and DW Bahnemann. Solvent-free hydrothermal synthesis of anatase TiO₂ nanoparticles with enhanced photocatalytic hydrogen production activity. Applied Catalysis A: General 2013; 466, 32-37.
RS Al-Shemary, AM Aljeboree and AF Alkaim. Microwave-assisted hydrothermal synthesis as a nanocomposite with superior adsorption capacity for efficient removal of toxic Maxillon blue (GRL) dye from aqueous solutions. Eurasian Chemical Communications 2023; 5(9), 832-841.
A Sakthisabarimoorthi, MT Ayman, SS Ryu and DH Yoon. Synthesis of hollow AlN microsphere by hydrothermal and carbothermal reduction–nitridation hybrid technique. Ceramic International 2024; 50(19A), 35154-35160.
R Febrida, A Cahyanto, E Herda, V Muthukanan, F Faizal, C Panatarani and IM Joni. Synthesis and characterization of porous CaCO₃ vaterite particles by simple solution method. Materials 2021; 14(16), 4425.
H Zhong, F Pan, S Yue, C Qin, V Hadjiev, F Tian, X Liu, F Lin, Z Wang and J Bao. Idealizing Tauc Plot for accurate bandgap determination of semiconductor with UV-Vis: A Case study for cubic boron arsenide. The Journal of Physical Chemistry Letters 2023; 14(26), 6702-6708.
R Dallaev, N Papěž, D Sobola, S Ramazanov and P Sedlák. Investigation of structure of AlN thin films using Fourier-transform infrared spectroscopy. Procedia Structural Integrity 2019; 23, 601-606.
C Balasubramanian, S Bellucci, G Cinque, A Marcelli, M Cestelli Guidi, M Piccinini, A Popov, A Soldatov and P Onorato. Characterization of aluminium nitride nanostructures by XANES and FTIR spectroscopies with synchrotron radiation. Journal of Physics Condensed Matter 2006; 18, S2095-S2104.
S Bakalova, A Szekeres, M Anastasescu, M Gartner, L Duta, G Socol, C Ristoscu and IN Mihailescu. VIS/IR spectroscopy of thin AIN films grown by pulsed laser deposition at 400 °C and 800 °C and various N₂ pressures. Journal of Physics: Conference Series 2014; 514, 012001.
Z Yang, X Hou and L Dai. Low-temperature synthesis of Nano-AlN based on solid nitrogen source by plasma-assisted ball milling. Journal of Renewable Materials 2023; 11(6), 2941-2951.
RK Choudhary, P Mishra, A Biswas and AC Bidaye. Structural and optical properties of aluminum nitride thin films deposited by pulsed dc magnetron sputtering. ISRN Materials Science 2013; 2013, 759462.
M Lee, H Son, HY Lee, J Moon, H Kim, JI Park, Z Liu, MG Hahm, M Yang and UJ Kim. Nanovoid-driven highly crystalline aluminum nitride and its application in solar-blind UV photodetectors. Journal of Materials Chemistry C 2020; 8(41), 14431-14438.
S Sohal, W Feng, M Pandikunta, VV Kuryatkov, SA Nikishin and M Holtz. Influence of phonons on the temperature dependence of the band gap of AlN and AlxGa1-xN alloys with high AlN mole fraction. Journal of Applied Physic 2013; 113(4), 043501.
E Silveira, JA Freitas, SB Schujman and LJ Schowalter. AlN bandgap temperature dependence from its optical properties. Journal of Crystal Growth 2008; 310(17), 4007-4010.
T Li, Y Lu and Z Chen. Heteroepitaxy growth and characterization of high-quality AlN films for far-ultraviolet photodetection. Nanomaterials 2022; 12(23), 4169.
PM Coulon, G Kusch, RW Martin and PA Shields. Deep UV emission from highly ordered AlGaN/AlN Core-Shell nanorods. ACS Applied Materials and Interfaces 2018; 10, 33441-33449.
