Effects of Areca Husk Fiber Loading and Alkaline Treatment on Properties of Natural Rubber Latex Foam
DOI:
https://doi.org/10.48048/tis.2025.8992Keywords:
Areca husk fiber, Natural rubber latex foam, Natural rubber, Alkaline treatment, Natural fiberAbstract
The impact of integrating areca husk fiber (AHF) and employing alkaline treatment on the mechanical, thermal, and morphological characteristics of natural rubber latex foam (NRLF) is examined in this research. Areca husk fibers, derived from agro-industrial waste, were included in the NRLF matrix at different loadings (0, 5, 10, 15, 20, and 25 pphr). The fibers were chemically treated with sodium hydroxide (NaOH) to enhance surface roughness and augment interfacial interaction with the NRLF. Tensile tests indicated enhanced tensile strength at the appropriate filler load of 15 pphr for untreated AHF and 10 pphr for treated AHF. The elongation at break was decreased as fiber loadings increased, with greater elongation exhibited by treated AHF-filled NRLF compared to untreated AHF-filled NRLF. The foam’s density and compression set increased with elevated fiber loadings; however, treated AHF-filled NRLF demonstrated improved elasticity and thermal stability compared to untreated samples. Filler-matrix interactions were validated through scanning electron microscopy (SEM), which showed reduced cell sizes and more homogeneous foam formations in the treated AHF samples. The results indicate that the efficacy of NRLF is enhanced by the alkaline treatment of AHF, rendering it an appropriate material for sustainable composite applications.
HIGHLIGHTS
- Integration of sustainable materials: Areca husk fiber (AHF), an agro-industrial byproduct, was utilized as a filler in natural rubber latex foam (NRLF), fostering environmentally friendly composite materials.
- Enhancement of alkaline treatment: Alkaline-treated AHF markedly improved mechanical properties, including tensile strength, elongation, and foam density, in comparison to untreated fibers.
- The maximum tensile strength was attained at 15 pphr for untreated AHF and 10 pphr for treated AHF.
- Thermal stability: Treated AHF-filled NRLF demonstrated better thermal stability and resistance to degradation compared to untreated counterparts.
- Improved foam morphology: Alkaline treatment resulted in smaller, more uniform foam cells, enhancing the foam structure and overall mechanical performance.

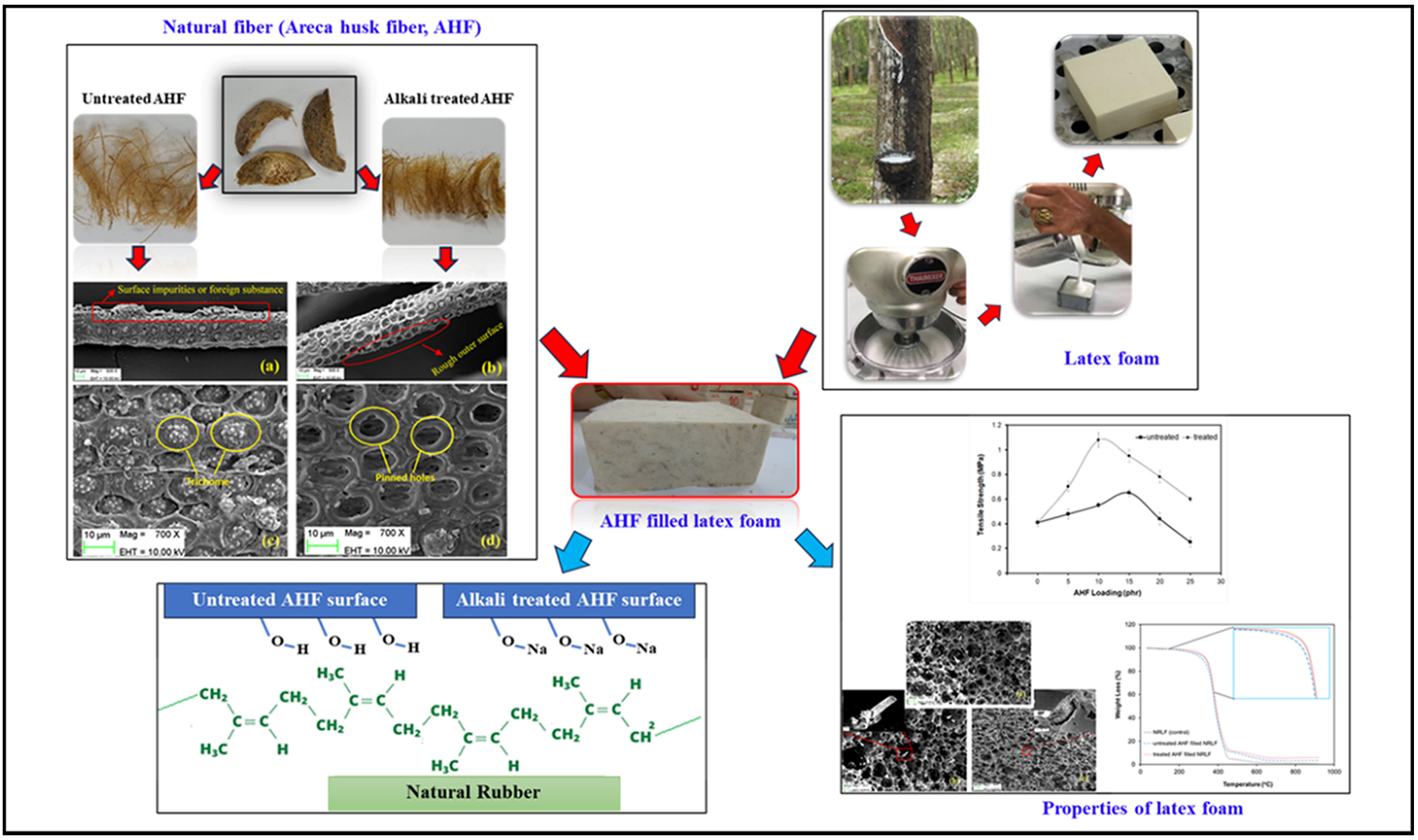

GRAPHICAL ABSTRACT
Downloads
References
SO Han, M Karevan, MA Bhuiyan, JH Park and K Kalaitzidou. Effect of exfoliated graphite nanoplatelets on the mechanical and viscoelastic properties of poly(lactic acid) biocomposites reinforced with kenaf fibers. Journal of Materials Science 2012; 47, 3535-3543.
P Wambua, J Ivens and I Verpoest. Natural fibres: Can they replace glass in fibre reinforced plastics? Composites Science and Technology 2003; 63(9), 1259-1264.
T Saowapark, E Chaichana and A Jaturapiree. Properties of natural rubber latex filled with bacterial cellulose produced from pineapple peels. Journal of Metals, Materials and Minerals 2017; 27(2), 12-16.
C Kuranchie, A Yaya and YD Bensah. The effect of natural fibre reinforcement on polyurethane composite foams - A review. Scientific African 2021; 11, e00722.
R Kumar, T Singh and H Singh. Solid waste-based hybrid natural fiber polymeric composites. Journal of Reinforced Plastics and Composites 2015; 34(23), 1979-1985.
VA Yiga, M Lubwama and PW Olupot. Thermal stability of NaOH modified rice husk fiber-reinforced polylactic acid composites: Effect of rice husks and clay loading. Results in Materials 2023; 18, 100398.
P Jayaraman, A Pai, M Rodriguez-Millan, SB Shenoy, KN Chethan and S Hegde. Exploring acoustic properties of banana fiber composites with elastomeric filler through a computational approach. Materials Research Express 2024; 11(1), 15508.
H Zarafshani, P Watjanatepin, M Lepelaar, J Verbruggen, P Ouagne, RD Luca, Q Li, F Scarpa, V Placet and KV Acker. Environmental assessment of woven hemp fibre reinforced epoxy composites and potential applications in aerospace and electric scooter industries. Results in Materials 2023; 20, 100474.
Akhyar, A Gani, M Ibrahim, F Ulmi and A Farhan. The influence of different fiber sizes on the flexural strength of natural fiber-reinforced polymer composites. Results in Materials 2024; 21, 100534.
WZW Mohamed, A Baharum, I Ahmad, I Abdullah and NE Zakaria. Fiber in rubber composites. BioResources 2018; 13(2), 2945-2959.
X Chen, J An, G Cai, J Zhang, W Chen, X Dong, L Zhu, B Tang, J Wang and X Wang. Environmentally friendly flexible strain sensor from waste cotton fabrics and natural rubber latex. Polymers 2019; 11(3), 404.
SNH Mustapha, CWNFCW Norizan, R Roslan and R Mustapha. Effect of kenaf/empty fruit bunch (EFB) hybridization and weight fractions in palm oil blend polyester composite. Journal of Natural Fibers 2020; 19(5), 1885-1898.
DDCV Sheng, MNB Yahya, NBC Din, KY Wong, MRM Asyraf and V Sekar. Potential of wood fiber/polylactic acid composite microperforated panel for sound absorption application in indoor environment. Construction and Building Materials 2024; 444, 137750.
C Qiu, F Li, L Wang, X Zhang, Y Zhang, Q Tang, X Zhao, CFD Hoop, X Peng, X Yu and X Huang. The preparation and properties of polyurethane foams reinforced with bamboo fiber sources in China. Materials Research Express 2021; 8(4), 45501.
R Prabhu, S Mendonca, R D’Souza and T Bhat. Effect of water absorption on the mechanical properties of alkaline treated bamboo and flax fiber reinforced epoxy composites. Trends in Scieces 2022; 19(18), 5779.
HA Begum, SK Saha, AB Siddique and T Stegmaier. Investigation on the spinability of fine areca fiber. The Journal of The Textile Institute 2019; 110(9), 1241-1245.
S Dhanalakshmi, P Ramadevi and B Basavaraju. Areca fiber reinforced epoxy composites: Effect of chemical treatments on impact strength. Oriental Journal of Chemistry 2015; 31(2), 763-769.
AJ Sankarathil, R Rosari, VS Joseph, S Jannet and AA Mathew. Chopped areca nut fibers as filler in epoxy matrix: Mechanical and tribological studies. Trends in Sciences 2023; 20(12), 7155.
N Sukudom, P Jariyasakoolroj, L Jarupan and K Tansin. Mechanical, thermal, and biodegradation behaviors of poly(vinyl alcohol) biocomposite with reinforcement of oil palm frond fiber. Journal of Material Cycles and Waste Management 2019; 21(1), 125-133.
FFG Paiva, VPKD Maria, GB Torres, G Dognani, RJD Santos, FC Cabrera and AE Job. Sugarcane bagasse fiber as semi-reinforcement filler in natural rubber composite sandals. Journal of Material Cycles and Waste Management 2019; 21, 326-335.
RPG Ranganagowda, SS Kamath, RK Chandrappa and B Bennehalli. Influence of surface modification on physical, mechanical, and morphological properties of natural single areca catechu fiber. Oriental Journal of Chemistry 2019; 35(2), 605-610.
MK Singh, R Tewari, S Zafar, SM Rangappa and S Siengchin. A comprehensive review of various factors for application feasibility of natural fiber-reinforced polymer composites. Results in Materials 2023; 17, 100355.
M Cordin, S Eberle, T Bechtold, C Bitschnau, K Lins, F Duc, R Chapuis and T Pham. Natural fiber reinforced shoe midsoles with balanced stiffness/damping behavior. Materials 2024; 17(2), 401.
G Yuvaraj and M Ramesh. Effect of silane treatment on corn husk and tamarind fiber and betel nut filler on fatigue, thermal conductivity, and machining behavior of epoxy biocomposites. Biomass Conversion and Biorefinery 2024; 14, 10807-10816.
IM Akbar, AN Fauza, Z Abadi and D Rahmadiawan. Study of the effective fraction of areca nut husk fibre composites based on mechanical properties. Journal of Engineering Researcher and Lecturer 2024; 4(1), 29-34.
HM Lim, S Manroshan and M Geraghty. Oil palm trunk fibre filled natural rubber latex biocomposite foam. Journal of Rubber Research 2018; 21, 182-193.
S Tomyangkul, P Pongmuksuwan, W Harnnarongchai and K Chaochanchaikul. Enhancing sound absorption properties of open-cell natural rubber foams with treated bagasse and oil palm fibers. Journal of Reinforced Plastics and Composites 2016; 35(8), 688-697.
AFA Karim, H Ismail and ZM Ariff. Effects of kenaf loading and alkaline treatment on properties of kenaf filled natural rubber latex foam. Sains Malaysiana 2018; 47(9), 2163-2169.
SNI Kudori and H Ismail. The effects of filler contents and particle sizes on properties of green kenaf-filled natural rubber latex foam. Cellular Polymers 2019; 39(2), 57-68.
I Surya, SNI Kudori and H Ismail. Effect of partial replacement of kenaf by empty fruit bunch (EFB) on the properties of natural rubber latex foam (NRLF). BioResources 2019; 14(4), 9375-9391.
S Ramasamy, H Ismail and Y Munusamy. Soil burial, tensile properties, morphology, and biodegradability of (rice husk powder)-filled natural rubber latex foam. Journal of Vinyl and Additive Technology 2015; 21(2), 128-133.
Y Li, Y Du, F Teng, C Liang, S Gao and Z Zhao. Research on the effects of jute fibers filler content and surface treatment on the mechanical properties of natural rubber latex foam. Polymer Engineering and Science 2024; 64(3), 1156-1167.
R Saengwong-ngam, R Saengrayap, J Rattanakaran, S Arwatchananukul, N Aunsri, K Tontiwattanakul, K Jitkokkruad, T Trongsatitkul, L Lerslerwong, H Kitazawa, P Mahajan and S Chaiwong. Cushion performance of eco-friendly natural rubber latex foam composite with bamboo leaf fiber for impact protection of guava. Postharvest Biology and Technology 2024; 208, 112663.
ASM Bashir, Y Manusamy, TL Chew, H Ismail and S Ramasamy. Mechanical, thermal, and morphological properties of (eggshell powder)-filled natural rubber latex foam. Journal of Vinyl and Additive Technology 2017; 23(1), 3-12.
S Nayak, SK Khuntia, SD Mohanty, J Mohapatra and TK Mall. An experimental study of physical, mechanical and morphological properties of alkali treated Moringa/areca based natural fiber hybrid composites. Journal of Natural Fibers 2022; 19(2), 630-641.
M Zwawi. A review on natural fiber bio-composites, surface modifications and applications. Molecules 2021; 26(2), 404.
S Dhanalakshmi, P Ramadevi and B Basavaraju. A study of the effect of chemical treatments on areca fiber reinforced polypropylene composite properties. Science and Engineering of Composite Materials 2017; 24(4), 501-520.
D Sampathkumar, R Punyamurthy, B Bennehalli, RP Ranganagowda and SC Venkateshappa. Natural areca fiber: Surface modification and spectral studies. Journal of Advances in Chemistry 2014; 10(10), 3263-3273.
R Jeyapragash, S Sathiyamurthy, V Srinivasan, R Prithivirajan and G Swaminathan. Properties and characteristics of alkali treated calotropis gigantea fiber-reinforced particle-filled epoxy composites. Composites Theory and Practice 2022; 22(2), 99-105.
K Roy, SC Debnath, L Tzounis, A Pongwisuthiruchte and P Potiyaraj. Effect of various surface treatments on the performance of jute fibers filled natural rubber (NR) composites. Polymers 2020; 12(2), 369.
L Yusriah, SM Sapuan, ES Zainudin, M Mariatti and M Jawaid. Effect of alkali treatment on the physical, mechanical, and morphological properties of waste betel nut (Areca catechu) husk fibre. BioResources 2014; 9(4), 7721-7736.
JT Varkey, S Augustine and S Thomas. Thermal degradation of natural rubber/styrene butadiene rubber latex blends by thermogravimetric method. Polymer-Plastics Technology and Engineering 2010; 39(3), 415-435.
