Synthesis of the Fatty Acid Ethyl Esters (FAEE) from Krabok (Irvingia malayana) Seed Oil for Use as the Main Ingredient in the Production of Herbal Massage Oil
DOI:
https://doi.org/10.48048/tis.2024.8444Keywords:
Krabok (Irvingia malayana) seed oil, Fatty acid ethyl ester (FAEE), Transesterification reaction, Herbal massage oil, The main ingredientAbstract
This study focused on synthesizing fatty acid ethyl esters (FAEE) from Krabok (Irvingia malayana) seed oil via transesterification for use as the primary ingredient in herbal massage oil production. Optimal conditions included 5 wt.% of KOH catalyst compared to the oil weight, 15:1 molar ratio of ethanol to Krabok seed oil, 60 min for reaction time and reaction temperature of 78 ± 3 °C, resulting in FAEE yields as high as 99.83 ± 0.17 %. Analysis using FT-IR, 1H and 13C-NMR, and GC techniques revealed FAEE as ester-type compounds, primarily comprising lauric acid (C12:0) and myristic acid (C14:0), constituting 97 wt.% saturated fatty acids and 3 wt.% unsaturated fatty acids. Physicochemical properties indicated clear yellow liquids with viscosity of 1.73 ± 0.03 cSt/s, density of 0.8199 ± 0.0049 g/cm3, cloud point of +4 °C, and pour point of –1 °C. Acid value, free fatty acid content, iodine value, water content and oxidation stability were measured at 0.703 ± 0.001 mg KOH/g of oil, 0.354 ± 0.001 wt.%, 0.59 ± 0.04 g I2/100 g of oil, 1482.3 ± 6.15 ppm, and greater than 12 h, respectively. When the synthesized FAEE was used to produce herbal massage oil products, the results showed that the herbal massage oil products were characterized as a clear yellow liquid with no sediment, low viscosity, and pH in the range of 5 - 6, meeting standard criteria. Thus, FAEE derived from Krabok seed oil is suitable as a primary ingredient for herbal massage oil production, enhancing the value of local resources within the community.
HIGHLIGHTS
- Under optimal conditions of 5 wt.% KOH catalyst, 15:1 ethanol to oil ratio, 60 min at 78 ± 3 °C, FAEE was synthesized from Krabok seed oil for herbal massage oil, yielding 99.83 ± 0.17 %.
- FAEE, identified via FT-IR, 1H and 13C-NMR, and GC, comprises 97 wt.% saturated fatty acids (lauric acid and myristic acid) and 3 wt.% unsaturated.
- The herbal massage oil derived from FAEE as the primary ingredient meets clarity, low viscosity, and pH 5 - 6 standards.
- FAEE from Krabok seed oil enhances the value of local resources.

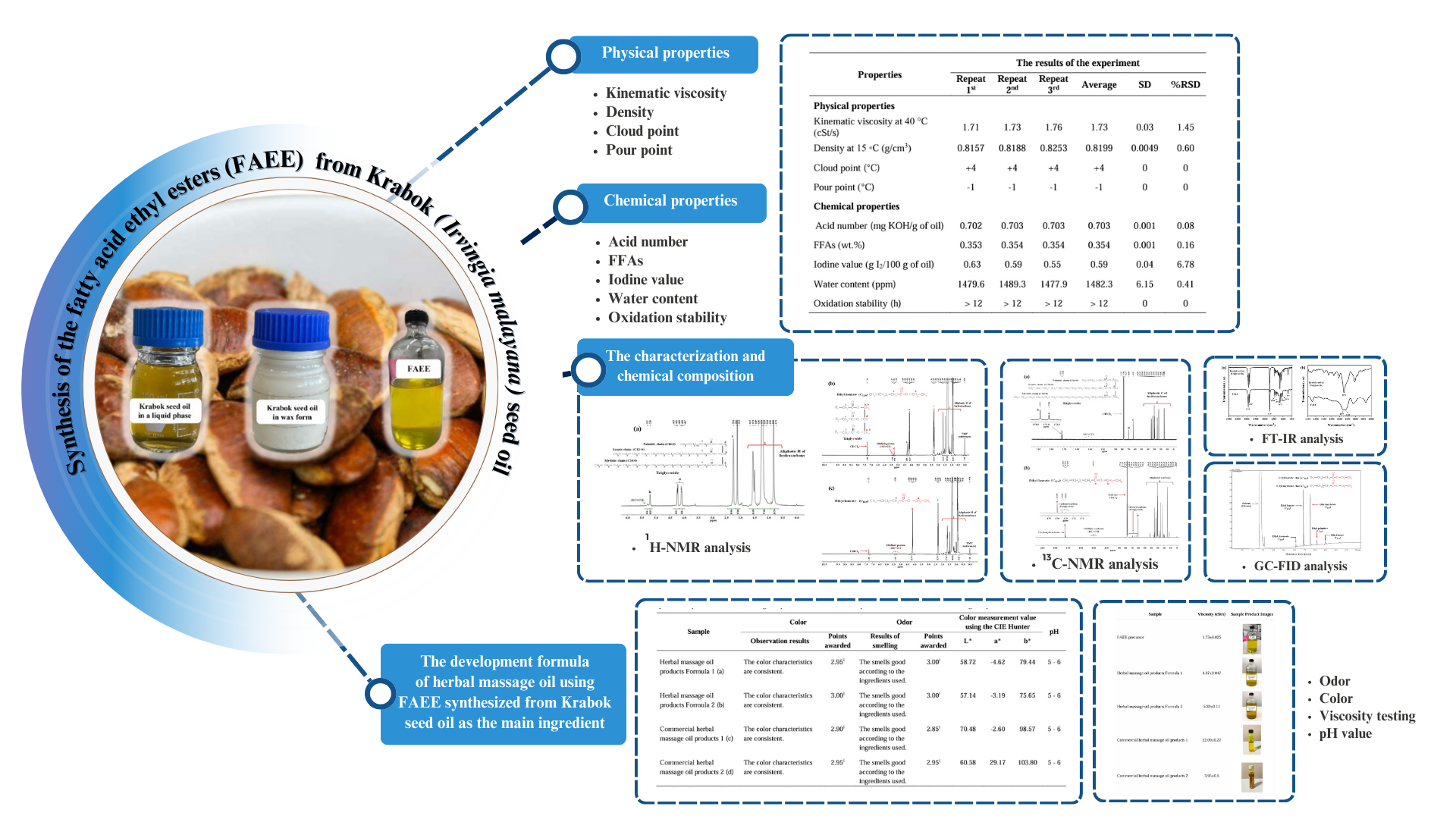

GRAPHICAL ABSTRACT
Downloads
References
Body massage oil for spa, Thai Industrial Standards Institute (TISI), Ministry of Industry, Thailand, Industrial Standards Institute Announcement No. 29 (2018), Available at: https://www.tisi.go.th/ assets/website/pdf/tiss/36-2561.pdf, accessed March 2024.
A Singharach, S Thongpraditchote, N Anantachoke and R Temsiririrkkul. Anti-inflammatory activity of Zingiber montanum (J. König) Link ex Dietr. extracts prepared by deep frying in coconut oil. Pharm. Sci. Asia 2020; 47, 51-7.
B Ali, NA Al-Wabel, S Shams, A Ahamad, SA Khan and F Anwar. Essential oils used in aromatherapy: A systemic review. Asian Pac. J. Trop. Biomed. 2015; 5, 601-11.
S Songkro, A Sirikatitham, S Sungkarak, K Buaking, J Wungsintaweekul, D Maneenuan and K Oungbho. Characterization of aromatherapy massage oils prepared from virgin coconut oil and some essential oils. J. Am. Oil Chem. Soc. 2009; 87, 93-107.
T Hongratanaworakit, S Soontornmanokul and P Wongareesanti. Development of aroma massage oil for relieving muscle pain and satisfaction evaluation in humans. J. Appl. Pharm. Sci. 2018; 8, 126-30.
R Mohammadpourhodki, H Sadeghnezhad, H Ebrahimi, MH Basirinezhad, M Maleki and M Bossola. The effect of aromatherapy massage with lavender and citrus aurantium essential oil on quality of life of patients on chronic hemodialysis: A parallel randomized clinical trial study. J. Pain Symptom Manage. 2021; 61, 456-63.
M Nasiri, Z Farsi, H Habibi, A Fournier and N Rajai. Effects of light stroking massage with olive oil on acute pain severity and number of taken non-steroidal anti-inflammatory drugs among outpatients with extremities trauma: A double-blind, placebo-controlled superiority trial. Int. J. Orthop. Trauma Nurs. 2022; 46, 100953.
O Laosee, N Sritoomma, P Wamontree, C Rattanapan and C Sitthi-Amorn. The effectiveness of traditional Thai massage versus massage with herbal compress among elderly patients with low back pain: A randomised controlled trial. Complementary Ther. Med. 2020; 48, 102253.
Nuad Thai, traditional Thai massage, UNESCO Intangible Cultural Heritage, Available at: https:// ich.unesco.org/en/RL/nuad-thai-traditional-thai-massage-01384, accessed March 2024.
N Latekeh, M Yacob, R Boontud and N Rothatsadin. Study herbal recipes for developing local herbal massage products for identity health services. Acad. J. Community Public Health 2023; 9, 81-7.
R Sirisumpan, S Chantachon and K Phaengsoi. Thai oil massage: The application of traditional knowledge in North-eastern Thailand. Asian Cult. Hist. 2015; 7, 67-74.
A Bunpean and LO Nicharojana. Effects of massage with Plai juice and Plai oil on the relief of neck and shoulders pain: A study from kanchanabhishek institute of medical and public health technology. SCNJ 2019; 6, 212-30.
M Michalak. The use of carrier oils in aromatherapy massage and their effect on skin. Arch. Physiother. Global Res. 2018; 22, 23-31.
MNB Mohiddin, YH Tan, YX Seow, J Kansedo, NM Mubarak, MO Abdullah, YS Chan and M Khalid. Evaluation on feedstock, technologies, catalyst and reactor for sustainable biodiesel production: A review. J. Ind. Eng. Chem. 2021; 98, 60-81.
S Rezania, B Oryani, J Park, B Hashemi, KK Yadav, EE Kwon, J Hur and J Cho. Review on transesterification of non-edible sources for biodiesel production with a focus on economic aspects, fuel properties and by-product applications. Energ. Convers. Manage. 2019; 201, 112155.
W Roschat, S Phewphong, P Pholsupho, K Namwongsa, P Wongka, P Moonsin, B Yoosuk and V Promarak. The synthesis of a high-quality biodiesel product derived from Krabok (Irvingia Malayana) seed oil as a new raw material of Thailand. Fuel 2022; 308, 122009.
S Phewphong, W Roschat, P Pholsupho, P Moonsin, V Promarak and B Yoosuk. Biodiesel production process catalyzed by acid-treated golden apple snail shells (Pomacea canaliculata)-derived CaO as a high-performance and green catalyst. Eng. Appl. Sci. Res. 2022; 49, 36-46.
LI Saeed, AM Khalaf and AB Fadhil. Biodiesel production from milk thistle seed oil as nonedible oil by cosolvent esterification-transesterification process. Asia Pac. J. Chem. Eng. 2021; 16, e2647.
KA Goss, R Alharethi and M Laposata. Fatty acid ethyl ester synthesis in the preparation of scotch whiskey. Alcohol 1999; 17, 241-5.
IC Véras, FAL Silva, AD Ferrão-Gonzales and VH Moreau. One-step enzymatic production of fatty acid ethyl ester from high-acidity waste feedstocks in solvent-free media. Bioresour. Tech. 2011; 102, 9653-8.
A Diacon, I Călinescu, M Vinatoru, P Chipurici, A Vlaicu, AC Boscornea and TJ Mason. Fatty acid ethyl esters (FAEE): A new, green and renewable solvent for the extraction of carotenoids from tomato waste products. Molecules 2021; 26, 4388.
S Preecharram, S Phosri, T Theansungnoen, W Roschat, S Arthan, S Lasopha and J Jandaruang. Nutritional values and their potential applications in food products of Krabok seed (Irvingia malayana). Trends Sci. 2024; 21, 7316.
N Supamathanon, J Wittayakun and S Prayoonpokarach. Properties of Jatropha seed oil from Northeastern Thailand and its transesterification catalyzed by potassium supported on NaY zeolite. J. Ind. Eng. Chem. 2011; 17, 182-5.
S Phewphong, W Roschat, S Inthachai, K Namwongsa, P Wongka, N Khotsuno, C Janlakorn, P Moonsin, B Yoosuk and V Promarak. Biodiesel oil production from waste cooking oil by using the pilot plant-scale solar reactor for the local community in Thailand. Asia Pac. J. Sci. Tech. 2023; 28, APST-28.
W Roschat, S Phewphong, S Inthachai, K Donpamee, N Phudeetip, T Leelatam, P Moonsin, S Katekaew, K Namwongsa, B Yoosuk, P Janetaisong and V Promarak. A highly efficient and cost-effective liquid biofuel for agricultural diesel engines from ternary blending of distilled Yang-Na (Dipterocarpus alatus) oil, waste cooking oil biodiesel, and petroleum diesel oil. Renewable Energ. Focus 2024; 48, 100540.
W Roschat. Analysis of biodiesel as fatty acid ethyl ester (FAEE) by using nuclear magnetic resonance spectroscopy (NMR) technique. SNRU J. Sci. Tech. 2017; 9, 397-406.
AM Rabie, M Shaban, MR Abukhadra, R Hosny, SA Ahmed and NA Negm. Diatomite supported by CaO/MgO nanocomposite as heterogeneous catalyst for biodiesel production from waste cooking oil. J. Mol. Liq. 2019; 279, 224-31.
W Roschat, T Siritanon, B Yoosuk, T Sudyoadsuk and V Promarak. Rubber seed oil as potential non-edible feedstock for biodiesel production using heterogeneous catalyst in Thailand. Renewable Energ. 2017; 101, 937-44.
P Moonsin, W Roschat, S Phewphong, T Leelatam, K Namwongsa, A Thangthong, S Panyakom, B Yoosuk and V Promarak. Modification of Fresh-Water Clamshells (Pilsbryoconcha exilis compressa) as new raw material and its application in the biodiesel production of lard oil. Trends Sci. 2023; 20, 6809.
A Taghipour, U Hornung, JA Ramirez, RJ Brown and TJ Rainey. Fractional distillation of algae based hydrothermal liquefaction biocrude for co-processing: Changes in the properties, storage stability, and miscibility with diesel. Energy Convers. Manage. 2021; 236, 114005.
RH Ellis, TD Hong and EH Roberts. Seed moisture content, storage, viability and vigour. Seed Sci. Res. 1991; 1, 275-9.
KL Nyam, SY Leao, CP Tan and K Long. Functional properties of roselle (Hibiscus sabdariffa L.) seed and its application as a bakery product. J. Food Sci. Tech. 2014; 51, 3830-7.
I Chanakaewsomboon and A Moollakorn. Soap formation in biodiesel production: Effect of water content on saponification reaction. Int. J. Chem. Environ. Sci. 2021; 2, 28-36.
I Chanakaewsomboon, C Tongurai, S Photaworn, S Kungsanant and R Nikhom. Investigation of saponification mechanisms in biodiesel production: Microscopic visualization of the effects of FFA, water and the amount of alkaline catalyst. J. Environ. Chem. Eng. 2020; 8, 103538.
M Takase, M Zhang, W Feng, Y Chen, T Zhao, SJ Cobbina, L Yang and X Wu. Application of zirconia modified with KOH as heterogeneous solid base catalyst to new non edible oil for biodiesel. Energy Convers. Manage. 2014; 80, 117-25.
ST Keera, SME Sabagh and AR Taman. Castor oil biodiesel production and optimization. Egypt. J. Pet. 2018; 27, 979-84.
W Roschat, P Butthichak, N Daengdet, S Phewphong, T Kaewpuang, P Moonsin, B Yoosuk and V Promarak. Kinetics study of biodiesel production at room temperature based on eggshell-derived CaO as basic heterogeneous catalyst. Eng. Appl. Sci. Res. 2020; 47, 361-73.
W Roschat, S Phewphong, J Khunchalee and P Moonsin. Biodiesel production by ethanolysis of palm oil using SrO as a basic heterogeneous catalyst. Mater. Today Proc. 2018; 5, 13916-21.
W Roschat, S Phewphong, K Najai, P Moonsin and A Thangthong. The optimized conditions of ethanolysis reaction of palm oil to biodiesel product using eggshells-derived CaO as a solid heterogeneous catalyst. J. Mater. Sci. Appl. Energ. 2018; 7, 295-9.
AS Yusuff. Parametric optimization of solvent extraction of Jatropha curcas seed oil using design of experiment and its quality characterization. S. Afr. J. Chem. Eng. 2021; 35, 60-8.
T Mathimani, L Uma and D Prabaharan. Homogeneous acid catalysed transesterification of marine microalga Chlorella sp. BDUG 91771 lipid - An efficient biodiesel yield and its characterization. Renewable Energ. 2015; 81, 523-33.
AB Fadhil. Production and characterization of liquid biofuels from locally available non-edible feedstocks. Asia Pac. J. Chem. Eng. 2020; 16, e2572.
LI Saeed, AM Khalaf and AB Fadhil. Biodiesel production from milk thistle seed oil as non-edible oil by cosolvent esterification-transesterification process. Asia Pac. J. Chem. Eng. 2021; 16, e2647.
FEA Latif, ZZ Abidin, F Cardona, DRA Biak, K Abdan, PM Tahir and LK Ern. Bio-resin production through ethylene unsaturated carbon using vegetable oils. Processes 2020; 8, 48.
EA Baroncini, SK Yadav, GR Palmese and JF Stanzione. Recent advances in bio-based epoxy resins and bio-based epoxy curing agents. J. Appl. Polym. Sci. 2016; 133, 44103.
T Issariyakul and AK Dalai. Biodiesel from vegetable oils. Renew. Sustain. Energ. Rev. 2014; 31, 446-71.
