Entropy Generation in Third-Grade Non-Newtonian Fluid Flow and Heat Transport Through Porous Medium in a Horizontal Channel under Heat Generation
DOI:
https://doi.org/10.48048/tis.2024.6966Keywords:
Non-Newtonian Fluid, Porous medium, Velocity Slip, Temperature Slip, Entropy production, Bejan number, Homotopy analysis methodAbstract
In this study, entropy production in flow along with heat transport of non-Newtonian fluid via porous medium, is analyzed. For fluid flow via porous medium, a modified Darcy resistance term, is taken in the momentum equation for third-grade fluid. Temperature-dependent viscosity is considered using Vogel’s model viscosity. Using adequate transformations, the momentum and heat transport equation are reduced to non-dimensional form and solved analytically invoking homotopy analysis method on MATHEMATICA software. Effects of parameters arising in the study are depicted by graphs on velocity distribution, temperature distribution, and entropy production with Bejan number and discussed. For validity of current findings, the values of velocity and temperature are computed for particular values of the parameters and equated with previously published results, excellent agreement achieved. Furthermore, skin-friction coefficient and Nusselt number values are expressed in tabular form for various values of relevant parameters and discussed. It is noticed that slip parameters $\left( \gamma \right)$ and $\left( \beta \right)$ reduce the entropy generation number $\left( NS \right)$. Also noticed that skin friction coefficient upsurges with rising velocity slip parameter $\left( \gamma \right)$ value while, effect of temperature slip parameter $\left( \beta \right)$ is observed to lessen Nusselt number in the absolute sense.
HIGHLIGHTS
- Entropy production in third grade non-Newtonian fluid flow and heat transfer in a channel via porous medium is investigated in the presence of a heat source. Slip boundary conditions are applied.
- The resulting governing equations are solved analytically using the homotopy analysis method (HAM).
- Maximum entropy production observed near the lower wall of channel and Bejan number attains maximum value in middle of the channel.

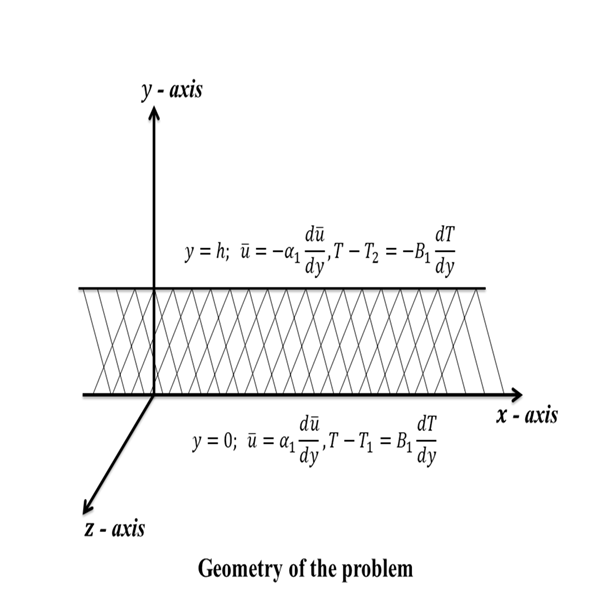

GRAPHICAL ABSTRACT
Downloads
References
A Bejan. Convection heat transfer. 3rd ed. Wiley, New Jersey, 2004.
A Bejan. A study of entropy generation in fundamental convective heat transfer. J. Heat Tran. 1979; 101, 718-25.
A Bejan. Entropy generation minimization, CRC Press, Florida, 1996.
DS Chauhan and V Kumar. Entropy analysis for third-grade fluid flow with temperaturedependent viscosity in annulus partially filled with porous medium. Theor. Appl. Mech. 2013; 40, 441-64.
SO Adesanya and JA Falade. Thermodynamics analysis of hydromagnetic third grade flow through a channel filled with porous medium. Alexandria Eng. J. 2015; 54, 615-22.
MG Sobamowo and AT Akinshilo. Analysis of flow, heat transfer and entropy generation in a pipe conveying fourth grade fluid with temperature-dependent viscosities and internal heat generation. J. Mol. Liq. 2017; 241, 188-98.
K Madhavi, VR Prasad, SA Gaffar and V Kothuru. Entropy analysis of third-grade MHD convection flows from a horizontal cylinder with slip. Arch. Mech. Eng. 2018; 65, 417-40.
M Madhu, NS Shashikumar, B Mahanthesh, BJ Gireesha and N Kishan. Heat transfer and entropy generation analysis of non-Newtonian fluid flow through vertical microchannel with convective boundary condition. Appl. Math. Mech. 2019; 40, 1285-300.
R Zhang, S Aghakhani, A Hazatzadeh Pordanjani, SM Vahedi, A Shahsavar and M Afrand. Investigation of the entropy generation during natural convection of Newtonian and non-Newtonian fluids inside the L-shaped cavity subjected to magnetic field: application of lattice Boltzmann method. Eur. Phys. J. Plus 2020; 135, 184.
NS Shashikumar, K Triveni, M Madhu, B Mahantesh, BJ Gireesha and N Kishan. Entropy generation analysis of radiative Williamson fluid flow in an inclined microchannel with multiple slip and convective heating boundary effects. Proc. IME. E J. Process Mech. Eng. 2021, https://doi.org/10.1177/095440892110498.
P Vyas, S Khan and Gajanand. Thermo-fluidics and entropy generation analysis of couple stress Casson fluid in a channel with stretching walls. Int. J. Ambient Energ. 2022; 43, 8206-19.
RL Fosdick and KR Rajagopal. Thermodynamics and stability of fluids of third grade. Proc. Roy. Soc. Lond. Math. Phys. Sci. 1980; 369, 351-77.
M Massoudi and I Christie. Effects of variable viscosity and viscous dissipation on the flow of a third grade fluid in a pipe. Int. J. Non Lin. Mech. 1995; 30, 687-99.
PD Ariel. Flow of a third grade fluid through a porous flat channel. Int. J. Eng. Sci. 2003; 41, 1267-85.
N Ali, Y Wang, T Hayat and M Oberlack. Slip effects on the peristaltic flow of a third grade fluid in a circular tube. J. Appl. Mech. 2009; 76, 011006.
M Yurusoy, M Pakdemirli and BS Yilbas. Perturbation solution for third-grade fluid flowing between parallel plates. Proc. Inst. Mech. Eng. C Mech. Eng. Sci. 2008; 222, 653-6.
R Ellahi, T Hayat, FM Mohmed and S Asghar. Effects of slip on the nonlinear flow of the third grade fluid. Nonlinear Anal. R. World Appl. 2010; 11, 139-46.
T Hayat, M Mustafa and S Asghar. Unsteady flow with heat and mass transfer of a third grade fluid over a stretching surface in the presence of chemical reaction. Nonlinear Anal. R. World Appl. 2010; 11, 3186-97.
AW Ogunsola and B. A. Peter. Effect of variable viscosity on third grade fluid flow over a radiative surface with Arrhenius reaction. Int. J. Pure Appl. Sci. Tech. 2014; 22, 1-8.
BY Ogunmola, AT Akinshilo and MG Sobamowo. Perturbation solutions for Hagen-Poiseuille flow and heat transfer of third grade fluid with temperature-dependent viscosities and internal heat generation. Int. J. Eng. Math. 2016; 2016, 8915745.
AA Khan, SR Bukhari, M Matrin and R Ellahi. Effects of chemical reaction on third grade MHD fluid flow over a stretching surface under the influence of heat and mass transfer with variable reactive index. Heat Tran. Res. 2018; 50, 1061-80.
Y Aksoy and M Pakdemirli. Approximate analytical solutions for flow of a third-grade fluid through a parallel-plate channel filled with a porous medium. Transport Porous Media 2010; 83, 375-95.
T Hayat, R Naz and S Abbasbandy. Poiseuille flow of a third-grade fluid in porous medium. Transport Porous Media 2011; 87, 355-66.
IG Baoku, BI Olajuwo and AO Mustapha. Heat and mass transfer on a MHD third grade fluid with partial slip flow past an infinite vertical insulated porous plate in a porous medium. Int. J. Heat Fluid Flow 2013; 40, 81-8.
KV Prasad, SA Gaffar, EK Reddy and OA Beg. Numerical study of non-Newtonian boundary layer flow of Jeffreys fluid past a vertical porous plate in a non-Darcy porous medium, Int. J. Comput. Meth. Eng. Sci. Mech. 2014; 15, 372-89.
AT Akinshilo. Steady flow and heat transfer analysis of third grade fluid with porous medium and heat generation. Eng. Sci. Tech. Int. J. 2017; 20, 1602-9.
F Ahmed and M Iqbal. MHD power law fluid flow and heat transfer analysis through Darcy Brinkman porous media in annular sector. Int. J. Mech. Sci. 2017; 130, 508-17.
P Maghsoudi, G Shahriari, M Mirzaei and M Mirzei. Natural convection of third-grade non-Newtonian fluid flow in a porous medium with heart source: analytical solution. Eur. Phys. J. Plus 2018; 133, 502.
L Rundora and OD Makinde. Unsteady MHD flow of non-Newtonian fluid in a channel filled with a saturated porous medium with asymmetric Navier slip and convective heating. Appl. Math. Inform. Sci. 2018; 12, 483-93.
KP Priyadarsan and S Panda. Heat transfer in unsteady magnetohydrodynamic flow of fourth-grade fluid through a porous medium between two infinite parallel plates with time dependent suction. Spec. Top. Rev. Porous Media 2020; 11, 239-58.
A Olkha and A Dadheech. Second law analysis for Casson fluid flow over permeable surface embedded in porous medium. Nonlinear Stud. 2021; 28, 1271-85.
A Olkha and A Dadheech. Second law analysis for radiative magnetohydrodynamic slip flow for two different non-Newtonian fluids with heat source. J. Nanofluids 2021; 10, 447-61.
A Olkha and M Kumar. Casson fluid flow in a vertical annulus through porous medium with heat transfer characteristics and chemical reaction: An exact solution. Int. J. Mod. Phys. C 2022; 34, 2350078.
SJ Liao. 1992, The proposed homotopy analysis technique for the solution of nonlinear problems. Ph. D. Dissertation. Shanghai Jiao Tong University, Shanghai, China.
S Liao. Beyond perturbation: introduction to the homotopy analysis method. Chapman and Hall, Florida, 2003.
S Liao and Y Tan. A general approach to obtain series solutions of nonlinear differential equations. Stud. Appl. Math. 2007; 119, 297-354.
JB Anasuya and S Srinivas. Heat transfer characteristics of magnetohydrodynamic two fluid oscillatory flow in an inclined channel with saturated porous medium. Proc. IME. E J. Process Mech. Eng. 2023, https://doi.org/10.1177/09544089221146364.
S Maatoug, HK Babu, VVL Deepti, K Ghachem, K Raghunatth, C Ganteda and SM Khan. Variable chemical species and thermo-diffusion Darcy-Forchheimer squeezed flow of Jeffery nanofluid in horizontal channel with viscous dissipation effects. J. Indian Chem. Soc. 2023; 100, 100831.
A Ganjikunta, HK Babu, V Bhajanthri and R Kodi. An unsteady MHD flow of a secondgrade fluid passing through a porous medium in the presence of radiation absorption exhibits Hall and ion slip effects. Heat Tran. 2022; 52, 780-806.
OT Bafakeeh, K Raghunath, F Ali, M Khalid and SM Eldin. Hall current and soret effects on unsteady MHD rotating flow of second-grade fluid through porous media under the influence of thermal radiation and chemical reactions. Catalysts 2022; 12, 1233.
K Raghunath and R Mohanaramana. Hall, soret, and rotational effects on unsteady MHD rotating flow of a second-grade fluid through a porous medium in the presence of chemical reaction and aligned magnetic field. Int. Comm. Heat Mass Tran. 2022; 137, 106287.
VVL Deepthi, MMA Lashin, NR Kumar, K Raghunath, F Ali, M Oreijah, K Guedri, SM Eldin, MI Khan and AM Galal. Recent development of heat and mass transport in the presence of hall, ion slip and thermo diffusion in radiative second grade material: Application of micro machines. Micromachines 2022; 13, 1566.
R Kodi and M Ravuri. Soret and chemical reaction effects on heat and mass transfer in MHD flow of a Kuvshinski fluid through porous medium with aligned magnetic field and radiation. Nonlinear dynamics and applications. Springer, Switzerland, 2022, p. 377-91.
MP Devi and S Srinivas. Two layered flow of viscoelastic liquid in a vertical porous channel with hall current, thermal radiation and chemical reaction. Int. Comm. Heat Mass Tran. 2023; 142, 106612.
YS Kumar, S Hussain, K Raghunath, F Ali, K Guedri, SM Eldin and ML Khan. Numerical analysis of magnetohydrodynamics Casson nanofluid flow with activation energy, Hall current and thermal radiation. Sci. Rep. 2023; 13, 4021.
S Li, K Raghunath, A Alfaleh, F Ali, A Zaib, MI Khan, SM Eldin and V Puneeth. Effects of activation energy and chemical reaction on unsteady MHD dissipative Darcy-Forchheimer squeezed flow of Casson fluid over horizontal channel. Sci. Rep. 2023; 13, 2666.
R Kodi, C Ganteda, A Dasore, ML Kumar, G Laxmaiah, MA Hasan, S Islam and A Razak. Influence of MHD mixed convection flow for Maxwell nanofluid through a vertical cone with porous material in the existence of variable heat conductivity and diffusion. Case Stud. Therm. Eng. 2023; 44, 102875.
