Magnetohydrodynamics (MHD) Induced Slip Flow of a Non-Newtonian Fluid through Circular Microchannels
DOI:
https://doi.org/10.48048/tis.2022.6180Keywords:
Magnetohydrodynamics, Non-Newtonian fluid flow, Microchannel, Navier-Stokes’ equation, Slip flowAbstract
The present numerical analysis reveals the nature of non-Newtonian fluid flow through circular microchannels under slip boundary conditions. The power law has been used for the simulation of the fluid flow, which considers a steady, laminar, incompressible non-Newtonian fluid acted upon by a constant, externally applied magnetic field. The flow is axisymmetric and slip boundary conditions are applied in the near wall. A constant magnetic flux has been applied on the wall boundary to analyze the effect of magnetic field on Xanthan solution in formic acid, a type of non-Newtonian fluid having electrical conductivity. Using control volume method of finite difference scheme, a set of dimensionless governing differential equations defining the behavior of the fluid flow in the microchannel under an externally applied magnetic field, has been solved using slip boundary conditions to understand the effect of magnetic field on slip induced flow of non-Newtonian fluids. The results have depicted that the magnetic field affects both the centerline velocity and slip velocity but it is more prominent for the centerline velocities. The main objective of this research is to study the flow of non-Newtonian fluid, Xanthan through a circular microchannel and its corresponding behavior when flow boundary conditions are applied to interpret the characteristics under an externally applied magnetic field. The results obtained from this present study will find its application in the area of the flow of ferrofluids and biofluids.
HIGHLIGHTS
- Most of the bio fluids and ferrofluids are non-Newtonian in nature and it is required to control these fluids when they pass through microchannels of modern devices
- Analysis conducted to find out the flow behaviour of non-Newtonian fluids through circular microchannels when they are exposed to externally applied magnetic fields
- Slip flow occurs in the fluid flow and an externally applied magnetic field controls the flow patterns by affecting slip velocity and centerline velocity which introduces extra flow in the microchannel. The results are helpful for better understanding of the flow of ferrofluids and bio fluids through circular microchannels

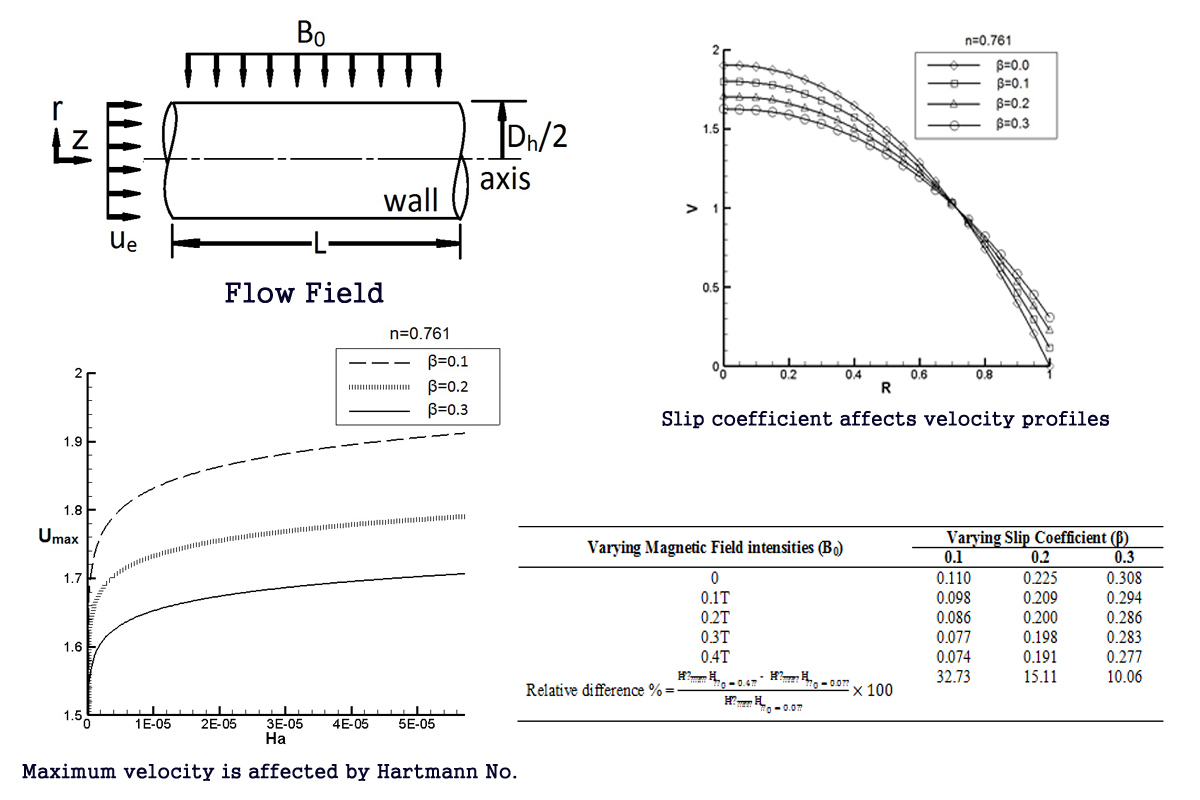

GRAPHICAL ABSTRACT
Downloads
References
M Gad-el-Hak. The fluid mechanics of microdevices - the freeman scholar lecture. J. Fluids Eng. 1999; 121, 5-33.
L Bazinet, M Trigui and D Ippersiel. Rheological Behaviour of WPI dispersion as a function of pH and protein concentration. J. Agric. Food Chem. 2004; 52, 5366-71.
S Chakraborty. Dynamics of capillary flow of blood into a microfluidic channel. Lap Chip 2005; 5, 421-30.
MA Elblbesy and AT Hereba. Computation of the coefficients of the power law model for whole blood and their correlation with blood parameters. Appl. Phys. Res. 2016; 8, 1.
D Liu and SV Garimella. Investigation of liquid flow in microchannels. CTRC Res. Publ. 2004. http://docs.lib.purdue.edu/coolingpubs/295.
PA Thompson and SM Troian. A general boundary condition for liquid flow at solid surfaces. Nature 1997; 389, 360-2.
X Yang, NT Weldetsadik, Z Hayat, T Fu, S Jiang, C Zhu and Y Ma. Pressure drop of single-phase flow in microchannels and its application in characterizing the apparent rheological property of fluids. Microfluid. Nanofluid. 2019; 23, 75.
X Zhang, F He, P Hao, Y Gao, L Sun, Xi Wang and X Jin. Experimental investigation of flow characteristics for liquid flow in microchannels at very low Reynolds numbers. Chem. Eng. Technol. 2016; 39, 1425-30.
AH Sarabandi and AJ Moghadam. Thermal analysis of power-law fluid flow in a circular microchannel. J. Heat Transf. 2017; 139, 032401.
YS Muzychka and J Edge. Laminar non-Newtonian fluid flow in noncircular ducts and microchannels. J. Fluids Eng. 2008; 130, 111201.
K Vajravelu, JR Cannon and D Rollins. Analytical and numerical solutions of nonlinear differential equations arising in non-Newtonian fluid flows. J. Math. Anal. Appl. 2000; 250, 204-21.
LM Pismen and BY Rubinstein. Kinetic slip condition, van der Waals forces, and dynamic contact angle. Am. Chem. Soc. 2001; 17, 5265-70.
R Sarma, H Gaikwad and PK Mondal. Effect of conjugate heat transfer on entropy generation in slip-driven microflow of power law fluids. Nanoscale Microscale Thermophys. Eng. 2017; 21, 26-44.
GH Tang, PX Ye and WQ Tao. Electro viscous effect on non-Newtonian fluid flow in microchannels. J. Non-Newton Fluid Mech. 2010; 165, 435-40.
H Brenner. Beyond the no-slip boundary condition. Am. Phys. Soc. Phys. Rev. 2011; 84, 046309.
DC Tretheway and CD Meinharta. Apparent fluid slip at hydrophobic microchannel walls. Phys. Fluids 2001; 14, L9.
XY You, JR Zheng and Q Jing. Effects of boundary slip and apparent viscosity on the stability of microchannel flow. Forsch. Ingenieurwes. 2007; 71, 99-106.
LL Ferras, AM Afonso, MA Alves, JM Nobrega, OS Carneiro and FT Pinho. Slip flows of Newtonian and viscoelastic fluids in a 4:1 contraction. J. Non-Newton Fluid Mech. 2014; 214, 28-37.
M Shojaeian and SAR Dibaji. Three-dimensional numerical simulation of the slip flow through triangular microchannels. Int. Commun. Heat Mass Transf. 2010; 37, 324-9.
MH Mansour, A Kawahara and M Sadatomi. Experimental investigation of gas-non-Newtonian liquid two-phase flows from T-junction mixer in rectangular microchannel. Int. J. Multiph. Flow 2015; 72, 263-74.
CS Nishad, A Chandra and GPR Sekhar. Flows in slip-patterned micro-channels using boundary element methods. Eng. Anal. Bound. Elem. 2016; 73, 95-102.
Z Kountouriotis, M Philippou and GC Georgiou. Development lengths in Newtonian Poiseuille flows with wall slip. Appl. Math. Comput. 2016; 291, 98-114.
AH Sarabandi and AJ Moghadam. Thermal analysis of power-law fluid flow in a circular microchannel. J. Heat Transf. 2017; 139, 032401.
MRS Bushehri, H Ramin and MR Salimpour. A new coupling method for slip-flow and conjugate heat transfer in a parallel plate micro heat sink. Int. J. Therm. Sci. 2015; 89, 174-84.
N Kashaninejad, WK Chan and NT Nguyen. Analytical modeling of slip flow in parallel-plate microchannels. Micro Nanosyst. 2013; 5, 245-52.
M Barkhordari and SG Etemad. Numerical study of slip flow heat transfer of non-Newtonian fluids in circular microchannels. Int. J. Heat Fluid Flow 2007; 28, 1027-33.
L Bocquet and JL Barrat. Flow boundary conditions from nano- to micro-scales. Soft Matter 2007; 3, 685-93.
J Niu, C Fu and W Tan. Slip-flow and heat transfer of a non-Newtonian nanofluid in a microtube. PLoS One 2012; 7, e37274.
SA Sajadifar, A Karimipour and D Toghraie. Fluid flow and heat transfer of non-Newtonian nanofluid in a microtube considering slip velocity and temperature jump boundary conditions. Eur. J. Mech. B Fluids 2017; 61, 25-32.
HF Oztop, K Al-Salem and I Pop. MHD mixed convection in a lid-driven cavity with corner heater. Int. J. Heat Mass Transf. 2011; 54, 3494-504.
KM Rabbi, S Saha, S Mojumder, MM Rahman, R Saidur and TA Ibrahim. Numerical investigation of pure mixed convection in a ferrofluid-filled lid-driven cavity for different heater configurations. Alex. Eng. J. 2016; 55, 127-39.
G Nagarajua, M Garvandha and JVR Murthy. MHD flow in a circular horizontal pipe under heat source/sink with suction/injection on wall. Front. Heat Mass Transf. 2019; 13, 6.
M Kiyasatfar and N Pourmahmoud. Laminar MHD flow and heat transfer of power-law fluids in square microchannels. Int. J. Therm. Sci. 2016; 99, 26-35.
E Shekarforoush, A Faralli, S Ndoni, AC Mendes and IS Chronakis. Electrospinning of Xanthan polysaccharide. Macromol. Mater. Eng. 2017; 302, 1700067.
M Sheikholeslami and SA Farshad. Investigation of solar collector system with turbulator considering hybrid nanoparticles. Renew. Energy 2021; 171, 1128-58.
TG Ashrafi, S Hoseinzadeh, A Sohani and MH Shahverdian. Applying homotopy perturbation method to provide an analytical solution for Newtonian fluid flow on a porous flat plate. Math. Methods Appl. Sci. 2021; 44, 7017-30.
S Hoseinzadeh, PS Heyns and H Kariman. Numerical investigation of heat transfer of laminar and turbulent pulsating Al2O3/water nanofluid flow. Int. J. Numer. Methods Heat Fluid Flow 2020; 30, 1149-66.
S Hoseinzadeh, PS Heyns, AJ Chamkha and A Shirkhani. Thermal analysis of porous fins enclosure with the comparison of analytical and numerical methods. J. Therm. Anal. Calorim. 2019; 138, 727-35.
