Theoretical Analysis of Adaptive Algorithm Modulation Scheme in 3D OFDM WiMAX System
DOI:
https://doi.org/10.48048/tis.2022.4605Keywords:
3GPP 3D channel model, MIMO, SISO, OFDM wireless, Elevation angles, Doppler shiftAbstract
The growth of wireless networking has contributed to the need for high-speed services and multimedia applications anywhere and at any time. OFDM WiMAX technology is now considered one of the most popular technologies capable of delivering faster implementation and lower cost than standard wired options for Broadband Wireless Connectivity in metropolitan areas. This paper proposes appropriate adaptive modulation to be used in wireless networks based on SISO and MIMO OFDM WiMAX, which allows the performance of the network to be improved in the case of non-line-of-sight communications that are typical in urban environments. The effects of several paths, signal attenuation, Doppler shift, and different mobility speeds on the performance of the system were investigated. Mathematical models analysis of adaptive modulation in SISO and MIMO systems is treated by using BER, SNR and noise components. Simulation results show that the adaptive algorithm would improve throughput. It can also be concluded that when processing signals in a receiving system under conditions of multi-path signal propagation, the use of adaptive algorithms has a positive effect on noise immunity.
HIGHLIGHTS
- With the growing evolution of wireless communication technologies, there is still a need for higher data rates, increased system capacity, and improved service quality
- 3D OFDM-MIMO WiMAX technology is now regarded as one of the most common solutions for Broadband Wireless Connectivity in Urban Areas, capable of offering faster implementation and lower costs than standard wired options
- Effective adaptive algorithm processing in 3D wireless networks based on SISO-OFDM and MIMO-OFDM WiMAX was proposed, enabling network performance to be enhanced in the case of non-LOS wireless communications, which are standard in urban conditions. On the performance of the system, signal attenuation, the effects of several paths, different mobility speeds and Doppler shift were studied
- The adaptive algorithm significantly reduces the probability of error and increases the throughput. It can be concluded that the use of adaptive spatio-temporal algorithms has a positive effect on noise immunity when processing signals in the receiving system under conditions of multipath signal propagation

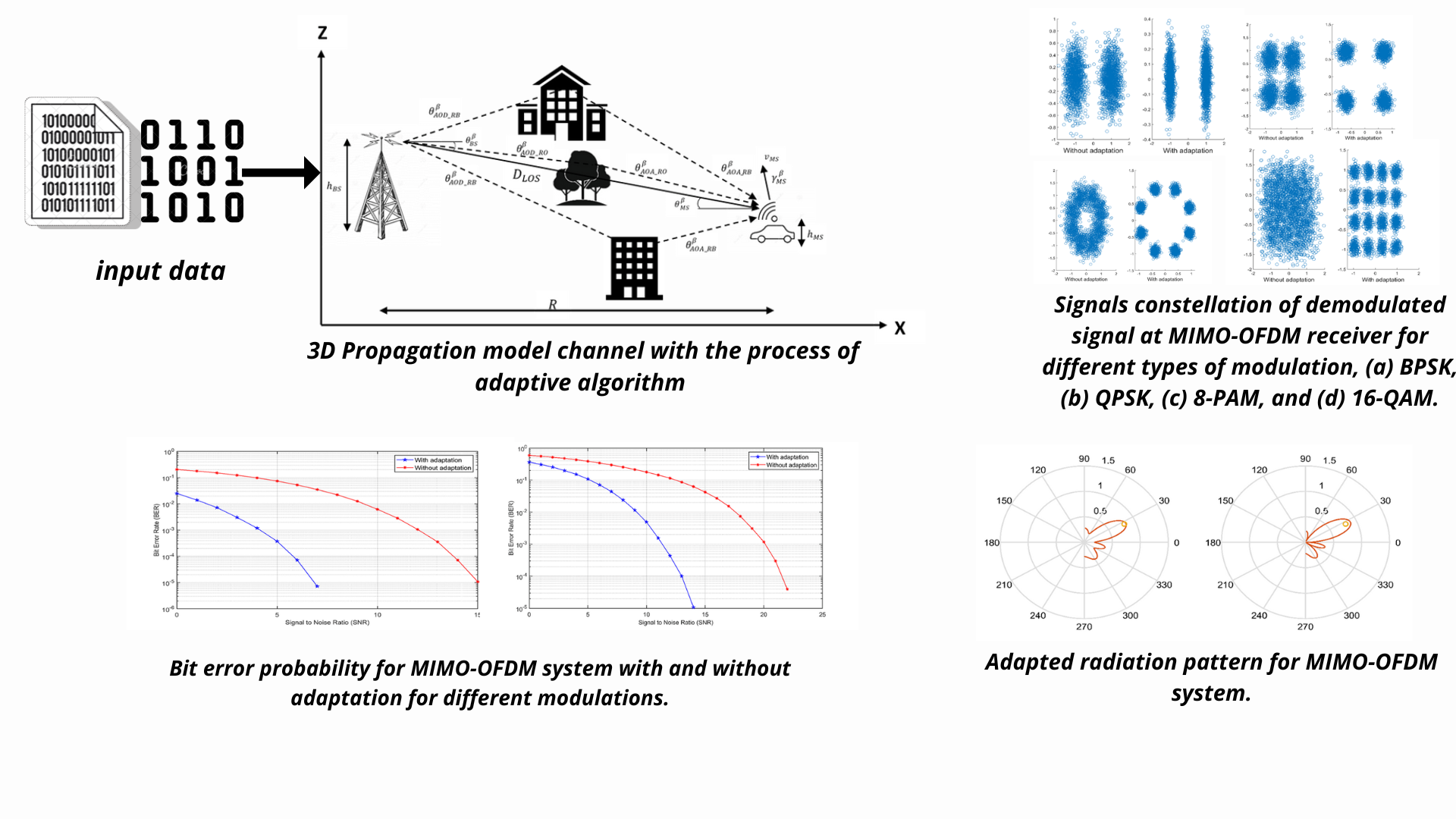

GRAPHICAL ABSTRACT
Downloads
Metrics
References
R Fantacci, D Marabissi, D Tarchi and I Habib. Adaptive modulation and coding techniques for OFDMA systems. IEEE Trans. Wirel. Commun. 2009; 8, 4876-83.
D Johnston and J Walker. Overview of IEEE 802.16 security. IEEE Secur. Priv. 2004; 2, 40-8.
C Eklund, RB Marks, KL Stanwood and S Wang. IEEE standard 802.16: A technical overview of the WirelessMAN/sup TM/air interface for broadband wireless access. IEEE Commun. Mag. 2002; 40, 98-107.
MA Hasan. 2007, Performance evaluation of WiMAX/IEEE 802.16 OFDM physical layer. Master thesis. Helsinki University of Technology, Espoo, Finland.
S Chen and C Zhu. ICI and ISI analysis and mitigation for OFDM systems with insufficient cyclic prefix in time-varying channels. IEEE Trans. Consum. Electron. 2004; 50, 78-83.
A Barbieri, G Colavolpe, T Foggi, E Forestieri and G Prati. OFDM versus single-carrier transmission for 100 Gbps optical communication. J. Light. Technol. 2010; 28, 2537-51.
BS Reddy, L Boppana, A Srivastava and RK Kodali. Modulation switching in OFDM for WiMAX through Rayleigh fading channel using GNU radio. In: Proceedings of the International Conference on Advanced Electronic Systems, Pilani, India. 2013, p. 331-3.
SE Elayoubi and B Fourestié. Performance evaluation of admission control and adaptive modulation in OFDMA WiMax systems. IEEE ACM Trans. Netw. 2008; 16, 1200-11.
J Faezah and K Sabira. Adaptive modulation for OFDM systems. Int. J. Commun. Netw. Inf. Secur. 2009; 1, 1.
S Colieri, M Ergen, A Puri and A Bahai. A study of channel estimation in OFDM systems. In: Proceedings of the 56th Vehicular Technology Conference, Vancouver, BC, Canada. 2002, p. 894-8.
VP Fedosov, AV Lomakina, AA Legin and VV Voronin. Modeling of systems wireless data transmission based on antenna arrays in underwater acoustic channels. In: Proceedings of the SPIE Commercial + Scientific Sensing and Imaging, Baltimore, Maryland, USA. 2016, p. 98720G.
J Thota, R Almesaeed, A Doufexi, S Armour and AR Nix. Infrastructure to vehicle throughput performance in LTE-A using 2D and 3D 3GPP/ITU channel models. In: Proceedings of the IEEE 81st Vehicular Technology Conference (VTC Spring), Glasgow, UK, 2015, p. 1-5.
R Almesaeed, AS Ameen, A Doufexi, N Dahnoun and AR Nix. A comparison study of 2D and 3D ITU channel model. In: Proceedings of the IFIP Wireless Days, Valencia, Spain. 2013, p. 1-7.
V Fedosov, A Legin and A Lomakina. Algorithms based on MIMO-OFDM technology for realization of digital hydroacoustic communication channel. Izv. SfedU. Eng. Sci. 2015; 168, p. 148-58.
V Fedosov, A Legin and A Lomakina. Adaptive algorithm for data transmission in wireless channels based on MIMO-OFDM technique. In: Proceedings of the Radiation and Scattering of Electromagnetic Waves, Divnomorskoe, Russia. 2017, p. 218-21.
C Lee, KM Cheung and V Vilnrotter. Fast eigen-based signal combining algorithms for large antenna arrays. In: Proceedings of the IEEE Aerospace Conference Proceedings (Cat. No.03TH8652), Big Sky, MT, USA. 2003, p. 1123-9.
M Ratynskii. Adaptation and superresolution in antenna arrays. Radio i Svyaz’, Moscow, 2003.
YH Nam, Y Li and JC Zhang. 3D channel models for elevation beamforming and FD-MIMO in LTE-A and 5G. In: Proceedings of the 48th Asilomar Conference on Signals, Systems and Computers, Pacific Grove, CA, USA. 2014, p. 805-9.
YS Cho, J Kim, WY Yang and CG Kang. MIMO-OFDM wireless communications with MATLAB. John Wiley & Sons, New Jersey, USA, 2010, p. 544.
VP Fedosov, AV Lomakina, AA Legin and VV Voronin. Three-dimensional model of hydro acoustic channel for research MIMO systems. In: Proceedings of the SPIE Defense + Security, Anaheim, California, USA. 2017, p. 101860W.
F Ademaj, M Taranetz and M Rupp. 3GPP 3D MIMO channel model: A holistic implementation guideline for open-source simulation tools. Eurasip J. Wirel. Commun. Netw. 2016; 2016, 1-14.
MW Khan, Y Zhou and G Xu. Modeling of acoustic propagation channel in underwater wireless sensor networks. In:Proceedings of the 2nd International Conference on Systems and Informatics, Shanghai, China. 2014, p. 586-90.
AG Zajic. Statistical modeling of MIMO mobile-to-mobile underwater channels. IEEE Trans. Veh. Technol. 2011; 60, 1337-51.
L Zhang, J Liu, K Liu and Y Zhou. On the 3D beamforming and proactive cell shaping with 3GPP 3D channel model. In: Proceedings of the IEEE Globecom Workshops, Austin, TX, USA. 2014, p. 688-93.
