A New Study on the Effect of Pure Anatase TiO2 Film Thickness on Gentian Violet Photodegradation Under Sunlight: Considering the Effect of Hole Scavengers

Authors

  • Amer Mekkaoui Physics Laboratory of Thin Layers and Applications, University Mohamed Khider Biskra, Biskra 07000, Algeria
  • Elhachmi Guettaf Temam Physics Laboratory of Thin Layers and Applications, University Mohamed Khider Biskra, Biskra 07000, Algeria https://orcid.org/0000-0002-5243-7584
  • Saad Rahmane Physics Laboratory of Thin Layers and Applications, University Mohamed Khider Biskra, Biskra 07000, Algeria
  • Brahim Gasmi Physics Laboratory of Thin Layers and Applications, University Mohamed Khider Biskra, Biskra 07000, Algeria

DOI:

https://doi.org/10.48048/tis.2023.3766

Keywords:

Dip-coating, Film thickness, TiO2, Anatase, Gentian violet, Photocatalysis, Sun- photodeposition

Abstract

In this paper, pure anatase TiO2 thin films were grown on glass substrates by using sol-gel dip-coating method. To study the physical, chemical and optical properties of the deposits, TiO2 thin films were synthesized with thickness (241.5, 258.19, 230.33 and 302.35 nm). XRD patterns show that TiO2 films were grown with unique anatase phase (101). The photocatalytic test shows that film (~ 302 nm) gives high photodegradation of gentian violet (GV) under sunlight irradiation due to the low number of defect sites. The increase in film thickness and the decrease of surface roughness and crystal size decrease the number of defect sites in the material which lead to low recombination rate of charge carriers. The use of Ag+ as hole scavenger increases the photocatalytic activity 4.75 times within the first hour. The photocatalysis process showed that Ag+ can be reduced on the surface of photoactivated TiO2 thin films to obtain sun-photodeposited/dip-coated AgO/TiO2 (p-n) heterojunction.

HIGHLIGHTS

  • Pure anatase TiO2 thin films were successfullysynthesized via sol-gel dip-coating method
  • High thickness (302 nm) of TiO2 thin film exhibits high photocatalytic activity for photodegradation of GV under sunlight irradiation
  • The presence of Ag+ in wastewater shows high photocatalytic activity of TiO2 films with 4.75 times within the first hour
  • The possibility of sun-photodeposited/dip-coated of (p-n) AgO/TiO2 heterojunction is discussed

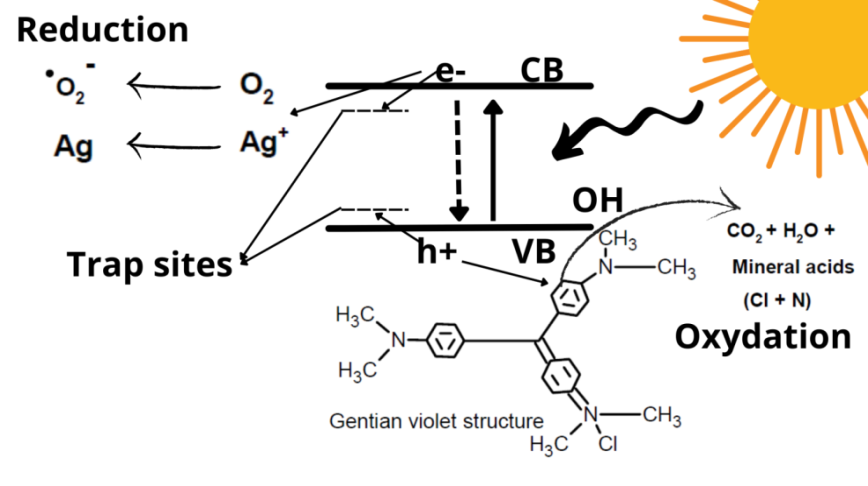

GRAPHICAL ABSTRACT

Downloads

Download data is not yet available.

References

S Obregón and V Rodríguez-González. Photocatalytic TiO2 thin films and coatings prepared by sol–gel processing: a brief review. J. Sol Gel Sci. Tech. 2021; 102, 125-41.

K Eufinger, D Poelman, H Poelman, RDGryse and GB Marin. TiO2 thin films for photocatalytic applications. In: S Nam (Ed.). Thin solid films: Process and applications. Transworld Research Network, Kerala, India, 2008, p. 189-227.

K Sunada, Y Kikuchi, K Hashimoto and A Fujishima. Bactericidal and detoxification effects of TiO2 thin film photocatalysts. Environ. Sci. Tech. 1998; 32, 726-8

B Hao, J Guo, L Zhang and H Ma. Magnetron sputtered TiO2/CuO heterojunction thin films for efficient photocatalysis of Rhodamine B. J. Alloy. Comp. 2022; 903, 163851.

I Levchuk, T Homola, G Singhal, JJ Rueda-Márquez, J Vida, P Souček, T Svoboda, E Villar-Navarro, O Levchuk, P Dzik, A Lähde and J Moreno-Andrés. UVA and solar driven photocatalysis with rGO/TiO2/polysiloxane for inactivation of pathogens in recirculation aquaculture systems (RAS) streams. Chem. Eng. J. Adv. 2022; 10, 100243.

CB Anucha, I Altin, E Bacaksiz and VN Stathopoulos. Titanium dioxide (TiO₂)-based photocatalyst materials activity enhancement for contaminants of emerging concern (CECs) degradation: In the light of modification strategies. Chem. Eng. J. Adv. 2022; 10, 100262.

YM Hunge, MA Mahadik, AV Moholkar and CH Bhosale. Photoelectrocatalytic degradation of oxalic acid using WO3 and stratified WO3/TiO2 photocatalysts under sunlight illumination. Ultrason. Sonochem. 2017; 35, 233-42.

YM Hunge. Sunlight assisted photoelectrocatalytic degradation of benzoic acid using stratified WO3/TiO2 thin films. Ceram. Int. 2017; 43, 10089-96.

A Lee, JA Libera, RZ Waldman, A Ahmed, JR Avila, JW Elam and SB Darling. Conformal Nitrogen-Doped TiO2 Photocatalytic Coatings for Sunlight-Activated Membranes. Adv. Sustain. Syst. 2017; 1, 1600041.

I Barba-Nieto, U Caudillo-Flores, M Fernández-García and Anna Kubacka. Sunlight-operated TiO2-based photocatalysts. Molecules 2020; 25, 4008.

DA Solís-Casados, L Escobar-Alarcón, V Alvarado-Pérez and E Haro-Poniatowski. Photocatalytic activity under simulated sunlight of Bi-modified TiO2 thin films obtained by sol gel. Int. J. Photoenergy 2018; 2018, 8715987.

Y Zhiyong, H Keppner, D Laub, E Mielczarski, J Mielczarski, L Kiwi-Minsker, A Renken and J Kiwi. Photocatalytic discoloration of methyl orange on innovative parylene-TiO2 flexible thin films under simulated sunlight. Appl. Catal. B Environ. 2008; 79, 63-71.

YM Evtushenko, SV Romashkin, NS Trofimov and TK Chekhlova. Optical properties of TiO2thin films. Phys. Procedia 2015; 73, 100-7.

J Zhang, P Zhou, J Liu and J Yu. New understanding of the difference of photocatalytic activity among anatase, rutile and brookite TiO2. Phys. Chem. Chem. Phys. 2014; 16, 20382-6.

AM Alotaibi, BAD Williamson, S Sathasivam, A Kafizas, M Alqahtani, C Sotelo-Vazquez, J Buckeridge, J Wu, SP Nair, DO Scanlon and IP Parkin. Enhanced photocatalytic and antibacterial ability of cu-doped anatase TiO2thin films: Theory and experiment. ACS Appl. Mater. Interfac. 2020; 12, 15348-61

S Tanemura, L Miao, W Wunderlich, M Tanemura, Y Mori, S Toh and K Kaneko. Fabrication and characterization of anatase/rutile-TiO2 thin films by magnetron sputtering: A review. Sci. Tech. Adv. Mater. 2005; 6, 11-7.

L Chu, Z Qin, J Yang and X Li. Anatase TiO2nanoparticles with exposed {001} facets for efficient dye-sensitized solar cells. Sci. Rep. 2015; 5, 12143.

D Komaraiah, E Radha, J Sivakumar, MV Ramana Reddy and R Sayanna. Photoluminescence and photocatalytic activity of spin coated Ag+ doped anatase TiO2 thin films. Opt. Mater. 2020; 108, 110401.

M Behpour, R Foulady-Dehaghi and N Mir. Considering photocatalytic activity of N/F/S-doped TiO2 thin films in degradation of textile waste under visible and sunlight irradiation. Sol. Energ. 2017; 158, 636-43.

S Parmar, T Das, B Ray, B Debnath, S Gosavi, GS Shanker, S Datar, S Chakraborty and S Ogale. N, H dual-doped black anatase TiO2 thin films toward significant self-activation in electrocatalytic hydrogen evolution reaction in alkaline media. Adv. Energ. Sustain. Res. 2022; 3, 2100137.

O Beldjebli, R Bensaha and P Panneerselvam. Effect of both sn doping asnd annealing temperature on the properties of dip-coated nanostructured TiO2thin films. J. Inorg. Organomet. Polymer. Mater. 2022, 32, 1624-36.

SV Singh, U Gupta, S Biring, B Mukherjee and BN Pal. In-situ grown nanoscale p-n heterojuction of Cu2S-TiO2 thin film for efficient photoelectrocatalytic H2 evolution. Surface. Interfac. 2022; 28, 101660.

D Tekin, H Kiziltas and H Ungan. Kinetic evaluation of ZnO/TiO2 thin film photocatalyst in photocatalytic degradation of Orange G. J. Mol. Liq. 2020; 306, 112905.

N Negishi, T Iyoda, K Hashimoto and A Fujishima. Preparation of transparent TiO2thin film photocatalyst and its photocatalytic activity. Chem. Lett. 1995; 24, 841-2.

N Negishi, K Takeuchi and T Ibusuki. Surface structure of the TiO2 thin film photocatalyst. J. Mater. Sci. 1998; 33, 5789-94.

RS Sonawane and MK Dongare. Sol-gel synthesis of Au/TiO2 thin films for photocatalytic degradation of phenol in sunlight. J. Mol. Catal. Chem. 2006; 243, 68-76.

B Karunagaran, P Uthirakumar, SJ Chung, S Velumani and EK Suh. TiO2 thin film gas sensor for monitoring ammonia. Mater. Char. 2007; 58, 680-4.

T Wen, J Gao, J Shen and Z Zhou. Preparation and characterization of TiO2 thin films by the sol-gel process, J. Mater. Sci. 2001; 36, 5923-6.

DE Yıldız, HH Gullu and HK Cavus. Effect of TiO2thin film with different dopants in bringing au-metal into a contact with n-Si. J. Inorg. Organomet. Polym. Mater.2022; 32, 1-11.

DR Sarker, MN Uddin, M Elias, Z Rahman, RK Paul, IA Siddiquey, MA Hasnat, R Karim, MA Arafath and J Uddin. P-doped TiO2-MWCNTs nanocomposite thin films with enhanced photocatalytic activity under visible light exposure. Cleaner Eng. Tech. 2022; 6, 100364.

E Radha, D Komaraiah, R Sayanna and J Sivakumar. Photoluminescence and photocatalytic activity of rare earth ions doped anatase TiO2 thin films. J. Lumin. 2022; 244, 118727.

K Eufinger, D Poelman, H Poelman, RDGryse and GB Marin. Effect of microstructure and crystallinity on the photocatalytic activity of TiO2 thin films deposited by dc magnetron sputtering. J. Phys. Appl. Phys. 2007; 40, 5232.

S Iti Kitazawa, Y Choi, S Yamamoto and T Yamaki. Rutile and anatase mixed crystal TiO2 thin films prepared by pulsed laser deposition. Thin Solid Films 2006; 515, 1901-4.

Z Zarhri, MÁA Cardos, Y Ziat, M Hammi, OE Rhazouani, JCCArgüello and DA Avellaneda. Synthesis, structural and crystal size effect on the optical properties of sprayed TiO2 thin films: Experiment and DFT TB-mbj. J. Alloy. Comp. 2020; 819, 153010.

MI Mendoza-Diaz, A Lecestre, L Salvagnac, B Bounor, D Pech, M Djafari-Rouhani, A Esteve and C Rossi. High surface area TiO2 photocatalyst for H2 production through silicon micromachining. Appl. Surf. Sci. 2022; 588, 152919.

ZS Hosseini, F Haghparast, AA Masoudi and A Mortezaali. Enhanced visible photocatalytic performance of un-doped TiO2 nanoparticles thin films through modifying the substrate surface roughness. Mater. Chem. Phys. 2022; 279, 125530.

E Jimenez-Relinque and M Castellote. Hydroxyl radical and free and shallowly trapped electron generation and electron/hole recombination rates in TiO2 photocatalysis using different combinations of anatase and rutile. Appl. Catal. Gen. 2018; 565, 20-5.

A Abdelkrim, S Rahmane, O Abdelouahab, A Hafida and K Nabila. Optoelectronic properties of SnO2 thin films sprayed at different deposition times. Chin. Phys. B 2016; 25, 046801.

J Tauc and A Menth. States in the gap. J. Non Crystalline Solid. 1972; 8-10, 569-85.

DAH Hanaor and CC Sorrell. Review of the anatase to rutile phase transformation. J. Mater. Sci. 2011; 46, 855-74.

A Sclafani and JM Herrmann. Comparison of the photoelectronic and photocatalytic activities of various anatase and rutile forms of titania in pure liquid organic phases and in aqueous solutions. J. Phys. Chem. 1996; 100, 13655-61.

M Ibadurrohman and K Hellgardt. Photoelectrochemical performance of graphene-modified TiO2 photoanodes in the presence of glycerol as a hole scavenger. Int. J. Hydrogen Energ. 2014; 39, 18204-15.

Y Wang, H Wang, Y Yang and B Xin. Magnetic NiFe2O4 3D nanosphere photocatalyst: Glycerol-assisted microwave solvothermal synthesis and photocatalytic activity under microwave electrodeless discharge lamp. Ceram. Int. 2021; 47, 14594-602.
