Drag Over A Fluid Sphere Filled With Couple Stress Due to Flow of A Couple Stress Fluid with Slip Condition
DOI:
https://doi.org/10.48048/tis.2022.3133Keywords:
Couple stress fluid, Slip condition, Gegenbauer polynomials, Non-newtonian fluid, Creeping flow, Drag, Stream functionAbstract
In this article, the exact solution for a couple stress fluid flow past a fluid sphere filled with a couple stress fluid is considered using interfacial slip on the boundary. The velocity is expressed with regard to the stream function. The external velocity and internal velocity are alongside the drag coefficient. It was noticed that with the increases in slip parameter, the drag coefficient is decreasing and the inflow pattern has more circulations with more area appearing near the poles and internal flow disappears gradually. The special cases of viscous fluid, no-slip condition, and solid sphere are evaluated. A good understanding of the current and literature outcomes have been obtained, including the special case of a viscous fluid past a couple stress fluid sphere.
HIGHLIGHTS
- The flow of couple stress fluid flow past a fluid sphere filled with couple stress fluid with slip over the surface is reported
- In case of no-slip condition, results are captured as s→∞. and also as μ→∞, fluid sphere can reduce to the case of a solid sphere
- For the case of viscous fluid can be recovered as a limiting case of the analysis by taking λ_e→∞, λ_i→∞, and χ_1→∞, χ_2→∞

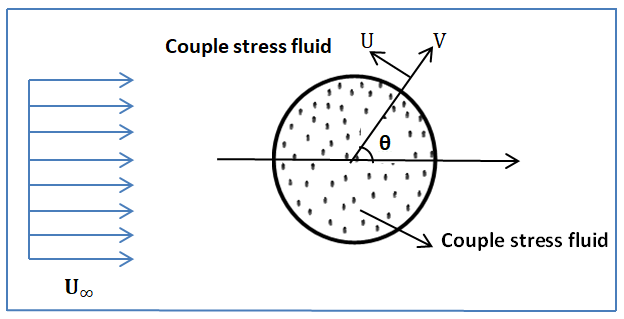

GRAPHICAL ABSTRACT
Downloads
Metrics
References
VK Stokes. Effects of couple stresses in fluids on the creeping flow past a sphere. Phys. Fluid. 1971; 14, 1580-2.
H Ramkissoon. Drag in couple stress fluids. J. Appl. Math. Mech. Z. Angew. Math. Mech. 1978; 29, 341-6.
TKV Iyengar and D Srinivasacharya. Stokes flow of an incompressible cosserat fluid past an approximate sphere. Far East J. Math. Sci. 1996; 4, 283-97.
P Aparna and JVR Murthy. Uniform flow of an incompressible couple stress fluid past a permeable sphere. Int. Electron. Eng. Math. Soc. 2010; 8, 1-10.
JC Umavathi, JP Kumar, JA Chamkha. Convective flow of two immiscible viscous and couple stress permeable fluids through a vertical channel. Turk. J. Eng. Environ. Sci. 2009; 33, 221-43.
TKV Iyengar and VG Vani. Flow of an incompressible couple stress fluid in the region between two slowly rotating confocal oblate spheroids. Global J. Math. Sci. 2012; 4, 337-52.
W Khan and F Yousafzai. On the exact solutions of couple stress fluids. Adv. Trends Math. 2014; 1, 27-32.
EA Ashmawy. Drag on a slip spherical particle moving in a couple stress fluid. Alexandria Eng. J. 2016; 55, 1159-64.
R Ellahi, A Zeeshan, F Hussain and A Asadollahi. Peristaltic blood flow of couple stress fluid suspended with nanoparticles under the influence of chemical reaction and activation energy. Symmetry 2019; 11, 276.
R Krishnan and P Shukla. Creeping flow of couple stress fluid past a fluid sphere with solid core. J. Appl. Math. Mech. Z. Angew. Math. Mech. 2021; 101, e202000115.
NS Alsudais, S El-sapa and EA Ashmawy. Stokes flow of an incompressible couple stress fluid confined between two eccentric spheres. Eur. J. Mech. B Fluid. 2022; 91, 244-52.
AB Basset. A treatise on hydrodynamics: With numerous examples. Cambridge: Deighton Bell & Co, London, 1888.
J Happel and H Brenner. Low Reynolds number hydrodynamics. Springer Dordrecht, Berlin, Germany, 1983.
M Devakar, D Sreenivasu and B Shankar. Analytical solutions of couple stress fluid flows with slip boundary conditions. Alexandria Eng. J. 2014; 53, 723-30.
ZG Feng, EE Michaelides. A numerical study on the transient heat transfer from a sphere at high reynolds and peclet numbers. Int. J. Heat Mass Tran. 2000; 43, 219-29.
JVR Murthy and PK Meduri. Drag over Contaminated Fluid Sphere with Slip Condition. Int. J. Sci. Eng. Res. 2014; 5, 719-27.
JVR Murthy and MP Kumar. Exact solution for flow over a contaminated fluid sphere for stokes flow. J. Phys. Conf. 2015; 662, 012016.
