Characteristics of Self-Compacting Concrete with Different Size of Coarse Aggregates and Alccofine
DOI:
https://doi.org/10.48048/tis.2022.3042Keywords:
Self-compacting concrete (SCC), Coarse aggregates, Alccofine, Fresh properties, Compressive strengthAbstract
The findings of an experiment examining the efficacy of different size of coarse aggregates on the fresh and strength properties of Self-Compacting Concrete (SCC) and Alccofine based SCC are described in this article. For this study, 5 different coarse aggregate sizes (10 - 4.75, 12.5 - 10, 16 - 12.5, 20 - 16 and 20 - 4.75 mm) were used with conventional SCC to determine the workability and strength properties. The water to binder ratio of 0.4 is maintained for all mixtures. Workability properties like slump-flow, T50 time, V-funnel and L-box tests and hardened property of compressive strength were studied. From the conventional SCC results based on sufficient fresh and strength values, the optimal blend is chosen and analyzed further with Alccofine substitution of 10, 20, 30, 40, 50 and 60 %. The test results revealed that the maximum size of aggregate did not influence much on the workability. Whereas the combination of aggregate sizes with the replacement of cement by 30 % of Alccofine had given optimum results on fresh and strength properties. Also, a numerical analysis was carried out, with Finite Element Modeling (FEM) to analysis the compressive strength and compared them to experimental findings. The consequence of FEM shows it is a reliable technique to validate experimental data.
HIGHLIGHTS
- The fresh and Strength properties of SCC were studied
- Five Different sizes of coarse aggregates and varying percentage of Alccofine were used
- The use of the mixed size aggregate had good flowability and better packing density
- Replacement of Alccofine by cement enhanced both fresh and strength properties

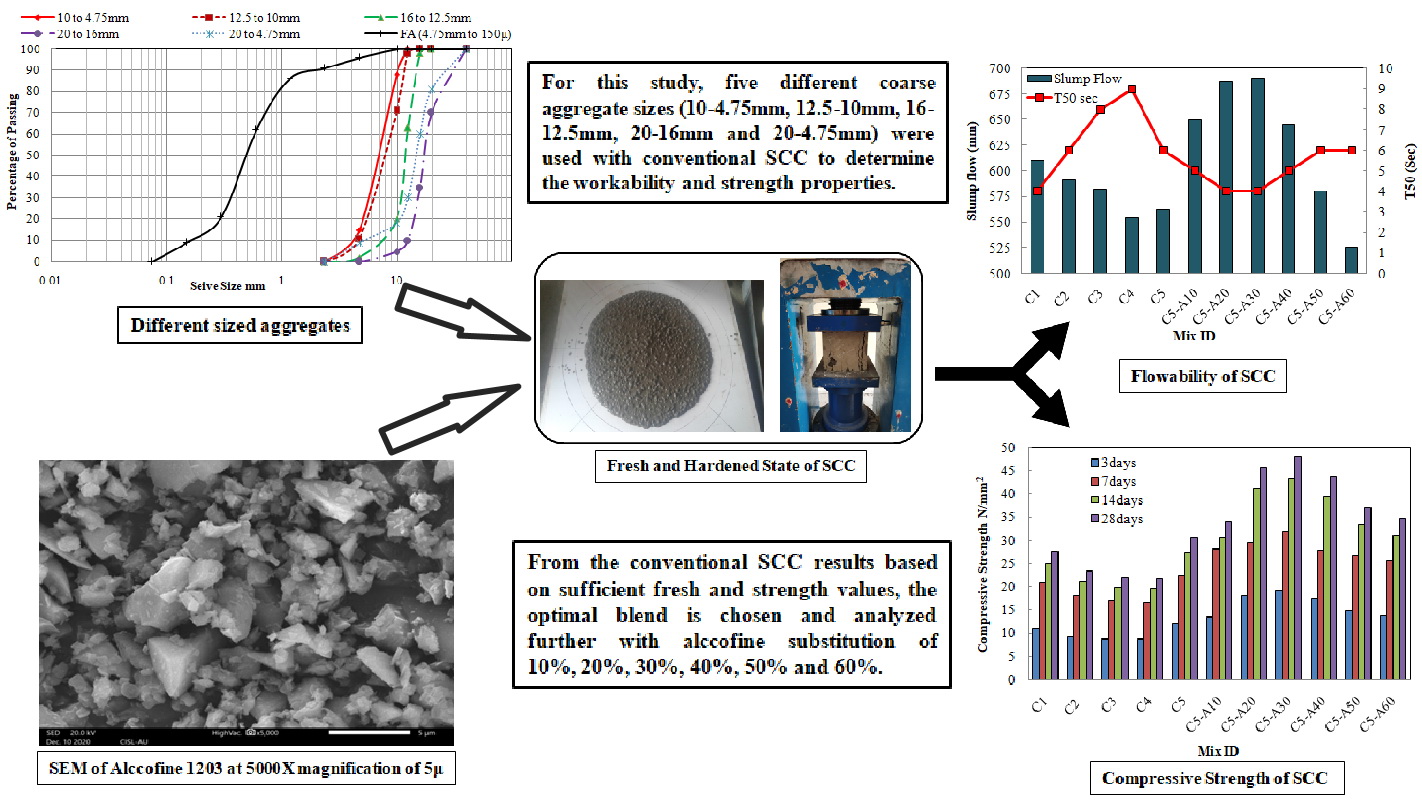

GRAPHICAL ABSTRACT
Downloads
Metrics
References
PL Domone. Self-compacting concrete: An analysis of 11 years of case studies. Cem. Concr. Compos. 2006; 28, 197-208.
GD Tsiskreli and AN Dzhavakhidze. The effect of aggregate size on strength and deformation of concrete. Hydrotech. Constr. 1970; 4, 448-53.
S Turkel and A Kandemir. Fresh and hardened properties of SCC made with different aggregate and mineral admixtures. J. Mater. Civil Eng. 2010; 22, 1025-32.
P Dinakar and SN Manu. Concrete mix design for high strength self-compacting concrete using metakaolin. Mater. Des. 2014; 60, 661-8.
K Ma, J Feng, G Long, Y Xie and X Chen. Improved mix design method of self-compacting concrete based on coarse aggregate average diameter and slump flow. Constr. Build. Mater. 2017; 143, 566-73.
European Federation of National Associations Representing for Concrete. The European guidelines for self-compacting concrete, Available at: http://www.efnarc.org/pdf/ SCCGuidelinesMay2005.pdf., accessed January 2021.
H El-Chabib and A Syed. Properties of self-consolidating concrete made with high volumes of supplementary cementitious materials. J. Mater. Civil Eng. 2013; 25, 1579-86.
R Madandoust and SY Mousavi. Fresh and hardened properties of self-compacting concrete containing metakaolin. Constr. Build. Mater. 2012; 35, 752-60.
GGK Reddy and P Ramadoss. Influence of alccofine incorporation on the mechanical behavior of ultra-high performance concrete. Mater. Today Proc. 2020; 33, 789-97.
BV Kavyateja, JG Jawahar and C Sashidhar. Effectiveness of alccofine and fly ash on mechanical properties of ternary blended self compacting concrete. Mater. Today Proc. 2020; 33, 73-9.
RR Kundanati, T Malpani and V Sairam. Study on mechanical properties of mortar using alccofine and graphene oxide. In: Proceedings of the 2nd International Conference on Martials, Manufacturing and Modelling, Tamil Nadu, India. 2020, p. 2431-8.
P Haldar and S Karmakar. An experimental study on the fatigue properties of Alccofine-based crumb rubber concrete. Proc. Inst. Civil Eng. Eng. Sustain. 2021; 174, 235-50.
SC Boobalan, VA Srivatsav, AMT Nisath, AP Babu and V Gayathri. A comprehensive review on strength properties for making Alccofine based high performance concrete. In: Proceedings of the 2nd International Conference on Aspects of Materials Science and Engineering, Chandigarh, India. 2021, p. 4810-2.
B Sagar and S MVN. Mechanical and microstructure characterization of Alccofine based high strength concrete. Silicon 2021, DOI: 10.1007/s12633-020-00863-x.
Bureau of Indian Standards. Specification for 53 grade ordinary Portland cement. Dee Kay Printers, New Delhi, India, 1988.
Bureau of Indian Standards. Specification for coarse and fine aggregates from natural sources for concrete. Bureau of Indian Standards, New Delhi, India, 1970.
Bureau of Indian Standards. Concrete admixtures - specification. New India Printing Press, Khurja, India, 1999.
Bureau of Indian Standards. Methods of tests for strength of concrete. Simco Printing Press, Dehli, India, 2004.
C Prithiviraj and J Saravanan. Influence of W/B ratio and chemical admixture on fresh and hardened properties of self compacting concrete using Alccofine. J. Xidian Univ. 2020; 14, 4906-15.
A Mohan and KM Mini. Strength studies of SCC incorporating silica fume and ultra fine GGBS. Mater. Today Proc. 2018; 5, 23752-8.
M Uysal. The influence of coarse aggregate type on mechanical properties of fly ash additive self-compacting concrete. Constr. Build. Mater. 2012; 37, 533-40.
B Felekoglu, S Turkel and B Baradan. Effect of water/cement ratio on the fresh and hardened properties of self-compacting concrete. Build. Environ. 2007; 42, 1795-802.
P Dinakar. Design of self-compacting concrete with fly ash. Mag. Concr. Res. 2012; 64, 401-10.
P Dinakar, KP Sethy and UC Sahoo. Design of self-compacting concrete with ground granulated blast furnace slag. Mater. Des. 2013; 43, 161-9.
O Boukendakdji, EH Kadri and S Kenai. Effects of granulated blast furnace slag and superplasticizer type on the fresh properties and compressive strength of self-compacting concrete. Cem. Concr. Compos. 2012; 34, 583-90.
OR Khaleel, SA Al-Mishhadani and HA Razak. The effect of coarse aggregate on fresh and hardened properties of self-compacting concrete (SCC). Proc. Eng. 2011; 14, 805-13.
BR Rajeshwari and MVN Sivakumar. Influence of coarse aggregate properties on specific fracture energy of steel fiber reinforced self compacting concrete. Adv. Concr. Constr. 2020; 9, 173-81.
AM Olowofoyeku, OM Ofuyatan, J Oluwafem and O David. Effect of various types and sizes of aggregate on self-compacting concrete. In: Proceedings of the 1st International Conference on Sustainable Infrastructural Development, Ota, Nigeria. 2019, p. 012054.
DH Mohan, M Shobha and PSN Raju. Aggregate size and behaviour of self-compacting concrete. 2006; 159, 147-52.
RS Khatana, P Aggarwal and Y Aggarwal. Effect of Alccofine on fresh and hardened properties of self compacting concrete In: Proceedings of the National Conference on Technological Innovations for Sustainable Infrastructure, Calicut, India. 2015, p. 34-8.
D Sharma, S Sharma and A Goyal. Utilization of waste foundry slag and Alccofine for developing high strength concrete. Int. J. Electrochem. Sci. 2016; 11, 3190-205.
A Narender Reddy and T Meena. A study on compressive behavior of ternary blended concrete incorporating Alccofine. In: Proceedings of the International Conference on Materials Manufacturing and Modelling, Vellore, India. 2018, p. 11356-63.
B Muralikrishnan and J Saravanan. Effect of Alccofine and ggbs addition on the durability of concrete. Civil Eng. J. 2019; 5, 1273-88.
PN Reddy and JA Naqash. Properties of concrete modified with ultra-fine slag. Karbala Int. J. Mod. Sci. 2019; 5, 151-7.
B Sagar and MVN Sivakumar. An experimental and analytical study on Alccofine based high strength concrete. Int. J. Eng. 2020; 33, 530-8.
PN Reddy, BB Jindal, BV Kavyateja and AN Reddy. Strength enhancement of concrete incorporating Alccofine and snf based admixture. Adv. Concr. Constr. 2020; 9, 345-54.
