Hall and Rotation Effects on Radiating and Reacting MHD Flow past an Accelerated Permeable Plate with Soret and Dufour Effects
DOI:
https://doi.org/10.48048/tis.2022.2879Keywords:
Dufour number, Hall current, Magnetic field, Rotation, Soret numberAbstract
This article investigates numerically the effects of Hall current and rotation effects on radiating and chemically reacting unsteady MHD natural convection flow past an accelerated infinite vertical permeable plate in the presence of Soret and Dufour effects. The dimensionless coupled non-linear governing partial differential equations of the problem are solved numerically by employing finite element method. The influence of various physical parameters influencing the flow on the primary velocity, secondary velocity, temperature and the species concentration are displayed graphically whilst the numerical results of the primary skin friction, secondary skin-friction, Nusselt number and the Sherwood number are presented in tabular form. Results reveals that magnetic parameter, radiation parameter and chemical reaction rate tends to depreciate both primary and secondary velocity components whilst Hall, Soret and Dufour effects have reverse trend. Rotation parameter tends to retard fluid flow in the primary flow direction and accelerate fluid flow in the secondary flow direction. Thermal boundary layer thickness decreases with increasing radiation parameter whilst the reverse trend is noticed with increasing Dufour effect. Thermal diffusion effect causes to improve concentration boundary layer thickness whilst chemical reaction rate has reverse impact. These parameters have similar effect on the primary and secondary skin-frictions whilst opposite effect was noticed on the Nusselt and Sherwood numbers. This model problem finds an important in engineering and industrial application such as MHD generators, food processing, heat exchangers devices and internal rotation rate of the sun.
HIGHLIGHTS
- The problem investigate the effects of Hall current and rotation effects on radiating and reacting on unsteady magnetohydrodynamics (MHD) natural convection heat and mass transfer flow over an infinite vertical porous plate embedded in a uniform porous medium taking Soret and Dufour effects into account
- The resulting partial differential equations governing the fluid flow are solved numerically using the finite element method. In order to determine the effects of various pertinent parameters and to investigate the important flow features, the numerical calculations for fluid velocity, temperature and species concentration are computed and shown graphically whereas skin friction, Nusselt number and Sherwood number at the plate are evaluated and depicted in tabular form
- The model problem finds an important in engineering and industrial application

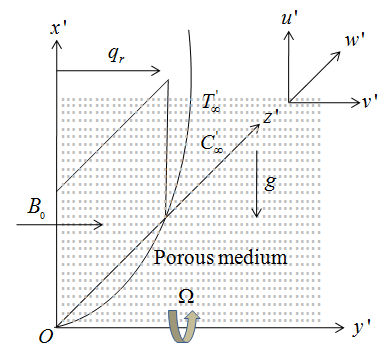

GRAPHICAL ABSTRACT
Downloads
Metrics
References
OD Makinde. MHD mixed convection interaction with Thermal radiation and nth order chemical reaction past a vertical porous. Chem. Eng. Commun. 2010; 198, 37- 41.
MG Reddy. Thermal radiation and chemical reaction effects on MHD mixed convective boundary layer slip flow in a porous medium with heat source and Ohmic heating. Eur. Phys. J. Plus 2014; 129, 41.
J Manjula, P Padma, MG Reddy and M Venakateswarlu. Influence of thermal radiation and chemical reaction on MHD flow, heat and mass transfer over a stretching surface. Proc. Eng. 2015; 127, 1315-22.
M Venakateswarlu and P Padma. Unsteady MHD free convection heat and mass transfer in a boundary layer flow past a vertical permeable plate with thermal radiation and chemical reaction. Proc. Eng. 2015; 127, 791-9.
CS Lakshmi and R Muthucumaraswamy. Thermal radiation and chemical reaction effects on exponentially accelerated vertical plate with variable temperature and uniform mass diffusion. Int. J. Eng. Sci. Res. Tech. 2016, 5, 321-32.
R Muthucumaraswamy and P Sivakumar. MHD flow past a paraboic flow past an infinite isothermal vertical plate in the presence of thermal radiation and chemical reaction. Int. J. Appl. Mech. Eng. 2016; 21, 95-105.
AS Eegunjobi, OD Makinde and S Jangili. Unsteady MHD chemically reacting and radiating mixed convection slip flow past a stretching surface in a Porous medium. Defect Diffusion Forum 2017; 377, 200-10.
BP Reddy. Radiation effects on unsteady MHD flow over a vertical plate with ramped wall temperature in the presence of chemical reaction. Int. J. Math. Arch. 2017; 8, 63-70.
RS Babu, BR Kumar and OD Makinde. Chemical reaction and thermal radiation effects on MHD mixed convection over a vertical plate with variable fluid properties. Defect Diffusion Forum 2018; 387, 332-42.
BP Reddy. Effects of chemical reaction on transient MHD flow with mass transfer past an impulsively fixed infinite verticalplate in the presence of thermal radiation. Int. J. Appl. Mech. Eng. 2019; 24, 169-82.
AS Idowu and U Sani. Thermal radiation and chemical reaction effects on unsteady MHD third grade fluid flow between stationary and oscillating plates. Int. J. Appl. Meh. Eng. 2019; 24, 269-93.
S Siddiqa, MA Hossain and RSR Gorla. Hall current effects on magnetohydrodynamic natural convection flow with strong cross magnetic field. Int. J. Ther. Sci. 2013; 71, 196-204.
NN Anika and N Islam. Hall current effects on magneto-hydrodynamics fluid over an infinite rotating vertical porous plate embedded in unsteady laminar flow. Ann. Pure. Appl. Math. 2013; 3, 189-200.
AN Maguna and NM Mutua. Hall current effects on free convection flow and mass transfer past a semi-infinite vertical flat plate. Int. J. Math. Stat. Stud. 2013; 1, 1-22.
GS Seth, S Sarkar and SM Hussain. Effects of Hall current, radiation and rotation on natural convection heat and mass transfer flow past a moving vertical plate. Ain Shams Eng. J. 2014; 5, 489-509.
JK Sundarnath and R Muthucumarswamy. Hall effects on MHD flow past an accelerated plate with heat transfer. Int. J. Appl. Mech. Eng. 2015; 20, 171-81.
P Sulochana. Hall current effects on unsteady MHD convective flow of heat generating/absorbing fluid through porous medium in a rotating parallel plate channel. Int. J. Adv. Res. Ideas Innovat. Tech. 2016; 2, 1-11.
US Rajput and N Kanaujia. MHD flow past a vertical plate with variable temperature and mass diffusion in the presence of Hall current, Int. J. Appl. Sci. Eng. 2016; 14, 115-23.
GS Seth, A Bhattacharyya and R Tripathi. Effect of Hall current on MHD natural convection heat and mass transfer flow of rotating fluid past a vertical plate with ramped wall temperature. Front. Heat Mass Tran. 2017; 9, 21.
GS Seth, B Kumbhakar and S Sarkar. Unsteady MHD natural convection flow with exponentially accelerated free-stream past a vertical plate in the presence of hall current and rotation. Rend. Circ. Mat. Palermo Ser. II 2017; 66, 263-83.
KVC Sekhar. MHD free convective heat and mass transfer flow past an accelerated vertical plate through a porous medium with Hall current, rotation and Soret effects. Int. J. Mech. Prod. Eng. Res. Dev. 2018; 8, 685-706.
BP Reddy. Hall effect on MHD transient flow past an impulsively started infinite horizontal porous plate in a rotating system. Int. J. Appl. Mech. Eng. 2018; 23, 471-83.
MV Krishna, MG Reddy and AJ Chamkha. Heat and mass transfer on MHD rotating flow of second grade fluid past an infinite vertical plate embedded in uniform porous medium with Hall effects. In: BR Kumar, R Sivaraj, BSRV Prasad, M Nalliah, AS Reddy (Eds.). Birkhäuser, Cham, 2019, p. 417-27.
MV Krishna. Hall and ion slip effects on MHD free convective rotating flow bounded by the semi-infinite vertical porous surface. Heat Tran. 2020; 49, 1920-38.
ERG Eckert and RM Drake. Analysis of heat and mass transfer. Mc. Graw-Hill, New York, 1972.
OD Makinde. On MHD mixed convection with Soret and Dufour effects past a vertical plate embedded in porous medium. Lat. Am. Appl. Res. 2011; 41, 63-8.
D Srinivasacharya and C Ramreddy. Soret and Dufour effects on mixed convection from an exponentially stretching surface. Int. J. Nonlinear Sci. 2011; 12, 60-8.
MJ Subhakar and K Gangadhar. Soret and Dufour effects on MHD convective flow of heat and mass transfer over a moving non-isothermal vertical plate with heat generation/absorption. Adv. Appl. Sci. Res. 2012; 3, 3165-84.
CY Cheng. Soret and Dufour effects on free convection heat and mass transfer from an arbitrarily inclined plate in a porous medium with constant wall temperature and concentration. Int. Commun. Heat Mass Trans. 2012; 39, 72-7.
D Srinivasacharya and S Reddy. Soret and Dufour effects on mixed convection from a vertical plate in power law fluid saturated porous medium. Theor. Appl. Mech. 2013; 40, 525-42.
YI Seini and OD Makinde. Hydromagnetic flow with Dufour and Soret effects past a vertical plate embedded in porous media. Math. Theor. Model. 2013; 3, 47-65.
A Hussanan, MZ Salleh, I Khan, RM Tahar and Z Ismail. Soret effects on unsteady magnetohydrodynamic mixed convection heat and mass transfer flow in a porous medium with Newtonian heating. Maejo Int. J. Sci. Tech. 2015; 9, 224-45.
JN Reddy. An introduction to the finite element methods. 2nd ed. Mc Graw-Hill, NewYork, 1993.
KJ Bathe. Finite element procedures. Prentice-Hall, New Jersey, 1996.
SR Singiresu. The finite element methods in engineering. 5th ed. Elsevier, Burlington, 2011.
