Structural, Electrical and Optical Properties of Mg-Ni Thin Films for Hydrogen Storage Applications
DOI:
https://doi.org/10.48048/tis.2022.2067Keywords:
Thin film, Hydrogenation, Surface morphology, Raman spectroscopy, Conductivity, Optical energy bandgapAbstract
Using the magnetron sputtering technique, Mg-Ni (150nm) bilayer thin films were deposited onto the simple, and ITO coated glass substrates. To obtain proper mixing and inter diffusion of thin film structure, annealing of the prepared thin films was made at constant temperature 523 K. The surface morphology of thin films confirms the uniform deposition of the Mg-Ni thin films on substrates. The Raman spectroscopy of thin films shows that the intensity of Raman peaks is decreased as the hydrogen pressure increases and variation in the intensity peak confirms the existence of hydrogen in the prepared film. The d.c. conductivity of thin films were observed at different hydrogen pressure (10 - 40 psi) for both the as-deposited and annealed thin films and the variation in the conductivity after hydrogenation was found out. In Uv-Vis spectroscopy, it was found that the optical bandgap of thin films increases with the increase of hydrogen pressure. The deviations in the structural, electrical and optical properties after hydrogenation indicate that Mg-Ni thin films may be used for solid state hydrogen storage applications.
HIGHLIGHTS
- Preparation of Mg-Ni bilayer thin films using magnetron sputtering technique
- Finding the opportunity to use Mg-Ni bilayer thin film as solid-state hydrogen storage materials
- Raman spectroscopy for confirming the presence of hydrogen in Mg-Ni bilayer thin films
- Effect of hydrogen on conductivity and optical energy bandgap of Mg-Ni bilayer thin films

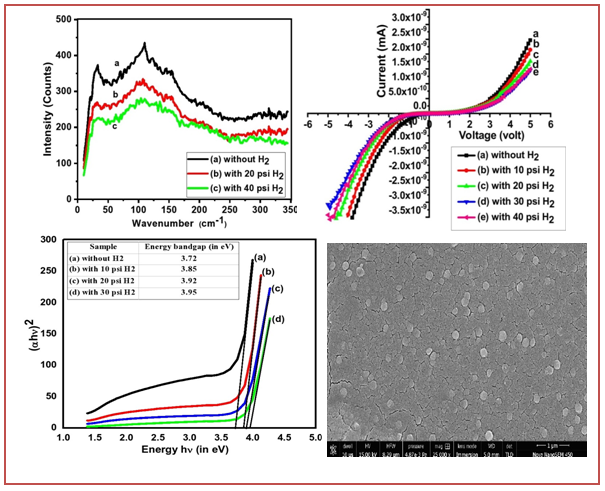

GRAPHICAL ABSTRACT
Downloads
References
A Izanlou and MK Aydinol. An ab-initio study of dissociative adsorption of H2 on FeTi surfaces. Int. J. Hydrogen Energ. 2010; 35, 1681-92.
B Sakintuna, F Lamari-Darkrimb and M Hirscher. Metal hydride materials for solid hydrogen storage: A review. Int. J. Hydrogen Energ. 2007; 32, 1121-40.
R Prabhukhot Prachi, MW Mahesh and CG Aneesh. A review on solid state hydrogen storage material. Adv. Energ. Power 2016; 4, 11-22.
JW Yang, T Gao and LY Guo. Ab-initio of the structural, mechanical, and dynamical properties of the rare-earth dihydrides XH2 (X=Sc, Y and La). Physica B Condens. Matter 2013; 429, 119-26.
E David. An overview of advanced materials for hydrogen storage.J. Mater. Process. Technol. 2005; 162-163, 169-77.
J Huot, G Liang and R Schulz. Mechanically alloyed metal hydride systems. Appl. Phys. 2001; A72, 187-95.
JN Huiberts, R Griessen, JH Rector, RJ Wijngaarden, JP Dekker, DG de Groot and NJ Koeman. Yttrium and lanthanum hydride films with switchable optical properties. Nature 1996; 380, 231-4.
S Enache, W Lohstroh and R Griessen. Temperature dependence of magneto-resistance and Hall effect in Mg2NiHx films. Phys. Rev. 2004; B69, 115326.
TJ Richardson, JL Slack, B Farangis and MD Rubin. Mixed metal films with switchable optical properties. Appl. Phys. Lett. 2002; 80, 1349.
W Lohstroh, RJ Westerwaal, JLM van Mechelen, H Schreuders, B Dam and R Griessen. The dielectric function of MgyNiHx thin films (2≤y≤10). J. Alloys Compd. 2007; 430, 13-8.
X Tan, M Danaie, WP Kalisvaart and D Mitlin. The influence of Cu substitution on the hydrogen sorption properties of magnesium rich Mg-Ni films.Int. J. Hydrog. Energ. 2011; 36, 2154-64.
LZ Ouyang, SY Ye, HW Dong and M Zhu. Effect of interfacial free energy on hydriding reaction of Mg-Ni thin films. Appl. Phys. Lett. 2007; 90, 021917.
MK Jangid, SS Sharma, J Ray and S Jangid. Effect of annealing and hydrogenation on optical and electrical properties of DC sputtered Mg-Ni bilayer thin films. Mater. Today Proc. 2022; 67, 847-51.
TJ Richardson, JL Slack, RD Armitage, R Kostecki, B Farangis and MD Rubin. Switchable mirrors based on nickel-magnesium films. Appl. Phys. Lett. 2001; 78, 3047-9.
Z Han, S Zhou, NWang, QZhang, TZhang and WRan. Crystal structure and hydrogen storage behaviors of Mg/MoS2 composites from ball milling. J. Wuhan Univ. Technol.Mat. Sci. Ed. 2016; 31, 773-8.
PVD Sluis, M Ouwerkerk and PA Duine. Optical switches based on magnesium lanthanide alloy hydrides. Appl. Phys. Lett. 1997; 70, 3356.
J Paillier, S Bouhtiyya, GG Ross and L Roué. Influence of the deposition atmosphere on the characteristics of Pd-Mg thin films prepared by pulsed laser deposition. Thin. Solid Films 2006; 500, 117-23.
H Akyıldız, M Ozenbaş and T Oztürk. Hydrogen absorption in magnesium based crystalline thin films. Int. J. Hydrog. Energ. 2006; 31, 1379-83.
K Yoshimura, Y Yamada and M Okada. Hydrogenation of Pd capped Mg thin films at room temperature. Surf. Sci. 2004; 566-568, 751-4.
MK Jangid, SP Nehra and M Singh. Hydrogenation effect on Mg/Mn multilayer thin films. AIP Conf. Proc. 2011; 1349, 685-6.
TJ Richardson, JL Slack, RD Armitage, R Kostecki, B Farangis and MD Rubin. Switchable mirrors based on nickel-magnesium films. Appl. Phys. Lett.2001; 78, 3047.
TJ Richardson, JL Slack, B Farangis and MD Rubin. Mixed metal films with switchable optical properties. Appl. Phys. Lett.2002; 80, 1349.
B Dam, AC Lokhorst, A Remhof, MCR Heijna, JH Rector, D Borsa and JWJ Kerssemakers. In situ preparation of YH2 thin films by PLD for switchable devices. J. Alloys Compd. 2003; 356-357, 526-9.
MK Jangid, SP Nehra and M Singh. Preparation and characterization of Mg/Mn Blayer metal hydrides thin films. AIP Conf. Proc. 2011; 1393, 311-2.
RF Pritchard, MJ Ashwin, JH Tucker, RC Newman and EC Lightowlers. Interactions of hydrogen molecules with bond-centered interstitial oxygen and another defect center in silicon. Phys. Rev. B 1996; 56, 13116-25.
JI Pankove, DE Carlson, JE Berkeyheiser and RO Wance. Neutralization of shallowacceptorlevels in silicon by atomichydrogen. Phys. Rev. Lett. 1983; 51, 2224-5.
MK Jangid, SP Nehra and M Singh. Optical, electrical and raman properties of annealed hydrogenated Mg/Co bilayer thin films. J. Nano Electron. Phys. 2011; 3, 460-8.
CGVDWalle and J Neugebauer. Hydrogen in semiconductor. Annu. Rev. Mater. Res. 2006; 36, 179-98.
MK Jangid and M Singh. Hydrogenation and annealing effect on electrical properties of nanostructured Mg/Mn bilayer thin films. Int. J. Hydrogen Energ. 2012; 37, 3786-91.
MK Jangid, SS Sharma, D Mathur and YC Sharma. Optical, electrical and structural study of Mg/Ti bilayer thin film for hydrogen storage applications. Mater. Lett. X 2021; 10, 100076.
AL Dawar, KV Ferdinand, C Jagadish, P Kumar and PC Mathur. Effect of hydrogen on the electrical properties of CdTe thin films. Mater. Chem. Phys. 1984; 10, 343-55.
SP Nehra, MK Jangid, A Kumar, M Singh and YK Vijay. Role of hydrogen in electrical and structural characteristics of bilayer CdTe/Mn diluted magnetic semiconductor thin films. Int. J. Hydrogen Energ. 2009; 34, 7306-10.
IAME Giebels, J Isidorsson and R Griessen. Highly absorbing black Mg and rare-earth-Mg switchable mirrors. Phys. Rev. B 2009; 69, 205111.
J Tauc. Amorphous and liquid semiconductors. Plenum Press, London, New York, 1974.
TQ Trung, S Jiri, PTN Quynh and NTH Nga. The effects of hydrogen dilution on structure of Si:H thin films deposited by PECVD. J. Phys. Conf. Ser. 2009; 187, 012035.
M Bortz, B Bertheville, G Böttger and K Yvon. Structure of the high-pressure phase γ-MgH2 by neutron powder diffraction. J. Alloys Compd. 1999; 287, L4-L6.
Z Tan, C Chiu, EJ Heilweil and LA Bendersky. Thermodynamics, kinetic and microstructural evolution Turing hydrogenation of iron-doped magnesium thin films. Int. J. Hydrogen Energ. 2011; 36, 9702-13.
I Iliescu, N Skryabina, D Fruchart, A Bes and A Lacoste. Morphology and microstructure of Mg-Ti-H films deposited by microwave plasma-assisted co-sputtering. J. Alloys Compd. 2017; 708, 489-99.
IJT Jensen, A Thøgersen, OM Løvvik, H Schreuders, B Dam and S Diplas. X-ray photoelectron spectroscopy investigation of magnetron sputtered Mg-Ti-H thin films. Int. J. Hydrog. Energ. 2013; 38, 10704-15.
S Zheng, K Wang, VP Oleshko and LA Bendersky. Mg-Fe thin films: A phase-separated structure with fast kinetics of hydrogenation. J. Phys. Chem. 2012; C116, 21277-84.
TJ Richardson, B Farangis, JL Slack, P Nachimuthu, R Perera, N Tamura and M Rubin. X-Ray absorption spectroscopy of transition metal-magnesium hydride thin films. J. Alloys Compd. 2003; 356-357, 204-7.
H Fritzsche, WP Kalisvaart, B Zahiri, R Flacau and D Mitlin. The catalytic effect of Fe and Cr on hydrogen and deuterium absorption in Mg thin films. Int. J. Hydrogen Energ. 2012; 37, 3540-7.
B Zahiri, M Danaie, X Tan, BS Amirkhiz, GA Botton and D Mitlin. Stable hydrogen storage cycling in magnesium hydride, in the range of room temperature to 300 °C, achieved using a new bimetallic Cr-V nanoscale catalyst. J. Phys. Chem. 2012; C116, 3188-99.
E Belin, M Gupta, P Zolliker and K Yvon. An experimental and theoretical investigation of the densities of states of dimagnesium cobalt pentahydride. J. Less Comm. Met. 1987; 130, 267-74.
E Orgaz and M Gupta. Electronic structure of the new manganese ternary hydride Mg3MnH7. J. Alloys Compd. 2002; 330, 323-7.
JP Bastide, B Bonnetot, JM Letoffe and P Claudy. Polymorphisme de l'hydrure de magnesium sous haute pression. Mater. Res. Bull.1980; 15, 1215-24.
W Lohstroh, RJ Westerwaal, B Noheda, S Enache, IAME Giebels, B Dam and R Griessen. Self-organized layered hydrogenation in black Mg2NiHx switchable mirrors. Phys. Rev.lett. 2004; 93, 197404.
