Morphological Control of Cobalt Ferrite Using Ionic Liquids for Enhanced Optical and Electrocatalytic Properties
DOI:
https://doi.org/10.48048/tis.2026.14859Keywords:
Cobalt ferrite, Ionic liquid, Soft templates, Morphology, Optical properties, Electrocatalysis, Oxygen evolution reactionAbstract
The morphology of cobalt ferrite (CoFe2O4) plays a crucial role in governing optoelectronic and catalytic properties by influencing electron transport and surface reactivity. In this work, CoFe2O4 was synthesized with varying morphology using an ionic liquid (IL)-assisted hydrothermal method from iron(III) nitrate nonahydrate and cobalt(II) nitrate hexahydrate. Two ILs, 1-ethyl-3-methylimidazolium trifluoromethanesulfonate ([C2mim]CF3SO3) and 1-ethyl-3-methylimidazolium methanesulfonate ([C2mim]CH3SO3), which share a common cation but differ in physicochemical properties, were used as soft templates to tailor morphology. Formation of CoFe2O4 and removal of IL were confirmed using Fourier transform infrared (FTIR) and energy-dispersive X-ray (EDX) spectroscopic techniques. IL modified the particle shape from a nanocube to a nanosphere and played a decisive role in controlling particle size through growth modifications. Five times smaller particles (17 nm) compared to native CoFe2O4 (84 nm) were obtained using ILs. A narrower size distribution, with smaller hydrodynamic diameters, was observed for ILs, as shown by dynamic light scattering (DLS) analysis. Highly crystalline, pure face-centered cubic (FCC) spinel structures were obtained using [C2mim]CH3SO3. The optical band gap energy of CoFe2O4 was reduced from 1.93 to 1.83 eV in the presence of [C2mim]CH3SO3 due to changes in cationic distribution and charge transfer induced by the IL. A low onset overpotential of 303 mV in 1.0 M KOH was observed in CoFe2O4 synthesized using [C2mim]CH3SO3, indicating enhancement of electrocatalytic properties due to a higher number of active sites, smaller particles, and exposed facets. However, the lowest Tafel slope of 103 mV dec−1 was obtained for [C2mim]CF3SO3 due to the faster kinetics on the electronically modified surface induced by fluorine-based anion. In IL-assisted CoFe2O4, the predominant (111) facet and modified surface structure might be responsible for improved performance in the oxygen evolution reaction (OER). This study demonstrates the tunability of optical and electrocatalytic properties of CoFe2O4 by controlling growth and formation of NPs using ILs.
HIGHLIGHTS
- Tuning morphology of cobalt ferrite magnetic nanoparticles using ionic liquids as soft templates
- Ionic liquids having a common cation and different anions
- Soft templating actions of 1-ethyl-3-methylimidazolium trifluoromethanesulphonate ([C2mim]CF3SO3) and 1-ethyl-3-methylimidazolium methanesulphonate ([C2mim]CH3SO3)
- Improving electrocatalytic and optical behavior of cobalt ferrite by controlling morphology via growth modifications

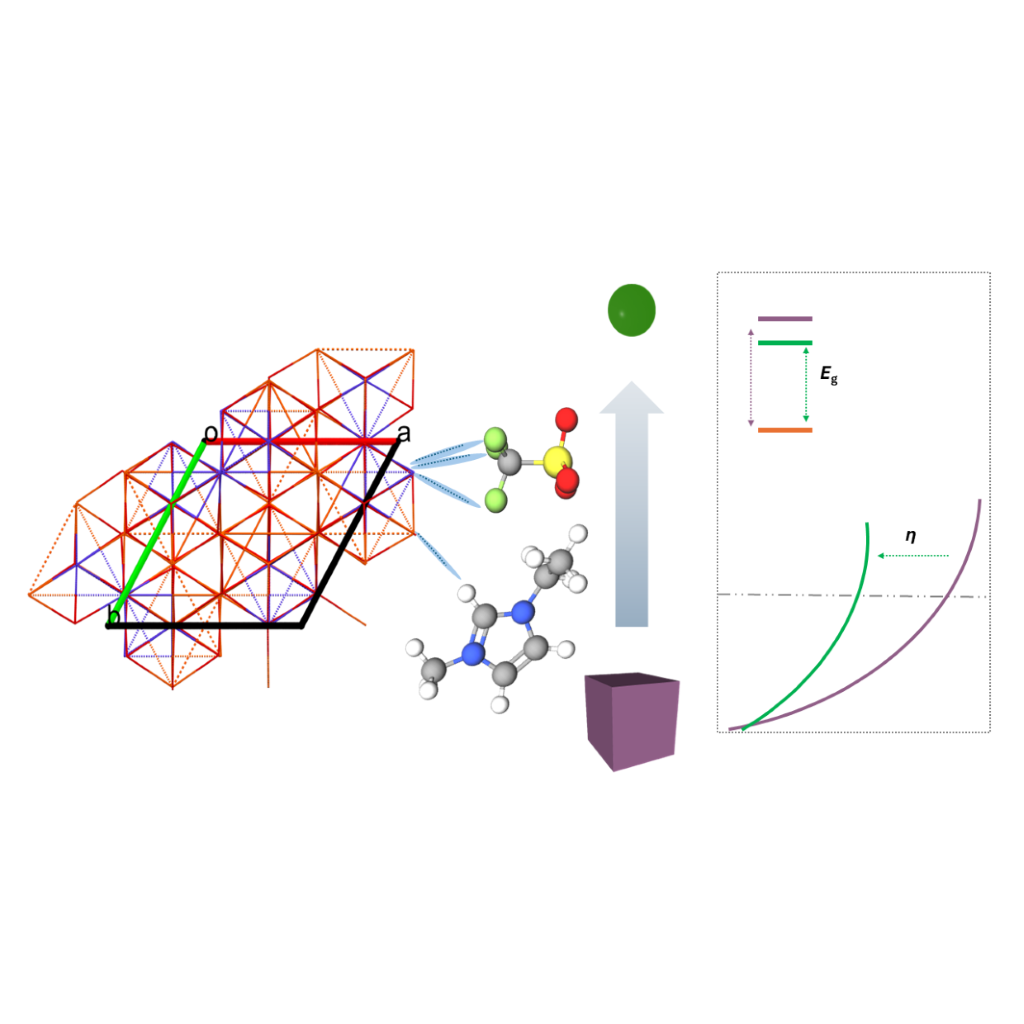

GRAPHICAL ABSTRACT
Downloads
References
C Acar and I Dincer. The potential role of hydrogen as a sustainable transportation fuel to combat global warming. International Journal of Hydrogen Energy 2020; 45(5), 3396-3406.
A Odenweller and F Ueckerdt. The green hydrogen ambition and implementation gap. Nature Energy 2025; 10(1), 110-123.
H Tüysüz. Alkaline water electrolysis for green hydrogen production. Accounts of Chemical Research 2024; 57(4), 558-567.
Y Lee, J Suntivich, KJ May, EE Perry and Y Shao-Horn. Synthesis and activities of rutile IrO2 and RuO2 nanoparticles for oxygen evolution in acid and alkaline solutions. The Journal of Physical Chemistry Letters 2012; 3(3), 399-404.
L Royer, A Bonnefont, T Asset, B Rotonnelli, JJ Velasco-Vélez, S Holdcroft, S Hettler, R Arenal, B Pichon and E Savinova. Cooperative redox transitions drive electrocatalysis of the oxygen evolution reaction on cobalt–iron core–shell nanoparticles. ACS Catalysis 2023; 13(1), 280-286.
ON Avcı, L Sementa and A Fortunelli. Mechanisms of the oxygen evolution reaction on NiFe2O4 and CoFe2O4 inverse-spinel oxides. ACS Catalysis 2022; 12(15), 9058-9073.
T Li, Y Lv, J Su, Y Wang, Q Yang, Y Zhang, J Zhou, L Xu, D Sun an Y Tang. Anchoring CoFe2O4 nanoparticles on N‐doped carbon nanofibers for high‐performance oxygen evolution reaction. Advanced Science 2017; 4(11), 1700226.
S Choudhary, A Bisht and S Mohapatra. Facile synthesis, morphological, structural, photocatalytic and optical properties of CoFe2O4 nanostructures. SN Applied Sciences 2019; 48(22), 34033-34045.
R Rai, S Wilser, M Guminiak, B Cai and M Nakarmi. Optical and electronic properties of NiFe2O4 and CoFe2O4 thin films. Applied Physics A 2012; 106(1), 207-211.
Y Kumar, A Sharma and PM Shirage. Impact of different morphologies of CoFe2O4 nanoparticles for tuning of structural, optical and magnetic properties. Journal of Alloys and Compounds 2019; 778, 398-409.
K Kombaiah, JJ Vijaya, LJ Kennedy, M Bououdina, RJ Ramalingam and HA Al-Lohedan. Comparative investigation on the structural, morphological, optical, and magnetic properties of CoFe2O4 nanoparticles. Ceramics International 2017; 43(10), 7682-7689.
Y Sugawara, K Kamata, A Ishikawa, Y Tateyama and T Yamaguchi. Efficient oxygen evolution electrocatalysis on CaFe2O4 and its reaction mechanism. ACS Applied Energy Materials 2021; 4(4), 3057-3066.
P Thakur, N Gahlawat, P Punia, S Kharbanda, B Ravelo and A Thakur. Cobalt nanoferrites: A review on synthesis, characterization, and applications. Journal of Superconductivity and Novel Magnetism 2022; 35(10), 2639-2669.
W Bian, Z Yang, P Strasser and R Yang. A CoFe2O4/graphene nanohybrid as an efficient bi-functional electrocatalyst for oxygen reduction and oxygen evolution. Journal of Power Sources 2014; 250, 196-203.
P Li, R Ma, Y Zhou, Y Chen, Q Liu, G Peng, Z Liang and J Wang. Spinel nickel ferrite nanoparticles strongly cross-linked with multiwalled carbon nanotubes as a bi-efficient electrocatalyst for oxygen reduction and oxygen evolution. RSC Advances 2015; 5(90), 73834-73841.
Z Zhang, AJ Rondinone, J-X Ma, J Shen and S Dai. Morphologically templated growth of aligned spinel CoFe2O4 nanorods. Advanced Materials 2005; 17(11), 1415-1419.
S Jha, P Jain, R Palkovits and PP Ingole. Tuning of cationic distribution in “partially inverted” cobalt ferrite spinel nanocubes via a nitrogen-doped graphene oxide support for enhanced bifunctional oxygen electrocatalysis. Journal of Materials Chemistry A 2023; 11(42), 23034-23047.
S Rafiezadeh, A Chaitram and R Pentcheva. Cooperative effect of Co and Fe promotes the OER activity of CoFe2O4 (100) and (001) surfaces. ChemCatChem 2026; 18(1), e01290.
EM Davis, A Bergmann, H Kuhlenbeck and B Roldan Cuenya. Facet dependence of the oxygen evolution reaction on Co3O4, CoFe2O4, and Fe3O4 epitaxial film electrocatalysts. Journal of the American Chemical Society 2024; 146(20), 13770-13782.
SM Ansari, BB Sinha, D Phase, D Sen, PU Sastry, YD Kolekar and CV Ramana. Particle size, morphology, and chemical composition controlled CoFe2O4 nanoparticles with tunable magnetic properties via oleic acid-based solvothermal synthesis for application in electronic devices. ACS Applied Nano Materials 2019; 2(4), 1828-1843.
S Rafiezadeh, V Begum-Hudde and R Pentcheva. Electronic and optical properties of the fully and partially inverse CoFe2O4 spinel from first principles calculations including many-body effects. Physical Review B 2024; 109(19), 195172.
JP Singh, JY Park, V Singh, SH Kim, WC Lim, H Kumar, YH Kim, S Lee and KH Chae. Correlating the size and cation inversion factor in context of magnetic and optical behavior of CoFe2O4 nanoparticles. RSC Advances 2020; 10(36), 21259-21269.
MP Reddy, AMA Mohamed, XB Zhou, S Du and Q Huang. A facile hydrothermal synthesis, characterization and magnetic properties of mesoporous CoFe2O4 nanospheres. Journal of Magnetism and Magnetic Materials 2015; 388, 40-44.
RM Cheriyan, I Anila and MJ Mathew. Characterization and magnetic phase resolution of CoFe2O4 nanocubes and nanospheres. AIP Conference Proceedings 2019; 2162(1), 020098.
NM Refat, MY Nassar and SA Sadeek. A controllable one-pot hydrothermal synthesis of spherical cobalt ferrite nanoparticles: Synthesis, characterization, and optical properties. RSC Advances 2022; 12(38), 25081-25095.
AL Lopes-Moriyama, V Madigou, CP De Souza and C Leroux. Controlled synthesis of CoFe2O4 nano-octahedra. Powder Technology 2014; 256, 482-489.
G Ji, S Tang, S Ren, F Zhang, B Gu and Y Du. Simplified synthesis of single-crystalline magnetic CoFe2O4 nanorods by a surfactant-assisted hydrothermal process. Journal of Crystal Growth 2004; 270(1-2), 156-161.
Y Huang, W Yang, Y Yu and S Hao. Ordered mesoporous spinel CoFe2O4 as an efficient electrocatalyst for the oxygen evolution reaction. Journal of Electroanalytical Chemistry 2019; 840, 409-414.
AS Shahvelayati and A Tanha. A review of ionic liquids: From solvent applications to template‐assisted synthesis of metal oxide nanoparticles. Applied Organometallic Chemistry 2025; 39(4), e70026.
A Ghaemi, F Mohave, A Farhadi, MA Takassi and H Tavakkoli. Hydrothermal synthesis of mesoporous cobalt ferrite by ionic liquid-assisted process; catalytic performance, morphology, and magnetic studies. Journal of the Australian Ceramic Society 2021; 57(4), 1321-1330.
X Ni, Z He, X Liu, Q Jiao, H Li, C Feng and Y Zhao. Ionic liquid-assisted solvothermal synthesis of hollow CoFe2O4 microspheres and their absorbing performances. Materials Letters 2017; 193, 232-235.
CM Burba, NM Rocher and R Frech. Hydrogen-bonding and ion-ion interactions in solutions of triflic acid and 1-ethyl-3-methylimidazolium triflate. The Journal of Physical Chemistry B 2009; 113(33), 11453-11458.
HG Liao, D Zherebetskyy, H Xin, C Czarnik, P Ercius, H Elmlund, M Pan, LW Wang and H Zheng. Facet development during platinum nanocube growth. Science 2014; 345(6199), 916-919.
A Pancielejko, M Kroczewska-Gnatowska, P Mazierski, J Łuczak and A Zaleska-Medynska. The effect of ionic liquids on the surface and photocatalytic properties of semiconducting materials. Chemical Engineering Journal 2024; 498, 155274.
BS Holinsworth, D Mazumdar, H Sims, QC Sun, MK Yurtisigi, SK Sarker, A Gupta, WH Butler and JL Musfeldt. Chemical tuning of the optical band gap in spinel ferrites: CoFe2O4 vs NiFe2O4. Applied Physics Letters 2011; 98(26), 261917.
K Dileep, B Loukya, N Pachauri, A Gupta and R Datta. Probing optical band gaps at the nanoscale in NiFe2O4 and CoFe2O4 epitaxial films by high-resolution electron energy loss spectroscopy. Journal of Applied Physics 2014; 116(10), 103505.
L Kampermann, J Klein, J Korte, O Kowollik, O Pfingsten, T Smola, S Saddeler, TH Piotrowiak, S Salamon, J Landers, H Wende, A Ludwig, S Schulz and G Bacher. Link between structural and optical properties of CoxFe3–xO4 nanoparticles and thin films with different Co/Fe ratios. The Journal of Physical Chemistry C 2021; 125(26), 14356-14365.
Z Liu, HM Amin, Y Peng, M Corva, R Pentcheva and Tschulik. Facet‐dependent intrinsic activity of single Co3O4 nanoparticles for oxygen evolution reaction. Advanced Functional Materials 2023; 33(1), 2210945.
MS Burke, S Zou, LJ Enman, JE Kellon, CA Gabor, E Pledger and SW Boettcher. Revised oxygen evolution reaction activity trends for first-row transition-metal (oxy) hydroxides in alkaline media. The Journal of Physical Chemistry Letters 2015; 6(18), 3737-3742.
J Qian, Q Shu, B He, Y Hua, X Ge, D Sun, W Liu, Q Zhang and L Zhou. Fluorine decoration induced deep reconstruction of iron cobalt oxide for high-efficiency oxygen evolution reaction. International Journal of Hydrogen Energy 2024; 68, 777-787.
FY Guo, J Luan, XC Meng, P Zheng, WL Duan and WZ Li. Optimization of conductivity and stability on inverse spinel CoFe2O4 for alkaline oxygen evolution reaction. Chemical Engineering Journal 2025; 523, 168363.
G Lee, M Jeong, HR Kim, M Kwon, S Baek, S Oh, M Lee, D Lee and JH Joo. Controlled electrophoretic deposition strategy of binder-free CoFe2O4 nanoparticles as an enhanced electrocatalyst for the oxygen evolution reaction. ACS Applied Materials & Interfaces 2022; 14(43), 48598-48608.
H Shen, H Du, P Li and M Wang. Hierarchical flaky spinel structure with Al and Mn co-doping towards preferable oxygen evolution performance. Materials 2025; 18(15), 3633.
