Interlayer Modification of Montmorillonite and Laponite by Cr(III)/Al(III) Polyhydroxo Species: Adsorption and Photo-Assisted Oxidation of Dyes
DOI:
https://doi.org/10.48048/tis.2026.13763Keywords:
Montmorillonite, Laponite, Intercalation, Dye adsorption, Photo-assisted oxidation, Wastewater treatmentAbstract
This study explores the structural modification of layered aluminosilicates through intercalation with Cr(III) and mixed Cr(III)/Al(III) polyhydroxo species. Despite the widespread use of modified clays, the integration of high-capacity adsorption with catalytic mineralization in a single inorganic matrix remains insufficiently addressed. Natural montmorillonite and synthetic laponite were used as host materials to evaluate their adsorption and photo-assisted oxidation performance. Structural and textural changes were investigated using XRD, N2 adsorption, SEM, FTIR, and mass titration. Intercalation significantly increased the BET surface area (up to 211.99 m2/g) and modified the surface charge, shifting the pHpzc of montmorillonite from 10.1 to 4.4. Adsorption experiments demonstrated a significant increase in capacity for the anionic dye Congo red, driven by the neutralization of layer charge and the creation of new binding environments. In addition, Cr-intercalated laponites showed catalytic activity in UV/H2O2-assisted oxidation, facilitated by a photo-Fenton-like pathway at interlayer-fixed Cr centers. The results demonstrate that controlled interlayer modification provides multifunctional sorption-reactive materials where efficient pollutant preconcentration is coupled with rapid oxidative degradation, offering a robust solution for wastewater treatment.
HIGHLIGHTS
- Natural montmorillonite and synthetic laponite were intercalated with Cr(III) and Cr/Al polyhydroxo species.
- The modification considerably expanded the specific surface area (up to 211.99 m2/g) and shifted the surface charge.
- Intercalated materials demonstrated a dramatic increase in adsorption capacity for the anionic dye Congo red (up to ~400 mg/g).
- Interlayer-fixed Cr species acted as stable catalytic centers for rapid UV/H2O2 photo-assisted dye oxidation.
- These multifunctional sorption-reactive materials offer a robust, integrated solution for industrial wastewater treatment.

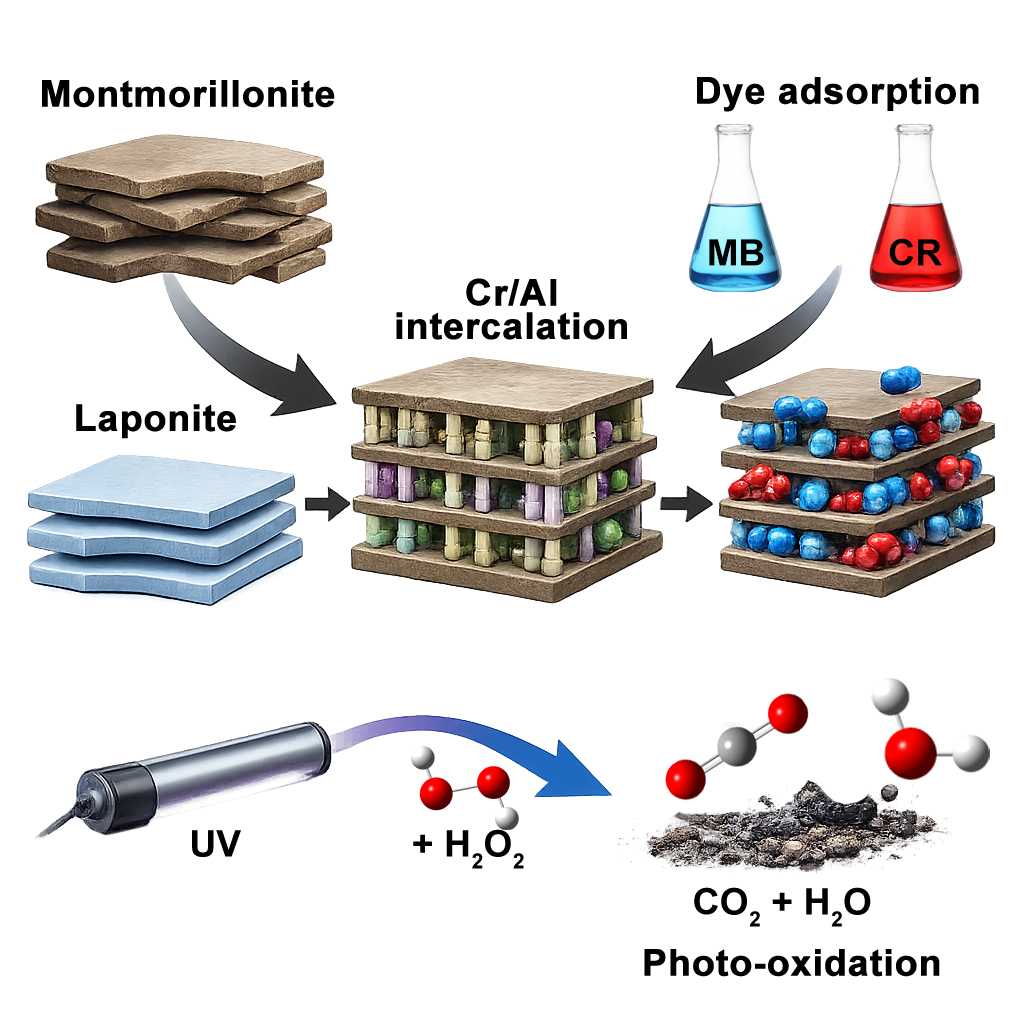

GRAPHICAL ABSTRACT
Downloads
References
M Zhang. Enhanced fluoride removal using montmorillonite clay modified with CoFe2O4 and metal-organic frameworks. Environmental Research 2024; 258, 119389.
BT Shiferraw, DN Mengesha and H Kim. Enhanced adsorption capacity of phosphoric acid-modified montmorillonite clay and ground coffee waste-derived carbon-based functional composite beads for the effective removal of methylene blue. Colloids and Surfaces A: Physicochemical and Engineering Aspects 2024; 695, 134243.
M Ristić, S Samaržija-Jovanović, T Jovanović, V Jovanović, M Kostić, G Marković and M Marinović-Cincović. Organically modified montmorillonite as an environmental adsorbent of pollutants: Formaldehyde from urea-formaldehyde resin and Acid Red 183 dye from the aqueous solution. Journal of Environmental Chemical Engineering 2024; 12(1), 111828.
A Lv, X Lv, X Xu and ZB Shao. Tailored ultra-tough, antimicrobial and recyclable hydrogels based on chitosan and ionic liquid modified montmorillonite with different chain lengths for efficient adsorption of organic dyes in wastewater. International Journal of Biological Macromolecules 2024; 257(2), 128752.
AS Abdulhameed, A Hapiz, SA Musa, E Kashi, R Wu, ZA AlOthman, AH Jawad and S Algburi. Organically modified montmorillonite composited with magnetic glyoxal-chitosan Schiff base for reactive blue 19 dye removal: Process optimization and adsorptive mechanism. International Journal of Biological Macromolecules 2024; 256(2), 128463.
N Mamataliev, A Abdikamalova, A Kalbaev, M Numonov, O Seytnazarova, D Haydarov, D Salikhanova and I Eshmetov. The role of hydrocarbon radicals in the formation of structural and adsorption characteristics of the montmorillonite-surfactant system. Adsorption Science & Technology 2025; 43, 1-21.
O Seitnazarova, A Kalbaev, N Mamataliev, A Abdikamalova and N Najimova. Structural features of montmorillonite-surfactant systems: Influence of surfactant packing density and montmorillonite surface nature. Journal of Chemical Technology and Metallurgy 2025; 60(1), 43-62.
MQ Fahem, MH Jawad, RO Abdulsada and ZT Turki. The structure and electrical properties of NiFe2O4 and NiMgFe2O4 prepared via sol-gel method. Ionics 2025; 31, 6475-6481.
Y Mo, R Cao, S Hu, B Guan, D Fu, H Liu, B Xu and Y Xiao. Gemini quaternary ammonium surfactants with different counterions-modified montmorillonite for efficient removal of methyl orange. Journal of Oleo Science 2024; 73(3), 341-350.
S Peng, T Mao, C Zheng, X Wu, Y Wei, W Huang, C Li and J Liu. Polyhydroxyl gemini surfactant-modified montmorillonite for efficient removal of methyl orange. Colloids and Surfaces A: Physicochemical and Engineering Aspects 2019; 578, 123602.
NM Mahmoodi, A Taghizadeh, M Taghizadeh and MAZS Baglou. Surface modified montmorillonite with cationic surfactants: Preparation, characterization, and dye adsorption from aqueous solution. Journal of Environmental Chemical Engineering 2019; 7(5), 103243.
M Sarabadan, H Bashiri and SM Mousavi. Modelling, kinetics and equilibrium studies of crystal violet adsorption on modified montmorillonite by sodium dodecyl sulfate and hyamine surfactants. Clay Minerals 2021; 56(1), 16-27.
T Bayram, S Bucak and D Öztürk. BR13 dye removal using sodium dodecyl sulfate modified montmorillonite: Equilibrium, thermodynamic, kinetic and reusability studies. Chemical Engineering and Processing: Process Intensification 2020; 158, 108186.
S Rahmani, B Zeynizadeh and S Karami. Removal of cationic methylene blue dye using magnetic and anionic-cationic modified montmorillonite: Kinetic, isotherm and thermodynamic studies. Applied Clay Science 2020; 184, 105391.
N Ullah, Z Ali, S Ullah, AS Khan, B Adalat, A Nasrullah, M Alsaadi and Z Ahmad. Synthesis of activated carbon-surfactant modified montmorillonite clay-alginate composite membrane for methylene blue adsorption. Chemosphere 2022; 309(1), 136623.
Z Zoulikha, D Lerari, A Mesli and K Khaldoun. Poly(acrylic acid-co-styrene)/clay nanocomposites: Efficient adsorbent for methylene blue dye pollutant. International Journal of Plastics Technology 2019; 23, 110-121.
Yang, W Yu, S He, S Yu, Y Chen, L Lu, Z Shu, H Cui, Y Zhang and H Jin. Rapid adsorption of cationic dye methylene blue on the modified montmorillonite/graphene oxide composites. Applied Clay Science 2019; 168, 304-113.
MH Jawad, AA Assi and AM Hameed. Hydrothermal synthesis of zinc oxide nanostructures using varied reactor designs: A comparative study. Plasmonics 2025; 20, 7883-7894.
TM Rashid, MI Rahmah, WK Mahmood, MQ Fahem, MS Jabir, AK Bidan, S Adbalrazaq, MH Jawad, DM Awaid, MA Qamandar and SM Alsaffar. Eco-friendly laser ablation for synthesis of CNF@Au nanoparticles: Insights into enhancing NO2 gas detection and antibacterial activity. Plasmonics 2025; 20, 8461-8472.
M Rahmani and A Dadvand Koohi. Adsorption of malachite green on the modified montmorillonite/xanthan gum-sodium alginate hybrid nanocomposite. Polymer Bulletin 2022; 79, 8241-8267.
M Yılmazoğlu, B Turan, P Demircivi and J Hızal. Synthesis and characterization of imidazolium based ionic liquid modified montmorillonite for the adsorption of Orange II dye: Effect of chain length. Journal of Molecular Structure 2022; 1249, 131628.
S Liu, M Chen, X Cao, G Li, D Zhang, M Li, N Meng, J Yin and B Yan. Chromium (VI) removal from water using cetylpyridinium chloride (CPC)-modified montmorillonite. Separation and Purification Technology 2020; 241, 116732.
DP Ordinartsev, NV Pechishcheva, SK Estemirova, AV Kim and KY Shunyaev. Removal of Cr(VI) from wastewater by modified montmorillonite in combination with zero-valent iron. Hydrometallurgy 2022; 208, 105813.
Y Chu, MA Khan, F Wang, M Xia, W Lei and S Zhu. Kinetics and equilibrium isotherms of adsorption of Pb(II) and Cu(II) onto raw and arginine-modified montmorillonite. Advanced Powder Technology 2019; 30(5), 1067-1078.
WS Jemima, P Magesan, P Chiranjeevi and MJ Umapathy. Sorption properties of organo modified montmorillonite clay for the reclamation of chromium (VI) from waste water. Silicon 2019; 11, 925-933.
JL Malvar, J Martín, M del Mar Orta, S Medina-Carrasco, JL Santos, I Aparicio and E Alonso. Simultaneous and individual adsorption of ibuprofen metabolites by a modified montmorillonite. Applied Clay Science 2020; 189, 105529.
A Avcı, İ İnci and N Baylan. A comparative adsorption study with various adsorbents for the removal of ciprofloxacin hydrochloride from water. Water, Air, & Soil Pollution 2019; 230, 250.
W Yang, S Guo, J Chen, A Naeem, H Fida and M Hamayun. A novel iron modified montmorillonite composite and its enhanced performance for tetracycline hydrochloride adsorption. Functional Materials Letters 2019; 12(2), 1950014.
T Xiao, W Luo, J Wei, X Yuan, Q Huang, L Zou, M Zhang, P Antwi, D Zhang and S Ren. Adsorption of tungstate using cationic gemini surfactant-modified montmorillonite: Influence of alkyl chain length. Colloids and Surfaces A: Physicochemical and Engineering Aspects 2021; 629, 127484.
M Muratov, A Abdikamalova, I Eshmetov, N Mamataliev, N Xudoyberdiyev, U Raximov, O Ergashev, O Seitnazarova and B Mamajonov. Waste-derived activated carbons from phenol-formaldehyde and polystyrene: The role of PAN and alkali treatment. Chemical Review and Letters 2025; 8(5), 981-1002.
AS Hussein, MH Jawad, RO Abdulsada, MS Abdulla and SN Mahdi. High P-type doping control and characterization of AlGaN thin films grown by PA-MBE on silicon substrates. Journal of Materials Science: Materials in Electronics 2025; 36, 2036.
AS Hussein, MQ Fahem, AJ Ghazai, A Ramizy and MH Jawad. Synthesis and characterization of CdS/Polyaniline composites for rhodamine B and methylene blue dye degradation under visible light. Journal of Inorganic and Organometallic Polymers and Materials 2026; 36, 2099-2110.
VH Nguyen, HT Luu, DKV Nguyen and CNH Thuc. Cassava starch modified montmorillonite - an efficient material for removal of crystal violet dye from contaminated aqueous solution. Research Journal of Chemistry and Environment 2024; 28(6), 1-8.
S Koley. Critically reckoning spectrophotometric detection of asymptomatic cyanotoxins and faecal contamination in periurban agrarian ecosystems via convolutional neural networks. Trends in Sciences 2024; 21(12), 8528.
AJ Hashim, HMM Jaafar, HN Mohsion, MH Jawad, TM Rashid and SM Alsaffar. Hydrothermal Synthesis of Ti6O11 nanomaterials for urea sensing and antibacterial applications. BioNanoScience 2025; 15; 514.
MQ Fahem, HN Mohsion, ZT Turki, HAR Abdullah and MH Jawad. Preparation and characterization of SiO2-enhanced TiO2 thin films for solar cell applications. Journal of Ovonic Research 2025; 21(4), 419-430.
HAR Abdullah, MQ Fahem, ZT Turki and MH Jawad. Effect of photothermal therapy using PANI-Fe2O3-Cys nanocomposites on breast cancer cells with antibacterial activity and cytotoxicity study. European Physical Journal E 2025; 48(6-7), 40.
