Preparation of Fe-doped Silicalite-1 Using Geothermal Sludge as a Potential Adsorbent for Methylene Blue Removal
DOI:
https://doi.org/10.48048/tis.2026.12650Keywords:
Geothermal sludge, Hydrothermal synthesis, Fe-doped silicalite-1, Adsorption, Methylene blue, Sustainable silica sourceAbstract
Geothermal sludge contains a high concentration of silica (85% - 93%) that is typically waste in geothermal plant, offering a promising alternative silica precursor for synthesizing of silicalite-1. In this study, geothermal sludge was acid-leached to remove impurities and enrich reactive silica, then used for hydrothermal preparation of Fe-doped silicalite-1 with Fe addition of 0.002 - 0.014 mol. Low Fe loading preserved the MFI framework with only a slight reduction in relative crystallinity (Fe@S-2 = 95.81%), whereas excessive Fe loading largely suppressed MFI formation (Fe@S-14 = 1.77%) and produced a partially amorphous material. The as-prepared Fe@S-5 exhibited a spherical morphology with an average particle size of 2.89 µm and the external surface area increased with Fe loading, reaching 174.2 m2 g−1 for Fe@S-14. In methylene blue adsorption, Fe@S-14 showed the highest uptake of 46 mg g−1 compared with S-1 of 7.9 mg g−1. The adsorption kinetics followed the pseudo-second order model and equilibrium data were reasonably described by the Langmuir isotherm within the investigated concentration range. Overall, this work demonstrates a sustainable route to utilize geothermal sludge into functional adsorbents for dye-containing wastewater treatment with clear potential for industrial implementation.
HIGHLIGHTS
- Geothermal sludge used as a silica source
- HCl leaching increased SiO2 purity to 93 wt%
- Higher Fe loading enhanced methylene blue adsorption performance
- The adsorption followed pseudo-second order kinetics and Langmuir isotherm model

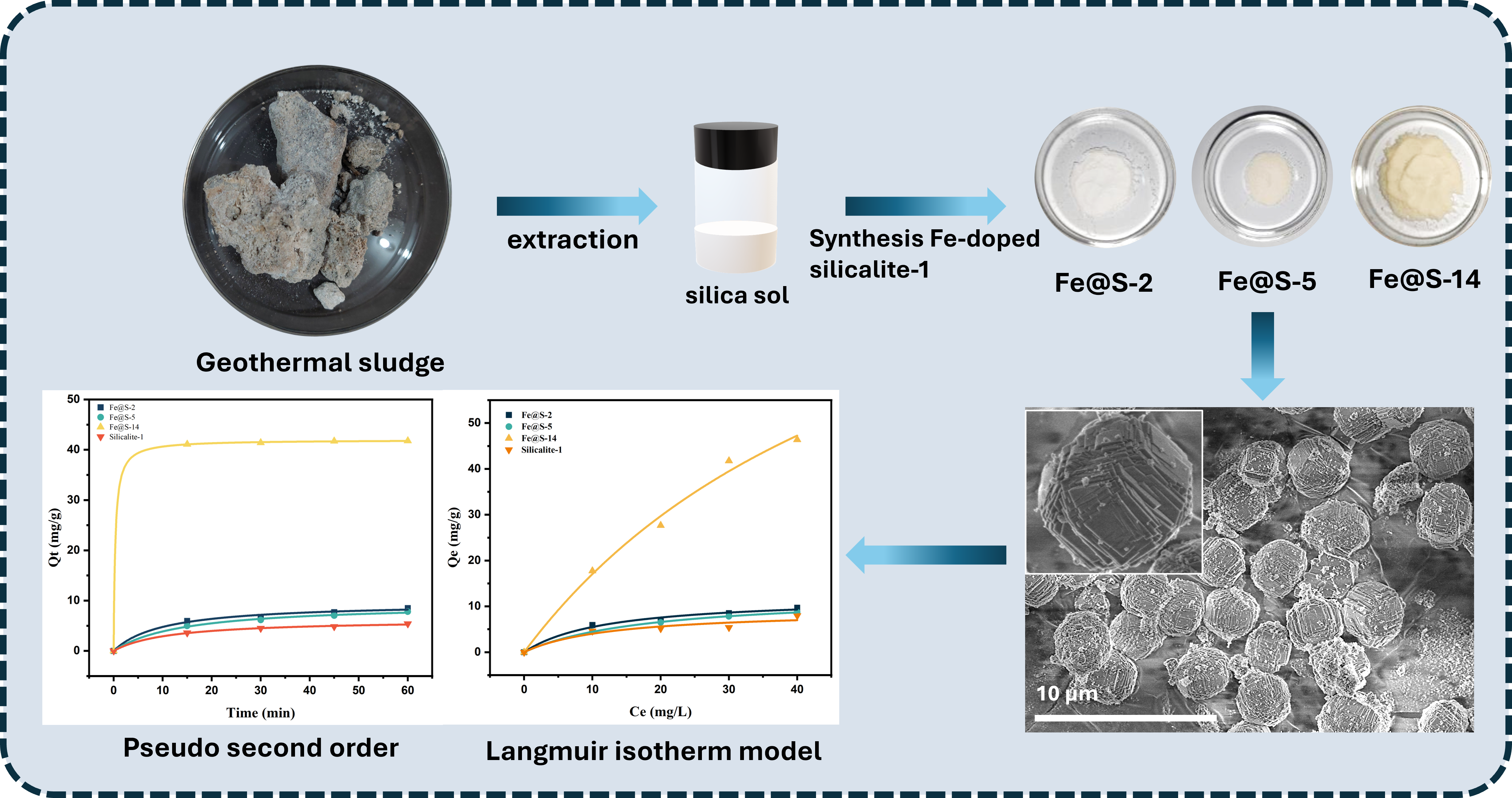

GRAPHICAL ABSTRACT
Downloads
References
A Khaleque, MM Alam, M Hoque, S Mondal, J Bin Haider, B Xu, MAH Johir, AK Karmakar, JL Zhou, MB Ahmed and MA Moni. Zeolite synthesis from low-cost materials and environmental applications: A review. Environmental Advances 2020; 2, 100019.
M Slavova, I Slavov, V Terziev, E Mladenova and B Abrashev. Analysis of the effects of zeolite additions on the properties of battery components: A review article. Electrochim Acta 2025; 513, 145557.
GM Wangi, PW Olupot and RKulabako. Optimization of natural zeolite powder milling parameters to enhance surface area and improve heavy metal adsorption from water. Discover Applied Sciences 2025; 7(10), 1-34.
J Zang, H Yu, G Liu, M Hong, J Liu and T Chen. Research progress on modifications of zeolite Y for improved catalytic properties. Inorganics 2023; 7(10), 1-34.
IMS Anekwe, B Oboirien and YM Isa. Effects of transition metal doping on the properties and catalytic performance of ZSM-5 zeolite catalyst on ethanol-to-hydrocarbons conversion. Fuel Communications 2024; 18, 100101.
X Sun, H Qi, Y Jiang, Q Zhao, P Lu, S Chen, C Xing, E Maturura and N Tsubaki. Ultrafast green synthesis of sub-micron Silicalite-1 zeolites by a grinding method. Journal of Solid State Chemistry 2022; 310, 123016.
J Yang, YX Huang, Y Pan and JX Mi. Green synthesis and characterization of zeolite silicalite-1 from recycled mother liquor. Microporous and Mesoporous Materials 2020; 303, 110247.
AM Fard and A Afshar Ebrahimi. Eco-friendly synthesis of ZSM-5 from rice husk ash using top-down modifications for enhancing acetone-to-olefin conversion: Evaluation of catalytic performance and operating conditions. Fuel 2025; 386, 134280.
HTBM Petrus, A Andriani, VSH Sujoto, M Inggrini, M Syauqi, W Astuti, SNA Jenie, KC Wanta, F Anggara, I Perdana, P Mulyono and Y Kusumastuti. High-yield synthesis of silica nanoparticles from geothermal silica via a facile co-precipitation method: Statistical optimization and kinetic analysis. Particuology 2025; 106, 222-235.
M I H S N, C Panatarani, F Faizal, C Mulyana and IM Joni. Synthesis of mesoporous Silica SBA-15 from geothermal sludge. Materialia 2023; 27, 101637.
PU Nzereogu, AD Omah, FI Ezema, EI Iwuoh and A C Nwanya. Silica extraction from rice husk: Comprehensive review and applications. Hybrid Advances 2014; 4, 100111.
SE Lehman and SC Larsen. Zeolite and mesoporous silica nanomaterials: Greener syntheses, environmental applications and biological toxicity. Environmental Science: Nano 2014; 1(3), 200-213.
FC Rivas, I Rodríguez-Iznaga, G Berlier, DT Ferro, B Concepción-Rosabal and V Petranovskii. Iron modified natural zeolite as sustainable environmental catalysts: Correlation between iron speciation and catalytic activity in NO-reduction. In: AE Lakem (Ed.). Vide Leaf, Prime archives in chemistry. Hyderabad, India, 2020, p. 1-28.
Y Zhai, X Zhang, F Wang, G Lv, H Li, T Jiang, Y Wu and M Li. One-step synthesis of high-amount Fe-doped hollow MFI zeolite by Kirkendall effect in the presence of organic acid anions. Microporous and Mesoporous Materials 2020; 307, 110451.
H Guo, L Chen, X Zhang, H Chen and Y Shao. Silicalite-1 zeolite encapsulated Fe nanocatalyst for Fenton-like degradation of methylene blue. Chinese Journal of Chemical Engineering 2023; 53, 251-259.
S Radoor, J Karayil, A Jayakumar, J Parameswaranpillai and S Siengchin. Release of toxic methylene blue from water by mesoporous silicalite-1: Characterization, kinetics and isotherm studies. Applied Water Science 2021; 11(7), 110.
X Wu, A Nulahong, C Miao, Q Liu, J Li and C Tuo. Solid-phase synthesis of silicalite-1 molecular sieve based on fly ash and its CO2 adsorption performance. Greenhouse Gases: Science and Technology 2024; 14(6), 954-976.
N Karimah, RC Andiani, WP Utomo, AI Rozafia, N Farida, A Rosyidah, R Liu, Q Xu and D Hartanto. Factors contributing to reduced photocatalytic activity in Cu-loaded TiO2/activated carbon composites for methylene blue degradation. South African Journal of Chemical Engineering 2025; 54, 582-596.
G Yuhaneka, AI Rozafia, WP Utomo, A Iryani and D Hartanto. Synthesis of porous g-C₃N₄ and its application as photocatalyst for methylene blue degradation. Malaysian Journal of Fundamental and Applied Sciences 2022; 18(4), 463-472.
D Hartanto, AB Pambudi, DN Cahyanti and WP Utomo. On the synthesis of ZSM-5 directly from kaolin bangka with aging time. IOP Conference Series: Materials Science and Engineering 2019; 588(1), 012039.
N Farida, R Purbowati, N Karimah, AI Rozafia, WP Utomo, I Susilo, HY Chung, A Rosyidah, A Soeprijanto and D Hartanto. Marine collagen-driven synthesis of one-dimensional silver nanoparticles. Materials Letters 2025; 397, 138822.
WP Utomo, N Farida, B Aisyah, AA Babgei, N Karimah, A I Rozafia, I Susilo, T Widjaja, H Nur, R Sari, R Liu and D Hartanto. Facile synthesis of flower-like bismuth oxybromide anchored on ZSM-5 for enhanced photocatalytic dye degradation. South African Journal of Chemical Engineering 2025; 53, 386-399.
CA Nunes and MC Guerreiro. Estimation of surface area and pore volume of activated carbons by methylene blue and iodine numbers. Química Nova 2011; 34, 472-476.
K Stone, A M TS Bandara, G Senanayake, and S Jayasekera. Processing of rare earth phosphate concentrates: A comparative study of pre-leaching with perchloric, hydrochloric, nitric and phosphoric acids and deportment of minor/major elements. Hydrometallurgy 2016; 163, 137-147.
S Xu, T J A Slater, H Huang, Y Zhou, Y Jiao, CMA Parlett, S Guan, S Chansai, S Xu, X Wang, C Hardacre and X. Fan. Developing silicalite-1 encapsulated Ni nanoparticles as sintering-/coking-resistant catalysts for dry reforming of methane. Chemical Engineering Journal 2022; 446, 137439.
R Zhao, J Chen, J Liu, J Fan and J Du. Morphologies-controlling synthesis of silicalite-1 and its adsorption property. Materials Letter 2015; 139, 494-497.
W Kellouai, P Judeinstein, M Plazanet, S Baudoin, M Drobek, A Julbe and B Coasne. Gas adsorption in zeolite and thin zeolite layers: Molecular simulation, experiment, and adsorption potential theory. Langmuir 2022; 38(18), 5428-5438.
Q Liu, Y Fang, C Miao, Z Liao, J Lu, J Li, X Wu and A Nulahong. Preparation of ZSM-5 molecular sieve modified by kaolin and its CO2 adsorption performance investigation. Microporous and Mesoporous Materials 2023; 360, 112678.
J Qi, T Zhao, X Xu, F Li and G Sun. Hydrothermal synthesis of size-controlled silicalite-1 crystals. Journal of Journal of Porous Materials 2011; 18(4), 509-515.
X Yang, J Chen, H Lai, J Hu, M Fang and X Luo. MOF-derived Co/ZnO@silicalite-1 photocatalyst with high photocatalytic activity. RSC Advances 2017; 7(61), 38519-38525
YF Yeong, AZ Abdullah, AL Ahmad and S Bhatia. Synthesis, structure and acid characteristics of partially crystalline silicalite-1 based materials. Microporous and Mesoporous Materials 2009; 123(1-3), 129-139.
J Tao, Y Jia, T Bai, W Huang, Y Cui, Y Zhou and Q Wei. Study on the catalytic performance of Fe in-situ modified small crystallite Silicalite-1 zeolite in Chichibabin condensation reaction. Journal of Fuel Chemistry and Technology 2024; 52(9), 1280-1289.
M Nawab, S Barot and R Bandyopadhyay. Nano-sized Silicalite-1: Novel route of synthesis, metal impregnation and its application in selective oxidation of toluene. Journal of Chemical Sciences 2019; 131(1), 2.
H Sun, Y Han, Z Liu, X Zhang, P Wu, P Bai, P Peng and Z Yan. Incorporating iron species into silicalite-1 framework through iminodisuccinate ligand to achieve superior catalytic performance in propane dehydrogenation. Renewables 2025; 3(2), 87-98.
G Liu, J Liu, N He, C Miao, J Wang, Q Xin and H Guo. Silicalite-1 zeolite acidification by zinc modification and its catalytic properties for isobutane conversion. RSC Advances 2018; 8(33), 18663-18671.
O Sophiphun, S Chanprame and C Laksana. Evaluation of synthesis method of fe loaded amorphous silica on the adsorption of glyphosate. Current Applied Science and Technology 2022; 23(3), 10-55003.
M Turchi, S Galmarini and I Lunati. Learning adsorption patterns on amorphous surfaces. Journal of Chemical Theory and Computation 2024; 20(17), 7597-7610.
C Strangfeld, P Wiehle and SM Munsch. About the dominance of mesopores in physisorption in amorphous materials. Molecules 2021; 26(23), 7190.
T Hongo, M Moriura, Y Hatada and H Abiko. Simultaneous methylene blue adsorption and ph neutralization of contaminated water by rice husk ash. ACS Omega 2021; 6(33), 21604-21612.
N Yuan, H Cai, T Liu, Q Huang and X Zhang. Adsorptive removal of methylene blue from aqueous solution using coal fly ash-derived mesoporous silica material. Adsorption Science & Technology 2019; 37(3-4), 333-348.
X Jia, W Khan, Z Wu, J Choi and ACK Yip. Modern synthesis strategies for hierarchical zeolites: Bottom-up versus top-down strategies. Advanced Powder Technology 2019; 30(3), 467-484.
S Xu, K Zheng, CR Boruntea, DG Cheng, F Chen, G Ye, X Zhou and MO Coppens. Surface barriers to mass transfer in nanoporous materials for catalysis and separations. Chemical Society Reviews 2023; 52(12), 3991-4005.
Y Bakhtaoui, M Ben Ali, M Ouakki, O El Khattabi, N El Azzouzi and B Srhir. Efficient adsorption of methylene blue onto raw olive pomace from Moroccan industrial oil mills: Linear and nonlinear isotherm and kinetic modeling with error analysis. Next Materials 2025; 9, 101072.
MA Darweesh, MY Elgendy, MI Ayad, AM Ahmed, NMK Elsayed and WA Hammad. Adsorption isotherm, kinetic, and optimization studies for copper (II) removal from aqueous solutions by banana leaves and derived activated carbon. South African Journal of Chemical Engineering 2022; 40, 10-20.
NW Sabry, I Naeem, SA Hassanien, O Abuzalat and A Baraka. Alkali-treatment of Lupine peels for valorizing adsorption of organic cationic pollutants from wastewater: Kinetics, isotherm, thermodynamic, regeneration, and mechanism. Next Materials 2025; 8, 100568.
GS Aljeddani, RM Alghanmi and RA Hamouda. Study on the isotherms, kinetics, and thermodynamics of adsorption of crystal violet dye using Ag-NPs-loaded cellulose derived from peanut-husk agro-waste. Polymers 2023; 15(22), 4394.
I Abdul-Gafaru, SJ Cobbina and K Michael. Green-synthesized magnetic iron oxide nanoparticles for the adsorptive removal of CD2+ and PB2+ from aqueous solution. Discover Water 2025; 5(1), 92.
S Zharylkan, S Sultakhan, M Suleimenova, S Azat, Y Sailaukhanuly, M Tulepov and Z Tauanov. Engineered science enhanced adsorption of mercury and methylene blue using silver and surface modified zeolite-NaX derived from Rice Husk. Engineered Science 2024; 31, 1241.
