Alginate-Coated Astaxanthin Liposomes: Enhance Antioxidant Activity and Storage Stability
DOI:
https://doi.org/10.48048/tis.2026.12319Keywords:
Astaxanthin, Nanocarrier, Liposome, Coating, Alginate, Antioxidant, Stability, Storage, Astaxanthin, Nanocarrier, Liposome, Coating, Alginate, Antioxidant, Stability, StorageAbstract
Reactive oxygen species (ROS) play a key role in aging and various degenerative diseases such as cardiovascular, neurodegenerative, and chronic inflammatory diseases. Astaxanthin (ATX) has antioxidant activity but is limited in terms of solubility and stability. Liposomes are promising drug carriers but suffer from instability and leakage issues in terms of stability that causes leakage in vesicles and also low entrapment efficiency. This study aims to investigate the potential of a liposome coating system containing astaxanthin using alginate to improve antioxidant activity and stability. Preparation ATX loaded liposomes (ATX-Lip) using thin film hydration and then modified with alginate coating. The formulation was characterized based on particle size, zeta potential, % entrapment efficiency (% EE), and morphology. Furthermore, in vitro release dynamics, antioxidant activity occurred and storage stability test. ATX-Lip with a ratio of soy lecithin: Cholesterol (9:1) gave the best characterization results so that it was continued with coating using alginate. Modification of alginate coating on ATX-Lip (NA-ATX-Lip) successfully increased the zeta potential value from –8.57 ± 0.61 to –44.90 ± 0.1 mV and an increase in %EE with a difference of 9.32%. This is in line with the results of in vitro antioxidant activity where there was a decrease in the IC50 value of ATX by 27.49 to 20.12 ppm in the NA-ATX-Lip formula. This study proves that the modification of the alginate layer on ATX was successful and NA-ATX-Lip was proven to increase antioxidant activity. Surface modification of alginate also enhanced the protective capacity of the system of ATX-Lip, reducing degradation and structural alterations during storage.
HIGHLIGHTS
- Astaxanthin liposomes (ATX-Lip) were synthesized by the thin film hydration method and then coated with alginate (NA-ATX-Lip) through a polymer adsorption mechanism
- NA-ATX-Lip successfully increased the zeta potential value from –8.57 ± 0.61 mV to –44.90 ± 0.1 mV and an increase in %EE with a difference of 9.32%.
- NA-ATX-Lip reduced the IC₅₀ value from 27.49 ppm to 20.12 ppm, confirming improved antioxidant activity
- Alginate surface modification improved both the antioxidant performance and storage stability of ATX-Lip by protecting the liposomal structure from degradation and oxidative damage during storage at 4 °C

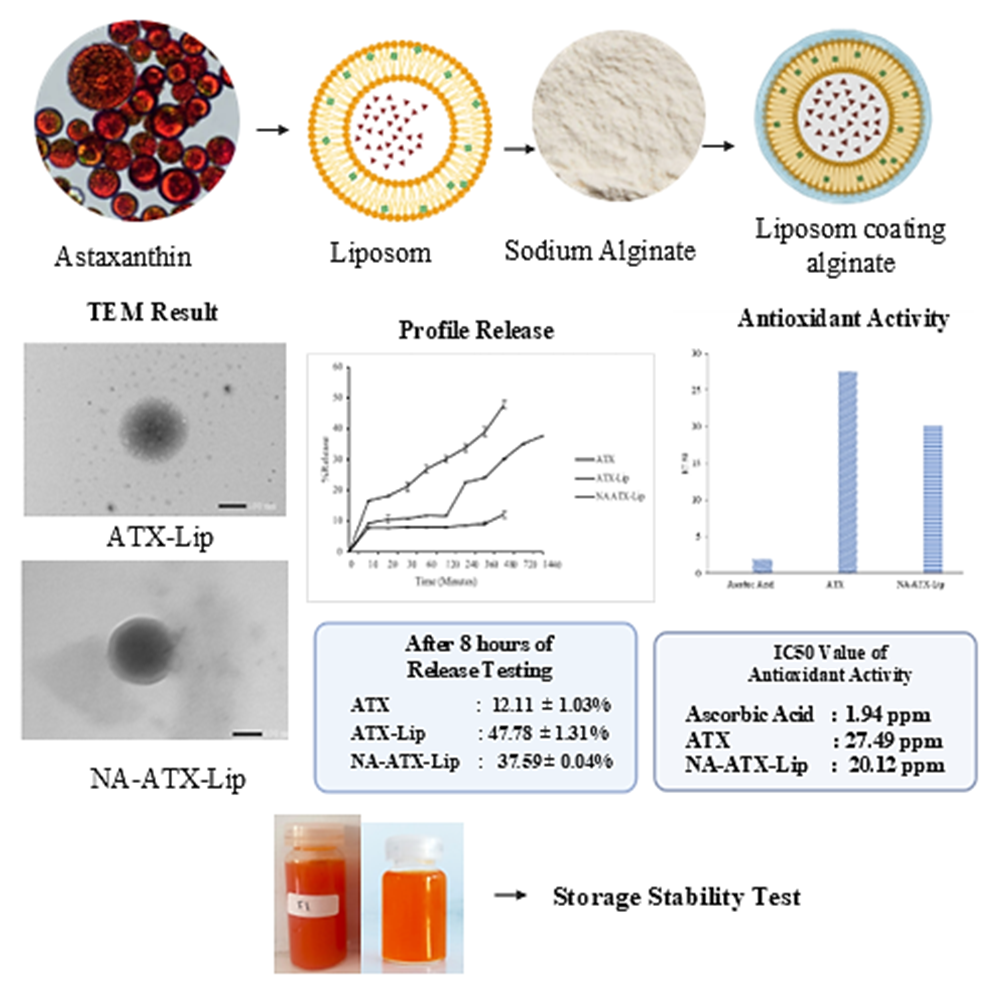

GRAPHICAL ABSTRACT
Downloads
References
Y Dang, Z Li and F Yu. Recent advances in astaxanthin as an antioxidant in food applications. Antioxidants 2024; 13(7), 879
Y Nishida, PC Berg, B Shakersain, K Hecht, A Takikawa, R Tao, Y Kakuta, C Uragami, H Hashimoto, N Misawa and T Maoka. Astaxanthin: Past, Present, and Future. Marine Drugs 2023; 21(10), 514.
MX Chang and F Xiong. Astaxanthin and its effects in inflammatory responses and inflammation-associated diseases: Recent advances and future directions. Molecules 2020; 25(22), 5342.
Y Ni, M Nagashimada, F Zhuge, L Zhan, N Nagata, A Tsutsui, Y Nakanuma, S Kaneko and T Ota. Astaxanthin prevents and reverses diet-induced insulin resistance and steatohepatitis in mice: A comparison with vitamin E. Scientific Reports 2015; 5, 17192.
J Lee, MH Kim and H Kim. Anti-oxidant and anti-inflammatory effects of astaxanthin on gastrointestinal diseases. International Journal of Molecular Sciences 2022; 23(24), 15471.
L Pan, H Meng, J Li, Z Liu, D Zhang, Z Liu, Q Zhao and F Xu. Enhancement of astaxanthin bioaccessibility by encapsulation in liposomes: An in vitro study. Molecules 2024; 29(8), 1687.
L Pan, S Zhang, K Gu and N Zhang. Preparation of astaxanthin-loaded liposomes: Characterization, storage stability and antioxidant activity. CyTA - Journal Food 2018; 16(1), 607-618.
HI Chang, CW Shao, E Huang and KY Huang. Development of astaxanthin-loaded nanosized liposomal formulation to improve bone health. Pharmaceuticals 2022; 15(4), 490.
B Radwan, A Prabhakaran, S Rocchetti, E Matuszyk, TE Keyes and M Baranska. Uptake and anti-inflammatory effects of liposomal astaxanthin on endothelial cells tracked by Raman and fluorescence imaging. Mikrochimica Acta 2023; 190(8), 332.
R Song, Y Qi, Z Jia, X Liu and R Wei. Astaxanthin-loaded zein/calcium alginate composite microparticles: Characterization, molecular interaction and release kinetics in fatty food simulant system. LWT 2020; 134, 110146.
SF Lin, YC Chen, RN Chen, LC Chen, HO Ho, YH Tsung, MT Sheu and DZ Liu. Improving the stability of astaxanthin by microencapsulation in calcium alginate beads. PLoS One 2016; 11(4), e0153685.
D Pasarin, AI Ghizdareanu, CE Enascuta, CB Matei, C Bilbie, L Paraschiv-Palada and PAVeres. Coating materials to increase the stability of liposomes. Polymers 2023; 15(3), 782.
Z Jafari, A Bigham, S Sadeghi, SM Dehdashti, N Rabiee, A Abedivash, M Bagherzadeh, B Nasseri, H Karimi-Maleh, E Sharifi, RS Varma and P Makvandi. Nanotechnology-abetted astaxanthin formulations in multimodel therapeutic and biomedical applications. Journal of Medicinal Chemistry 2022; 65(1), 2-36.
S Chen, J Wang, J Feng and R Xuan. Research progress of astaxanthin nano-based drug delivery system: Applications, prospects and challenges. Frontiers in Pharmacology 2023; 14, 11102888.
YS Lee, SH Jeon, HJ Ham, HP Lee, MJ Song and JT Hong. Improved anti-inflammatory effects of liposomal astaxanthin on a phthalic anhydride-induced atopic dermatitis model. Frontiers in Immunology 2020; 11, 565285.
Y Xu, Z Jia, J Wang, J Sun and R Song. Property and stability of astaxanthin emulsion based on pickering emulsion templating with zein and sodium alginate as stabilizer. International Journal of Molecular Sciences 2022; 23(16), 9386.
I Panagiotakopoulos and C Nasopoulou. Extraction methods, encapsulation techniques, and health benefits of astaxanthin. Sustainability 2024; 16(24), 10859.
P Wu, L Chen, M Chen, BS Chiou, F Xu, F Liu and F Zhong. Use of sodium alginate coatings to improve bioavailability of liposomes containing DPP-IV inhibitory collagen peptides. Food Chemistry 2023; 414, 135685.
Ó Martínez-Álvarez, MM Calvo and J Gómez-Estaca. Recent advances in astaxanthin micro/nanoencapsulation to improve its stability and functionality as a food ingredient. Marine Drugs 2020; 18(8), 406.
T Taksima, M Limpawattana and W Klaypradit. Astaxanthin encapsulated in beads using ultrasonic atomizer and application in yogurt as evaluated by consumer sensory profile. LWT - Food Science and Technology 2015; 62(1-2), 431-437.
H Goshtasbi, ED Abdolahinia, M Fathi, A Movafeghi, H Omidian, J Barar and Y Omidi. Astaxanthin-loaded alginate-chitosan gel beads activate Nrf2 and pro-apoptotic signalling pathways against oxidative stress. Journal of Microencapsulation 2024; 41(2), 140-156.
R Abka-khajouei, L Tounsi, N Shahabi, AK Patel, S Abdelkafi and P Michaud. Structures, properties and applications of alginates. Marine Drugs 2022; 20(6), 364.
F Yu, J Chen, Z Wei, P Zhu, Q Qing, B Li, H Chen, W Lin, H Yang, Z Qi, X Hong and XD Chen. Preparation of carrier-free astaxanthin nanoparticles with improved antioxidant capacity. Frontiers in Nutrition 2022; 9, 1022323.
E Sulastri, MN Rahma, Y Herdiana, KM Elamin, AFA Mohammed, SA Mahmoud and N Wathoni. Enhancing antifungal efficacy and stability of nystatin liposomes through chitosan and alginate layer-by-layer coating: In vitro studies against candida albicans. International Journal of Nanomedicine 2025; 20, 10739-10750.
A Firmansya, F Setiawan, L Nurdianti and A Yuliana. Formulation and characterization of buccal film nanoemulsion apigenin as antidiabetic. Indonesian Journal of Pharmaceutical Science and Technology 2022; 1(1), 22.
C Suhandi, G Wilar, R Lesmana, F Zulhendri, I Suharyani, N Hasan and N Wathoni. Propolis-based nanostructured lipid carriers for α-mangostin delivery: Formulation, characterization, and in vitro antioxidant activity evaluation. Molecules 2023; 28(16), 6057.
N Dhas, HS Preetha, A Dubey, G Ravi, I Govindan, A Rama, A Naha and S Hebbar. Factorial design-based fabrication of biopolymer-functionalized asiatic acid-embedded liposomes: In-vitro characterization and evaluation. Journal of Applied Pharmaceutical Science 2022; 12(11), 071-081.
X Zhang, Z Wu, W Zhang, L Wang, P Zhao, X Lv, P Guo and Ju Chen. Surface modification by chitosan for improving stability and antioxidative activity of astaxanthin-loaded liposomes. LWT 2024; 198, 116033.
T Milanda, FRC Mo'o, AFA Mohammed, KM Elamin, G Wilar, I Suharyani and N Wathoni. Alginate/chitosan-based hydrogel film containing α-mangostin for recurrent aphthous stomatitis therapy in rats. Pharmaceutics 2022; 14(8), 1709.
H Zhang. Thin-film hydration followed by extrusion method for liposome preparation. Methods in Molecular Biology 2023; 1522, 57-63.
AA Mardhotillah and AA Musfa. Kajian metode dan jenis penyusun sediaan liposom dalam sistem penghantaran obat. Jurnal Riset Farmasi 2023; 3(2), 95-102.
T Lee, AV Sanzogni, PL Burn and AE Mark. Evolution and morphology of thin films formed by solvent evaporation: an organic semiconductor case study. ACS Applied Materials & Interfaces 2020; 12(36), 40548-40557.
D Putri, R Dwiastuti, M Hadimartono and A Nugroho. Optimization of mixing temperature and sonication duration in liposome preparation. Journal of Pharmaceutical Sciences and Community 2017; 14, 79-85.
A Chaerunisaa, MK Dewi, S Sriwidodo, IM Joni and RF Dwiyana. Development of cathelicidin in liposome carrier using thin layer hydration method. International Journal of Applied Pharmaceutics 2022; 14(4), 178-185.
X Tan, Y Liu, X Wu, M Geng and F Teng. Layer-by-layer self-assembled liposomes prepared using sodium alginate and chitosan: Insights into vesicle characteristics and physicochemical stability. Food Hydrocolloids 2024; 149; 109606.
NA Jusril, SIA Bakar, KA Khalil, WMM Saad, NK Wen and MI Adenan. Development and optimization of nanoemulsion from ethanolic extract of centella asiatica (NanoSECA) using d-optimal mixture design to improve blood-brain barrier permeability. Evidence-based Complementary and Alternative Medicine 2022; 2022, 3483511.
F Tello, RN Falfan-Cortés, F Martinez-Bustos, VMD Silva, MD Hubinger and C Grosso. Alginate and pectin-based particles coated with globular proteins: Production, characterization and anti-oxidative properties. Food Hydrocolloids 2015; 43, 670-678.
P Hashemzadeh and M Dinari. Development of alginate/PVP hydrogel incorporating pomegranate seed nanoparticles for selective heavy metal removal. Desalination and Water Treatment 2025; 324, 101520.
X Yi, S Gao, X Gao, X Zhang, G Xia, Z Liu, H Shi and X Shen. Glycolipids improve the stability of liposomes: The perspective of bilayer membrane structure. Food Chemistry 2023; 412, 135517.
Y Gu, Z Zhao, F Xue and Y Zhang. Alginate-chitosan coated nanoliposomes as effective delivery systems for bamboo leaf flavonoids: Characterization in vitro release, skin permeation and anti-senescence activity. Antioxidants, 11(5), 1024.
K Tai, M Rappolt, X He, Y Wei, S Zhu, J Zhang, L Mao, Y Gao and F Yuan. Effect of β-sitosterol on the curcumin-loaded liposomes: Vesicle characteristics, physicochemical stability, in vitro release and bioavailability. Food Chemistry 2019; 293, 92-102.
P Kanaujia, P Poovizhi, WK Ng and RBH Tan. Amorphous formulations for dissolution and bioavailability enhancement of poorly soluble APIs. Powder Technology 2015; 285, 2-15.
HW Chen, SD Chen, HT Wu, CH Cheng, CS Chiou and WT Chen. Improvement in Curcumin’s stability and release by formulation in flexible nano-liposomes. Nanomaterials 2024; 14(22), 1836.
T Ramasamy, ZS Haidar, THiep Tran , JY Choi, JH Jeong, BS Shin, HG Choi, CS Yong and JO Kim. Layer-by-layer assembly of liposomal nanoparticles with PEGylated polyelectrolytes enhances systemic delivery of multiple anticancer drugs. Acta Biomaterialia 2014; 10(12), 5116-5127.
F Tan, H Li, K Zhang, L Xu, D Zhang, Y Han and J Han. Sodium alginate/Chitosan-coated liposomes for oral delivery of hydroxy-α-sanshool: In vitro and in vivo evaluation. Pharmaceutics 2023; 15(7), 2010.
SM Elbayomi, H Wang, TM Tamer and Y You. Enhancement of antioxidant and hydrophobic properties of alginate via aromatic derivatization: Preparation, characterization, and evaluation. Polymers 2021; 13(15), 2575.
MM Virk and E Reimhult. Phospholipase A2-induced degradation and release from lipid-containing polymersomes. Langmuir 2018; 34(1), 395-405.
