Enhanced Biodiesel production with Cu-doped ZnO Nanocatalyst: A Comprehensive Study on Kinetics, Optimization and Catalytic Performance
DOI:
https://doi.org/10.48048/tis.2026.11747Keywords:
Transesterification, Nanocatalyst, Waste cooking oil, Box-Behnken Design, Biodiesel, Transesterification, Nanocatalyst, Waste cooking oil, Box-behnken design, Biodiesel, Activation energyAbstract
This study presents the synthesis and application of a novel ZnO nanocatalyst doped with
10% Cu, prepared via a co-precipitation method, for the transesterification of waste cooking oil (WCO) into biodiesel. Comprehensive catalyst characterization was conducted using FT-IR, XRD, FE-SEM, EDS, AFM, BET, and HR-TEM. Process optimization was achieved through Response Surface Methodology (RSM) employing a Box-Behnken Design, which identified optimal conditions of 67 °C, 3.14 wt% catalyst, 47.47% methanol-to-oil ratio, and a reaction time of 90 min, yielding 95.5% biodiesel. Kinetic modeling revealed pseudo-first-order behavior with a relatively low activation energy of 99.3 kJ/mol. GC-MS analysis confirmed the dominance of C16:0, C18:1, and C18:0 methyl esters. Unlike previous works using undoped ZnO or CuO individually, this study demonstrates a synergistic effect of Cu-doping on ZnO that enhances catalytic activity and reduces activation energy. These findings highlight the efficacy of Cu-doped ZnO nanocatalysts for efficient and sustainable biodiesel production from low-grade feedstocks.
HIGHLIGHTS
- Cu-doped ZnO nanocatalyst synthesized via co-precipitation
- Biodiesel yield of 95.5% obtained from waste cooking oil
- Box-Behnken design optimized biodiesel production
- Pseudo-first-order kinetics with 99.3 kJ/mol activation energy

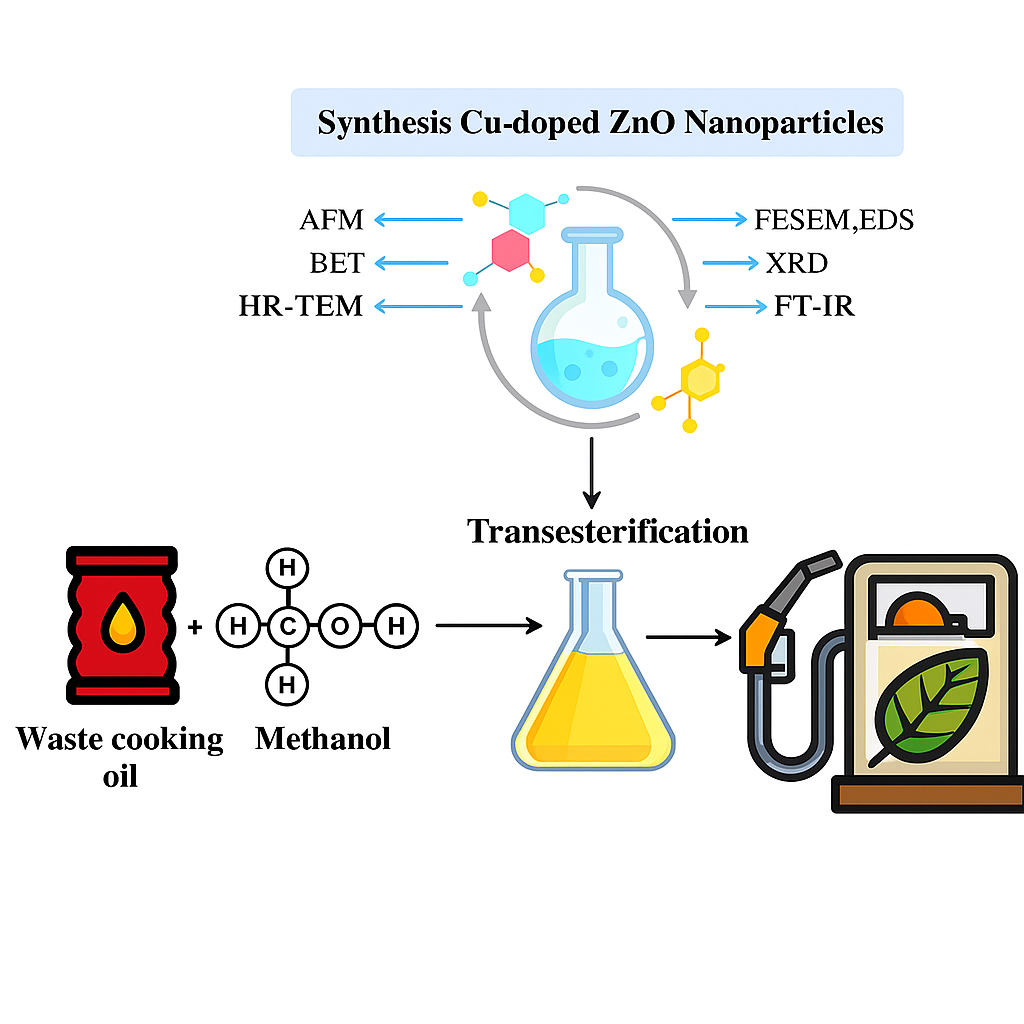

GRAPHICAL ABSTRACT
Downloads
References
SM Salim, R Izriq, MM Almaky and AA Al-Abbassi. Synthesis and characterization of ZnO nanoparticles for the production of biodiesel by transesterification: Kinetic and thermodynamic studies. Fuel 2022; 321; 124135.
F Almomani, A Abdelbar and S Ghanimeh. A review of the recent advancement of bioconversion of carbon dioxide to added value products: A state of the art. Sustainability 2023; 15(13), 10438.
K Sunilkumar, N Edayadulla, P Raja and R Surakasi. The effect of emissions from DI-based sources causing hazardous health effects. In: S Sahoo and N Yedla (Eds.). Recent advances in mechanical engineering. Springer, Singapore, 2024, p. 1-13.
GC Manjunath Patel, BS Ajith, Jagadish, AK Shettigar and OD Samuel. Introduction to renewable energy resources and sustainable feedstocks for biodiesel. In: GC Manjunath Patel, BS Ajith, Jagadish, AK Shettigar and OD Samuel (Eds.). Biofuel production, performance, and emission optimization. Springer, Cham, Switzerland, 2025, p. 1-21.
D Neupane. Biofuels from renewable sources, a potential option for biodiesel production. Bioengineering 2022; 10(1), 29.
KS Kumar and S Muniamuthu. Assessment of performance, combustion, and emission characteristics of single cylinder diesel engine fuelled by pyrolysis oil + CeO2 nanoparticles and 1-butanol blends. International Journal of Ambient Energy 2024; 45(1), 2344568.
K Sunil Kumar, JM Babu and H Venu. Performance, combustion and emission characteristics of a single-cylinder DI diesel engine fuelled with lotus biodiesel-diesel- n -butanol blends. International Journal of Ambient Energy 2022; 43(1), 7941-7951.
H Xu, L Ou, Y Li, TR Hawkins and M Wang. Life cycle greenhouse gas emissions of biodiesel and renewable diesel production in the United States. Environmental Science & Technology 2022; 56(12), 7512-7521.
KS Kumar and S Muniamuthu. Design and fabrication of nickel-chromium reinforced 2-stage energy efficient pyrolysis reactor for waste plastics applications. International Journal of Ambient Energy 2024; 45(1), 2288148.
A Singh and T Mukherjee. Application of carotenoids in sustainable energy and green electronics. Materials Advances 2022; 3(3), 1341-1358.
ZT Alismaeel, TM Al-Jadir, TM Albayati, AS Abbas and AM Doyle. Modification of FAU zeolite as an active heterogeneous catalyst for biodiesel production and theoretical considerations for kinetic modeling. Advanced Powder Technology 2022; 33(7), 103646.
A Karadağ, ÖD Şahan, A Hamid and MN Aftab. Biodiesel production potential in sustainable biomass diversity. In: E Jacob-Lopes, LQ Zepka and M Deprá (Eds.). Biodiesel plants - fueling the sustainable outlooks. IntechOpen, London, 2024.
AE Atabani, AS Silitonga, HC Ong, TMI Mahlia, HH Masjuki, IA Badruddin and H Fayaz. Non-edible vegetable oils: A critical evaluation of oil extraction, fatty acid compositions, biodiesel production, characteristics, engine performance and emissions production. Renewable and Sustainable Energy Reviews 2013; 18, 211-245.
V Gupta and KP Singh. The impact of heterogeneous catalyst on biodiesel production; a review. Materials Today: Proceedings 2023; 78, 364-371.
AB Rashid. Utilization of nanotechnology and nanomaterials in biodiesel production and property enhancement. Journal of Nanomaterials 2023; 2023(1), 7054045.
A Singh, A Gangwar and S Kumar. Prospects and limitations of existing biofuels and emerging trends in the utilization of nanoparticles for enhanced biofuel production and microbial fuel cell efficiency. Biofuels 2025; 16(5), 519-544.
KS Kumar, R Surakasi, SGK Patro, N Govil, MK Ramis, A Razak, P Sharma, M Alsubih, S Islam, TMY Khan, N Almakayeel and S Chintakindi. Performance, combustion, and emission analysis of diesel engine fuelled with pyrolysis oil blends and n-propyl alcohol-RSM optimization and ML modelling. Journal of Cleaner Production 2024; 434, 140354.
KS Kumar, JM Babu, H Venu and A Muthuraja. Waste plastic as a source of biofuel for stationary diesel engine: A critical review. International Journal of Ambient Energy 2022; 43(1), 8577-8591.
D Bouras, M Fellah, R Barille, M Abdul Samad, M Rasheed and MA Alreshidi. Properties of MZO/ceramic and MZO/glass thin layers based on the substrate’s quality. Optical and Quantum Electronics 2024; 56(1), 104.
M Rozan, E Alamri and H Bayomy. Fermented Hass avocado kernel: Nutritional properties and use in the manufacture of biscuits. Saudi Journal of Biological Sciences 2022; 29(6), 103295.
O Awogbemi, AA Ojo and SA Adeleye. Advancements in the application of metal oxide nanocatalysts for sustainable biodiesel production. Discover Applied Sciences 2024; 6(5), 250.
I Alshalal, HMI Al-Zuhairi, AA Abtan, M Rasheed and MK Asmail. Characterization of wear and fatigue behavior of aluminum piston alloy using alumina nanoparticles. Journal of the Mechanical Behavior of Materials 2023; 32(1), 20220280.
N Dey, S Vickram, S Thanigaivel, R Subbaiya, W Kim, N Karmegam and M Govarthanan. Nanomaterials for transforming barrier properties of lignocellulosic biomass towards potential applications - A review. Fuel 2022; 316, 123444.
RS Gavhane, AM Kate, A Pawar, MEM Soudagar and H Fayaz. Effect of soybean biodiesel and copper coated zinc oxide nanoparticles on enhancement of diesel engine characteristics. Energy Sources, Part A: Recovery, Utilization, and Environmental Effects 2025; 47(1), 3547-3565.
M Guo, W Jiang, C Chen, S Qu, J Lu, W Yi and J Ding. Process optimization of biodiesel production from waste cooking oil by esterification of free fatty acids using La3+/ZnO-TiO2 photocatalyst. Energy Conversion and Management 2021; 229, 113745.
MA Sarhan, S Shihab, BE Kashem and M Rasheed. New exact operational shifted pell matrices and their application in astrophysics. Journal of Physics: Conference Series 2021; 1879(2), 022122.
D Bouras, M Rasheed, R Barille and MN Aldaraji. Efficiency of adding DD3+(Li/Mg) composite to plants and their fibers during the process of filtering solutions of toxic organic dyes. Optical Materials 2022; 131, 112725.
M Rasheed, MN Al-Darraji, S Shihab, A Rashid and T Rashid. Solar PV modelling and parameter extraction using iterative algorithms. Journal of Physics: Conference Series 2021; 1963(1), 012059.
S Shihab, M Rasheed, O Alabdali and AA Abdulrahman. A novel predictor-corrector hally technique for determining the parameters for nonlinear solar cell equation. Journal of Physics: Conference Series 2021; 1879(2), 022120.
Y Wang, SOP Liu and Z Zhang. Preparation of biodiesel from waste cooking oil via 2-step catalyzed process. Energy Conversion and Management 2007; 48(1), 184-188.
ZT Alismaeel, AS Abbas, TM Albayati and AM Doyle. Biodiesel from batch and continuous oleic acid esterification using zeolite catalysts. Fuel 2018; 234, 170-176.
B Sajjadi, AAA Raman and H Arandiyan. A comprehensive review on properties of edible and non-edible vegetable oil-based biodiesel: Composition, specifications and prediction models. Renewable and Sustainable Energy Reviews 2016; 63, 62-92.
SE Onoji, SE Iyuke, AI Igbafe and MO Daramola. Transesterification of rubber seed oil to biodiesel over a calcined waste rubber seed shell catalyst: modeling and optimization of process variables. Energy & Fuels 2017; 31(6), 6109-6119.
HS Pali, A Sharma, N Kumar and Y Singh. Biodiesel yield and properties optimization from Kusum oil by RSM. Fuel 2021; 291, 120218.
KS Kumar, A Razak, A Yadav, PSR Rao, HS Majdi, TMY Khan, N Almakayeel and K Singh. Experimental analysis of cycle tire pyrolysis oil doped with 1-decanol + TiO2 additives in compression ignition engine using RSM optimization and machine learning approach. Case Studies in Thermal Engineering 2024; 61, 104863.
DYC Leung and Y Guo. Transesterification of neat and used frying oil: Optimization for biodiesel production. Fuel Processing Technology 2006; 87(10), 883-890.
A Monyem, JH Van Gerpen and M Canakci. The effect of timing and oxidation on emissions from biodiesel-fueled engines. Transactions of the ASAE 2001; 44(1), 35-42.
HM Mahmudul, FY Hagos, R Mamat, AA Adam, WFW Ishak and R Alenezi. Production, characterization and performance of biodiesel as an alternative fuel in diesel engines - A review. Renewable and Sustainable Energy Reviews 2017; 72, 497-509.
Y Yang, M Jiang, L Song, Y Shen, T Lei and J Cai. Systematical analysis and application of distributed activation energy model (DAEM) with Weibull distribution for pyrolysis kinetics of lignocellulosic biomass. Renewable Energy 2024; 237, 121549.
D Kumbhar, S Kumbhar, S Delekar, R Nalawade and A Nalawade. Photoelectrochemical cell performance Cu doped ZnO photoanode sensitized by xanthene dyes. Nanosystems: Physics, Chemistry, Mathematics 2019; 10(4), 466-474.
S Muthukumaran and R Gopalakrishnan. Structural, FTIR and photoluminescence studies of Cu doped ZnO nanopowders by co-precipitation method. Optical Materials 2012; 34(11), 1946-1953.
PK Labhane, VR Huse, LB Patle, AL Chaudhari and GH Sonawane. Synthesis of Cu doped ZnO nanoparticles: Crystallographic, optical, FTIR, morphological and photocatalytic study. Journal of Materials Science and Chemical Engineering 2015; 03(7), 39-51.
S Singhal, J Kaur, T Namgyal and R Sharma. Cu-doped ZnO nanoparticles: Synthesis, structural and electrical properties. Physica B: Condensed Matter 2012; 407(8), 1223-1226.
M Fu, Y Li, S wu, P Lu, J Liu and F Dong. Sol-gel preparation and enhanced photocatalytic performance of Cu-doped ZnO nanoparticles. Applied Surface Science 2011; 258(4), 1587-1591.
PC Okoye, SO Azi, TF Qahtan, TO Owolabi and TA Saleh. Synthesis, properties, and applications of doped and undoped CuO and Cu2O nanomaterials. Materials Today Chemistry 2023; 30, 101513.
M Tariq, AK Qureshi, S Karim, M Sirajuddin, N Abbas, M Imran and JH Shirazi. Synthesis, characterization and fuel parameters analysis of linseed oil biodiesel using cadmium oxide nanoparticles. Energy 2021; 222, 120014.
AM Doyle, ZT Alismaeel, TM Albayati and AS Abbas. High purity FAU-type zeolite catalysts from shale rock for biodiesel production. Fuel 2017; 199, 394-402.
SL Abram, I Tavernaro, LJ Johnston, S Zou and U Resch-Genger. Nanoscale reference and test materials for the validation of characterization methods for engineered nanomaterials - current state, limitations, and needs. Analytical and Bioanalytical Chemistry 2025; 417(12), 2405-2425.
J Hua, M Ji, P Jiao, Z Yin, Q Xia, L Jiang, J Zhang and H Pan. Heterogeneous acid catalysts for biodiesel production: Effect of physicochemical properties on their activity and reusability. Catalysts 2025; 15(4), 396.
Y Wang, X Wang and M Antonietti. Polymeric graphitic carbon nitride as a heterogeneous organocatalyst: From photochemistry to multipurpose catalysis to sustainable chemistry. Angewandte Chemie International Edition 2012; 51(1), 68-89.
YMY Al-Ani and M Ahmadlouydarab. Enhancing biodiesel production and tribocorrosion resistance with MWCNT-COOH @TiO2 nanocatalysts. Fuel 2025; 382, 133811.
T Tamoradi, AR Kiasat, H Veisi, V Nobakht and B Karmakar. RSM process optimization of biodiesel production from rapeseed oil and waste corn oil in the presence of green and novel catalyst. Scientific Reports 2022; 12(1), 19652.
MK Lam, KT Lee and AR Mohamed. Homogeneous, heterogeneous and enzymatic catalysis for transesterification of high free fatty acid oil (waste cooking oil) to biodiesel: A review. Biotechnology Advances 2010; 28(4), 500-518.
MG Jang, DK Kim, SC Park, JS Lee and SW Kim. Biodiesel production from crude canola oil by 2-step enzymatic processes. Renewable Energy 2012; 42, 99-104.
B Gurunathan and A Ravi. Process optimization and kinetics of biodiesel production from neem oil using copper doped zinc oxide heterogeneous nanocatalyst. Bioresource Technology 2015; 190; 424-428.
MA Hazrat, MG Rasul, MMK Khan, N Ashwath, AS Silitonga, IMR Fattah and TMI Mahlia. Kinetic modelling of esterification and transesterification processes for biodiesel production utilising waste-based resource. Catalysts 2022; 12(11), 1472.
MA Hazrat, MG Rasul, MMK Khan, N Ashwath, IMR Fattah, HC Ong and TMI Mahlia. Biodiesel production from transesterification of Australian Brassica napus L. oil: Optimisation and reaction kinetic model development. Environment, Development and Sustainability 2023; 25(11), 12247-12272.
MR Abukhadra and MA Sayed. K+ trapped kaolinite (Kaol/K+) as low cost and eco-friendly basic heterogeneous catalyst in the transesterification of commercial waste cooking oil into biodiesel. Energy Conversion and Management 2018; 177, 468-476.
VB Veljković, OS Stamenković, ZB Todorović, ML Lazić and DU Skala. Kinetics of sunflower oil methanolysis catalyzed by calcium oxide. Fuel 2009; 88(9), 1554-1562.
A Pugazhendhi, A Alagumalai, T Mathimani and AE Atabani. Optimization, kinetic and thermodynamic studies on sustainable biodiesel production from waste cooking oil: An Indian perspective. Fuel 2020; 273, 117725.
SG Musharraf, MA Ahmed, N Zehra, N Kabir, MI Choudhary and A Rahman. Biodiesel production from microalgal isolates of southern Pakistan and quantification of FAMEs by GC-MS/MS analysis. Chemistry Central Journal 2012; 6(1), 149.
V Mittal, KN Talapatra and UK Ghosh. A comprehensive review on biodiesel production from microalgae through nanocatalytic transesterification process: Lifecycle assessment and methodologies. International Nano Letters 2022; 12(4), 351-378.
