Arsenic Adsorption Isotherms of Sediments from Old Mining Area and Their Implications: A Case Study of the Ron Phibun Area, Thailand
DOI:
https://doi.org/10.48048/tis.2024.7604Keywords:
Arsenic adsorption, Sorption isotherms, Sediments, Old mining, Water pollution, Two-step Langmuir model, pH, IronAbstract
Although tin mining activities in the southern part of Thailand have been abandoned for more than 40 years, arsenic contamination in old tin-mining areas continues to pose a health risk. Fortunately, natural adsorption of arsenic by sediment has reduced the arsenic concentration in water to the maximum allowable level within a 10-kilometre radius of the mine sources. This article attempts to characterize the arsenic adsorption properties of sediment along a water creek which passes through the old tin-mine areas in Ron Phibun district, Nakhon Si Thammarat province, Thailand, where the contamination has been most severe. It was found that Fe tends to be associated with the adsorption capacity of arsenic in sediment. However, pH 4 and pH 7 did not associate with adsorption capacity. At pH 12, the solubility of arsenic increases, making it less likely to be adsorbed into the sediment and more likely to dissolve in water. For the adsorption isotherms of the sediment, the so-called ‘2-step Langmuir/Freundlich models’, with the advance of switching functions (Logistic or Arctan functions), were proposed. Then, based on the principle of parsimony, a stepwise model reduction approach was used to choose the optimal models. It was found that the isotherms were used successfully to describe the historical arsenic-contamination data of the past 14 years (2005 - 2019) and to predict future trends qualitatively.
HIGHLIGHTS
- Two-step Langmuir/Freundlich models with the switching functions were proposed
- The historical arsenic-contamination data of the past 14 years (2005 - 2019) was examined
- The model described the historical arsenic-contamination data as a function of pH and metal-complex formation in sediment soils successfully

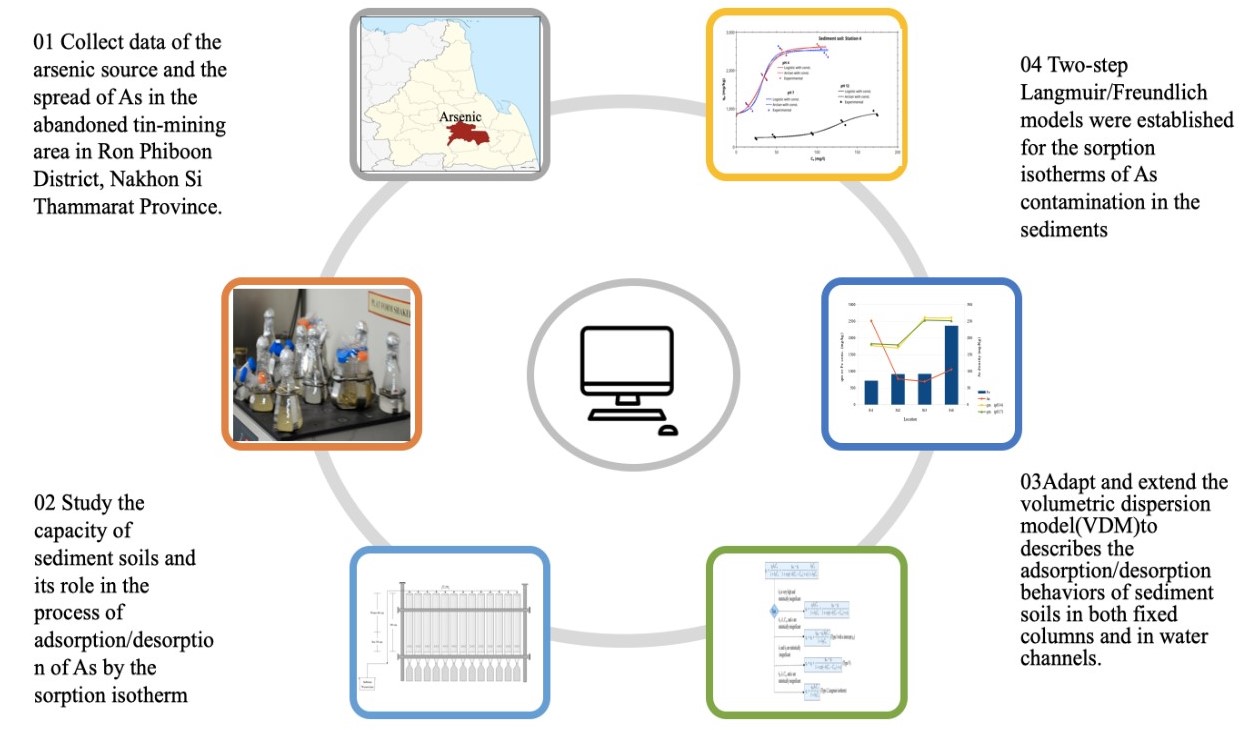

GRAPHICAL ABSTRACT
Downloads
Metrics
References
H Jones, P Visoottiviseth, MK Bux, R Födényi, N Kováts, G Borbély and Z Galbács. Case reports: Arsenic pollution in Thailand, Bangladesh, and Hungary. Rev. Environ. Contam. Toxicol. 2009; 197, 163-87.
Y Yang, X Rao, Q Fu, X Zhang, J Gao, X Wan, J Zhu, G Huang and H Hu. The inhibiting effects of organic acids on arsenic immobilization by ferrihydrite: Gallic acid as an example. Chemosphere 2022; 299, 134286.
U Siripitayakunkit, P Visudhiphan, M Pradipasen and T Vorapongsathron. Association between chronic arsenic exposure and children’s intelligence in Thailand. In: WR Chappell, CO Abernathy and RL Calderon (Eds.). Arsenic exposure and health effects III. Elsevier Science Ltd, Oxford, 1999, p. 141-9.
M Williams, F Fordyce, A Paijitprapapon and P Charoenchaisri. Arsenic contamination in surface drainage and groundwater in part of the southeast Asian tin belt, Nakhon Si Thammarat Province, southern Thailand. Environ. Geol. 1996; 27, 16-33.
TM Williams, BG Rawlins, B Smith and M Breward. In-vitro determination of arsenic bioavailability in contaminated soil and mineral beneficiation waste from Ron phibun, southern Thailand: A basis for improved human risk assessment. Environ. Geochem. Health 1998; 20, 169-77.
K Sripaoraya, W Siriwong, S Pavittranon and R Chapman. Environmental arsenic exposure and risk of diabetes type 2 in Ron Phibun subdistrict, Nakhon Si Thammarat Province, Thailand: Unmatched and matched case-control studies. Risk Manag. Healthc. Pol. 2017; 10, 41-8.
Y Cai, Y Mi, J Yu and H Zhang. Arsenic speciation and kinetic release simulation of stream sediment contaminated by gold mining. J. Soils Sediments 2016; 16, 1121-9.
SM Azam, TC Sarker and S Naz. Factors affecting the soil arsenic bioavailability, accumulation in rice and risk to human health: A review. Toxicol. Mech. Meth. 2016; 26, 565-79.
PL Smedley and DG Kinniburgh. A review of the source, behavior and distribution of arsenic in natural waters. Appl. Geochem. 2002; 17, 517-68.
X Zhang, H Fan, J Yuan, J Tian, Y Wang, C Lu, H Has and W Sun. The application and mechanism of iron sulfides in arsenic removal from water and wastewater: A critical review. J. Environ. Chem. Eng. 2022; 10, 108856.
M Liu, F Sun, Y Lv, Y Xu, M Li, Y Wang, X Yin and H Jiang. Remediation of arsenic-contaminated soil by nano-zirconia modified biochar. Environ. Sci. Pollut. Res. Int. 2021; 28, 68792-803.
A Deonarine, A Kolker, MW Doughten, JT Holland and JD Bailoo. Mobilization of arsenic from coal fly ash in the presence of dissolved organic matter. Appl. Geochem. 2021; 128, 104950.
JZ Lima, EFD Silva, C Patinha, N Durães, EM Vieira and VGS Rodrigues. Sorption of arsenic by composts and biochars derived from the organic fraction of municipal solid wastes: Kinetic, isotherm and oral bioaccessibility study. Environ. Res. 2022; 204, 111988.
MC Teixeira, AC Santos, CS Fernandes and JC Ng. Arsenic contamination assessment in Brazil - Past, present and future concerns: A historical and critical review. Sci. Total Environ. 2020; 730, 138217.
A Khan, S Khan, M Lei, M Alam, MA Khan and A Khan. Biochar characteristics, applications and importance in health risk reduction through metal immobilization. Environ. Tech. Innovat. 2020; 20, 101121.
Agency for Toxic Substances and Diseases Registry. Toxicological profile for arsenic, Available at: https://www.atsdr.cdc.gov/ toxprofiles/tp2.pdf, accessed October 2023.
Official Journal of the European Union. Council directive 98/83/EC of 3 November 1998 on the quality of water intended for human consumption. Official Journal of the European Union, Luxembourg, 1998, p. 32-54.
United States Environmental Protection Agency. 2018 Edition of the drinking water standards and health advisories tables. National Service Center for Environmental Publications, Washington DC, 2018.
J Wang, Z Li, Q Zhu, C Wang and X Tang. Review on arsenic environment behaviors in aqueous solution and soil. Chemosphere 2023; 333, 138869.
K Singh, M Agarwal and Renu. Heavy metal removal from wastewater using various adsorbents: A review. J. Water Reuse Desalination 2017; 7, 387-419.
Z Li, X Liu, W Jin, Q Hu and Y Zhao. Adsorption behavior of arsenicals on MIL-101(Fe): The role of arsenic chemical structures. J. Colloid Interface Sci. 2019; 554, 692-704.
H Chen, X Yuan, L Jiang, H Wang and G Zeng. Highly efficient As(III) removal through simultaneous oxidation and adsorption by N-CQDs modified MIL-53(Fe). Separ. Purif. Tech. 2022; 286, 120409.
X Zhao, X Yu, X Wang, S Lai, Y Sun and D Yang. Recent advances in metal-organic frameworks for the removal of heavy metal oxoanions from water. Chem. Eng. J. 2021; 407, 127221.
GA Kloster, M Valiente, NE Marcovich and MA Mosiewicki. Adsorption of arsenic onto films based on chitosan and chitosan/nano-iron oxide. Int. J. Biol. Macromol. 2020; 165, 1286-95.
LN Pincus, PV Petrović, IS Gonzalez, E Stavitski, ZS Fishman, HE Rudel, PT Anastas and JB Zimmerman. Selective adsorption of arsenic over phosphate by transition metal cross-linked chitosan. Chem. Eng. J. 2021; 412, 128582.
X Shi, C Wang, J Zhang, L Guo, J Lin, D Pan, J Zhou, J Fan, T Ding and Z Guo. Zwitterionic glycine modified Fe/Mg-layered double hydroxides for highly selective and efficient removal of oxyanions from polluted water. J. Mater. Sci. Tech. 2020; 51, 8-15.
C Yin, C Wang and Q Hu. Selective removal of As(V) from wastewater with high efficiency by glycine-modified Fe/Zn-layered double hydroxides. Adv. Compos. Hybrid Mater. 2021; 4, 360-70.
IC Yadav, NL Devi and S Singh. Reductive dissolution of iron-oxyhydroxides directs groundwater arsenic mobilization in the upstream of Ganges River basin, Nepal. J. Geochem. Explor. 2015; 148, 150-60.
C Gérente, Y Andrès, G McKay and PL Cloirec. Removal of arsenic(V) onto chitosan: From sorption mechanism explanation to dynamic water treatment process. Chem. Eng. J. 2010; 158, 593-8.
MC Amacher. Nickel, cadmium, and lead. In: DL Sparks, AL Page, PA Helmke, RH Loeppert, PN Soltanpour, MA Tabatabai, CT Johnston and ME Sumner (Eds.). Methods of soil analysis: Part 3 chemical methods. American Society of Agronomy, Wisconsin, 2018, p. 739-68.
BY Zhu and T Gu. General isotherm equation for adsorption of surfactants at solid/liquid interfaces. Part 1. Theoretical. J. Chem. Soc. Faraday Trans 1 Phys. Chem. Condens. Phases 1989; 85, 3813-7.
S Kundu, SS Kavalakatt, A Pal, SK Ghosh, M Mandal and T Pal. Removal of arsenic using hardened paste of Portland cement: Batch adsorption and column study. Water Res. 2004; 38, 3780-90.
JG Catalano, Y Luo and B Otemuyiwa. Effect of aqueous Fe (II) on arsenate sorption on goethite and hematite. Environ. Sci. Tech. 2011; 45, 8826-33.
S Dixit and JG Hering. Comparison of arsenic(V) and arsenic(III) sorption onto iron oxide minerals: Implications for arsenic mobility. Environ. Sci. Tech. 2003; 37, 4182-9.
C Tokoro, Y Yatsugi, H Koga and S Owada. Sorption mechanisms of arsenate during coprecipitation with ferrihydrite in aqueous solution. Environ. Sci. Tech. 2010; 44, 638-43.
C Siripatana, H Thongpan and A Promraksa. A generalized volumetric dispersion model for a class of two-phase separation/reaction: Finite difference solutions. J. Phys. Conf. Ser. 2017; 820, 12015.
PR Hesse. A textbook of soil chemical analysis. John Murray, London, 1971.
SK Maji, A Pal, T Pal and A Adak. Adsorption thermodynamics of arsenic on laterite soil. J. Surf. Sci. Tech. 2007; 22, 161-76.
DL Johnson and MEQ Pilson. Spectrophotometric determination of arsenite, arsenate, and phosphate in natural waters. Anal. Chim. Acta 1972; 58, 289-99.
KSW Sing, DH Everett, RAW Haul, L Moscou, RA Pierotti, J Rouquerol and T Siemieniewska. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (recommendations 1984). Pure Appl. Chem. 1985; 57, 603-19.
M Mourabet, HE Boujaady, AE Rhilassi, H Ramdane, M Bennani-Ziatni, RE Hamri and A Taitai. Defluoridation of water using Brushite: Equilibrium, kinetic and thermodynamic studies. Desalination 2011; 278, 1-9.
K Iamsaard, CH Weng, LT Yen, JH Tzeng, C Poonpakdee and YT Lin. Adsorption of metal on pineapple leaf biochar: Key affecting factors, mechanism identification, and regeneration evaluation. Bioresource Tech. 2022; 344, 126131.
S Rahdar, M Taghavi, R Khaksefidi and S Ahmadi. Adsorption of arsenic (V) from aqueous solution using modified saxaul ash: Isotherm and thermodynamic study. Appl. Water Sci. 2019; 9, 87.
SA Chaudhry, Z Zaidi and SI Siddiqui. Isotherm, kinetic and thermodynamics of arsenic adsorption onto Iron-Zirconium Binary Oxide-Coated Sand (IZBOCS): Modelling and process optimization. J. Mol. Liq. 2017; 229, 230-40.
D Kucharavy and RD Guio. Application of S-shaped curves. Procedia Eng. 2011; 9, 559-72.
A Tsoularis and J Wallace. Analysis of logistic growth models. Math. Biosci. 2002; 179, 21-55.
CB Tabelin, RD Corpuz, T Igarashi, M Villacorte-Tabelin, RD Alorro, K Yoo, S Raval, M Ito and N Hiroyoshi. Acid mine drainage formation and arsenic mobility under strongly acidic conditions: Importance of soluble phases, iron oxyhydroxides/oxides and nature of oxidation layer on pyrite. J. Hazard. Mater. 2020; 399, 122844.
S Park, SH Kim, H Chung, J An and K Nam. Effect of organic substrate and Fe oxides transformation on the mobility of arsenic by biotic reductive dissolution under repetitive redox conditions. Chemosphere 2022; 305, 135431.
ZH Khan, M Gao, W Qiu, M Qaswar, MS Islam and Z Song. The sorbed mechanisms of engineering magnetic biochar composites on arsenic in aqueous solution. Environ. Sci. Pollut. Res. Int. 2020; 27, 41361-71.
World Health Organization. Guidelines for drinking-water quality, Available at: https://www.who.int/publications/i/item/9789241549950, accessed October 2023.
Z Ha, M Ma, X Tan, Y Lan, Y Lin, TC Zhang and D Du. Remediation of arsenic contaminated water and soil using mechanically (ball milling) activated and pyrite-amended electrolytic manganese slag. Environ. Res. 2023; 234, 116607.
