Study on the Reaction Parameters on Transesterification of Rubber Seed Oil Using MgO/zeolite-A Catalyst
DOI:
https://doi.org/10.48048/tis.2023.6480Keywords:
Zeolite-A, MgO/zeolite-A, Catalyst, Transesterification, Rubber seed oilAbstract
In this research, transesterification of rubber seed oil (RSO) with methanol in the presence of MgO/zeolite-A composites with different MgO loads as catalysts was investigated. In addition, the effect of different reaction parameters including oil to methanol ratio, the amount of catalyst, and transesterification time were also investigated. Zeolite-A was prepared from rice husk silica (RHS) and food-grade aluminum foil and confirmed using XRD and SEM/EDS techniques. The MgO/zeolite-A composites with different MgO loads were prepared by impregnating the zeolite with Mg (NO3)2 solution of different concentrations. The composites were then characterized using XRF, XRD, and SEM, and finally applied as a catalyst in transesterification of RSO at varied experimental conditions. The XRF results indicated that the zeolite has been successfully impregnated, and the content of MgO varied depending on the concentration of magnesium nitrate solution used for impregnation process. Zeolite-A and also MgO/zeolite-A composites were confirmed by XRD investigations, supported by SEM analysis with indicated the shape of cubic particle, a characteristic feature of zeolite-A, and rod like structure which is most likely the MgO particle. The results of transesterification experiments revealed the appreciable activities of the composites and the effect of reaction parameters on the conversion of the RSO, with the highest conversion of 89 % achieved using 12.5 % catalyst relative to the mass of RSO, with MgO 4.43 %/zeolite-A catalyst, oil to methanol ratio of 1:10, and a transesterification time of 6.0 h. Analysis of the transesterification products using GC-MS confirmed that fatty acids composing the RSO were converted into corresponding methyl esters.
HIGHLIGHTS
- Zeolite A was prepared from rice husk silica and food grade aluminum foil
- MgO/Zeolite A composites with different MgO load were prepared using impregnation method
- MgO/Zeolite A composites were used as catalyst for transesterification of rubber seed oil

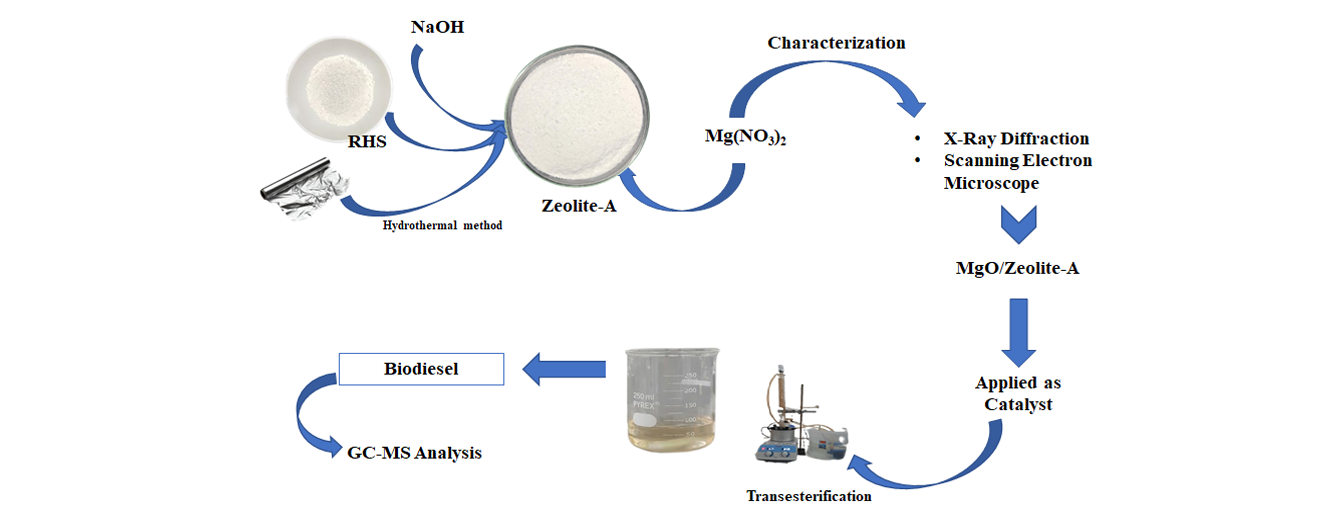

GRAPHICAL ABSTRACT
Downloads
Metrics
References
MF Elkady, A Zaatout and O Balbaa. Production of biodiesel from waste vegetable oil via KM micromixer. J. Chem. 2015; 2015, 630168.
S Karnasuta, V Punsuvon and R Nokkaew. Biodiesel production from waste coconut oil in coconut milk manufacturing. Walailak J. Sci. Tech. 2013; 12, 291-8.
KD Pandiangan, W Simanjuntak, R Supriyanto, I Ilim, P Prasetyo and S Hadi. Production of magnesium oxides from raw salt solution using electrochemical precipitation method as a heterogeneous catalyst for transesterification of coconut oil. Rev. Chim. 1949; 71. 148-58.
W Trakarnpruk. Biodiesel production from palm fatty acids distillate using tungstophosphoric acid-and cs-salt immobilized-silica. Walailak J. Sci. Tech. 2012, 9, 37-47.
M Minaria and R Mohadi. Preparation and characterization of calcium oxide from crab shells (Portunus pelagicus) and its application in biodiesel synthesis of waste cooking oil, palm and coconut oil. Sci. Technol. Indones. 2016; 1, 1-7.
W Xie, X Huang and H Li. Soybean oil methyl esters preparation using NaX zeolites loaded with KOH as a heterogeneous catalyst. Bioresour. Technol. 2007; 98, 936-9.
IB Banković-Ilić, OS Stamenković and VB Veljković. Biodiesel production from non-edible plant oils. Renew. Sust. Energ. Rev. 2012; 16, 3621-47.
K Tahvildari, YN Anaraki, R Fazaeli, S Mirpanji and E Delrish. The study of CaO and MgO heterogenic nano-catalyst coupling on transesterification reaction efficacy in the production of biodiesel from recycled cooking oil. J. Environ. Health Sci. Eng. 2015; 13, 73.
MJC Rezende et al. Biodiesel: An overview II. J. Braz. Chem. Soc. 2021; 32, 1301-44.
S Manadee, O Sophiphun, N Osakoo, N Supamathanon. Identification of potassium phase in catalysts supported on zeolite NaX and performance in transesterification of Jatropha seed oil. Fuel Process. Technol. 2017; 156, 62-7.
KD Pandiangan, N Jamarun, S Arief, W Simanjuntak and M Rilyanti. The effect of calcination temperatures on the activity of CaO and CaO/SiO2 heterogeneous catalyst for transesterification of rubber seed oil in the presence of coconut oil as a co-reactant. Orient. J. Chem. 2016; 32, 3021-6.
J Ahmad, S Yusup, A Bokhari and RNM Kamil. Study of fuel properties of rubber seed oil-based biodiesel. Energy Convers. Manag. 2014; 78, 266-75.
M Morshed, K Ferdous, MR Khan, MSI Mazumder, MA Islam and MT Uddin. Rubber seed oil as a potential source for biodiesel production in Bangladesh. Fuel Oct. 2011; 90, 2981-6.
AI Aigbodion and CKS Pillai. Preparation, analysis and applications of rubber seed oil and its derivatives in surface coatings. Prog. Org. Coat. 2000; 38, 187-92.
NF Sulaiman, AR Yacob and SL Lee. Transesterification reaction from rice bran oil to biodiesel over heterogeneous base calcium oxide nanoparticles catalyst. Sci. Technol. Indones. 2020; 5, 62.
KD Pandiangan, W Simanjuntak, DI Alista and I Ilim. The effect of nio loads on catalytic activity of NiO/ZSM-5 for transesterification of rubber seed oil. Rasayan J. Chem. 2021; 14, 2379-85.
D Singh, R Bhoi, A Ganesh and S Mahajani. Synthesis of biodiesel from vegetable oil using supported metal oxide catalysts. Energ. Fuels 2014; 28, 2743-53.
M Mohadesi, Z Hojabri and G Moradi. Biodiesel production using alkali earth metal oxides catalysts synthesized by sol-gel method. Biofuel Res. J. 2014; 1, 30-3.
IY Dharmegowda, LM Muniyappa, P Siddalingaiah, AB Suresh, MPG Chandrashekarappa and C Prakash. MgO nano-catalyzed biodiesel production from waste coconut oil and fish oil using response surface methodology and grasshopper optimization. Sustainability 2022; 14, 11132.
A Velmurugan and AR Warrier. Production of biodiesel from waste cooking oil using mesoporous MgO-SnO2 nanocomposite. J. Eng. Appl. Sci. 2022; 69, 92.
H Mazaheri, HC Ong, HH Masjuki, Z Amini, MD Harrison, CT Wang, F Kusumo and A Alwi. Rice bran oil-based biodiesel production using calcium oxide catalyst derived from Chicoreus brunneus shell. Energy 2018; 144, 10-9.
LRVD Conceição, CEFD Costa, GNDR Filho, ER Pereira-Filhob and JR Zamian. Ethanolysis optimisation of jupati (Raphia taedigera Mart.) oil to biodiesel using response surface methodology. J. Braz. Chem. Soc. 2015; 26, 1321-30.
BA Abdulkadir, A Ramli, JW Lim and Y Uemura. Effect of MgO loading on the production of biodiesel from jatropha oil in the presence of MgO/MCM-22 catalyst. J. Jpn. Inst. Energ. 2018; 97, 191-9.
KD Pandiangan, W Simanjuntak, S Hadi, I Ilim and H Amrulloh. Physical characteristics and utilization of ZSM-5 prepared from rice husk silica and aluminum hydroxide as catalyst for transesterification of Ricinus communis oil. Mater. Res. Express. 2021; 8, 1-12.
W Simanjuntak, KD Pandiangan, Z Sembiring, A Simanjuntak and S Hadi. The effect of crystallization time on structure, microstructure, and catalytic activity of zeolite-A synthesized from rice husk silica and food-grade aluminum foil. Biomass Bioenerg. 2021; 148, 106050.
KM Saoud, R Al-Soubaih, KM Saoud, S Saeed, RM Al-Soubaihi and MF Bertino. Microwave assisted preparation of magnesium hydroxide nano-sheets. Am. J. Nanomater. 2014; 2, 21-5.
T Rahimi, D Kahrizi, M Feyzi, HR Ahmadvandi and M Mostafaei. Catalytic performance of MgO /Fe2O3-SiO2 core-shell magnetic nano catalyst for biodiesel production of Camelina sativa seed oil: Optimization by RSM-CCD method. Ind. Crops. Prod. 2021; 159, 113065.
S Qu, C Chen, M Guo, J Lu, W Yi, J Ding and Z Miao. Synthesis of MgO/ZSM-5 catalyst and optimization of process parameters for clean production of biodiesel from Spirulina platensis. J. Clean Prod. 2020; 276, 123382.
J Gimbun, S Ali, C Charan, SC Kanwal, LA Shah, N Hidayah, M Ghazali, CK Cheng and S Nurdin. Biodiesel production from rubber seed oil using a limestone based catalyst. Adv. Mater. Sci. 2012; 02, 138-41.
SE Onoji, SE Iyuke, and AI Igbafe. Hevea brasiliensis (rubber seed) oil: Extraction, characterization, and kinetics of thermo-oxidative degradation using classical chemical methods. Energ. Fuels 2016; 30, 10555-67.
M Mohd Zamberi, N Faizah Haminudin, FN Ani, MFM Said, H Bakri and FS Anuar. Conversion of crude hevea brasiliensis oil to biodiesel utilizing Perna viridis waste shells as solid catalysts. Adv. Eng. Res. 2021; 207, 1-7.
KD Pandiangan, W Simanjuntak, M Rilyanti, N Jamarun and S Arief. Influence of kinetic variables on rubber seed oil transesterification using bifunctional catalyst CaO-MgO/SiO2. Orient. J. Chem. 2017; 33, 2891-8.
