Selective Separation of Tocol Homologues by Liquid-Liquid Extraction Using Choline-Based Deep Eutectic Solvents
DOI:
https://doi.org/10.48048/tis.2023.6432Keywords:
Choline chloride, Deep eutectic solvent, Distribution coefficient, Oil palm tocol, Selective separationAbstract
In this paper we examined the potential of choline-based deep eutectic solvents (DESs) for selective extraction of tocol homologues from crude palm oil (CPO) through liquid-liquid extraction (LLE). Distribution of tocol homologues (α-tocopherol, α-, β, γ-, and δ-tocotrienol) presence in CPO when subjected to DES-assisted LLE has not been fully understood in the past. The effect of increasing the amount of DES on the distribution and selectivity of were investigated. It was found that tocol homologues were distributed in the order of their hydrophilic power, with tocols of higher polarity distributed more into the stripping phase compared to the less polar tocols. Distribution coefficients for α-tocopherol, α-, β, γ-, and δ-tocotrienol were 7.8, 13.1, 19.8, 22.1 and 29.6, respectively, when equal weight of CPO and choline chloride-malonic acid eutectic mixture (DES1) were used. The distribution of each tocol homologues also increased with increasing DES1, due to the increase in polarity of the stripping phase that attracted more tocols. Selectivity of δ-tocotrienol, which is the most polar tocol, was always higher than other homologues (α-tocopherol: 3.81, α-tocotrienol: 2.22, β-tocotrienol: 1.50, γ-tocotrienol: 1.34). Role of hydrophilic power of the tocols using selected DESs to selectively separate tocol homologues established in this paper has a potential for palm oil industry as tocotrienols are better antioxidants, thus more favorable, than α-tocopherol.
HIGHLIGHTS
- Tocopherols and tocotrienols in palm oil products are usually extracted for nutritional capsules and dietary products formulations using high-end techniques which are costly. Liquid-liquid extraction is a cheap technique which can be carried out at ambient conditions but with low selectivity
- A series of choline-based eutectic solvents, a new generation of green chemicals, were formulated for targeted separation of, specifically five tocol homologues present in crude palm oil; α-tocopherol, α-, β-, γ-, and δ-tocotrienol
- Unique combination of the eutectic solvents and liquid-liquid extraction resulted in selective separation of tocol homologues depending on the polarity of the tocols. Tocotrienols, having higher polarity and better antioxidative power than tocopherols, can be selectively extracted with the right deep eutectic solvents made from choline chloride, malonic acid, and citric acid

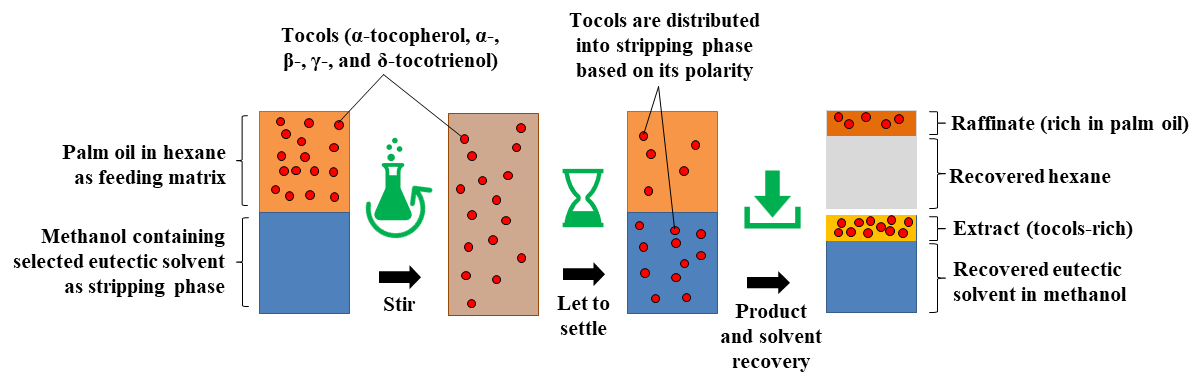

GRAPHICAL ABSTRACT
Downloads
Metrics
References
KS Chandan, K Savita and R Sashwati. Tocotrienols in health and disease: the other half of the natural Vitamin E family. Mol. Aspect. Med. 2007; 28, 692-728.
MH Ng, YM Choo, AN Ma, CH Chuah and MA Hashim. Separation of Vitamin E (tocopherol, tocotrienol, and tocomonoenol) in palm oil. Lipids 2004; 39, 1031-5.
CM Seppanen, Q Song and A Saari Csallany. The antioxidant functions of tocopherol and tocotrienol homologues in oils, fats, and food systems. J. Am. Oil Chem. Soc. 2010; 87, 469-81.
PT Gee. Unleashing the untold and misunderstood observations on Vitamin E. Gene. Nutr. 2011; 6, 5-16.
B Tang, H Zhang and KH Row. Application of deep eutectic solvents in the extraction and separation of target compounds from various samples. J. Separ. Sci. 2015; 38, 1053-64.
MH Habibollahi, K Karimyan, H Arfaeinia, N Mirzaei, Y Safari, R Akramipour, H Sharafi and N Fattahi. Extraction and determination of heavy metals in soil and vegetables irrigated with treated municipal wastewater using new mode of dispersive liquid-liquid microextraction based on the solidified deep eutectic solvent followed by GFAAS. J. Sci. Food Agr. 2019; 99, 656-65.
Y Wan, M Wang, K Zhang, Q Fu, L Wang, M Gao, Z Xia and D Gao. Extraction and determination of bioactive flavonoids from Abelmoschus manihot (Linn.) medicus flowers using deep eutectic solvents coupled with high-performance liquid chromatography. J. Separ. Sci. 2019; 42, 2044-52.
MH Ng and AH Numan. Investigation on the use of deep eutectic solvent with microwave assistance for the extraction of ferulic acid from palm pressed fibre. Curr. Res. Green Sustain. Chem. 2021; 4, 100155.
F Pena-Pereira and J Namiesnik. Ionic liquids and deep eutectic mixtures: sustainable solvents for extraction processes, ChemSusChem 2014; 7, 1784-800.
NV Plechkova and KR Seddon. Ionic liquids: “Designer” solvents for green chemistry. Methods and Reagents for Green Chemistry: An Introduction. John Wiley & Sons, New Jersey, 2007.
C Florindo, FS Oliveira, LPN Rebelo, AM Fernandes and IM Marrucho. Insights into the synthesis and properties of deep eutectic solvents based on cholinium chloride and carboxylic acids. ACS Sustain. Chem. Eng. 2014; 2, 2416-25.
EFSA Panel on Additives and Products or Substances used in Animal Feed. Scientific opinion on safety and efficacy of choline chloride as a feed additive for all animal species. EFSA J. 2011; 9, 2353.
Y Dai, JV Spronsen, GJ Witkamp, R Verpoorte and YH Choi. Ionic liquids and deep eutectic solvents in natural products research: mixtures of solids as extraction solvents. J. Nat. Prod. 2013; 76, 2162-73.
AP Abbott, D Boothby, G Capper, DL Davies and RK Rasheed. Deep eutectic solvents formed between choline chloride and carboxylic acids: versatile alternatives to ionic liquids. J. Am. Chem. Soc. 2004; 126, 9142-7.
Q Yang, H Xing, Y Cao, B Su, Y Yang and Q Ren. Selective separation of tocopherol homologues by liquid−liquid extraction using ionic liquids. Ind. Eng. Chem. Res. 2009; 48, 6417-22.
B Mohammadi, H Shekaari and MT Zafarani-Moattar. Selective separation of α-tocopherol using eco-friendly choline chloride - based deep eutectic solvents (DESs) via liquid-liquid extraction. Colloid. Surface. Physicochem. Eng. Aspect. 2021; 617, 126317.
AH Nu’man, MH Ng, YM Choo, MA Hashim and NS Jayakumar. Performance of choline-based deep eutectic solvents in the extraction of tocols from crude palm oil. J. Am. Oil Chem. Soc. 2015; 92, 1709-16.
M Matsumoto, Y Inomoto and K Kondo. Selective separation of aromatic hydrocarbons through supported liquid membranes based on ionic liquids. J. Membr. Sci. 2005; 246, 77-81.
OS Hammond, DT Bowron and KJ Edler. The effect of water upon deep eutectic solvent nanostructure: An unusual transition from ionic mixture to aqueous solution. Angew. Chem. 2017; 56, 9782-5.
AMD Castro, D Prasavath, JV Bevilaqua, CA Portugal, LA Neves and JG Crespo. Role of water on deep eutectic solvents (DES) properties and gas transport performance in biocatalytic supported DES membranes. Separ. Purif. Tech. 2021; 255, 117763.
M Hayyan, T Aissaoui, MA Hashim, MA AlSaadi and A Hayyan. Triethylene glycol based deep eutectic solvents and their physical properties. J. Taiwan Inst. Chem. Eng. 2015; 50, 24-30.
N Delgado-Mellado, M Larriba, P Navarro, V Rigual, M Ayuso, J García and F Rodríguez. Thermal stability of choline chloride deep eutectic solvents by TGA/FTIR-ATR analysis. J. Mol. Liq. 2018; 260, 37-43.
Y Hou, X Li, S Ren and W Wu. Separation of toluene from toluene/alkane mixtures with phosphonium salt based deep eutectic solvents. Fuel Process. Tech. 2015; 135, 99-104
PC Sadek. The HPLC solvent guide. Wiley, Michigan, 2002.
K Ramluckan, KG Moodley and F Bux. An evaluation of the efficacy of using selected solvents for the extraction of lipids from algal biomass by the soxhlet extraction method. Fuel 2014; 116, 103-8.
MA Malik, MA Hashim and F Nabi. Ionic liquids in supported liquid membrane technology. Chem. Eng. J. 2011; 171, 242-54.
S Nosrati, NS Jayakumar and MA Hashim. Performance evaluation of supported ionic liquid membrane for removal of phenol. J. Hazard. Mater. 2011; 192, 1283-90.
X Ni, H Xing, Q Yang, J Wang, B Su, Z Bao, Y Yang and Q Ren. Selective liquid-liquid extraction of natural phenolic compounds using amino acid ionic liquids: a case of α-tocopherol and methyl linoleate separation. Ind. Eng. Chem. Res. 2012; 51, 6480-8.
JS Amaral, S Casal, MR Alves, RM Seabra and BPP Oliveira. Tocopherol and tocotrienol content of hazelnut cultivars grown in Portugal. J. Agr. Food Chem. 2006; 54, 1329-36.
H Schwartz, V Ollilainen, V Piironen and AM Lampi. Tocopherol, tocotrienol and plant sterol contents of vegetable oils and industrial fats. J. Food Compos. Anal. 2008; 21, 152-61.
