Bacteria Cellulose and Resin Stabilization in Densified Veneer
DOI:
https://doi.org/10.48048/tis.2023.6400Keywords:
Wood, Natural fibers, Delignification, Hydrogen bonds, Tensile strengthAbstract
Cellulose produced by fermentation of acetic acid bacteria has high tensile strength. Meanwhile, cellulose derived from wood, which is abundant in nature, has a limit in strength. In this work, delignified wood veneer was immersed in Acetobacter xylinum culture medium to self-assemble bacterial cellulose into wood pores. Then the process was continued with a heating press. It makes the material denser and causes hydrogen bonds to form between the cellulose fibers. This study observed the densified hybrid veneer for the period of bacterial fermentation and impregnation of resin stabilization in tensile strength and dynamic mechanical analysis (DMA). The densified hybrid veneer of bacterial cellulose with resin impregnation had the maximum tensile strength after 7 days of fermentation. The DMA test showed that a densified hybrid veneer of bacterial cellulose stabilized with resin has a good ability to store cyclic energy and a damping factor that increases with temperature.
HIGHLIGHTS
- A heating press compacted densified wood veneer with bacterial cellulose (BC), forming in hybrid veneers
- Hybrid veneer improves the mechanical strength
- Densified veneer-BC-stabilized by fermentation for 7 days had the maximum tensile strength
- The densified veneer that is reinforced with BC and stabilized with resin has a good ability to store cyclic energy

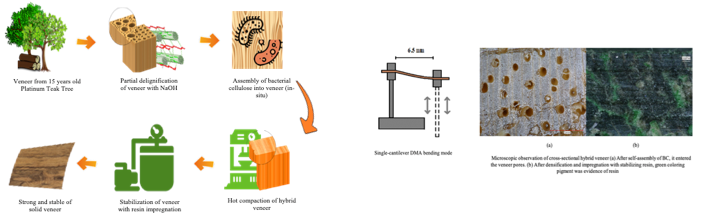

GRAPHICAL ABSTRACT
Downloads
Metrics
References
D Klemm, B Heublein, H Fink and A Bohn. Cellulose: Fascinating biopolymer and sustainable raw material. Angew. Chem. Int. Ed. 2005; 44, 3358-93.
M Poletto, KL Ornaghi Júnior and AJ Zattera. Native cellulose: Structure, characterization and thermal properties. Materials 2014; 7, 6105-19.
J Shi, J Peng, Q Huang, L Cai and SQ Shi. Fabrication of densified wood via synergy of chemical pretreatment, hot-pressing and post mechanical fixation. J. Wood Sci. 2020; 66, 5.
J Song, C Chen, S Zhu, M Zhu, J Dai, U Ray, Y Li, Y Kuang, Y Li, N Quispe, Y Yao, A Gong, UH Leiste, HA Bruck, JY Zhu, A Vellore, H Li, ML Minus, Z Jia, A Martini, T Li and L Hu. Processing bulk natural wood into a high-performance structural material. Nature 2018; 554, 224-8.
X Han, Y Ye, F Lam, J Pu and F Jiang. Hydrogen-bonding-induced assembly of aligned cellulose nanofibers into ultrastrong and tough bulk materials. J. Mater. Chem. A 2019; 7, 27023-31.
EA Salca, P Bekhta and Y Seblii. The effect of veneer densification temperature and wood species on the plywood properties made from alternate layers of densified and non-densified veneers. Forests 2020; 11, 700.
K Qiu and A Netravali. In situ produced bacterial cellulose nanofiber-based hybrids for nanocomposites. Fibers 2017; 5, 11-3.
H Abral, A Hartono, F Hafizulhaq, D Handayani, E Sugiarti and O Pradipta. Characterization of PVA/cassava starch biocomposites fabricated with and without sonication using bacterial cellulose fiber loadings. Carbohydr. Polymer. 2019; 206, 593-601.
MA Naeem, Q Siddiqui, M Mushtaq, A Farooq, Z Pang and Q Wei. Insitu self-assembly of bacterial cellulose on banana fibers extracted from peels. J. Nat. Fibers 2019; 17, 1317-28.
A Nugroho, I Hidayat, AZ Syahrial and S Sufiandi. The effect of bacterial cellulose on the thermo hydro-mechanical treatment of wood veneer. Key Eng. Mater. 2021; 880, 109-15.
A Nugroho, Triastuti, S Sufiandi and AZ Syahrial. Wood veneer reinforced with bacterial cellulose: Tensile strength and dynamic mechanical analysis. Int. J. Adv. Sci. Eng. Inform. Tech. 2022; 12, 327-33.
M Bao, X Huang, M Jiang, W Yu and Y Yu. Effect of thermo-hydro-mechanical densification on microstructure and properties of poplar wood (Populus tomentosa). J. Wood Sci. 2017; 63, 591-605.
M Báder and R Németh. Spring-back of wood after longitudinal compression. IOP Conf. Ser. Earth Environ. Sci. 2020; 505, 012018.
WD Ellis. Wood-polymer composites: Review of processes and properties. Mol. Cryst. Liq. Cryst. 2000; 353, 75-84.
A Nugroho, Triastuti, S Sufiandi and AZ Syahrial. Energy absorption of densified veneer-aramid hybrid composites subjected to ballistic impact. Heliyon 2022; 8, e10271.
M Jawaid and HPSA Khalil. Effect of layering pattern on the dynamic mechanical properties and thermal degradation of oil palm-jute fibers reinforced epoxy hybrid composite. BioResources 2011; 6, 2309-22.
S Wang, F Jiang, X Xu, Y Kuang, K Fu, E Hitz and L Hu. Super-strong, super-stiff macrofibers with aligned, long bacterial cellulose nanofibers. Adv. Mater. 2017; 29, 1702498.
ASTM Internationa. Standard test method for tensile properties of polymer matrix composite materials. ASTM Internationa, Pennsylvania, 2010, p. 99-109.
M Noureddine. Study of composite-based natural fibers and renewable polymers, using bacteria to ameliorate the fiber/matrix interface. J. Compos. Mater. 2019; 53, 455-61.
E Meng, CL Chen, CC Liu, SJ Chang, JH Cherng, HH Wang and ST Wu. Bioapplications of bacterial cellulose polymers conjugated with resveratrol for epithelial defect regeneration. Polymers 2019; 11, 1048.
M Wu, W Chen, J Hu, D Tian, F Shen, Y Zeng, G Yang, Y Zhang and S Deng. Valorizing kitchen waste through bacterial cellulose production towards a more sustainable biorefinery. Sci. Total Environ. 2019; 695, 133898.
D Zhao, Y Deng, D Han, L Tan, Y Ding, Z Zhou, H Xu and Y Guo. Exploring structural variations of hydrogen-bonding patterns in cellulose during mechanical pulp refining of tobacco stems. Carbohydr. Polymer. 2019; 204, 247-54.
MI Shams, H Yano and K Endou. Compressive deformation of wood impregnated with low molecular weight phenol formaldehyde (PF) resin I: Effects of pressing pressure and pressure holding. J. Wood Sci. 2004; 50, 337-42.
AFS Costa, FCG Almeida, GM Vinhas and LA Sarubbo. Production of bacterial cellulose by Gluconacetobacter hansenii using corn steep liquor as nutrient sources. Front. Microbiol. 2017; 8, 2027.
M Nagamadhu, SV Kumar, SR Kumar, R Suraj and GCM Kumar. Dynamic mechanical analysis and thermal stability of neem wood veneer plastic composites. Mater. Today Proceed. 2019; 24, 2265-73.
