Analysis of FTIR Spectra, Flavonoid Content and Anti-Tyrosinase Activity of Extracts and Lotion from Garcinia schomburgkiana by Multivariate Method
DOI:
https://doi.org/10.48048/tis.2022.5780Keywords:
Total flavonoid content, Anti-tyrosinase activity, Extract, Lotion, FTIR, PCA, PLS-SEM, Garcinia schomburgkianaAbstract
In this study, fourier transform infrared (FTIR) study, total flavonoid content and anti-tyrosinase activity of leaf, seed and flesh extracts of Garcinia schomburgkiana and lotion formulation from the extracts were carried out. Additionally, a relationship among FTIR spectra, total flavonoid content and anti-tyrosinase activity was analysed by partial least squares structural equation modelling (PLS-SEM) and principal component analysis (PCA) analysis. The result indicated that the highest total flavonoid content was found in leaf ethanol extract (214.00 ± 7.32 mg rutin equivalent per mg extract). For lotion samples, lotion containing leaf ethanol extract revealed the strongest level of total flavonoid content (5.51 ± 0.04 mg rutin equivalent per mL lotion). Moreover, anti-tyrosinase activity was observed in lotion containing the extracts (1/EC50 ranged from 0.0063 to 7.2334) higher than that of aqueous, ethanol and propanediol extracts (1/EC50 ranged from 0.0099 to 0.5319). The FTIR result confirmed the presence of various function groups in different parts of G. schomburgkiana and lotion samples, which involved the structure of flavonoids namely O-H stretch, C=O bending vibrations, unsaturation bonds, phenol or tertiary alcohol (O-H bend), C-O-H deformation and C-O stretching vibrations of aromatic ethers. The PLS-SEM analysis indicated a moderate positive relationship between the total flavonoid content and FTIR data, significantly (β = 0.502, t = 2.239, p-value < 0.05). The FTIR and subsequent PCA analysis could differentiate of aqueous, ethanol and propanediol extracts and lotion samples.
HIGHLIGHTS
- FTIR data positively correlated with total flavonoid content
- Extract and lotion samples revealed total flavonoid content and anti-tyrosinase activity
- The PLS-SEM analysis showed significantly positive relationship between the total flavonoid content and FTIR data
- FTIR and subsequent PCA analysis differentiated extracts and lotions

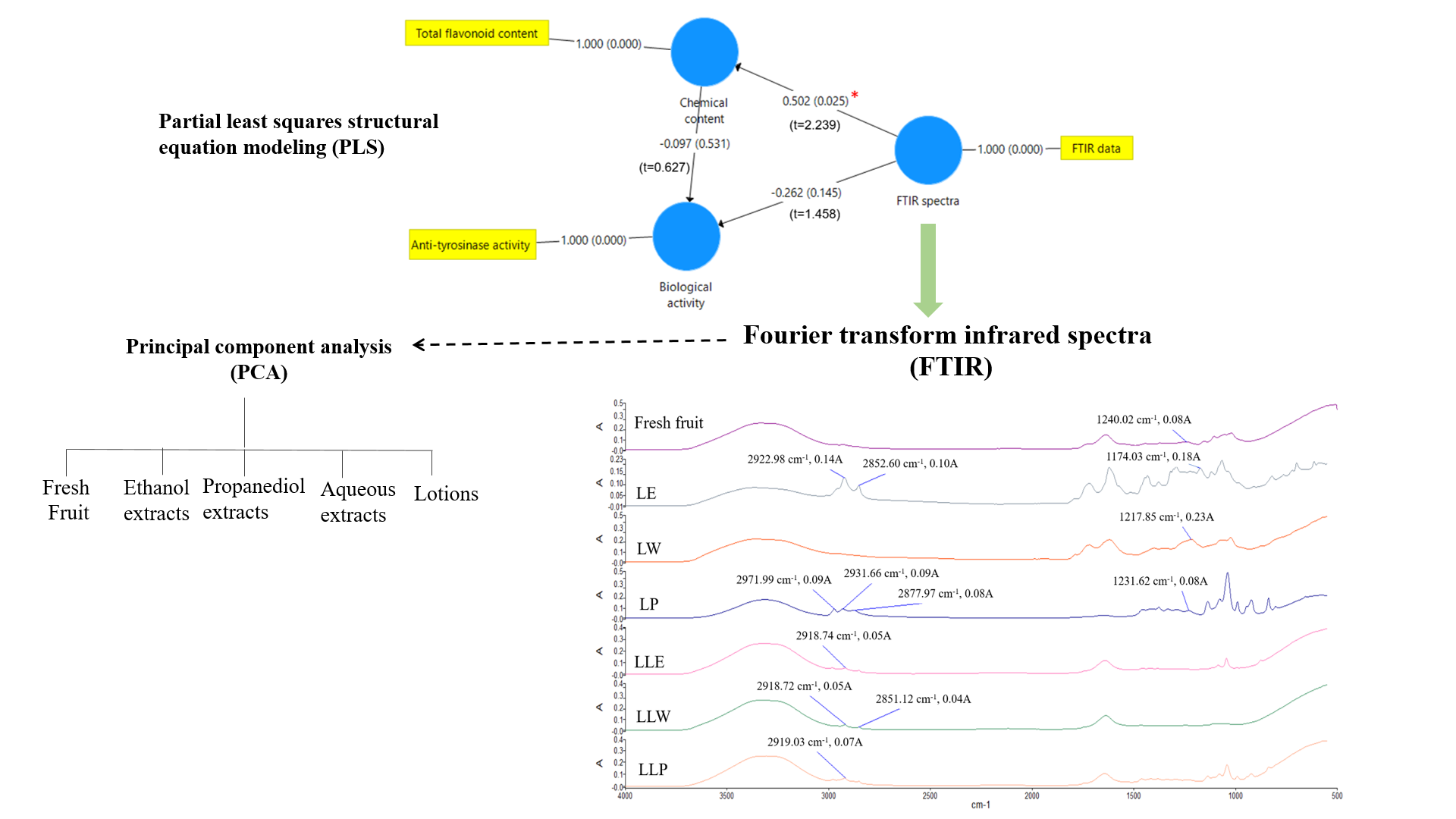

GRAPHICAL ABSTRACT
Downloads
Metrics
References
TK Lim. Garcinia schomburgkiana. In: Edible medicinal and non-medicinal plants. Springer, Dordrecht, Netherlands, 2012, p. 123-4.
S Thummajitsakul, B Boonburapong and K Silprasit. Antioxidant and antidiabetic effects of Garcinia schomburgkiana extracts and fermented juices. Pertanika J. Trop. Agric. Sci. 2019; 42, 45-60.
I Meechai, W Phopong, W Chunglok and P Meepowpan. Anti-radical activities of xanthones and flavonoids from Garcinia schomburgkiana. Int. J. Pharm. Pharm. Sci. 2016; 8, 235-8.
I Meechai, W Phupong, W Chunglok and P Meepowpan. Dihydroosajaxanthone: A new natural xanthone from the branches of Garcinia Schomburgkian a Pierre. Iran. J. Pharm. Res. 2018; 17, 1347-52.
S Thummajitsakul, S Samaikam, S Tacha and K Silprasit. Study on FTIR spectroscopy, total phenolic content, antioxidant activity and anti-amylase activity of extracts and different tea forms of Garcinia schomburgkiana leaves. Lebensm. Wiss. Technol. 2020; 134, 110005.
PG Kareru, JM Keriko, GM Kenji, GT Thiong'o, AN Gachanja and HN Mukiira. Antimicrobial activities of skincare preparations from plant extracts. Afr. J. Tradit. Complement. Altern. Med. 2010; 7, 214-8.
B Arifin, R Nasution, N Desrianti, M Marianne and H Helwati. Antimicrobial activity of hand lotion of flower Mimusops elengi. Open Access Maced. J. Med. Sci. 2019; 7, 3748-56.
W Pothitirat, J Pluemlamai, S Satniyom, W Leelamanitaya and W Gritsanapan. Development of whitening skin lotion from selected medicinal plants and its antityrosinase activity. Planta Med. 2010; 76, P174.
P Joshi, S Joshi, U Rajani, RB Semwal and DK Semwal. Formulation and evaluation of polyherbal cream and lotion for the treatment of psoriasis-induced secondary infections. Curr. Clin. Pharmacol. 2019; 14, 1-18.
M Cichorek, M Wachulska, A Stasiewicz and A Tymińska. Skin melanocytes: Biology and development. Postepy Dermatol. Alergol. 2013; 30, 30-41.
C Zhang, Y Lu, L Tao, X Tao, X Su and D Wei. Tyrosinase inhibitory effects and inhibition mechanisms of nobiletin and hesperidin from citrus peel crude extracts. J. Enzyme Inhib. Med. Chem. 2007; 22, 83-90.
Z Aumeeruddy-Elalfi, A Gurib-Fakim and MF Mahomoodally. Kinetic studies of tyrosinase inhibitory activity of 19 essential oils extracted from endemic and exotic medicinal plants. S. Afr. J. Bot. 2016; 103, 89-94.
BK Sharma, P Pilania, P Singh and YS Prabhakar. Combinatorial protocol in multiple linear regression/partial least-squares directed rationale for the caspase-3 inhibition activity of isoquinoline-1,3,4-trione derivatives. SAR QSAR Environ. Res. 2010; 21, 169-85.
CC Chang, MH Yang, HM Wen and JC Chern. Estimation of total flavonoid content in propolis by two complementary colorimetric methods. J. Food Drug Anal. 2002; 10, 178-82.
C Liang, JH Lim, SH Kim and DS Kim. Dioscin: A synergistic tyrosinase inhibitor from the roots of Smilax china. Food Chem. 2012; 134, 1146-8.
GD Manrique and FM Lajolo. FTIR spectroscopy as a tool for measuring degree of methyl esterification in pectins isolated from ripening papaya fruit. Postharvest Biol. Technol. 2002; 25, 99-107.
J Coates. Interpretation of infrared spectra, a practical approach. In: RA Meyers (Ed.). Encyclopedia of analytical chemistry. John Wiley & Sons Ltd, Chichester, England, 2006, p. 10815-37.
A Caunii, G Pribac, I Grozea, D Gaitin and I Samfira. Design of optimal solvent for extraction of bioactive ingredients from six varieties of Medicago sativa. Chem. Cent. J. 2012; 6, 123.
MJ Baker, J Trevisan, P Bassan, R Bhargava, HJ Butler, KM Dorling, PR Fielden, SW Fogarty, NJ Fullwood, KA Heys, C Hughes, P Lasch, PL Martin-Hirsch, B Obinaju, GD Sockalingum, J Sulé-Suso, RJ Strong, MJ Walsh, BR Wood, P Gardner and FL Martin. Using Fourier transform IR spectroscopy to analyze biological materials. Nat. Protoc. 2014; 9, 1771-91.
JR Hands, G Clemens, R Stables, K Ashton, A Brodbelt, C Davis, TP Dawson, MD Jenkinson, RW Lea, C Walker and MJ Baker. Brain tumour differentiation: Rapid stratified serum diagnostics via attenuated total reflection Fourier-transform infrared spectroscopy. J. Neurooncol. 2016; 127, 463-72.
Z Cao, Z Wang, Z Shang and J Zhao. Classification and identification of Rhodobryum roseum Limpr. and its adulterants based on fourier-transform infrared spectroscopy (FTIR) and chemometrics. PloS One 2017; 12, e0172359.
CM Topalăa and LD Tătarua. ATR-FTIR spectra fingerprinting of medicinal herbs extracts prepared using microwave extraction. Arab. J. Med. Aromat. Plants 2017; 3, 1-9.
S Hemmalakshmi, S Priyanga and K Devaki. Fourier transform infra-red spectroscopy analysis of Erythrina variegata L. J. Pharm. Sci. Res. 2017; 9, 2062-7.
T Duraka and J Depciuch. Effect of plant sample preparation and measuring methods on ATR-FTIR spectra results. Environ. Exp. Bot. 2020; 169, 103915.
B Pfaff, J Darrington, J Stover, MH Satman, F Beckmann, J Williams, M Kiefte, P Kobly and RV Son. GNU PSPP version, Available at: https://www.gnu.org/software/pspp/, accessed December 2020.
O Hammer, DAT Harper and PD Ryan. PAST: Paleontological statistics software package for education and data analysis, Available at: http://palaeo-503 electronica.org/2001_1/past/issue1_01. htm, accessed December 2020.
CM Ringle, S Wende and JM Becker. SmartPLS 3, Available at: http://www.smartpls.com, accessed December 2020.
K Singsai, A Sakdavirote, K Wechpanishkitkul, A Moonsamai and A Sakdavirote. The comparison of phenolic compounds, flavonoids and antioxidant activities of the ethanolic extracts of shoots, leaves, fruits and seeds of Leucaena leucocephala. Naresaun Phayao J. 2020; 13, 66-73.
Y Yahia, MA Benabderrahim, N Tlili, M Bagues and K Nagaz. Bioactive compounds, antioxidant and antimicrobial activities of extracts from different plant parts of two Ziziphus Mill. species. PloS One 2020; 15, e0232599.
I Meechai, W Phupong, W Chunglok and P Meepowpan. GC-MS analysis of phytoconstituents in 12 Ma-dan extracts (Garcinia schomburgkiana). Walailak J. Sci. Technol. 2015; 13, 907-12.
AN Panche, AD Diwan and SR Chandra. Flavonoids: An overview. J. Nutr. Sci. 2016; 5, e47.
AR Zuo, HH Dong, YY Yu, QL Shu, LX Zheng, XY Yu and SW Cao. The antityrosinase and antioxidant activities of flavonoids dominated by the number and location of phenolic hydroxyl groups. Chin. Med. 2018; 13, 51.
NK Lee, KH Son, HW Chang, SS Kang, H Park, MY Heo and HP Kim. Prenylated flavonoids as tyrosinase inhibitors. Arch. Pharm. Res. 2004; 27, 1132-5.
S Zolghadri, A Bahrami, MTH Khan, J Munoz-Munoz, F Garcia-Molina, F Garcia-Canovas and AA Sabourye. A comprehensive review on tyrosinase inhibitors. J. Enzyme Inhib. Med. Chem. 2019; 34, 279-309.
M Saeedi, M Eslamifar and K Khezri. Kojic acid applications in cosmetic and pharmaceutical preparations. Biomed. Pharmacother. 2019; 110, 582-93.
U Jamjai, Y Pongpaibul, N Lailerd and D Amornlerdpison. Antioxidant, anti-tyrosinase and anti-collagenase activities of virgin coconut oil and stability of its cream. Maejo Int. J. Sci. Technol. 2020; 14, 166-76.
MT Jones, HC Mahler, S Yadav, D Bindra, V Corvari, RM Fesinmeyer, K Gupta, AM Harmon, KD Hinds, A Koulov, W Liu, K Maloney, J Wang, PY Yeh and SK Singh. Considerations for the use of polysorbates in biopharmaceuticals. Pharm. Res. 2018; 35, 148.
Y Ting, YT Hu, JY Hu, WC Chang, Q Huang and SC Hsieh. Nanoemulsified adlay bran oil reduces tyrosinase activity and melanin synthesis in B16F10 cells and zebrafish. Food Sci. Nutr. 2019; 7, 3216-23.
S Sharma, S Kori and A Parmar. Surfactant mediated extraction of total phenolic contents (TPC) and antioxidants from fruits juices. Food Chem. 2015; 185, 284-8.
CHC Noh, NFM Azmin and A Amid. Principal component analysis application on flavonoids characterization. Adv. Sci. Technol. Eng. Syst. J. 2017; 2, 435-40.
O Abbas, G Compère, Y Larondelle, D Pompeu, H Rogez and V Baeten. Phenolic compound explorer: A mid-infrared spectroscopy database. Vib. Spectrosc. 2017; 92, 111-8.
