Mathematical Modeling on Vacuum Drying of Olive Pomace
DOI:
https://doi.org/10.48048/tis.2023.3822Keywords:
Olive pomace drying, Vacuum drying, Mathematical modeling, Effective moisture diffusivity, Kinetic modelAbstract
Abstract:
The thin-layer olive pomace vacuum drying behavior was experimentally investigated for 3 gauge pressures; −130, −200, −250 mbar, and for various sample thicknesses 5, 10 and 15 mm. Nine thin layer mathematical models were used to fit olive cake vacuum drying. Olive pomace vacuum drying took place in the falling rate period at all pressures and for all thicknesses, no constant rate period was observed. Among the selected models, the Diffusion Approach was found to be the most appropriate model better describing the olive pomace drying behavior. The drying rate is correlated to the depression under the thin layer and its thickness. ANOVA-Pareto variance analysis showed the predominance of gauge pressure over layer thickness on drying time and drying rate. The diffusivity coefficient increased linearly over the depression range, from 3.37657E-09 to 4.03063E-06 m2/s, as obtained using Fick’s second law.
HIGHLIGHTS
- Olive oil world production reached 3.300.000 tons in the 2020 campaign, leaving behind high quantities of oil residues mainly olive pomace harmful to the environment
- Olive pomace valorization is challenging due to its richness in moisture, drying is, therefore, an essential part of its recovery
- This research studies pomace vacuum drying for different gauge pressures and layer thicknesses
- Olive pomace drying rates are falling for all pressures and thicknesses
- The Diffusion Approach mathematical model better describes the process of olive pomace vacuum drying
- This research finding helps improve drying conditions and parameters of vacuum dryers

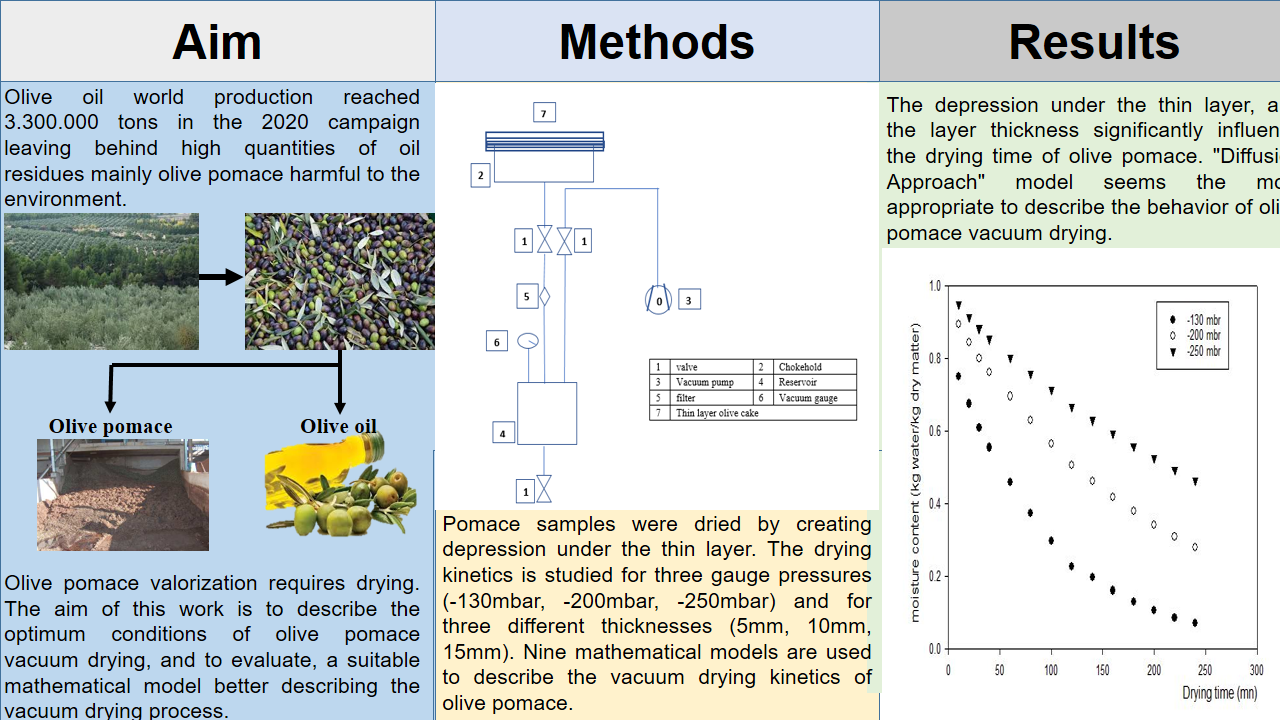

GRAPHICAL ABSTRACT
Downloads
Metrics
References
A Alcazar-Ruiz, R Garcia-Carpintero, F Dorado and L Sanchez- Silva. Valorization of olive oil industry subproducts: Ash and olive pomace fast pyrolysis. Food Bioproducts Process. 2021; 125, 37-45.
M Antónia Nunes, S Pawlowski, ASG Costa, RC Alves, MBPP Oliveira and S Velizarov. Valorization of olive pomace by a green integrated approach applying sustainable extraction and membrane-assisted concentration. Sci. Total Environ. 2019; 652, 40‑7.
FC Sampaio, JT Faria, CG Pitangui, F Lovaglio, AA Casazza, A Converti and P Perego. Optimization of spray drying microencapsulation of olive pomace polyphenols using response surface methodology and artificial neural network. LWT 2018; 93, 220‑8.
C Benincasa, M Pellegrino, L Veltri, S Claps, C Fallara, E Perri. Dried destoned virgin olive pomace: a promising new by-product from pomace extraction process. Molecules 2021; 26, 4337.
GD Giacomo and P Romano. Evolution of the olive oil industry along the entire production chain and related waste management. Energies 2022; 15, 1‑21.
P Foti, A Pino, FV Romeo, A Vaccalluzzo, C Caggia and CL Randazzo. Olive pomace and Pâté olive cake as suitable ingredients for food and feed. Microorganisms 2022; 10, 237.
N Malekjani and SM Jafari. Valorization of olive processing by-products via drying technologies: A case study on the recovery of bioactive phenolic compounds from olive leaves, pomace, and wastewater. Crit. Rev. Food Sci. Nutr. 2022; 27, 1-19.
A Chouchene. Etude expérimentale et théorique de procédés de valorisation de sous-produtis oléicoles par voies thermique et physico-chimique. HAL open science, Lyon, France, 2012.
D Balli, L Cecchi, M Innocenti, M Bellumori and N Mulinacci. Food by-products valorisation: Grape pomace and olive pomace (pâté) as sources of phenolic compounds and fiber for enrichment of tagliatelle pasta. Food Chem. 2021; 355, 129642.
AJG Sinrod, RJ Avena-Bustillos, DA Olson, LM Crawford, SC Wang and TH McHugh. Phenolics and antioxidant capacity of pitted olive pomace affected by three drying technologies. J. Food Sci. 2019; 84, 412‑20.
I Doymaz, O Gorel and NA Akgun. Drying characteristics of the solid by-product of olive oil extraction. Biosystems Eng. 2004; 88, 213-9.
JH Lee and L Zuo. Mathematical modeling on vacuum drying of zizyphus jujuba miller slices. J. Food Sci. Tech. 2013; 50, 115‑21.
MF Balzarini, MA Reinheimer, MC Ciappini and NJ Scenna. Comparative study of hot air and vacuum drying on the drying kinetics and physicochemical properties of chicory roots. J. Food Sci. Techl. 2018; 55, 4067‑78.
LA Bazyma, VP Guskov, AV Basteev, AM Lyashenko, V Lyakhno and VA Kutovoy. The investigation of low temperature vacuum drying processes of agricultural materials. J. Food Eng. 2006; 74, 410‑5.
ST Antipov, VM Arapov and DA Kazartsev. Kinetics laws as the base for mathematical simulation of microwave vacuum drying process. J. Phys. Conf. 2020; 1560, 012017.
PS Madamba, RH Driscoll and KA Buckle. The thin-layer drying characteristics of garlic slices. J. Food Eng. 1996; 29, 75‑97.
RK Goyal, ARP Kingsly, MR Manikantan and SM Ilyas. Mathematical modelling of thin layer drying kinetics of plum in a tunnel dryer. J. Food Eng. 2007; 79, 176-80.
Y Lei, J Chen, Z Zhang and X Deng. Influence of microwave vacuum drying on the effective moisture diffusivity of seedless white grapes. Food Sci. Tech. 2022; v42, e37020.
S Meziane. Drying kinetics of olive pomace in a fluidized bed dryer. Energ. Convers. Manag. 2011; 52, 1644-9.
X Liu, Z Qiu, L Wang, Y Cheng, H Qu and Y Chen. Mathematical modeling for thin layer vacuum belt drying of Panax notoginseng extract. Energ. Convers. Manag. 2009; 50, 928-32.
K Sacilik and AK Elicin. The thin layer drying characteristics of organic apple slices. J. Food Eng. 2006; 73, 281‑9.
SK Giri and S Prasad. Drying kinetics and rehydration characteristics of microwave-vacuum and convective hot-air dried mushrooms. J. Food Eng. 2007; 78, 512-21.
ARP Kingsly, VM Balasubramaniam and NK Rastogi. Influence of high-pressure blanching on polyphenoloxidase activity of peach fruits and its drying behavior. Int. J. Food Properties 2009; 12, 671-80.
T Sadi and S Meziane. Mathematical modelling, moisture diffusion and specific energy consumption of thin layer microwave drying of olive pomace. Int. Food Res. J. 2015; 22, 494-501.
HW Xiao, CL Pang, LH Wang, JW Bai, WX Yang and ZJ Gao. Drying kinetics and quality of Monukka seedless grapes dried in an air-impingement jet dryer. Biosystems Eng. 2010; 105, 233-40.
A Özkan‐Karabacak, B Acoğlu, P Yolci Ömeroğlu and ÖU Çopur. Microwave pre‐treatment for vacuum drying of orange slices: Drying characteristics, rehydration capacity and quality properties. J. Food Process Eng. 2020; 43, e13511.
C Liu, A Pirozzi, G Ferrari, E Vorobiev and N Grimi. Effects of pulsed electric fields on vacuum drying and quality characteristics of dried carrot. Food Bioproc. Tech. 2020; 13, 45-52.
S Fang, Z Wang and X Hu. Hot air drying of whole fruit Chinese jujube (Zizyphus jujuba Miller): Thin-layer mathematical modelling. Int. J. Food Sci. Tech. 2009; 44, 1818-24.
J Crank and EPJ Crank. The mathematics of diffusion. Clarendon Press, Oxford, 1979.
AR Celma, S Rojas, F López, I Montero and T Miranda. Thin-layer drying behaviour of sludge of olive oil extraction. J. Food Eng. 2007; 80, 1261-71.
F Göğüş and M Maskan. Air drying characteristics of solid waste (pomace) of olive oil processing. J. Food Eng. 2006; 72, 378-82.
EK Akpinar and Y Bicer. Mathematical modelling of thin layer drying process of long green pepper in solar dryer and under open sun. Energ. Convers. Manag. 2008; 49, 1367-75.
L Xie, Z Zhi-An, AS Mujumdar, F Xiao-Ming, J Wang, Q Zhang, Q Ma, X Hong-Wei, L Yan-Hong and G Zhen-Jiang. Pulsed vacuum drying (PVD) of wolfberry: Drying kinetics and quality attributes. Drying Tech. 2018; 36, 1501-14.
