Comparison of Ultrasonic and QuEChERS Extraction Methods Efficiency for the Determination of Herbicides Residues in Soil and Maize Cob
DOI:
https://doi.org/10.48048/tis.2022.3030Keywords:
Ultrasonic, QuEChERS, Herbicides, Maize, Soil, Gas chromatography, MRLsAbstract
In this study, the optimization and application of ultrasonic extraction and QuEChERS methods was conducted for the effective extraction of pesticides from maize and their corresponding soil samples. The characterization pesticides (Atrazine, glyphosate, 2,4-dichlorophenoxyacetic acid and mesotrione) was done with gas chromatography-flame ionization detector. Factors influencing the efficiency of the extraction methods such as the extraction solvent, extraction time, solvent volume and spiking concentration were assessed. Under the optimum experimental conditions, the recoveries of analytes ranged between 100 - 104 % in maize cop and 91 - 97 % in soil for ultrasonic method, while they were 94 - 115 % in maize cob and 89 - 101 % in soil for QuEChERS method. The repeatability, articulated as RSD values were less than 5 % for all analytes in both methods. The limits of detection and limit of quantification ranged from 0.02 - 0.15 µg L−1 and 0.2 - 0.5 µg L−1 for ultrasonic method and 0.01 - 0.23 µg L−1 and 0.13 - 0.8 µg L−1 for QuEChERS method. The lower limits of detection and quantification with higher recoveries suggests that both methods can be accurately applied for the determination of the assessed pesticides in soil and maize cop. Herbicides concentrations ranged between 0.33 - 45.10 µg L−1 in soil and 6.15 - 34.2 µg L−1 in maize cob. In all studied herbicides, maize residues detected were found to be higher compared to maize allowable maximum residue limits however, atrazine in all soil samples was found to be lower compared to soil allowable maximum residue limits. This indicates the importance of continuous monitoring the herbicides residues in maize to safeguard health for the consumers.
HIGHLIGHTS
- Crops compete with lots of undesired plants that naturally grow and compete for carbon dioxide, space, nutrients, sunshine and water
- Agricultural sector plays a significant role in food security, production and steady supply by employing herbicides and agrochemicals to achieve high crop yield in a short space of time
- Crop and soil health are evaluated for herbicides toxicity as herbicides contains toxic chemicals that poses a risk to the consumer and the environment

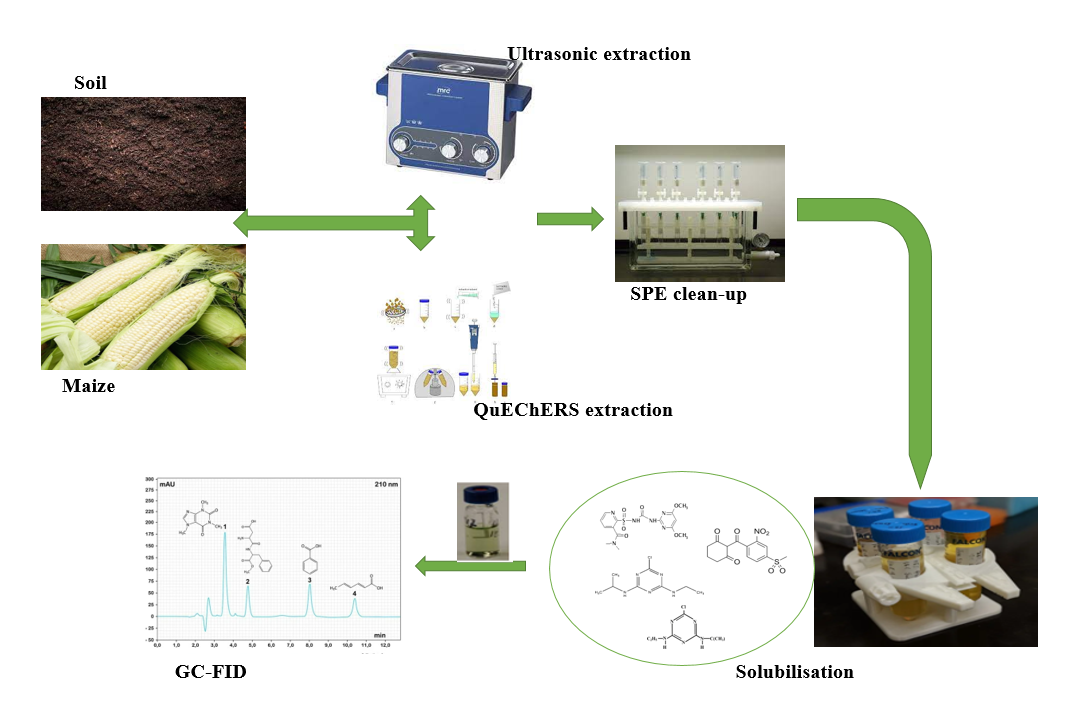

GRAPHICAL ABSTRACT
Downloads
Metrics
References
Y Song. Insight into the mode of action of 2,4‐dichlorophenoxyacetic acid (2,4‐D) as an herbicide. J. Integr. Plant Biol. 2014; 56, 106-13.
S Horn, R Pieters and T Bøhn. A first assessment of glyphosate, 2,4-D and cry proteins in surface water of South Africa. S. Afr. J. Sci. 2019; 115; 5988.
CJ Burns and GM Swaen. Review of 2,4-dichlorophenoxyacetic acid (2,4-D) biomonitoring and epidemiology. Crit. Rev. Toxicol. 2012; 42, 768-86.
DH Garabrant and MA Philbert. Review of 2,4-dichlorophenoxyacetic acid (2,4-D) epidemiology and toxicology. Crit. Rev. Toxicol. 2002; 32, 233-57.
X Dong, S Liang, Z Shi and H Sun. Development of multi-residue analysis of herbicides in cereal grain by ultra-performance liquid chromatography-electrospray ionization-mass spectrometry. Food Chem. 2016; 192, 432-40.
HS Karapınar. Adsorption performance of activated carbon synthesis by ZnCl2, KOH, H3PO4 with different activation temperatures from mixed fruit seeds. Environ. Tech. 2022; 43, 1417-35.
World Health Organization and Food and Agriculture Organization of the United Nations. Pesticide residues in food - 2018: Toxicological evaluations. World Health Organization and Food and Agriculture Organization of the United Nations, Berlin, Germany, 2018.
F Islam, J Wang, MA Farooq, MS Khan, L Xu, J Zhu, M Zhao, S Muños, XQ Li and W Zhou. Potential impact of the herbicide 2,4-dichlorophenoxyacetic acid on human and ecosystems. Environ. Int. 2018; 111, 332-51.
MT Padrón, ZS Ferrera and JS Rodríguez. Optimisation of solid-phase microextraction coupled to HPLC-UV for the determination of organochlorine pesticides and their metabolites in environmental liquid samples. Anal. Bioanalytical Chem. 2006; 386, 332-40.
HS Karapınar and A Bilgiç. A new magnetic Fe3O4@ SiO2@ TiO2-APTMS-CPA adsorbent for simple, fast and effective extraction of aflatoxins from some nuts. J. Food Compos. Anal. 2022; 105, 104261.
SS Handa, SPS Khanuja, G Longo and DD Rakesh. Extraction technologies for medicinal and aromatic plants. International Centre for Science and High Technology, Trieste, Italy, 2008.
M Anastassiades, SJ Lehotay, D Štajnbaher and FJ Schenck. Fast and easy multiresidue method employing acetonitrile extraction/partitioning and “dispersive solid-phase extraction” for the determination of pesticide residues in produce. J. AOAC Int. 2003; 86, 412-31.
ADS Pinheiro and JBD Andrade. Development, validation and application of a SDME/GC-FID methodology for the multiresidue determination of organophosphate and pyrethroid pesticides in water. Talanta 2009; 79, 1354-9.
M Asensio-Ramos, J Hernández-Borges, T Borges-Miquel and M Rodríguez-Delgado. Evaluation of multi-walled carbon nanotubes as solid-phase extraction adsorbents of pesticides from agricultural, ornamental and forestal soils. Anal. Chim. Acta 2009; 647, 167-76.
G Bernardi, M Kemmerich, LC Ribeiro, MB Adaime, R Zanella and OD Prestes. An effective method for pesticide residues determination in tobacco by GC-MS/MS and UHPLC-MS/MS employing acetonitrile extraction with low-temperature precipitation and d-SPE clean-up. Talanta 2016; 161, 40-7.
MH Petrarca, JO Fernandes, HT Godoy and SC Cunha. Multiclass pesticide analysis in fruit-based baby food: A comparative study of sample preparation techniques previous to gas chromatography-mass spectrometry. Food Chem. 2016; 212, 528-36.
MA Farajzadeh, H Sohrabi and A Mohebbi. Combination of modified QuEChERS extraction method and dispersive liquid-liquid microextraction as an efficient sample preparation approach for extraction and preconcentration of pesticides from fruit and vegetable samples. Food Anal. Meth. 2019; 12, 534-43.
H Annegowda, R Bhat, L Min-Tze, A Karim and S Mansor. Influence of sonication treatments and extraction solvents on the phenolics and antioxidants in star fruits. J. Food Sci. Tech. 2012; 49, 510-4.
A Silva, C Delerue-Matos and A Fiúza. Use of solvent extraction to remediate soils contaminated with hydrocarbons. J. Hazard. Mater. 2005; 124, 224-9.
S Babić, M Petrović and M Kaštelan-Macan. Ultrasonic solvent extraction of pesticides from soil. J. Chrom. 1998; 823, 3-9.
T Zou, P He, J Cao and Z Li. Determination of paraquat in vegetables using HPLC-MS-MS. J. Chrom. Sci. 2015; 53, 204-9.
D Mackay, WY Shiu and SC Lee. Handbook of physical-chemical properties and environmental fate for organic chemicals. CRC press, Florida, 2006.
SC Ntombela and PN Mahlambi. Method development and application for triazine herbicides analysis in water, soil and sediment samples from KwaZulu-Natal. J. Environ. Sci. Health Part B 2019; 54, 569-79.
A Bilgic, A Cimen, AN Kursunlu and HS Karapınar. Novel fluorescent microcapsules based on sporopollenin for removal and detection of Cu (II) ions in aqueous solutions: Eco-friendly design, fully characterized, photophysical&physicochemical data. Microporous Mesoporous Mater. 2022; 330, 111600.
CR Martins, WA Lopes and JBD Andrade. Organic compound solubility. Química Nova 2013; 36, 1248-55.
Y Chen, Z Jiang, D Wu, H Wang, J Li, M Bi and Y Zhang. Development of a novel bio-organic fertilizer for the removal of atrazine in soil. J. Environ. Manag. 2019; 233, 553-60.
MM Nascimento. GOD Rocha and JBD Andrade. Customized dispersive micro-solid-phase extraction device combined with micro-desorption for the simultaneous determination of 39 multiclass pesticides in environmental water samples. J. Chrom. 2021; 1639, 461781.
T Balkan and K Kara. Determination of pesticide residues in sour cherry used in the sour fruit juice production in tokat provinces. Turk. J. Agr. Food Sci. Tech. 2020; 8, 106-10.
N Khan, G Yaqub, T Hafeez and M Tariq. Assessment of health risk due to pesticide residues in fruits, vegetables, soil, and water. J. Chem. 2020; 2020, 5497952.
PN Kunene. Method development and application: Solid phase extraction (SPE), ultrasonic extraction (UE) and soxhlet extraction (SE) for the analysis of pesticides in water, soil, sediment and sludge. University of KwaZulu-Natal - Pietermaritzburg Campus, Pietermaritzburg, South Africa, 2019.
H Mnyandu and P Mahlambi. Optimization and application of QuEChERS and SPE methods followed by LC-PDA for the determination of triazines residues in fruits and vegetables from pietermaritzburg local supermarkets. Food Chem. 2021; 360, 129818.
H Mnyandu and P Mahlambi. Determination of triazines residues in fruits and vegetables: Methods comparison of ultrasonic solvent extraction with and without solid phase clean-up. Separ. Sci. Tech. 2022; 57, 2056-64.
