Effect of Combining Maize Straw and Palm Oil Fuel Ashes in Concrete as Partial Cement Replacement in Compression
DOI:
https://doi.org/10.48048/tis.2021.29Keywords:
Cement replacement, Concrete, Compressive strength, Maize straw ash, Palm oil fuel ashAbstract
The high energy consumption connected with cement manufacturing, as well as the depletion of limestone resources and the release of carbon dioxide, which contributes to global warming, are all important issues that must be addressed. Partially replacing cement with agricultural wastes in concrete, which reduces cement output, is an innovative solution to this problem. This paper examined the effect of combining Palm Oil Fuel Ash (POFA) and Maize Straw Ash (MSA) as partial replacement of cement on the compressive strength of Grade 20 concrete at 0 - 30 % POFA and 0 - 30 % MSA using Historical data under the Response Surface study in Design-Expert software. The concrete cubes were tested at 7, 28, and 56 days of curing. It was discovered that there was a decrease in the compressive strength of the concrete with the percentage increase in the quantity of the POFA and MSA for all the curing days considered. However, there was a progressive increase in the compressive strength with an increase in the days of curing. The optimum combination of percentages of POFA, MSA and cement that gave a strength greater than the target compressive strength of 20 N/mm2 in 56 days is 30 % POFA and 16.6 % MSA and 53.4 % Cement at 0.58 water-cement ratio.
HIGHLIGHTS
- Combining Palm Oil Fuel Ash and Maize Straw Ash as partial replacement of cement
- Using Historical data under the Response Surface study in Design-Expert software
- A decrease in the compressive strength of concrete with increase in the quantity of the POFA and MSA
- Optimum combination for strength greater than 20 N/mm2 in 56 days obtained

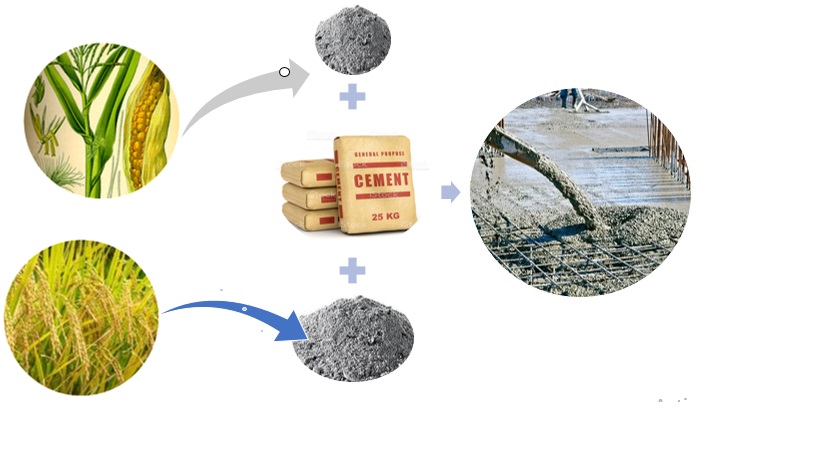

GRAPHICAL ABSTRACT
Downloads
Metrics
References
SO Odeyemi, OD Atoyebi and EK Ayo. Effect of guinea corn husk ash on the mechanical properties of lateritic concrete. IOP Conf. Ser. Earth Environ. Sci. 2020; 445, 1-11.
N Cobirzan, A Balog and E Mosonyi. Investigation of the natural pozzolans for usage in cement industry. Procedia Technology. In: Proceedings of the 8th International Conference Interdisciplinarity in Engineering, Romania. 2015, p. 506-11.
SO Odeyemi, R Abdulwahab, AG Adeniyi and OD Atoyebi. Physical and mechanical properties of cement-bonded particle board produced from African Balsam tree (Populous Balsamifera) and Periwinkle shell residues. Results Eng. 2020; 6, 1-12.
CC Ikeagwuani, DC Nwonu, DA Obetule, MU Omeje and T Festus. Potential of bamboo stem ash as supplementary cementitious material in concrete production. Int. J. Eng. Res. 2019; 8, 75-80.
M Kasaniya, MDA Thomas and EG Moffatt. Pozzolanic reactivity of natural pozzolans, ground glasses and coal bottom ashes and implication of their incorporation on the chloride permeability of concrete. Cem. Concr. Res. 2021; 139, 1-12.
SO Odeyemi, MA Anifowose, R Abdulwahab and WO Oduoye. Mechanical properties of high-performance concrete with guinea corn husk ash as additive. LAUTECH J. Civ. Environ. Stud. 2020; 5, 139-54.
AT Muhammad, A Abdulaziz, M Noridah, OM Md Azree, ZM Muhamad and AI Muhamad. Effect of combining Palm Oil Fuel Ash (POFA) and Rice Husk Ash (RHA) as partial cement replacement to the compressive strength of concrete. Int. J. Integr. Eng. 2018; 10, 61-7.
OJ Oyedepo, LM Olanitori and EO Olukanni. Investigation of palm kernel shell as partial replacement for aggregate in asphaltic concrete. Malaysian J. Civ. Eng. 2015; 27, 223-34.
BS EN 197-1:2011 Cement. Composition, specifications and conformity criteria for common cements. British Standards Institution, London, 2011.
S Karthik, PRM Rao and PO Awoyera. Strength properties of bamboo and steel reinforced concrete containing manufactured sand and mineral admixtures. J. King Saud Univ. Eng. Sci. 2017; 29, 400-6.
GD Okwadha. Partial replacement of cement by plant solid waste ash in concrete production. J. Mech. Civ. Eng. 2016; 13, 35-40.
DC Ugwuanyi and PN Onuamah. Suitability of agricultural by-products in Nigeria as partial replacement to cement in infrastructural projects: A review. GSJ. 2018; 6, 368-77.
AA Raheem and EO Ibiwoye. A study of neem seed husk ash as partial replacement in concrete. Int. J. Sustain. Constr. Eng. Technol. 2018; 9, 55-64.
DA Opeyemi, MP Otuaga and V Oluwasegunfunmi. Synergic effect of maize straw ash and rice husk ash on strength properties of sandcrete. Eur. J. Eng. Technol. 2013; 1, 32-9.
T Qi, H Wang, G Feng, X Du, Z Wang and S Zhang. Effects of corn stalk fly ash (CSFA) on the mechanical and deformation properties of cemented coal gangue backfill. Hindawi Adv. Mater. Sci. Eng. 2020; 2020 , 1-14.
BS Thomas, S Kumar and HS Arel. Sustainable concrete containing palm oil fuel ash as a supplementary cementitious material: A review. Renew. Sustain. Energy Rev. 2017; 80, 550-61.
W Sanawung, T Cheewaket, W Tangchirapat and C Jaturapitakkul. Influence of palm oil fuel ash and W/B ratios on compressive strength, water permeability, and chloride resistance of concrete. Hindawi Adv. Mater. Sci. Eng. 2017; 2017, 8.
J Pone, A Ash, J Kamau and F Hyndman. Palm oil fuel ash as a cement replacement in concrete. Mod. Approaches Mater. Sci. 2018; 1, 4-8.
NIS 444-1. Composition, specification and conformity criteria for common cements. Standards Organisation of Nigeria, Federal Capital Territory, 2003, p.13.
BS EN 12620:2002+A1:2008. Specification for aggregates from natural sources for concrete. British Standards, London, 2008.
AM Neville. Properties of Concrete, 5th ed. Pearson Education Ltd., London, 2011.
MS Shetty. Concrete Technology Theory and Practice. S. Chand and Company Ltd., New-Delhi, India, 2008.
JE Bowles. Foundation Analysis and Design. The McGraw-Hill Companies, Inc., New York, 1996.
T Mehmannavaz, M Ismail, S Radin Sumadi, MA Rafique Bhutta, M Samadi and SM Sajjadi. Binary effect of fly ash and palm oil fuel ash on heat of hydration aerated concrete. Sci. World J. 2014; 2014, 6.
BS EN 206:2013+A1:2016. Concrete. Specification, performance, production and conformity. 2016.
DA Adesanya and AA Raheem. Development of corn cob ash blended cement. Constr. Build. Mater. 2009; 23, 347-52.
K Voit, O Zeman, I Janotka, R Adamcova and K Bergmeister. High-durability concrete using eco-friendly slag-pozzolanic cements and recycled aggregate. Appl. Sci. 2020; 10, 1-21.
AH Vakili, MR Selamat and H Moayedi. Effects of using pozzolan and portland cement in the treatment of dispersive clay. Sci. World J. 2013; 2013, 1-12.
BS EN 12390-3:2009. Testing hardened concrete - compressive strength of test specimens. British Standards, London. 2009.
BS 812-103.1:1985. Methods for determination of particle size distribution-section 103.1 sieve tests. British Standards, London, 1989.
OO Ogunleye, O Adio, TO Salawudeen and OO Agbede. Optimal adsorption parameters of banana (Musa paradisiaca) stalk based activated carbon for removal of lead (II) from aqueous solution. Int. J. Sci. Eng. Res. 2015; 6, 499-507.
