Enhancement Sensitivity and Selectivity of Ammonium Hydroxide Using Nitrogen-Doped Double-Walled Carbon Nanotubes
DOI:
https://doi.org/10.48048/tis.2022.2891Keywords:
Nitrogen-doped double-walled carbon nanotubes, Chemical vapor deposition, Ammonium hydroxide, UreaAbstract
Nitrogen-doped double-walled carbon nanotubes (N-DWCNTs) were synthesized by floating catalytic chemical vapor deposition (FCCVD) at 1300 °C using ethanol and urea as carbon and nitrogen sources. For comparison, the undoped double-walled carbon nanotubes (DWCNTs) were synthesized by FCCVD using ethanol as carbon source. Synthesized DWCNTs and N-DWCNTs were separately dispersed in ethanol and separately dropped onto printed circuit board substrate. The fabricated sensors were detected to ammonium hydroxide (NH4OH), acetone and ethanol vapors at part per million level. The sensor response results show that N-DWCNTs are highly sensitive to NH4OH. In the case of volatile organic compounds detection, DWCNTs and N-DWCNTs exhibit similar response to acetone and ethanol. The fabricated sensor from N-DWCNTs to NH4OH vapor was 4-fold higher than that of fabricated sensor from undoped DWCNTs. The sensing mechanism of N-DWCNTs can be attributed to the charge transfer between N-DWCNTs and NH4OH molecule. Nitrogen site has a higher response, resulting in an enhancement the selectivity and sensitivity to NH4OH. The total atomic percentage of N-DWCNTs is approximately 0.90 at%. The results suggest that the heteroatom-doping of nitrogen is a promising approach for improving the sensitivity and selectivity for NH4OH detection.
HIGHLIGHTS
- N-DWCNTs were synthesized by FCCVD method using ethanol and urea
- Nitrogen site in N-DWCNTs is highly sensitive and selective to NH4OH
- N-DWCNTs enabled 4-fold improved NH4OH compared with undoped DWCNTs

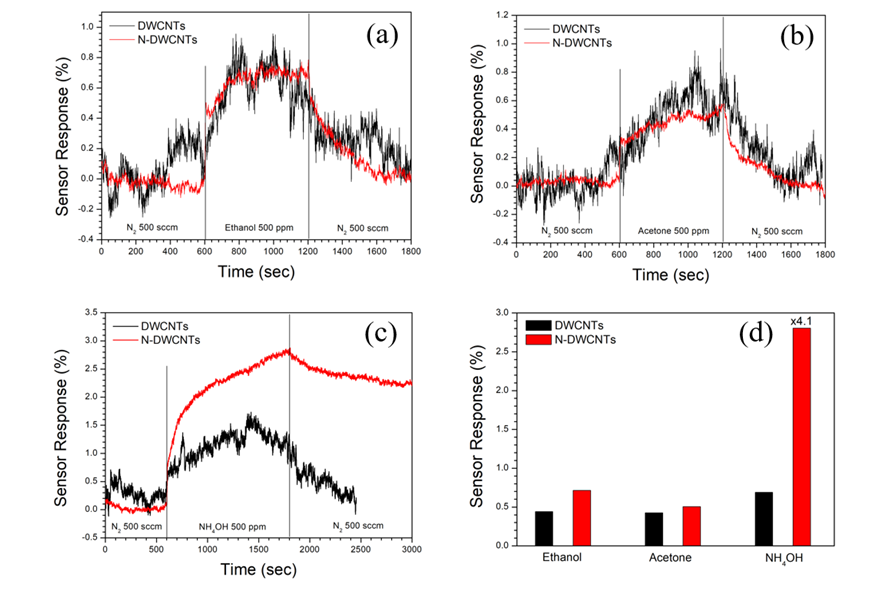

GRAPHICAL ABSTRACT
Downloads
Metrics
References
S Iijima. Helical microtubules of graphitic carbon. Nature 1991; 354, 56-8.
S Iijima and T Ichihashi. Single-walled carbon nanotubes of 1-nm diameter. Nature 1993; 363, 603-5.
S Hong and S Myung. Nanotube electronics: A flexible approach to mobility. Nat. Nanotechnol. 2007; 2, 207-8.
P Kim, L Shi, A Majumdar and PL McEuen. Thermal transport measurements of individual multiwalled nanotubes. Phys. Rev. Lett. 2001; 87, 215502.
BG Demczyk, YM Wang, J Cumings, M Hetman, W Han, A Zettl and RO Ritchie. Direct mechanical measurement of the tensile strength and elastic modulus of multiwalled carbon nanotubes. Mater. Sci. Eng. A 2002; 334, 173-8.
E Pop, D Mann, Q Wang, K Goodson and HJ Dai. Thermal conductance of an individual single-walled carbon nanotube above room temperature. Nano Lett. 2006; 6, 96-100.
SB Sinnott and R Andrews. Carbon nanotubes: Synthesis, properties, and applications. Crit. Rev. Solid State Mater. Sci. 2010; 26, 37-41.
A Peigney, C Laurent, E Flahaut, RR Basca and A Rousset. Specific surface area of carbon nanotubes and bundles of carbon nanotubes. Carbon 2001; 39, 507-14.
C Subramaniam, T Yamada, K Kobashi, A Sekiguchi, DN Futaba, M Yumura and K Hata. One hundred fold increase in current carrying capacity in a carbon nanotube-copper composite. Nat. Commun. 2013; 4, 2202.
J Kong, NR Franklin, C Zhou, MG Chapline, S Peng, K Cho and H Dai. Nanotube Molecular wires as chemical sensors. Science 2000; 287, 622-5.
JJ Adjizian, R Leghrib, AA Koos, I Suarez-Martinez, A Crossley, P Wagner, N Grobert, E Llobet and CP Ewels. Boron- and nitrogen-doped multi-walled carbon nanotubes for gas detection. Carbon 2014; 66, 662-73.
Y Battie, O Ducloux, P Thobois, T Susi, EI Kauppinen and A Loiseau. Selective differential ammonia gas sensor based on N-doped SWCNT films. Phys. Status Solidi B 2011, 248, 2462-6.
W Muangrat, W Wongwiriyapan, V Yordsri, T Chobsilp, S Inpaeng, C Issro, O Domanov, P Ayalay, T Pichler and L Shi. Unravel the active site in nitrogen-doped double-walled carbon nanotubes for nitrogen dioxide gas sensor. Phys. Status Solidi A 2018; 215, 1800004.
W Ren, F Li, J Chen, S Bai and HM Cheng. Morphology, diameter distribution and Raman scattering measurements of double-walled carbon nanotubes synthesized by catalytic decomposition of methane. Chem. Phys. Lett. 2002; 359, 196-202.
M Dresselhaus, G Dresselhaus and R Saito. Physics of carbon nanotubes. Carbon 1995; 33, 883-91.
T Grace, L Yu, C Gibson, D Tune, H Alturaif, ZA Othman and J Shapter. Investigating the effect of carbon nanotube diameter and wall number in carbon nanotube/silicon heterojunction solar cells. Nanomaterials 2016; 6, 52.
J Arvanitidis, D Christofilos, K Papagelis, KS Andrikopoulos, T Takenobu, Y Iwasa, H Kataura, S Ves and GA Kourosklis. Pressure screening in the interior of primary shells in double-walled carbon nanotubes. Phys. Rev. B 2005; 71, 125404.
J Arvanitidis, D Christofilos, K Papagelis, T Takenobu, Y Iwasa, H Kataura, S Ves and GA Kourosklis. Double-walled carbon nanotubes under pressure: Probing the response of individuals tubes their intratube correlation. Phys. Rev. B 2005; 72, 193411.
Z Wang, M Shoji, H Ogata. Carbon nanosheets by microwave plasma enhanced chemical vapor deposition in CH4-Ar system. Appl. Surf. Sci. 2011; 257, 9082-5.
Z Wang, M Shoji, K Baba, T Ito and H Ogata. Microwave plasma-assisted regeneration of carbon nanosheets with bi- and trilayer of graphene and their application to photovoltaic cells. Carbon 2014; 67, 326-35.
A Ganguly, S Sharma, P Papakonstantinou, J Hamilton. Probing the thermal deoxygenation of graphene oxide using high-resolution in situ X-ray-based spectroscopies. J. Phys. Chem. C 2011; 115, 17009-19.
T Susi, T Pichler and P Ayala. X-ray photoelectron spectroscopy of graphitic carbon nanomaterials doped with heteroatoms. Beilstein J. Nanotechnol. 2015; 6, 177-92.
C Reichardt. Solvents and solvent effects in organic chemistry. 3rd ed. Wiley-VCH, Weinheim, Germany, 2003, p. 419-21.
K Parikh, K Cattanach, R Rao, DS Suh, A Wu and SK Manohar. Flexible vapour sensors using single walled carbon nanotubes. Sens. Actuators B 2006; 113, 55-63.
T Kim and D Kwak. Flexible VOC sensors using conductive polymers and porous membranes for application to textiles. Fiber Polym. 2012; 13, 471-74.
W Muangrat, T Chodjarusawad, R Maolanon, S Pratontep, S Porntheraphat and W Wongwiriyapan. Poly(methyl methacrylate) and thiophene-coated single-walled carbon nanotubes for volatile organic compound discrimination. Jpn. J. Appl. Phys. 2016; 55, 02BD04.
F Villalpando-Paez, AH Romero, E Munoz-Sandoval, LM Martinez, H Terromes and M Terrones. Fabrication of vapor and gas sensors using films of aligned CNx nanotubes. Chem. Phys. Lett. 2004; 386, 137-43.
L Bai and Z Zhou. Computational study of B or N-doped single-walled carbon nanotubes as NH3 and NO2 sensors. Carbon 2007; 45, 2105-10.
YS Min, EJ Bae, UJ Kim, EH Lee, N Park, CS Hwang and W Park. Unusual transport characteristics of nitrogen-doped single-walled carbon nanotubes. Appl. Phys. Lett. 2008; 93, 043113.
J Li, Y Lu, QL Ye, J Han and M Meyyappan. Carbon nanotube based chemical sensors for gas and vapor detection. Nano Lett. 2003; 3, 929-33.
W Wongwiriyapan, SI Honda, H Konishi, T Mizuta, T Ikuno, T Ito, T Maekawa, K Suzuki, H Ishikawa, K Oura and M Katayama. Single-walled carbon nanotube thin-film sensor for ultrasensitive gas detection. Jpn. J. Appl. Phys. 2005; 44, L482.
