Updraft Gasifier-Stirling Engine Biomass Incineration System Power Generation
DOI:
https://doi.org/10.48048/tis.2022.2170Keywords:
Stirling engine, Updraft gasifier, Praduak wood chips, Charcoal, Engine performanceAbstract
Biomass, the world's largest renewable energy source, will continue to grow in the following energy markets. As a result, small biomass conversion systems are more competitive than large stand-alone converters because most of the biomass sources have low energy density and are widely distributed in space. The current study offers a small solid biomass power generation system to examine the possibility of direct connection of updates fixed bed gasifiers and a Stirling engine. The fixed bed updraft gasifier uses a combustion burner built into the gasifier to completely burn the synthetic gas produced by the gasifier. The exhaust gases generated by the synthesis gas combustion in the combustion tube are directed to the Stirling engine heater head. The engine then converts the heat contained in the exhaust gases. Output depends on the heat input. And the heat input is proportional to the flue gas flow rate and temperature Preliminary studies on the proposed straight couplings of the energy derived from the gasifier to mechanical energy of 300 mW and electrical energy of 50 mW. The outcomes of the Stirling engine with Updraft gasifier test shows that Pradauk biomass is more effective than charcoal biomass. Current research shows that no supplemental fuel is needed to keep the current system running smoothly. The technology and units presented can be considered as a viable solid biomass power generation system and enlarge to produce more electricity in rural areas of Thailand in the next step.
HIGHLIGHTS
- The outcomes of the Stirling engine with Updraft gasifier test shows that Pradauk biomass is more effective than charcoal biomass
- The technology and units presented can be considered as a viable solid biomass power generation system and enlarge to produce more electricity in rural areas of Thailand in the next step
- Current studies show that the proposed system is technically feasible because it can generate electricity without interference so as to maintain an almost stable process

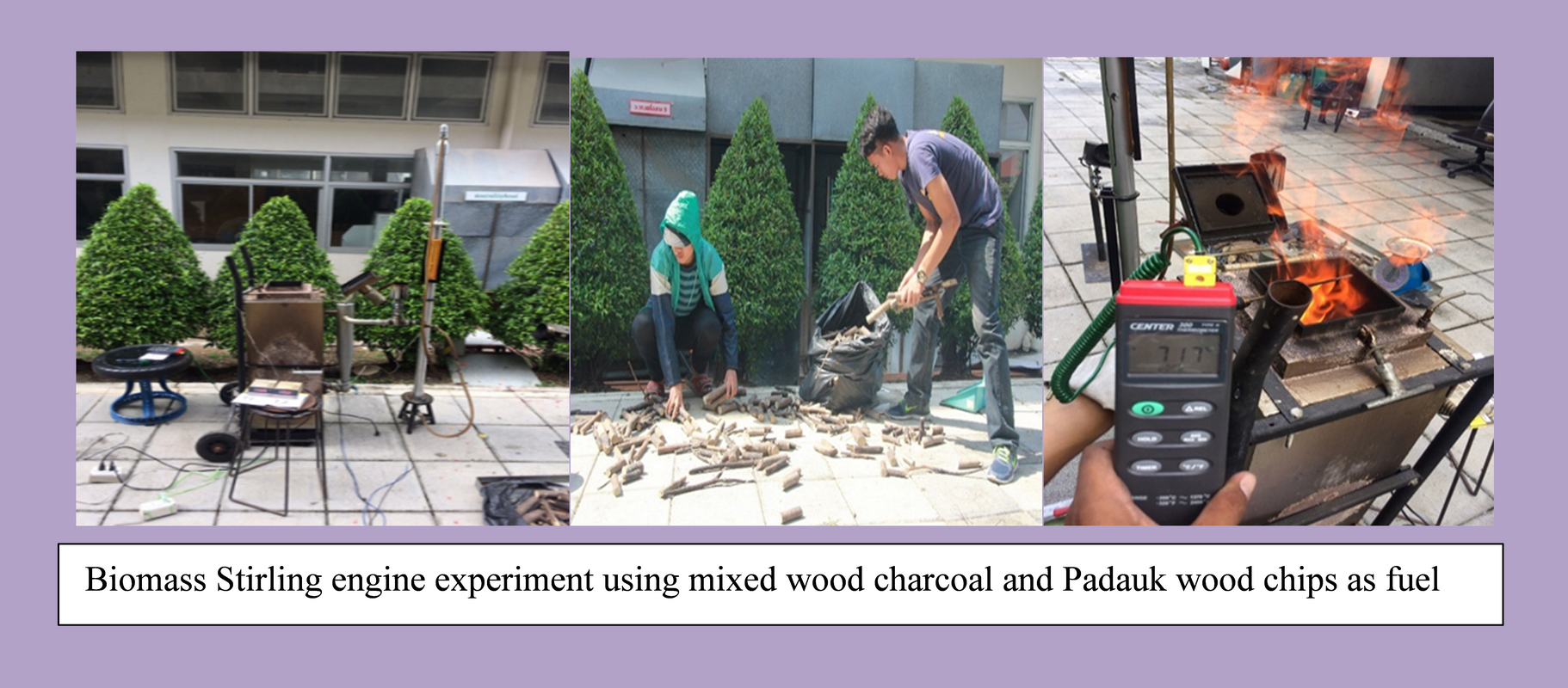

GRAPHICAL ABSTRACT
Downloads
Metrics
References
W Hatje and M Ruhl. Use of biomass for power- and heat-generation possibilities and limits. Ecol. Eng. 2000; 16, 41-9.
D Hall. Biomass energy in industrialized countries-a view of the future. For. Ecol. Manag. 1997; 91, 17-45.
HN Carlsen, N Ammundsen and J Traerup. 40 kW Stirling engine for solid fuel. In: Proceedings of the 31st Intersociety Energy Conversion Engineering Conference, Washington, DC, USA. 1996, p. 23-34.
N Jensen and J Werling. CHP from updraft gasifier and Stirling engine. In: Proceedings of the 12th European Biomass Conference, Amsterdam, The Netherlands. 2002, p. 131-49.
N Lane and W Beale. Micro-biomass electric power generation. In: Proceedings of the 3rd Biomass Conference of the America, Montreal, Canada. 1997, p. 83-104.
STM Power Inc. STM Power Unit Model 4-260 Landfill Gas. 2005, Available at: http://www.stmpower.com/Markets/Landfill%20Gas%20Brochure.pdf, accessed September 2020.
E Scoditti and N Barker. Thermal gasification of biomass 2001-2003, task 33 of IEA bioenergy agreement. IEA Bioenergy, 2004.
JC Lin. Development of an updraft fixed bed gasifier with an embedded combustor fed by solid biomass. J. Chin. Inst. Eng. 2006; 29, 557-62.
JH Leu. Biomass power generation through direct integration of updraft gasifier and stirling engine combustion system. Adv. Mech. Eng. 2010; 2, 1-7.
Application of Biomass-powered Stirling Engines in Cogenerative systems, Available at: http://www.inÞniacorp.com/, accessed September 2020.
J Vos. Biomass Energy for Heating and Hot Water Supply in Belarus 2004, Available at: http://energoeffekt.gov.by, accessed September 2020.
Gasification in Stirling Engine Applications, Available at: http://www.stirling.dk, accessed September 2020.
M Szewczyk and T Trzepieciński. Application of biomass-powered Stirling engines in cogenerative systems. Econtech. An Int. Quart. J. 2012; 01, 53-6.
W Niemiec and M Szewczyk. Mo liwo ci wyko-rzystania odnawialnych ródeá energii w Województwie Podkarpackim, Budownictwo Przemysáowe, Energoosz-cz dnoĞ , Nr 1. 2010; 6, 11-4.
W Niemiec, F Stachowicz, M Szewczyk and T Trze-pieci ski. Analiza mo liwo ci kompleksowego wykorzystania OZE w gospodarstwie agroturystycznym. Zeszyty Naukowe Politechniki Rzeszowskiej, Budow-nictwo I In ynieria ĝrodowiska. 2010; 57, 357-65.
M Rockni. Thermodynamic and thermoeconomic analysis of a system with biomass gasification, solid oxide fuel cell (SOFC) and Stirling engine. Energy 2014; 76, 19-31.
H Damirchi, G Najafi, S Alizadehnia, B Ghobadian, T Yusaf and R Mamat. Design, fabrication and evaluation of gamma-type stirling engine to produce electricity from biomass for the micro-CHP system. Energ. Proc. 2015; 75, 137-43.
SCHMIDT ANALYSIS FOR STIRLING ENGINES, Available at: https://www.ohio.edu/mechanical/
stirling/isothermal/Schmidt.pdf, accessed September 2020.
Jean-Pierre Vandormael Isothermic Calculation of a Stirling Engine: Alpha, Beta or Gamma, Available at: http://www.moteurstirling.com/pdf/calculuk.xls, accessed September 2020.
